Movement Symbols
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

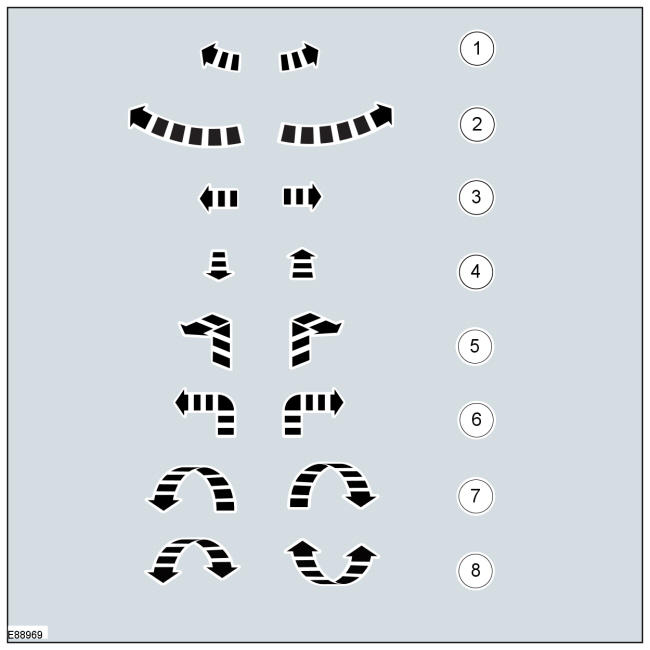

Movement symbols provide detailed information to a required component movement. These component movements can be rotational or 1-3 dimensional movements.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Minor component movement clockwise/counterclockwise |
| 2 | -- | Major component movement clockwise/counterclockwise |
| 3 | -- | Component movement to the left/right/up/down |
| 4 | -- | Component movement towards/away |
| 5 | -- | 3 dimensional component movement |
| 6 | -- | 2 dimensional component movement |
| 7 | -- | 3 dimensional component rotation |
| 8 | -- | 3 dimensional component cycling |
