Miscellaneous symbols
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

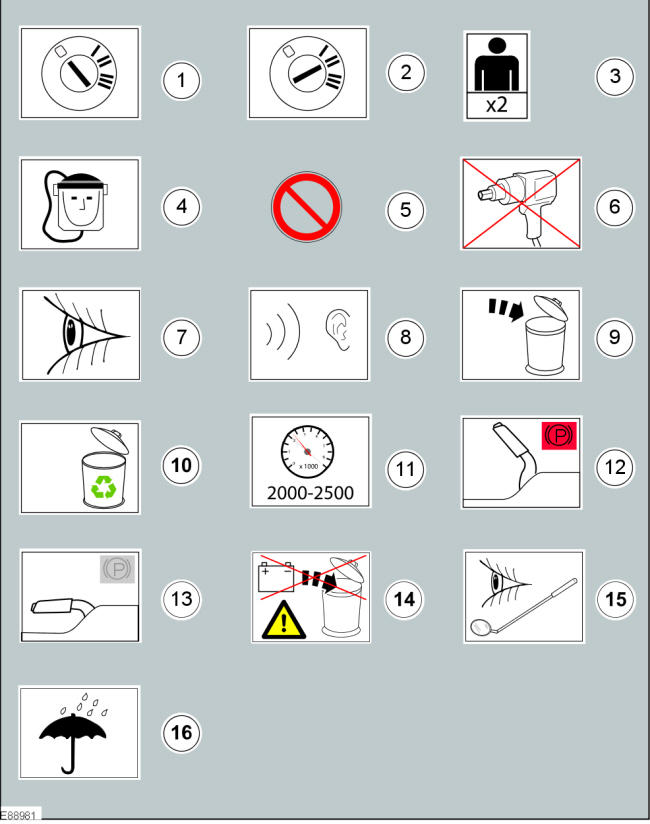

These symbols provide further information that is required to carry out a procedure step.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Set the ignition switch to the 0 position |
| 2 | -- | Set the ignition switch to the II position |
| 3 | -- | The procedure step requires the aid of the specified number of supporting technicians |
| 4 | -- | Self contained breathing apparatus |
| 5 | -- | General prohibition used in combination with another symbol |
| 6 | -- | Do not use power tools |
| 7 | -- | Visual check |
| 8 | -- | Noise check |
| 9 | -- | Dispose the specified component |
| 10 | -- | Replaced by item 9 (Dispose the specified component) |
| 11 | -- | Set the engine speed to the specified value |
| 12 | -- | Fully apply the parking brake lever |
| 13 | -- | Fully release the parking brake lever |
| 14 | -- | Do not dispose of batteries into the waste bin |
| 15 | -- | Visual check using a mirror |
| 16 | -- | Area/component must be dry |
