Material symbols
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

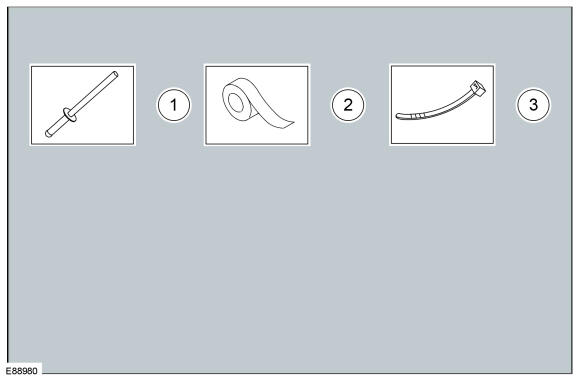

The material symbols are used to show where to use which type of material to carry out a procedure step.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
-- |
Remove/Install the specified blind rivet |
| 2 |
-- |
Apply tape to the specified component/area |
| 3 |
-- |
Remove/Install the specified cable tie |
