Gearshift lever and selector lever position symbols
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

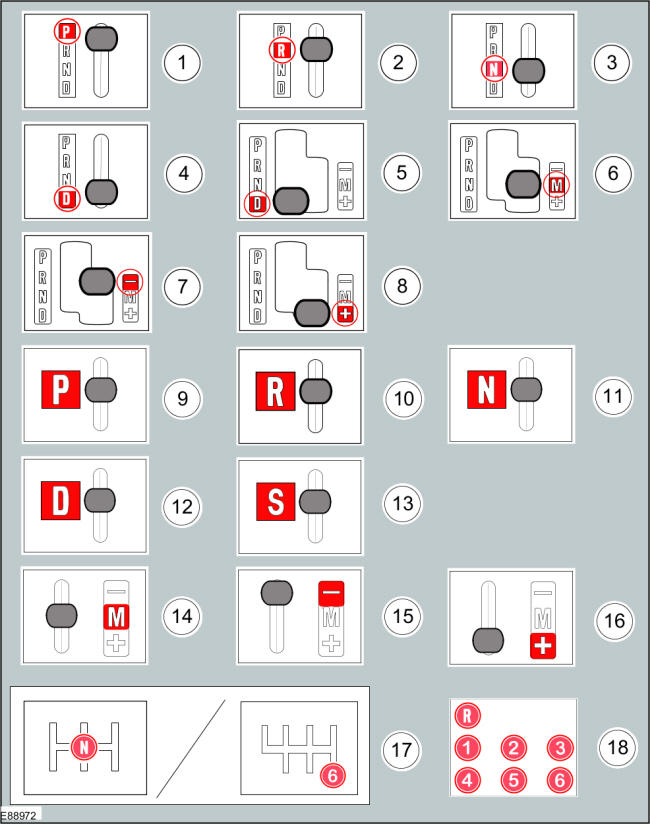

Gearshift lever and selector lever position symbols are used to show the lever position that is required to be selected to carry out a procedure step.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Replaced by symbol 9 |
| 2 | -- | Replaced by symbol 10 |
| 3 | -- | Replaced by symbol 11 |
| 4 | -- | Replaced by symbol 12 |
| 5 | -- | Replaced by symbol 12 |
| 6 | -- | Replaced by symbol 14 |
| 7 | -- | Replaced by symbol 15 |
| 8 | -- | Replaced by symbol 16 |
| 9 | -- | Set the selector lever to the park (P) position |
| 10 | -- | Set the selector lever to the reverse (R) position |
| 11 | -- | Set the selector lever to the neutral (N) position |
| 12 | -- | Set the selector lever to the drive (D) position |
| 13 | -- | Set the selector lever to the drive (S) position |
| 14 | -- | Set the selector lever to the drive (M) position |
| 15 | -- | Set the selector lever to the drive (-) position |
| 16 | -- | Set the selector lever to the drive (+) position |
| 17 | -- | Set the gearshift lever to the neutral (N) position |
| 18 | -- | Further gearshift lever positions that may appear in illustrations |
