Drilling and grinding symbols
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

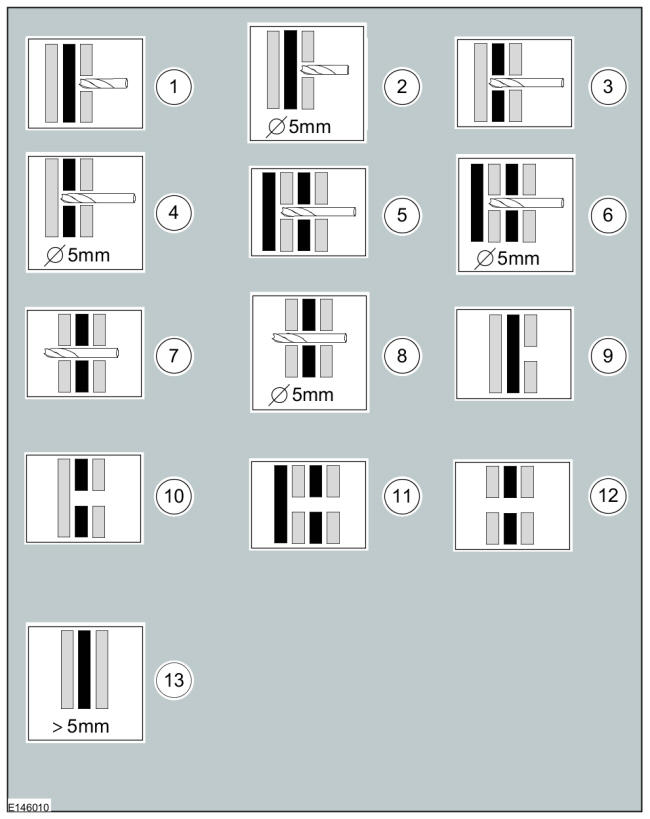

These symbols indicate the type of drilling or grinding to be used.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Drill through first body layer with a suitable diameter |
| 2 | -- | Drill through first body layer with the specified diameter |
| 3 | -- | Drill through the indicated number of body layers with a suitable diameter |
| 4 | -- | Drill through the indicated number of body layers with the specified diameter |
| 5 | -- | Drill through the indicated number of body layers with a suitable diameter |
| 6 | -- | Drill through the indicated number of body layers with the specified diameter |
| 7 | -- | Drill through all body layers with a suitable diameter |
| 8 | -- | Drill through all body layers with the specified diameter |
| 9 | -- | Grind one layer |
| 10 | -- | Grind two layers |
| 11 | -- | Grind to last layer |
| 12 | -- | Grind all layers |
| 13 | -- | Material thickness > Xmm |
