Drill symbols
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

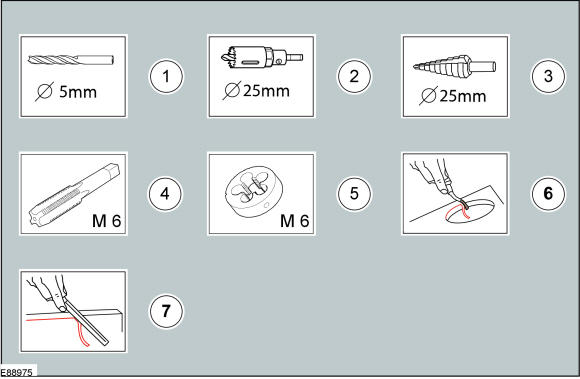

The drill symbols are used to show which type and size of drill bit is recommended to carry out a procedure step.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Drill bit with a specified diameter |
| 2 | -- | Hole saw with a specified diameter |
| 3 | -- | Stepped drill bit with a specified diameter |
| 4 | -- | Tap with a specified diameter |
| 5 | -- | Die with a specified diameter |
| 6 | -- | Scraper for circular holes |
| 7 | -- | Scraper for straight edges |
