Control Diagram symbols - Description and Operation procedures
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

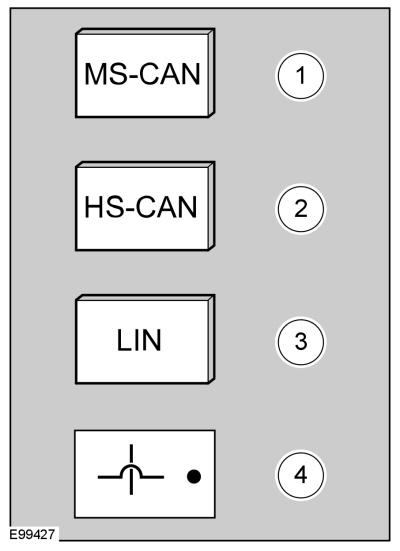

These symbols provide further information on the type of connectivity, direction of flow or type of data bus of a system.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Mid-speed Controller Area Network (CAN) |
| 2 | -- | High-speed Controller Area Network (CAN) |
| 3 | -- | Local Interconnect Network (LIN) |
| 4 | -- | Wires crossing not connected |
