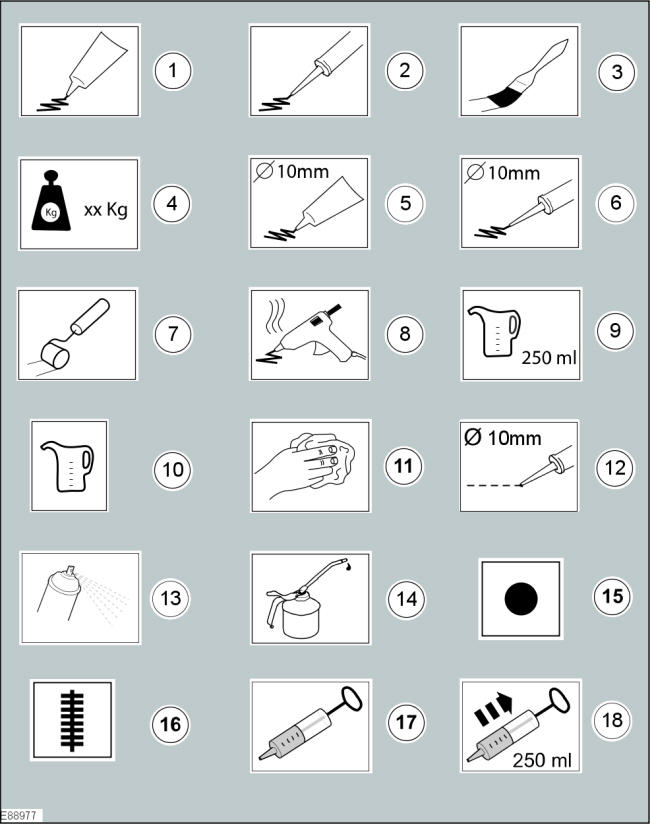

The apply chemical or load symbols are used to show where to apply which type of chemical or load to carry out a procedure step.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Apply the substance from the specified tube |
| 2 | -- | Apply the substance from the specified cartridge |
| 3 | -- | Apply the specified chemical with a brush |
| 4 | -- | Apply the specified load to the specified component |
| 5 | -- | Apply a bead with a specific diameter from the specified tube |
| 6 | -- | Apply a bead with a specific diameter from the specified cartridge |
| 7 | -- | Apply the specified chemical with a roller |
| 8 | -- | Apply hot glue to the specified component |
| 9 | -- | Apply the specified amount of fluid from the fluid can |
| 10 | -- | Apply fluid from the fluid can |
| 11 | -- | Clean the specified component with the specified material |
| 12 | -- | Apply a broken bead from the specified tube |
| 13 | -- | Apply the specified chemical from a spray can |
| 14 | -- | Apply the specified lubricant to the specified component |
| 15 | -- | Apply spot welds to the specified component |
| 16 | -- | Apply a continuous weld to the specified component |
| 17 | -- | Handle the fluid using a syringe |
| 18 | -- | Extract the specified amount of fluid using a syringe |
