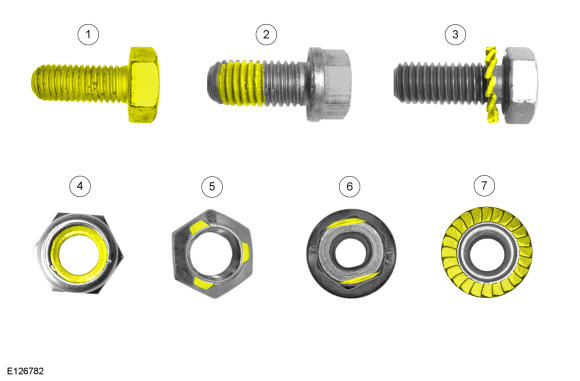

Examples of self-locking nuts and bolts
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Completely coated self-locking bolt |
| 2 | -- | Partially coated self-locking bolt |
| 3 | -- | Self-locking bolt with a locking washer |
| 4 | -- | Self-locking nut with a plastic locking insert |
| 5 | -- | Self-locking nut with thread deformation (3 indentations) |
| 6 | -- | Self-locking nut with thread deformation (to oval shape) |
| 7 | -- | Self-locking nut with integrated locking ring |
