Turn Signal/Stop/Hazard Lamps

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

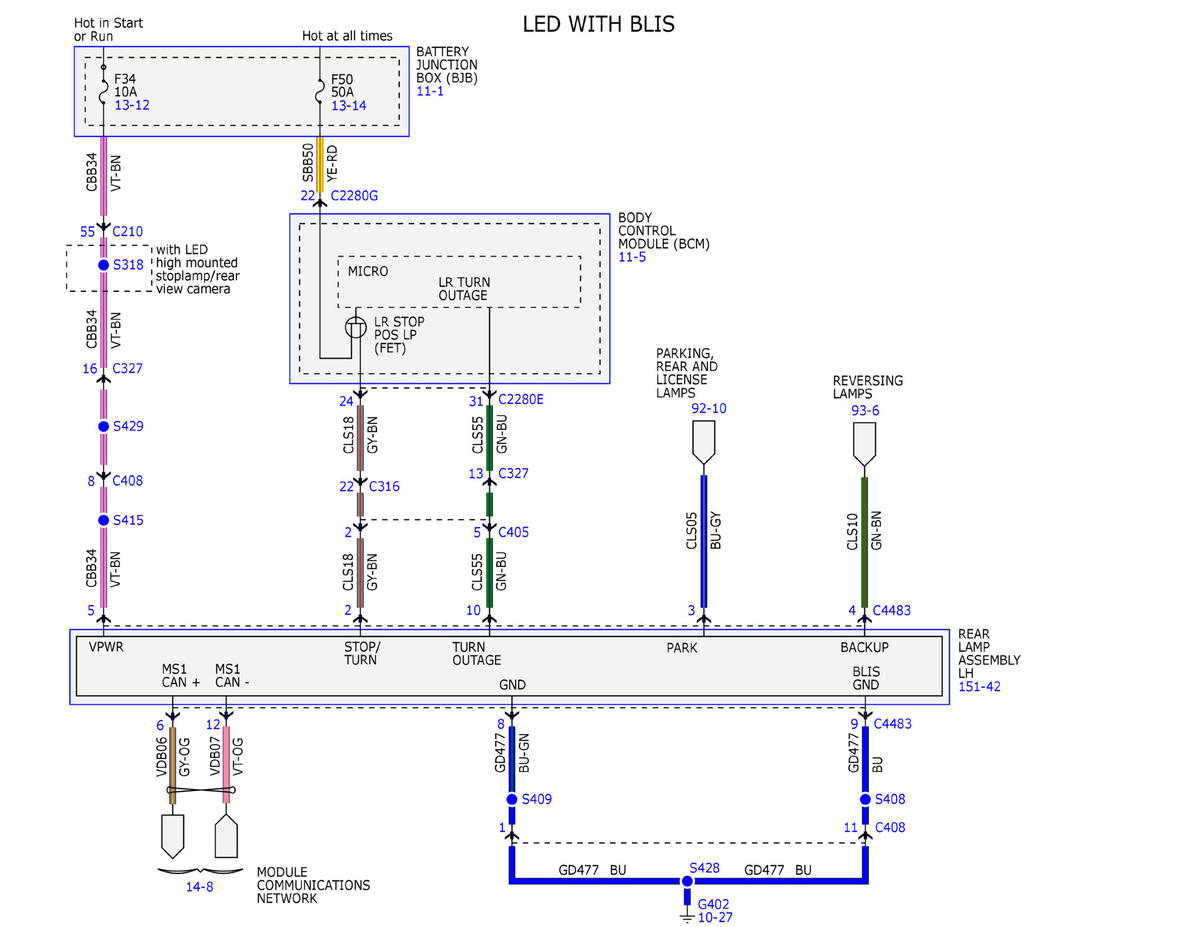

Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 9)

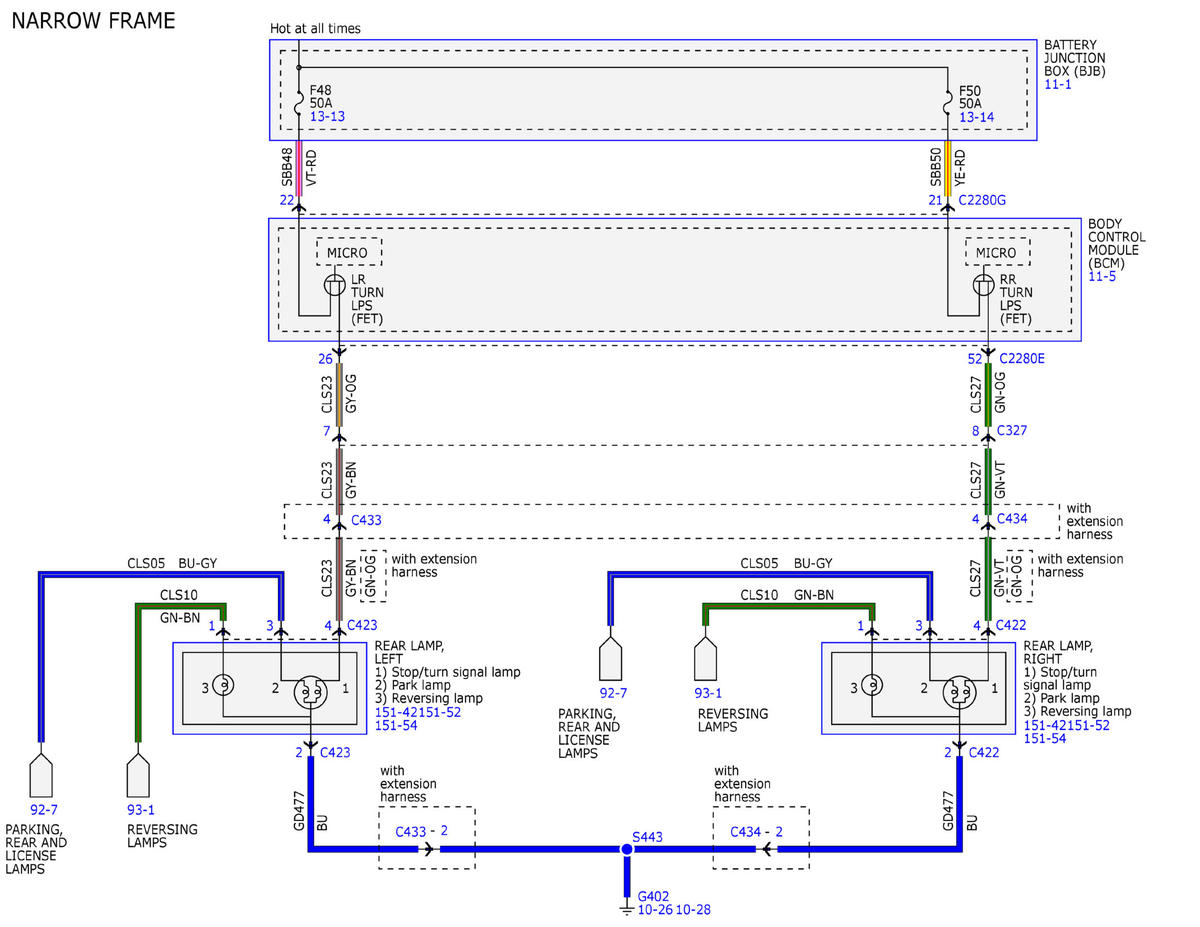

GFDWR57296

Courtesy of FORD MOTOR COMPANY

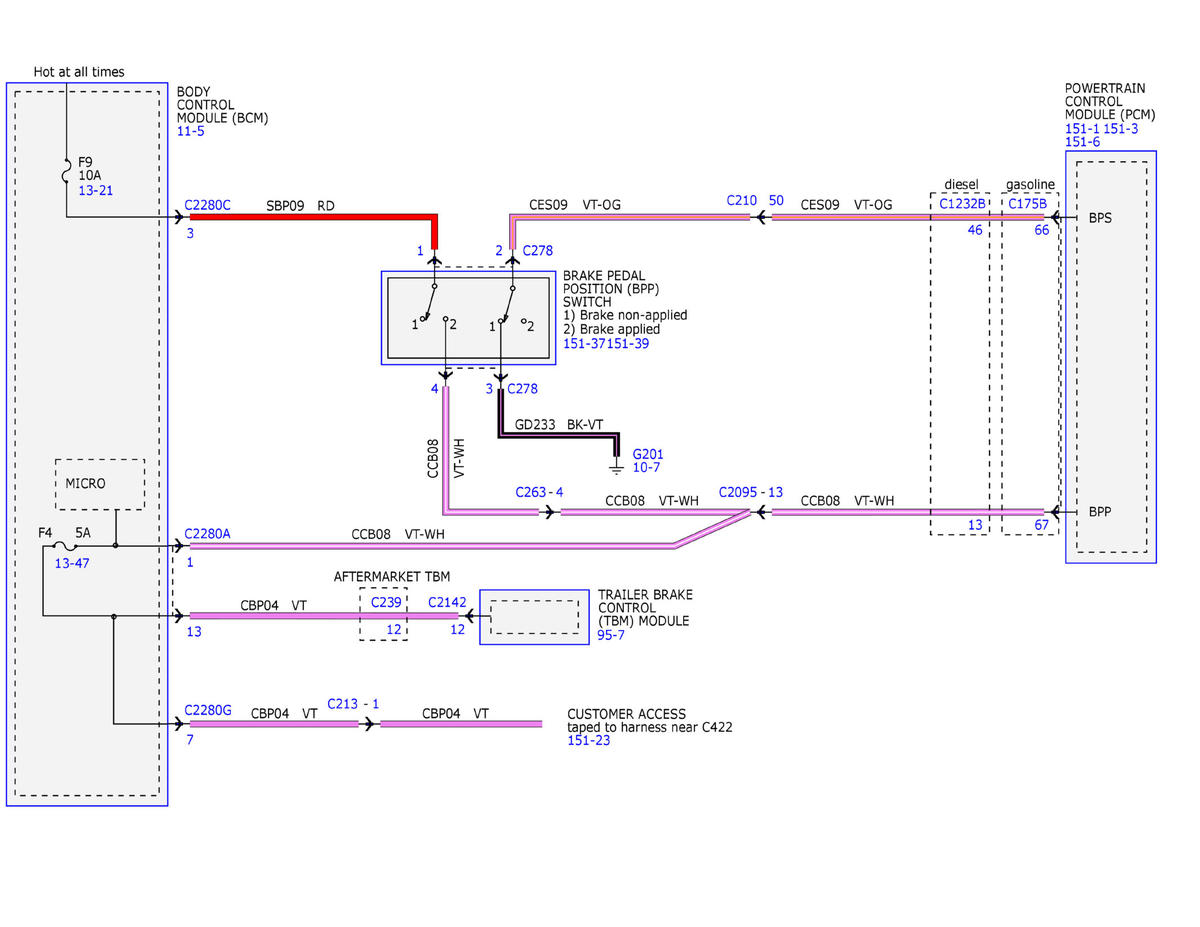

Fig 2: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 9)

GFDWR57297

Courtesy of FORD MOTOR COMPANY

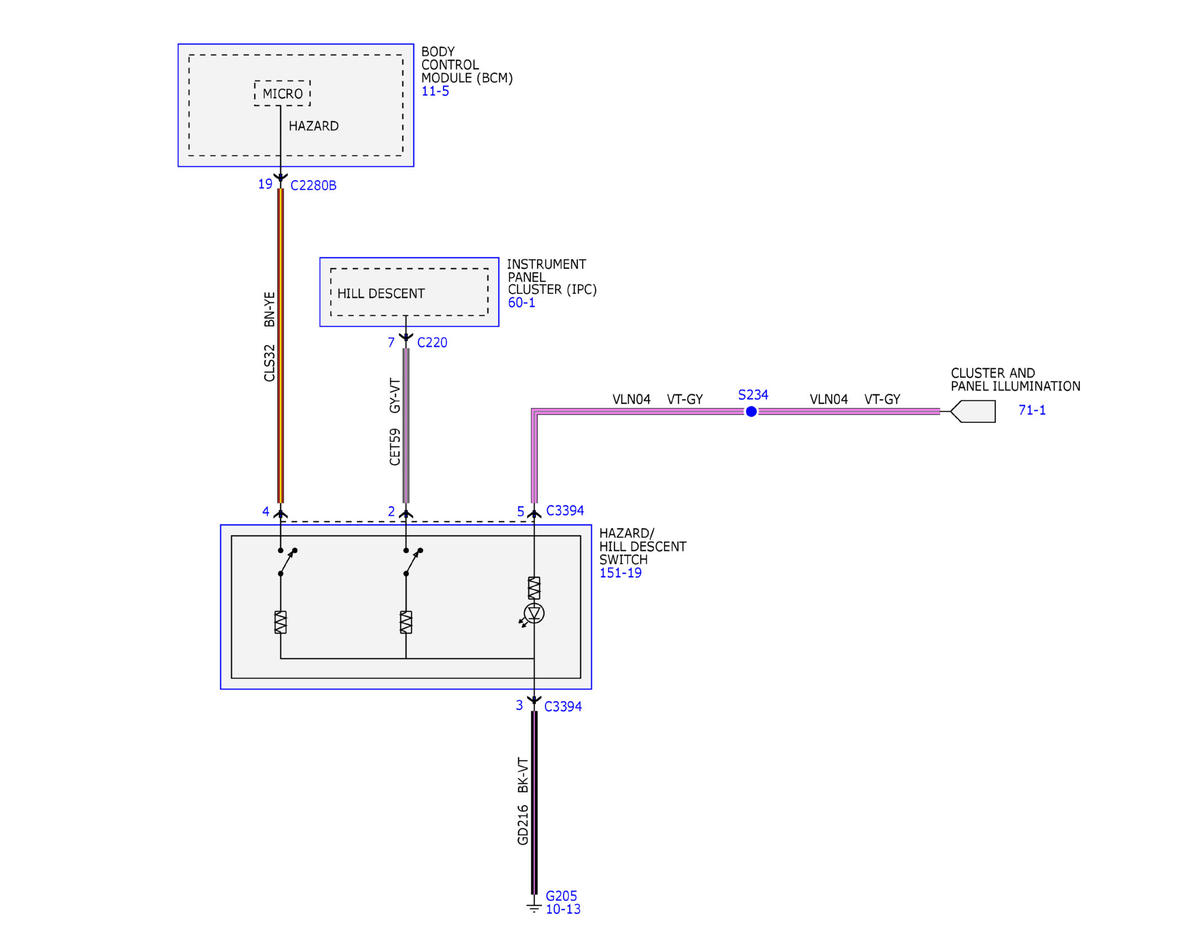

Fig 3: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 9)

GFDWR57298

Courtesy of FORD MOTOR COMPANY

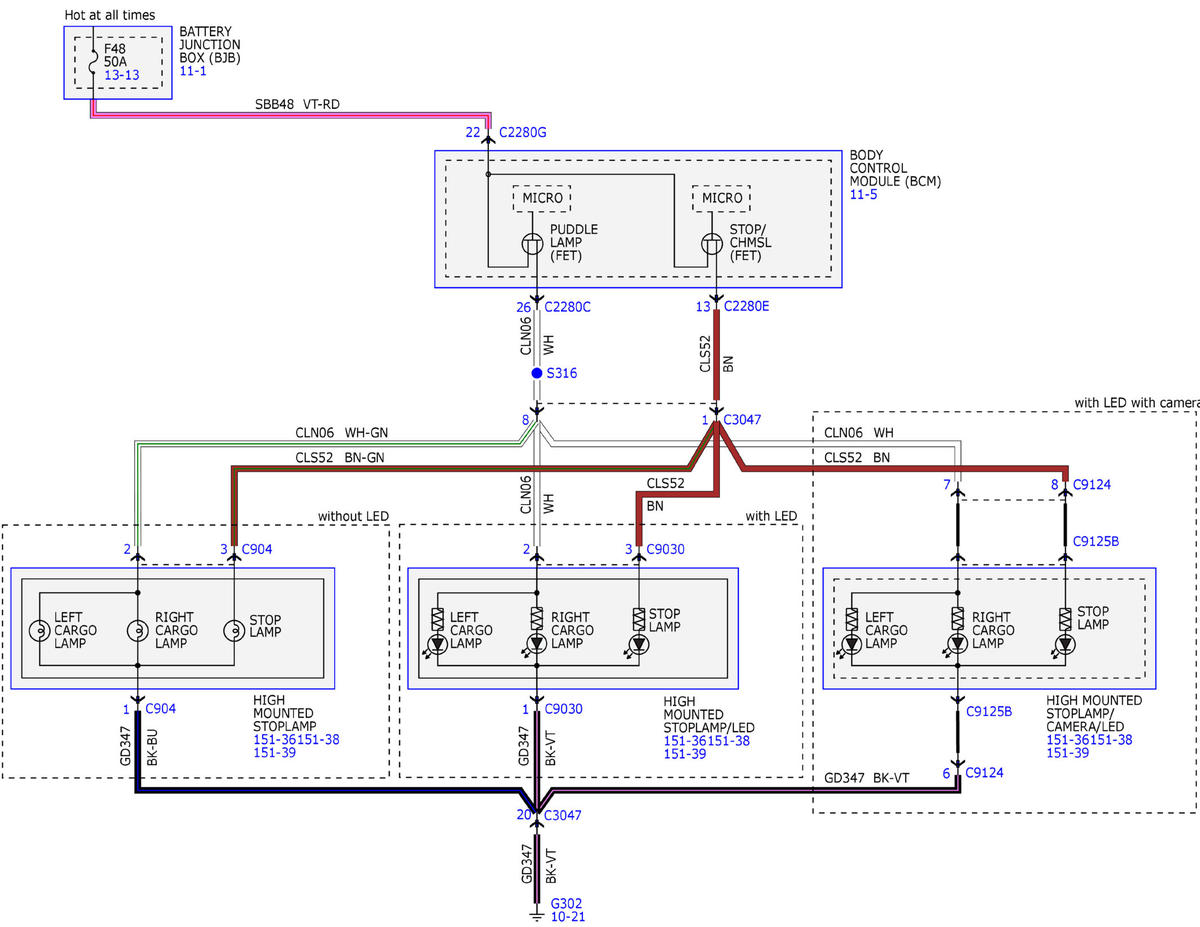

Fig 4: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 9)

GFDWR57299

Courtesy of FORD MOTOR COMPANY

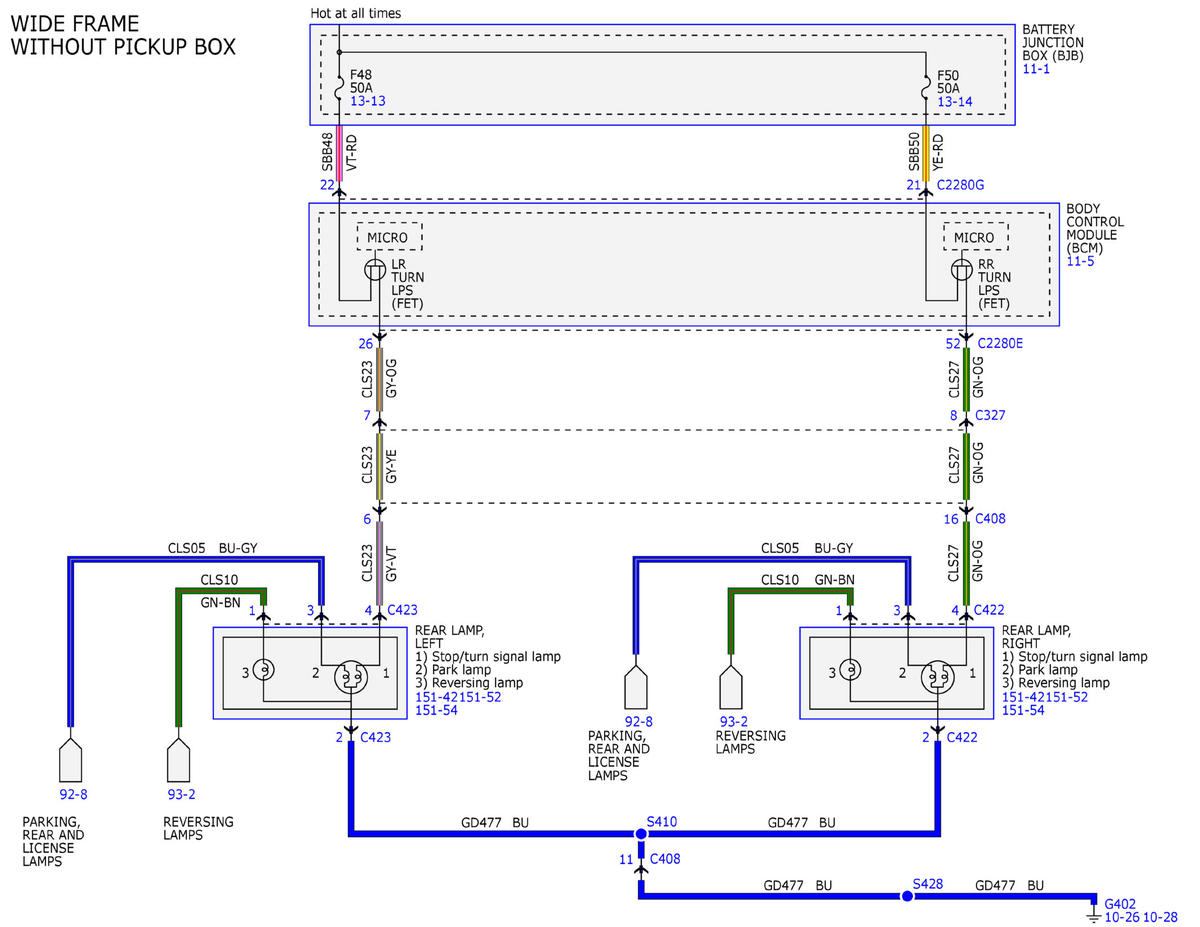

Fig 5: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 9)

GFDWR57300

Courtesy of FORD MOTOR COMPANY

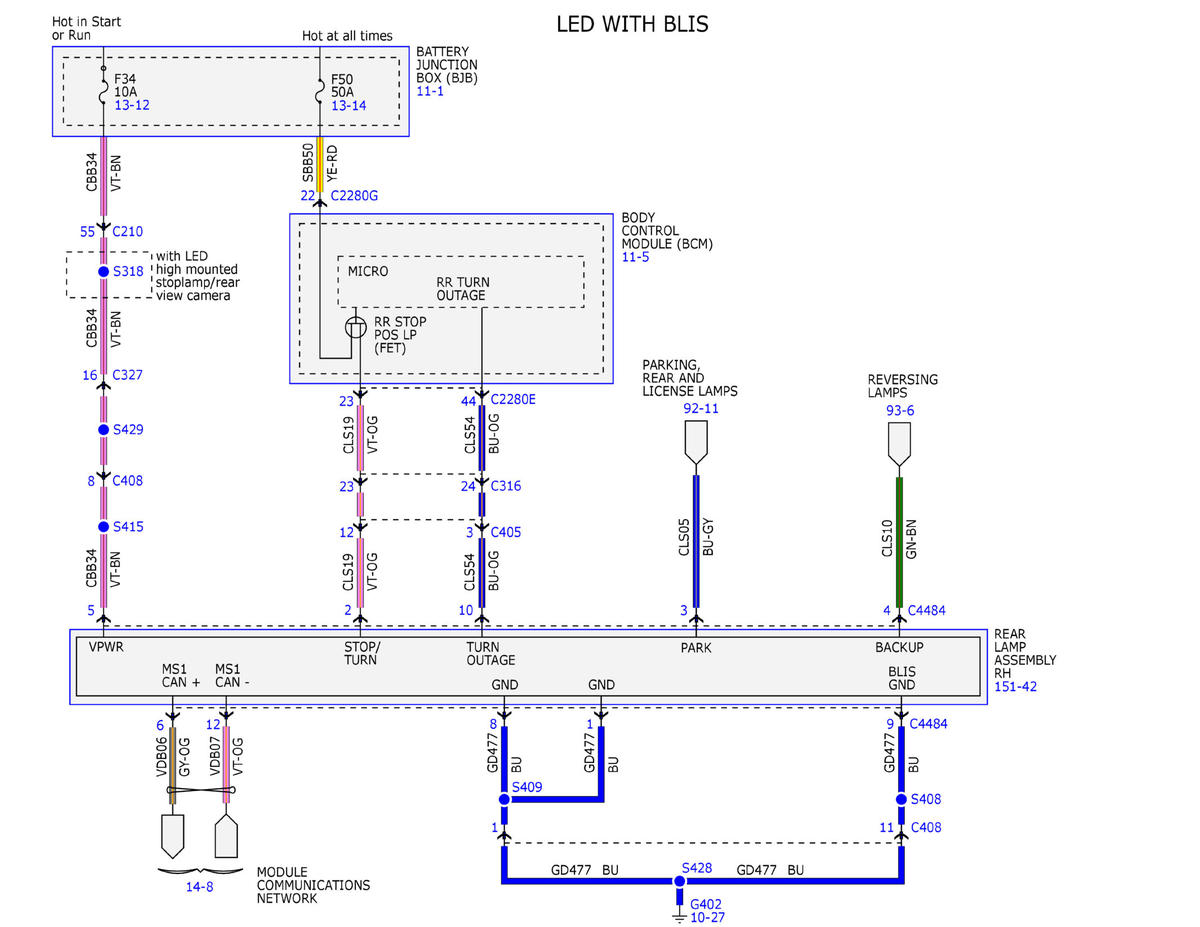

Fig 6: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 9)

GFDWR57301

Courtesy of FORD MOTOR COMPANY

Fig 7: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 9)

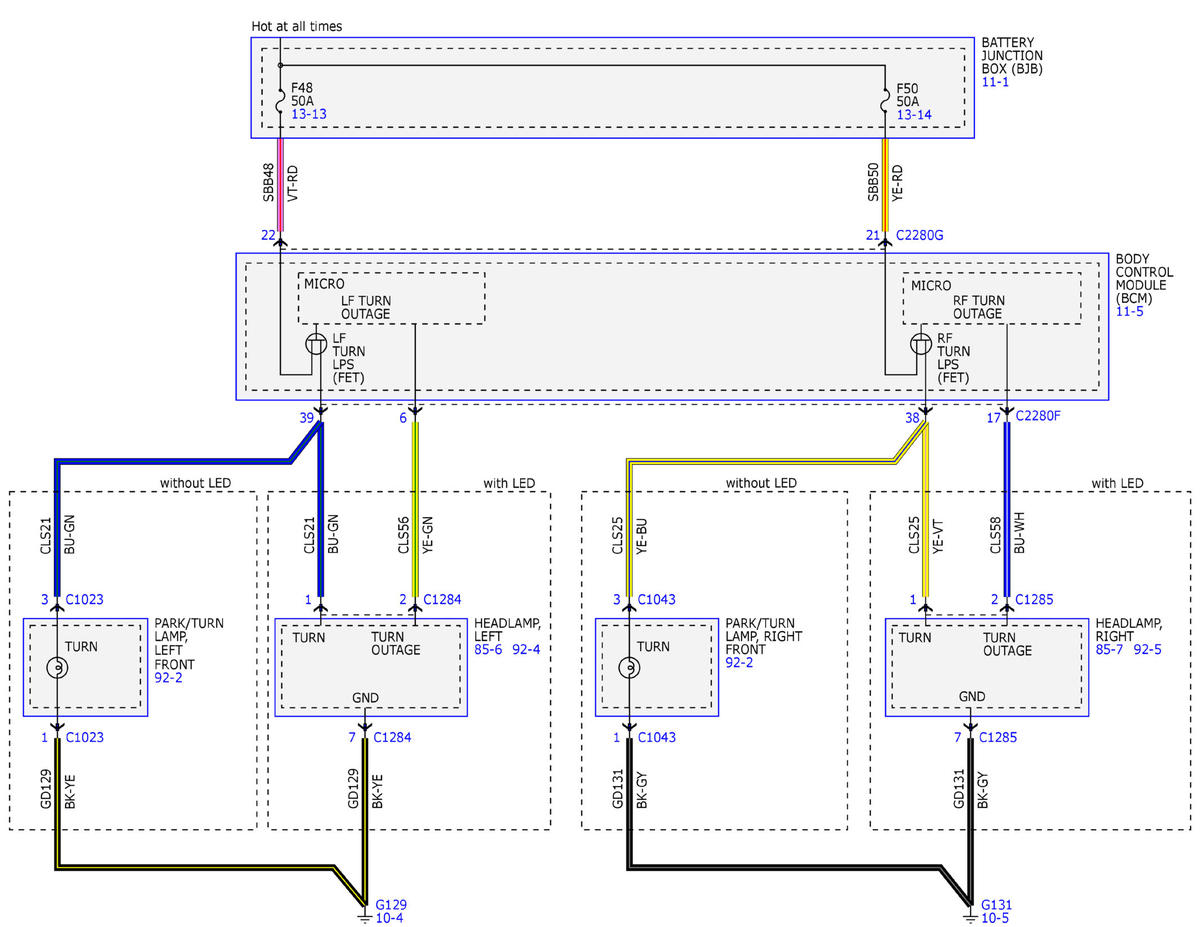

GFDWR57302

Courtesy of FORD MOTOR COMPANY

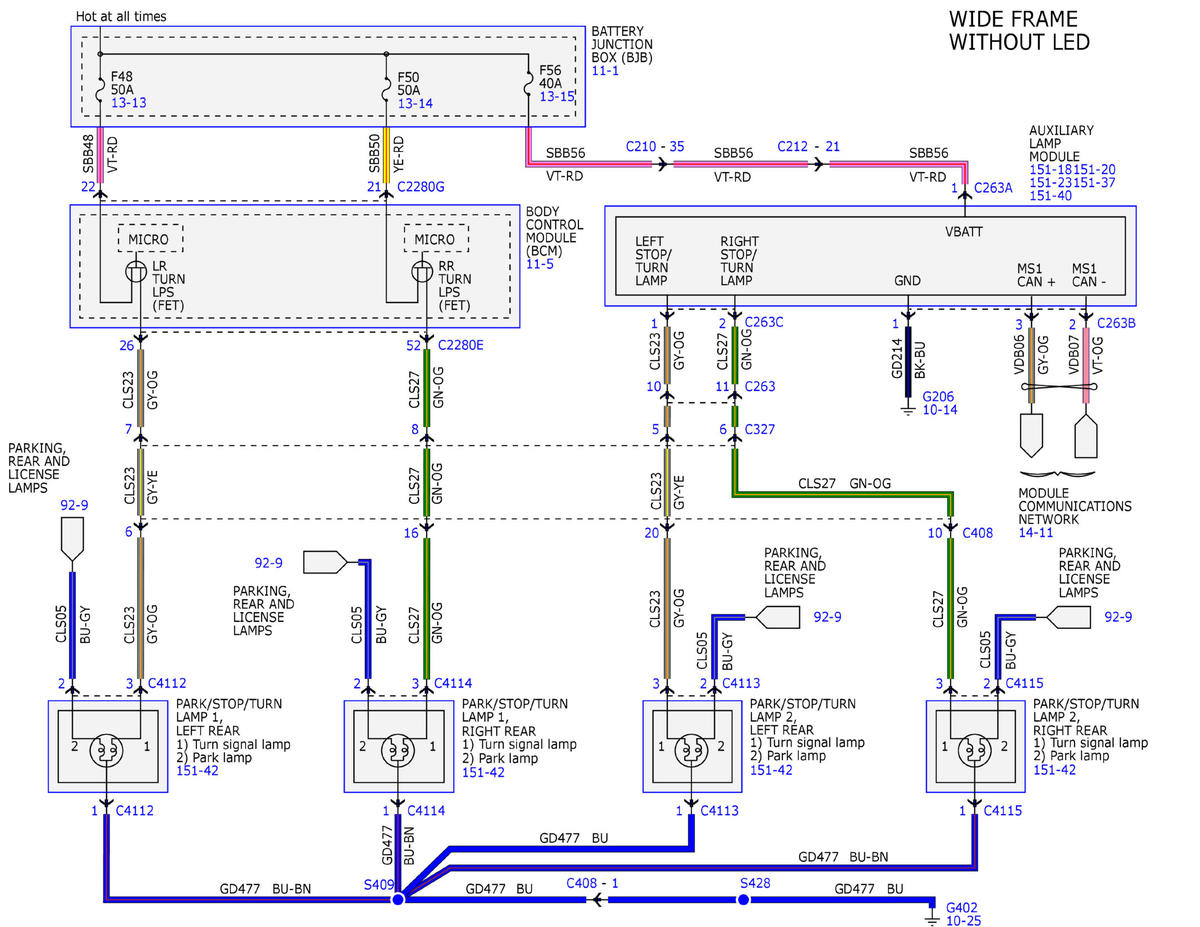

Fig 8: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 9)

GFDWR57303

Courtesy of FORD MOTOR COMPANY

Fig 9: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 9)

GFDWR57304

Courtesy of FORD MOTOR COMPANY
