Transmission Controls - 6R100

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

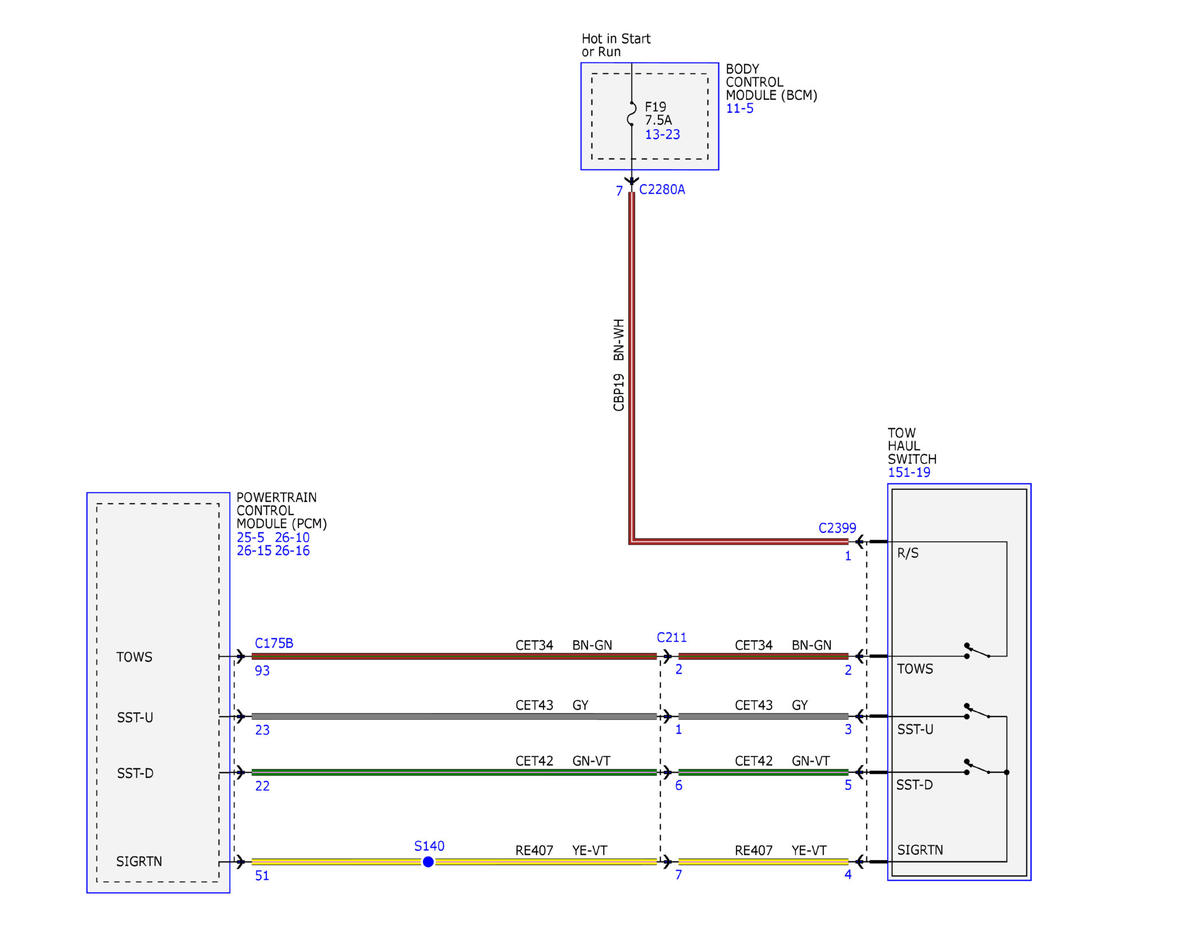

Fig 1: Transmission Controls - 6R100 Wiring Diagram (1 Of 2)
GFDWR57291Courtesy of FORD MOTOR COMPANY

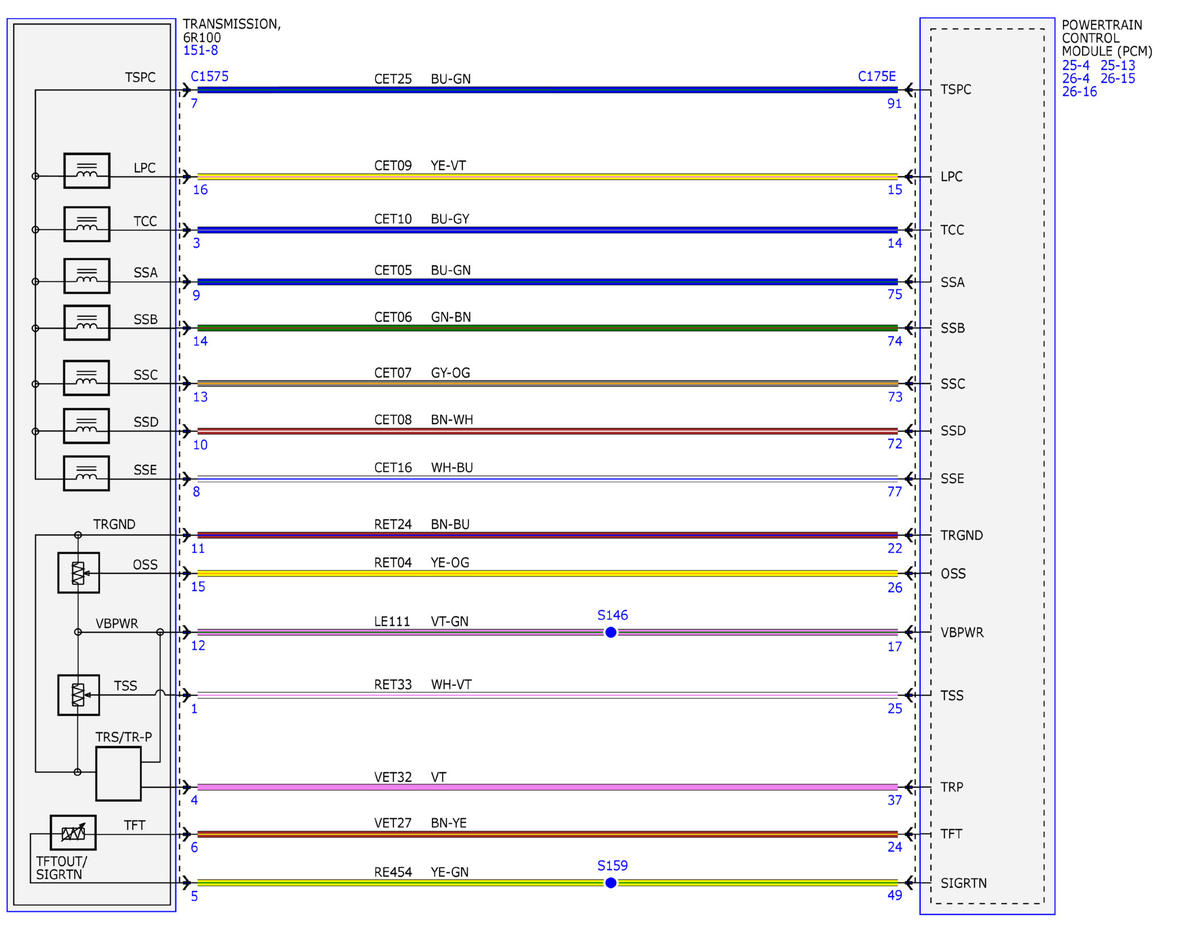

Fig 2: Transmission Controls - 6R100 Wiring Diagram (2 Of 2)
GFDWR57292Courtesy of FORD MOTOR COMPANY
