Trailer/Camper Adapter

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

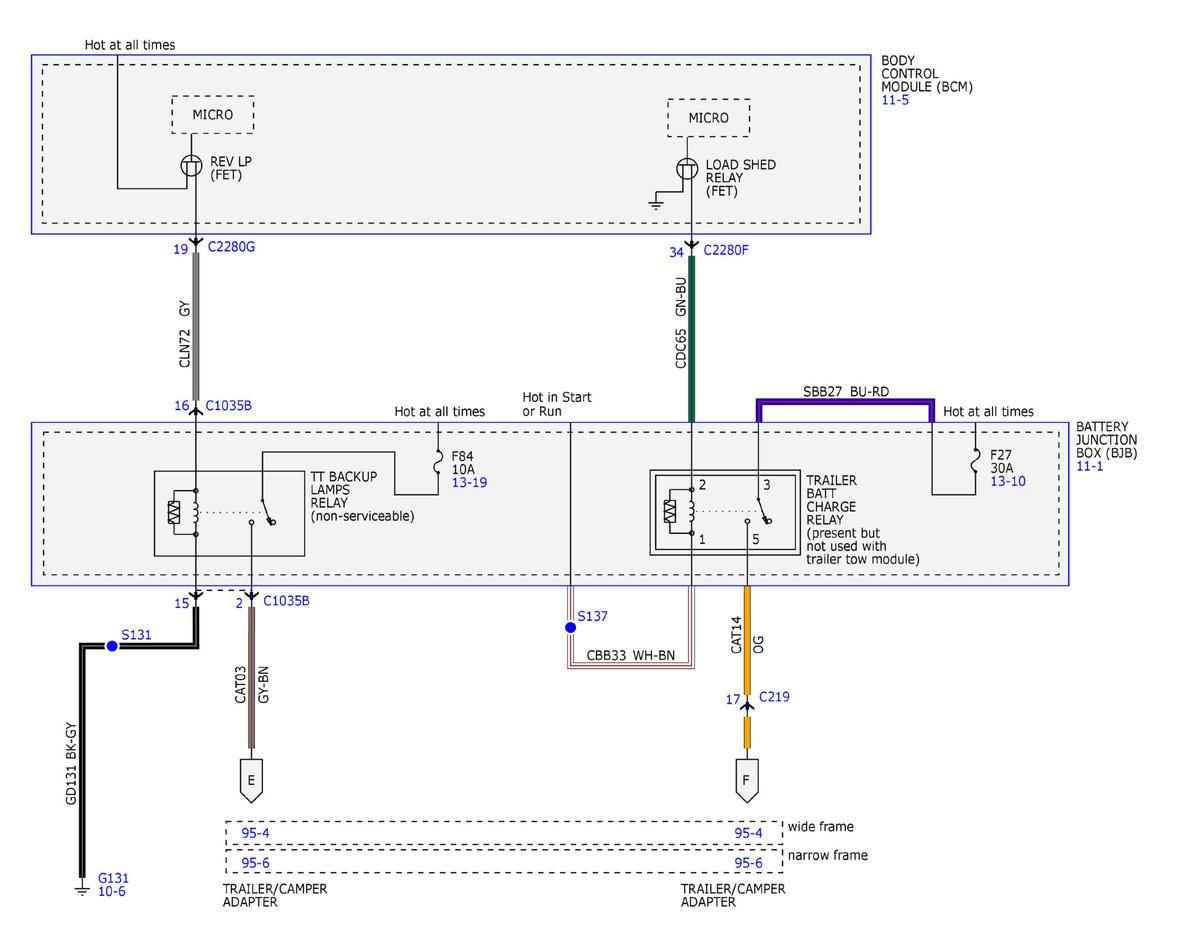

Fig 1: Trailer/Camper Adapter Wiring Diagram (1 Of 10)

GFDWR57281

Courtesy of FORD MOTOR COMPANY

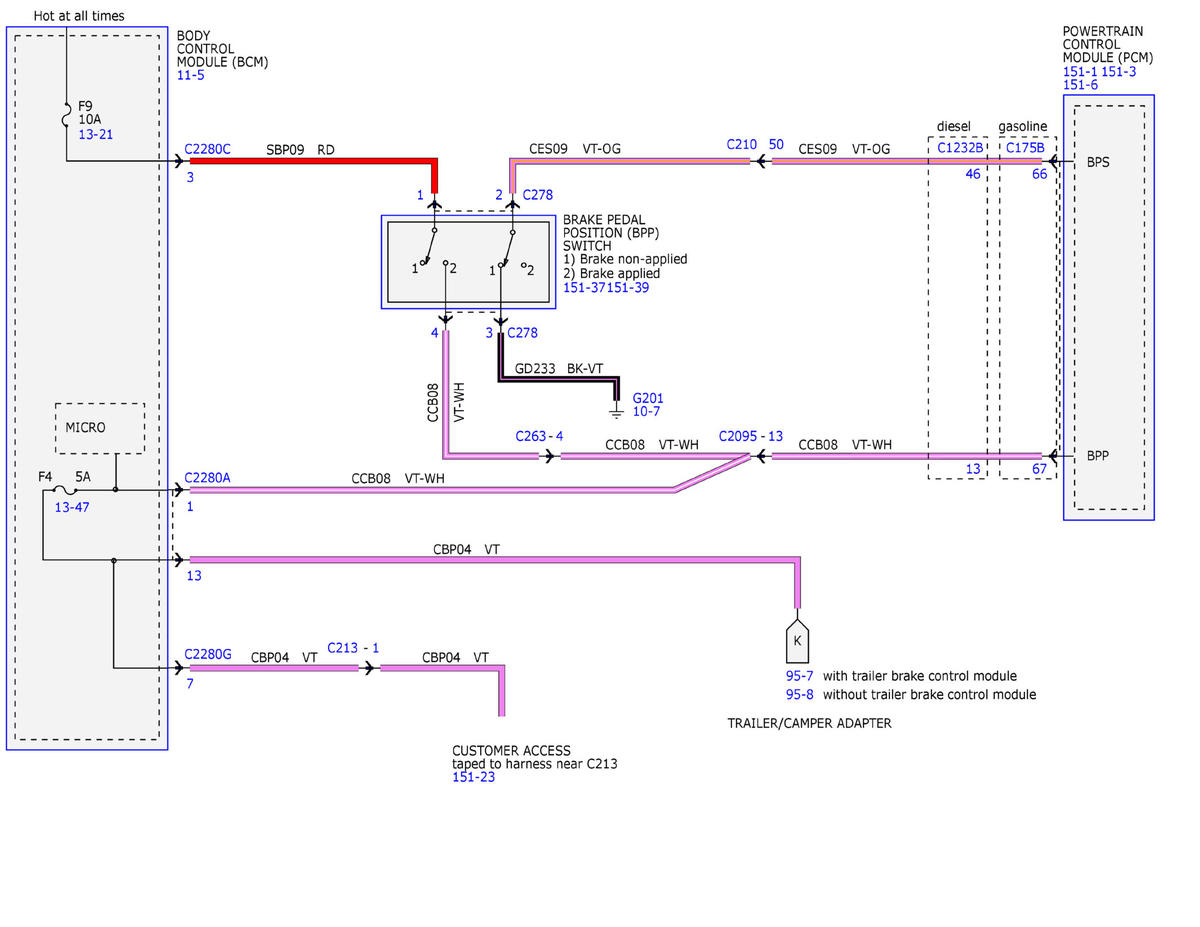

Fig 2: Trailer/Camper Adapter Wiring Diagram (2 Of 10)

GFDWR57282

Courtesy of FORD MOTOR COMPANY

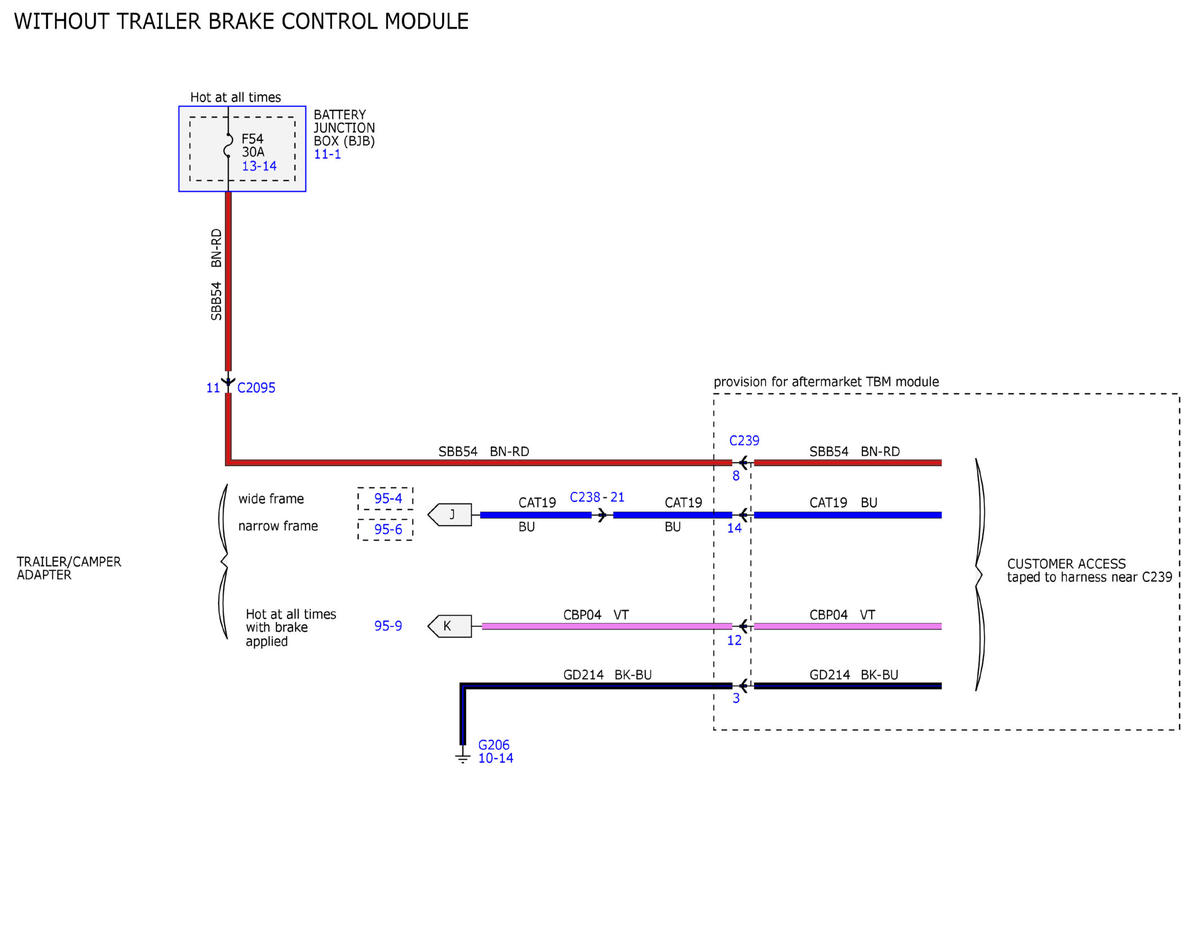

Fig 3: Trailer/Camper Adapter Wiring Diagram (3 Of 10)

GFDWR57283

Courtesy of FORD MOTOR COMPANY

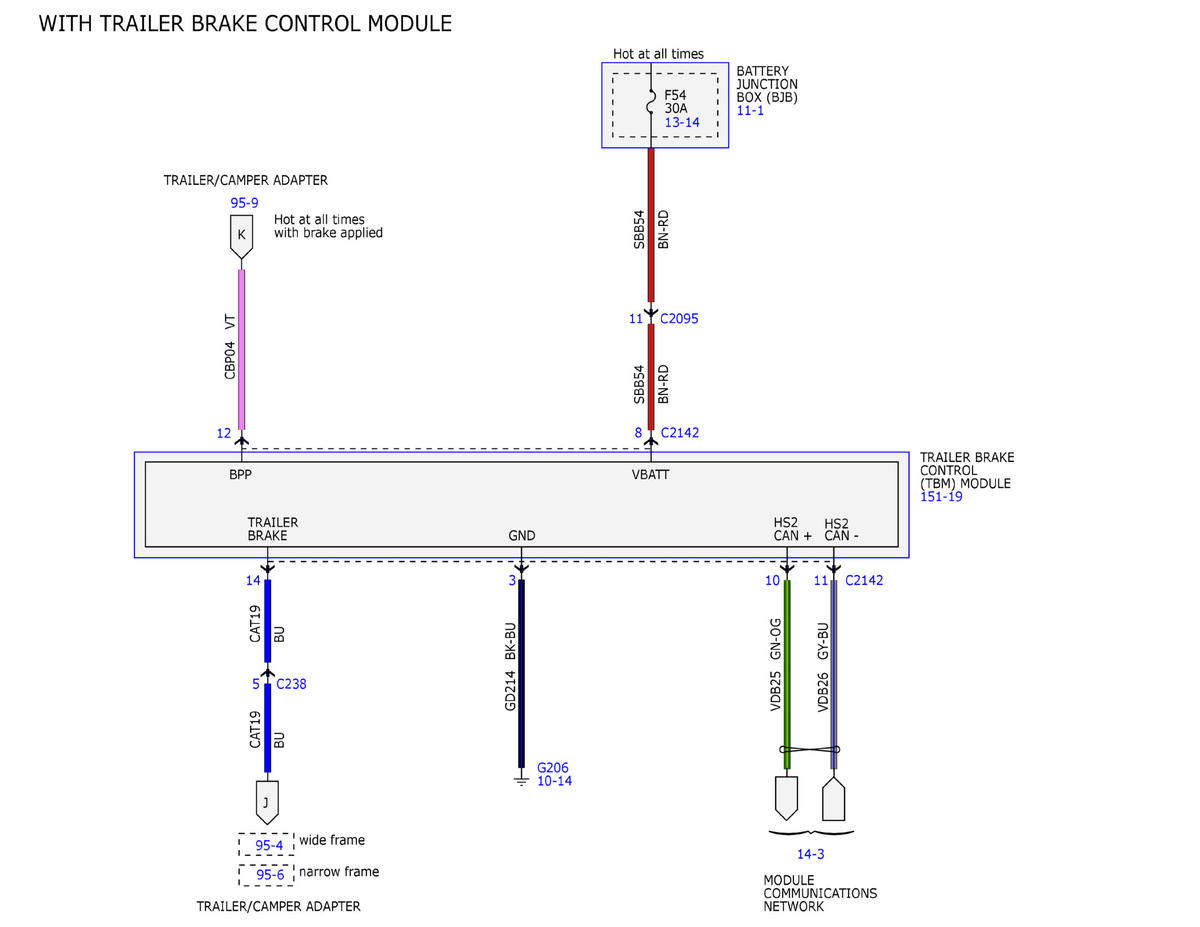

Fig 4: Trailer/Camper Adapter Wiring Diagram (4 Of 10)

GFDWR57284

Courtesy of FORD MOTOR COMPANY

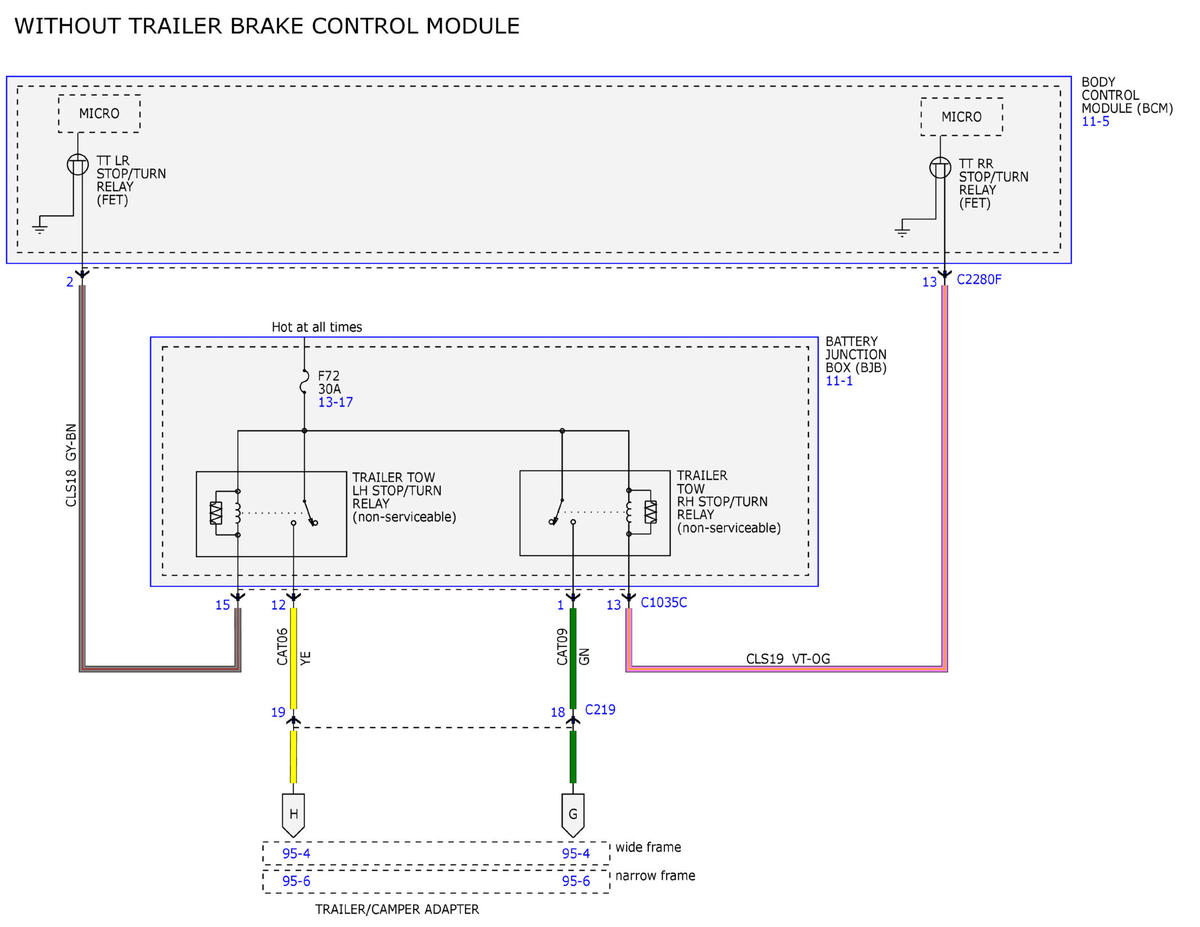

Fig 5: Trailer/Camper Adapter Wiring Diagram (5 Of 10)

GFDWR57285

Courtesy of FORD MOTOR COMPANY

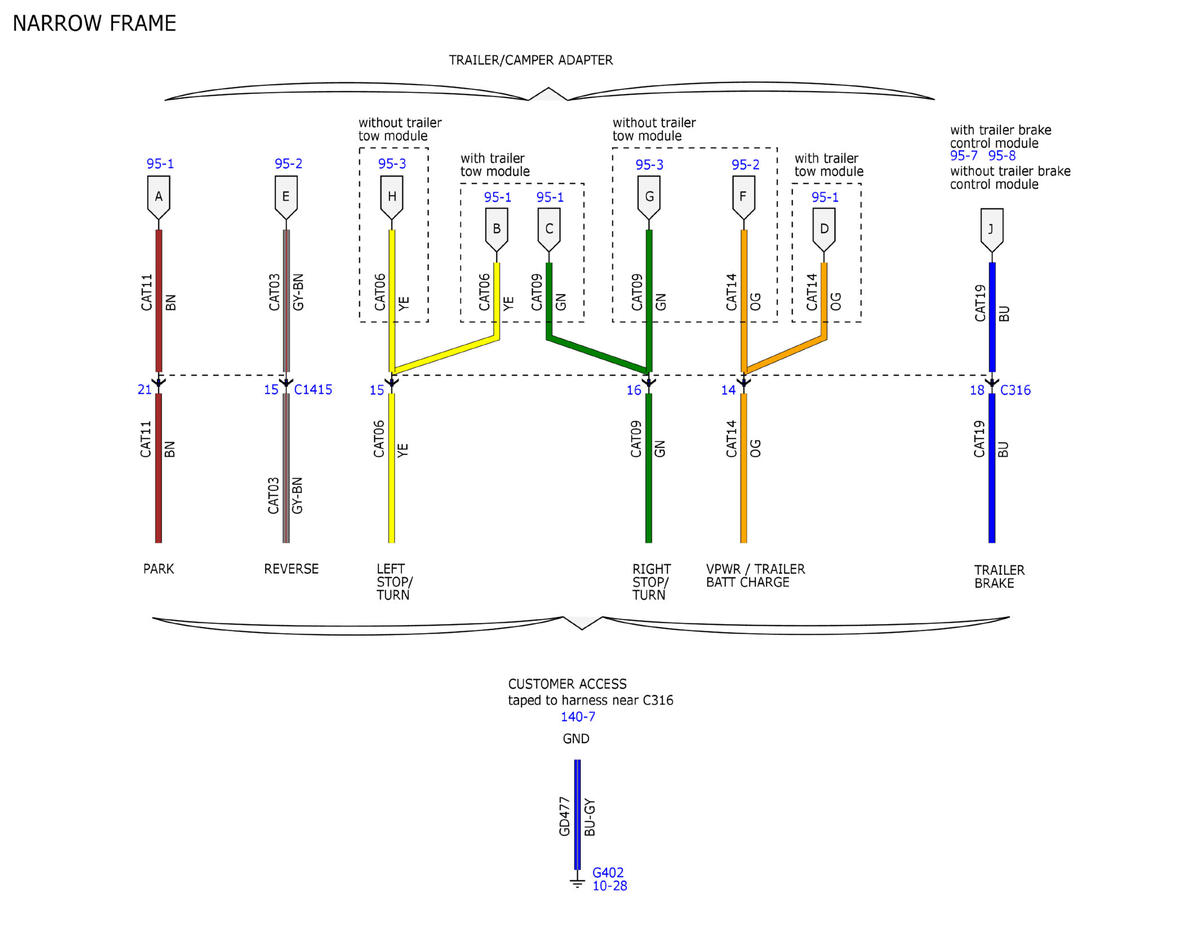

Fig 6: Trailer/Camper Adapter Wiring Diagram (6 Of 10)

GFDWR57286

Courtesy of FORD MOTOR COMPANY

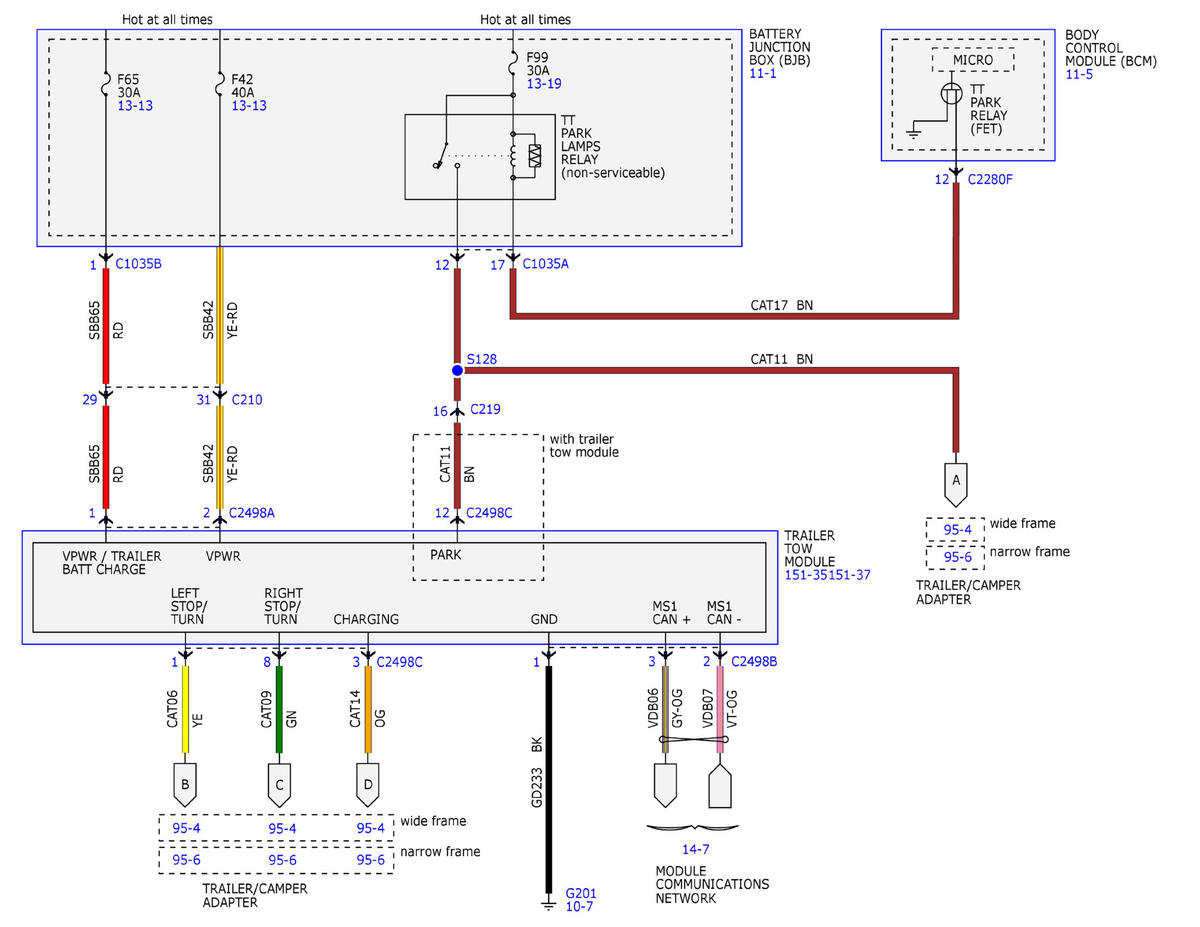

Fig 7: Trailer/Camper Adapter Wiring Diagram (7 Of 10)

GFDWR57287

Courtesy of FORD MOTOR COMPANY

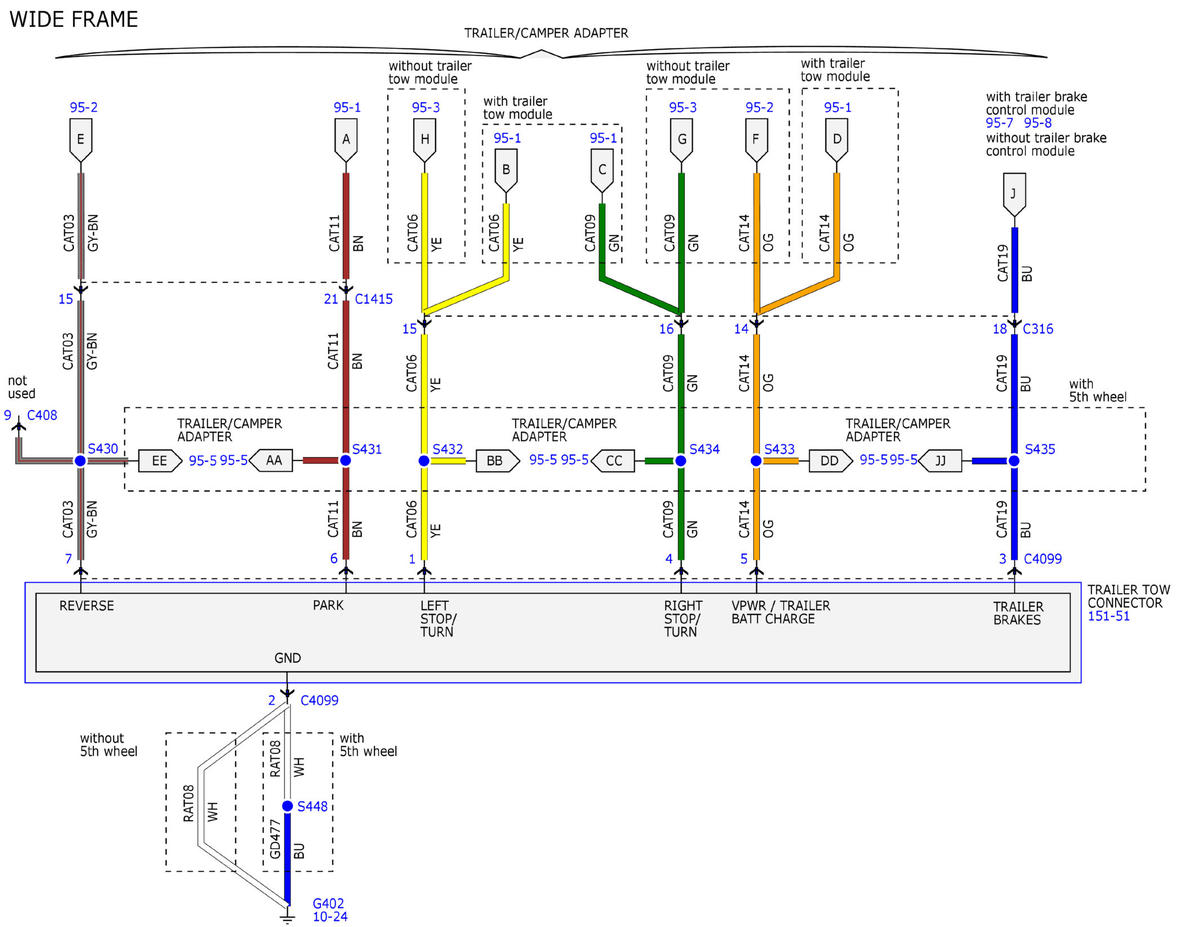

Fig 8: Trailer/Camper Adapter Wiring Diagram (8 Of 10)

GFDWR57288

Courtesy of FORD MOTOR COMPANY

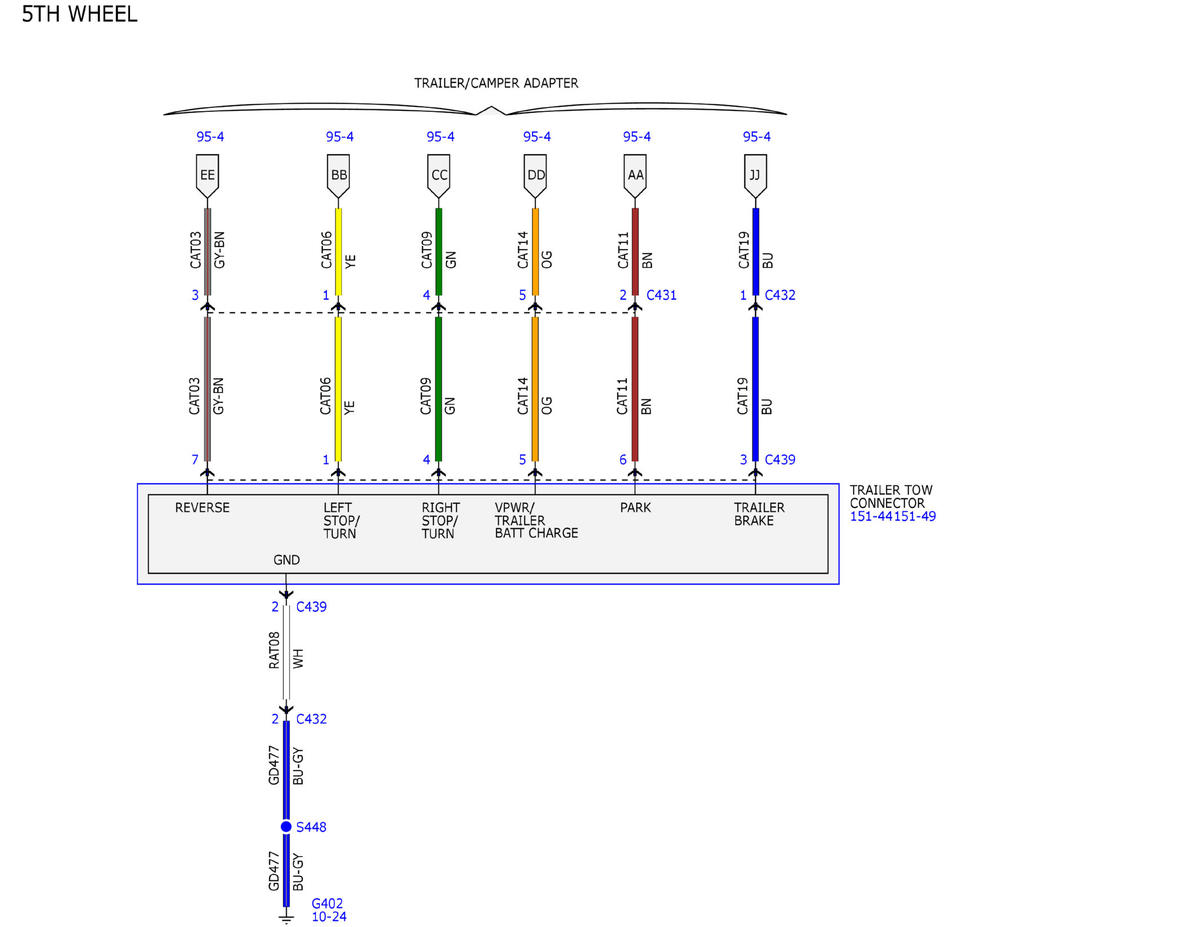

Fig 9: Trailer/Camper Adapter Wiring Diagram (9 Of 10)

GFDWR57289

Courtesy of FORD MOTOR COMPANY

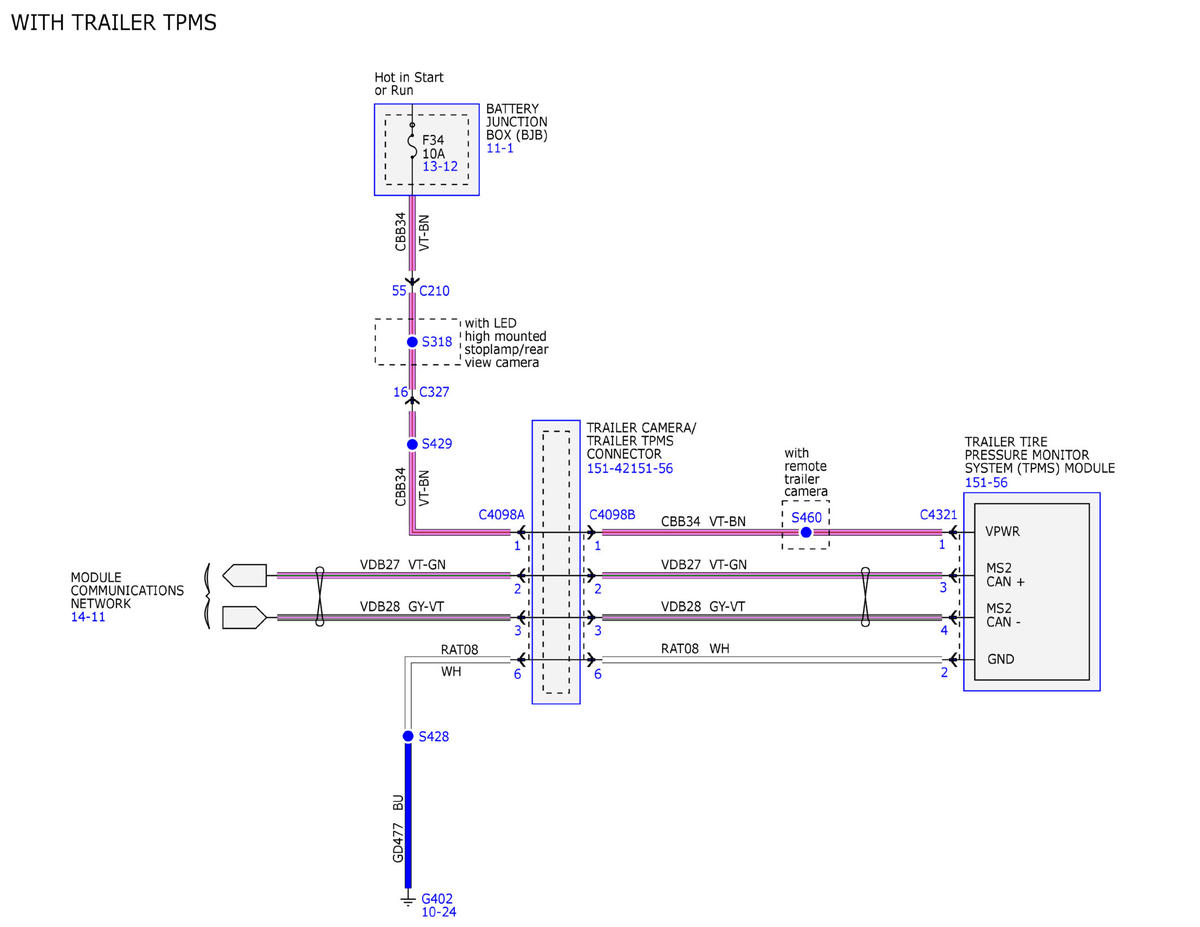

Fig 10: Trailer/Camper Adapter Wiring Diagram (10 Of 10)

GFDWR57290

Courtesy of FORD MOTOR COMPANY
