Roof Opening Panel

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

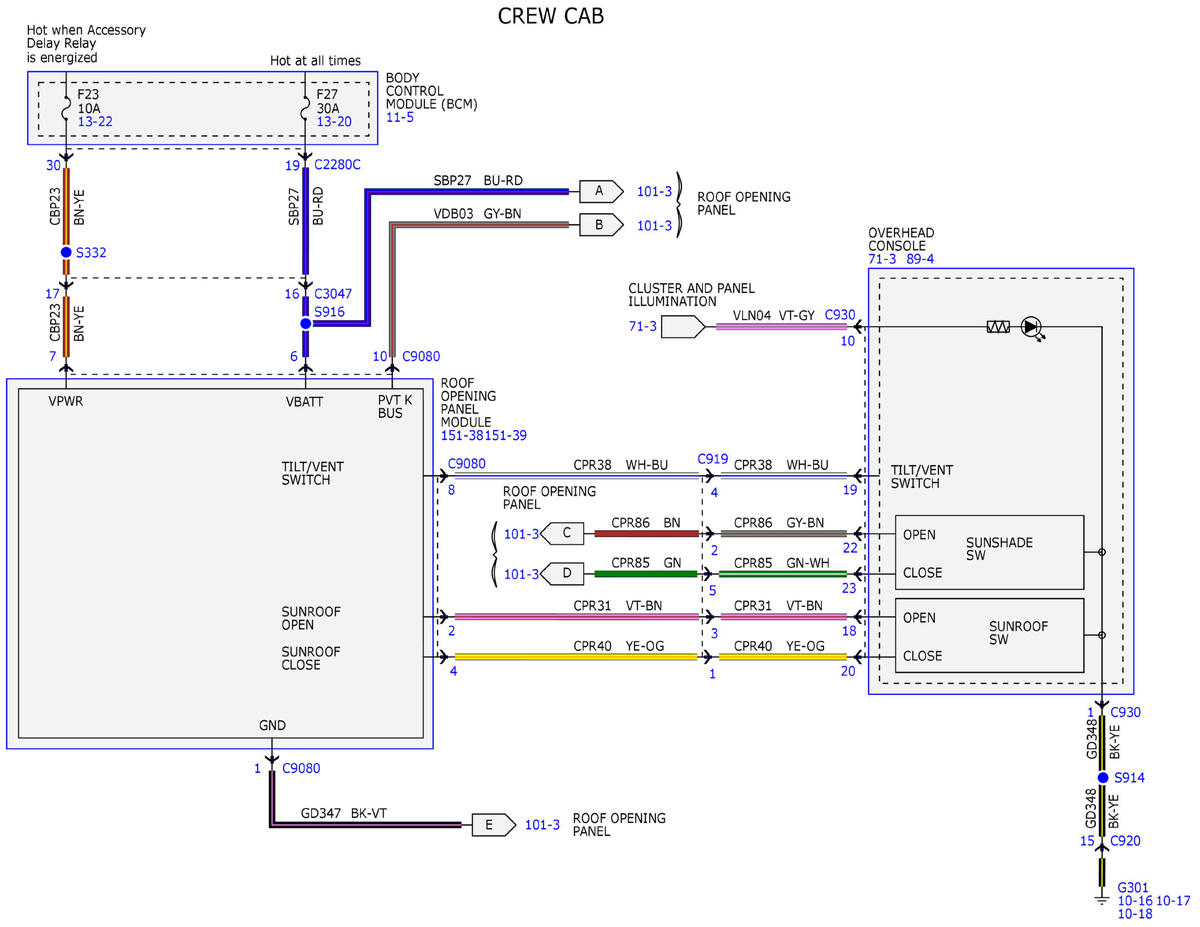

Fig 1: Roof Opening Panel Wiring Diagram (1 Of 3)
GFDWR57262Courtesy of FORD MOTOR COMPANY

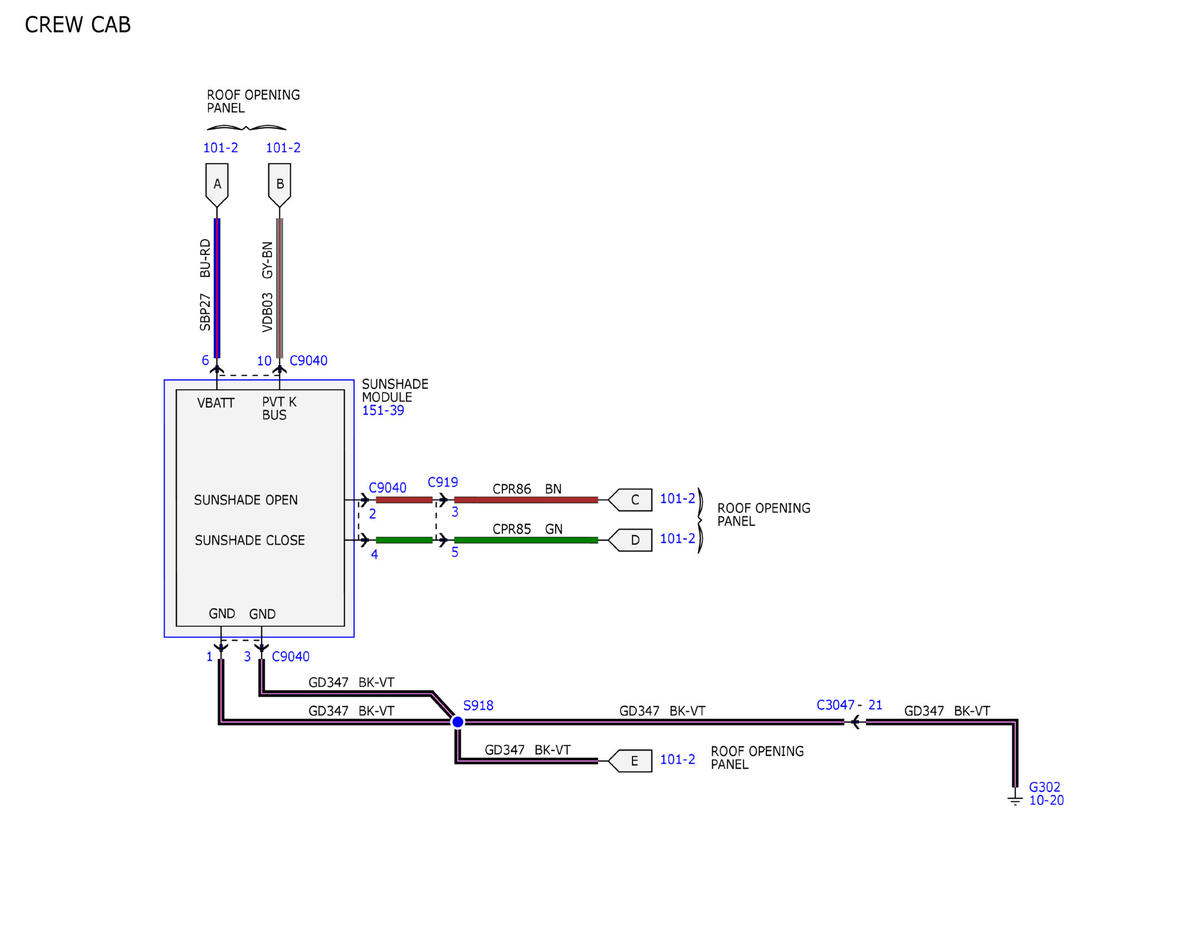

Fig 2: Roof Opening Panel Wiring Diagram (2 Of 3)
GFDWR57263Courtesy of FORD MOTOR COMPANY

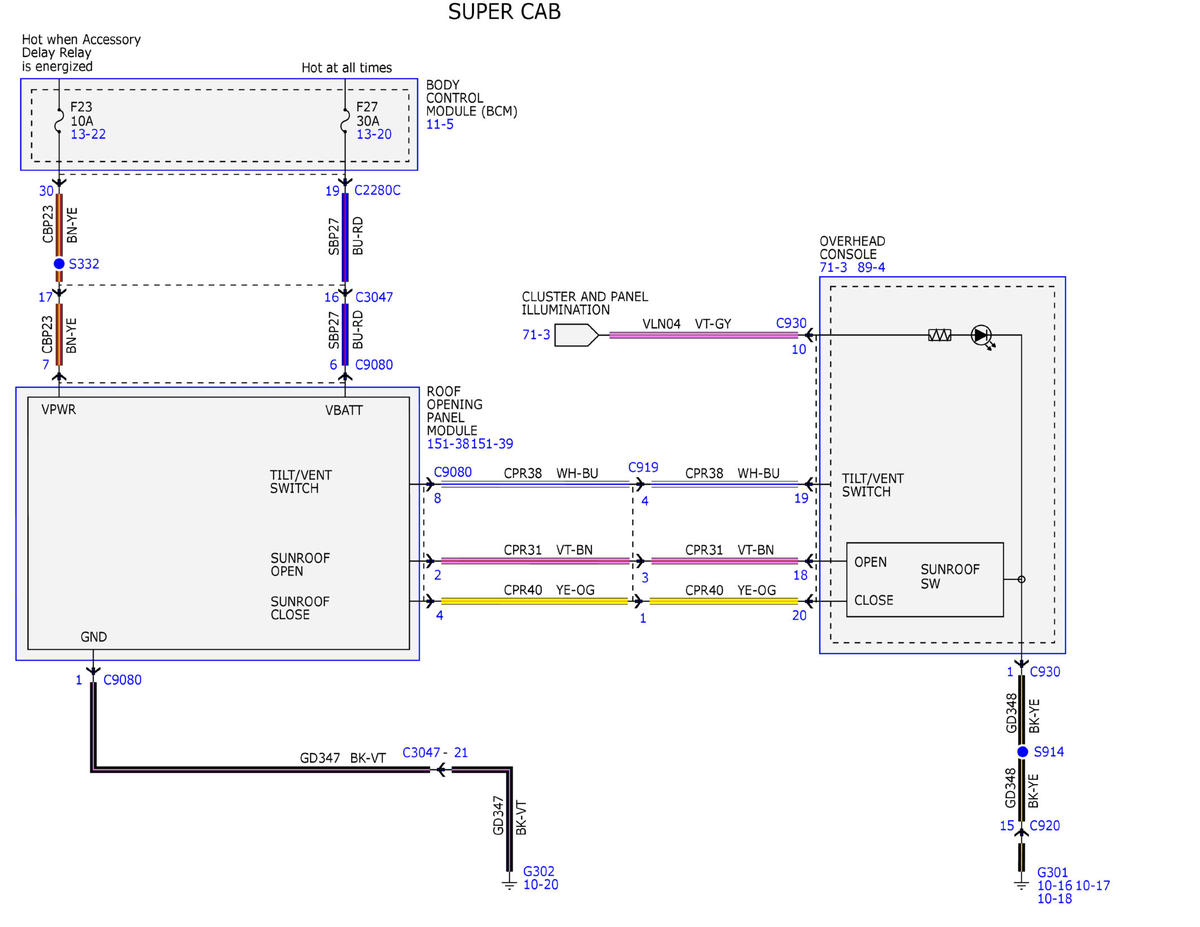

Fig 3: Roof Opening Panel Wiring Diagram (3 Of 3)
GFDWR57264Courtesy of FORD MOTOR COMPANY
