Remote Keyless Entry And Alarm

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

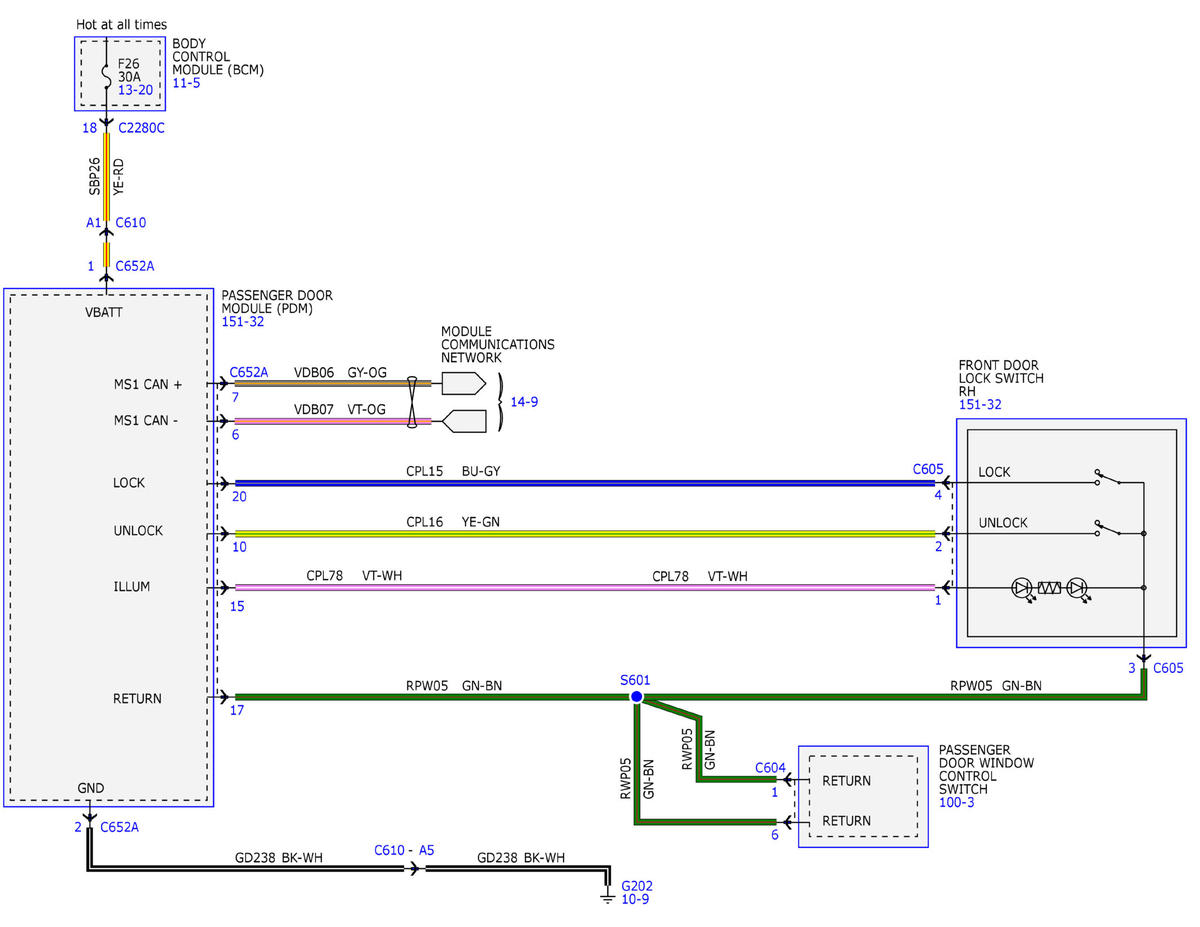

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram (1 Of 9)

GFDWR57246

Courtesy of FORD MOTOR COMPANY

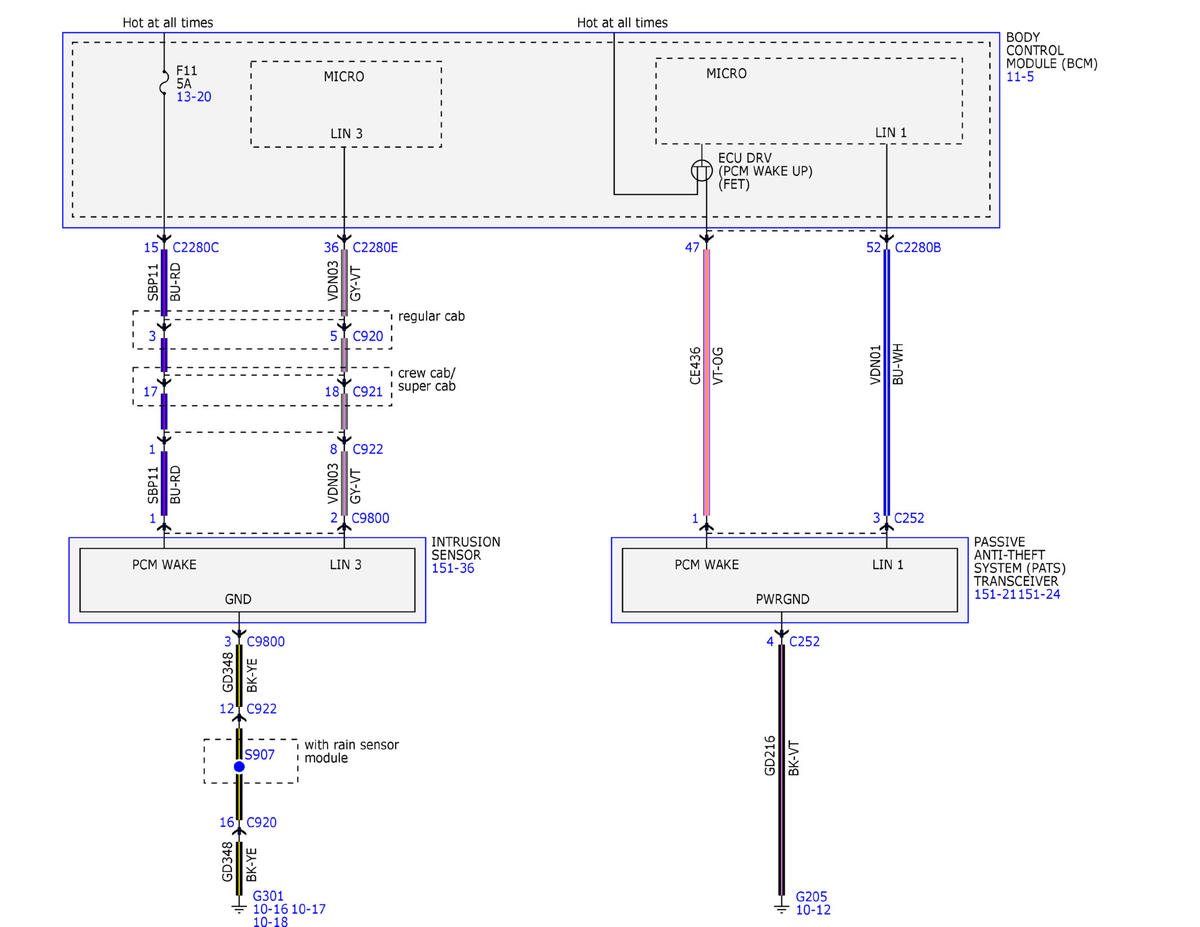

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram (2 Of 9)

GFDWR57247

Courtesy of FORD MOTOR COMPANY

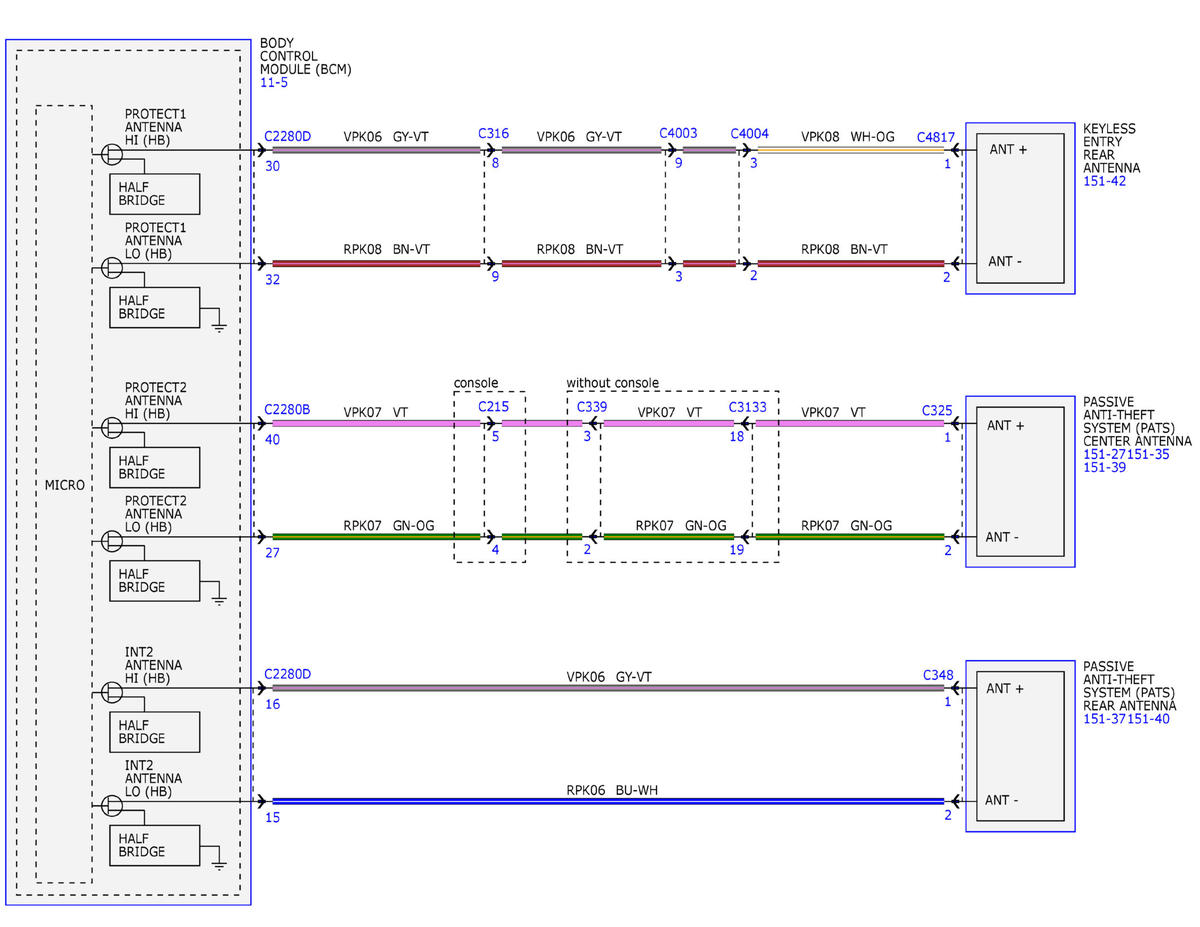

Fig 3: Remote Keyless Entry And Alarm Wiring Diagram (3 Of 9)

GFDWR57248

Courtesy of FORD MOTOR COMPANY

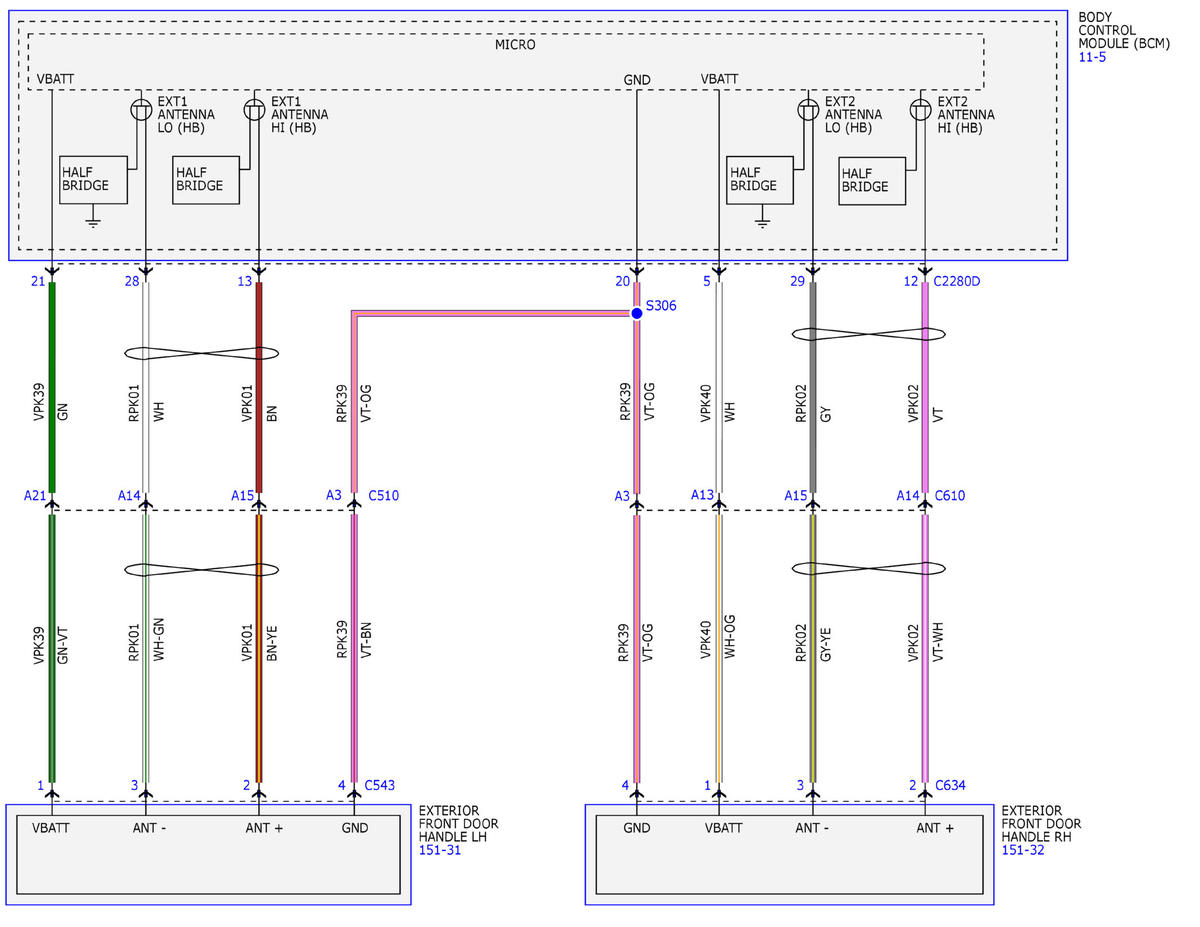

Fig 4: Remote Keyless Entry And Alarm Wiring Diagram (4 Of 9)

GFDWR57249

Courtesy of FORD MOTOR COMPANY

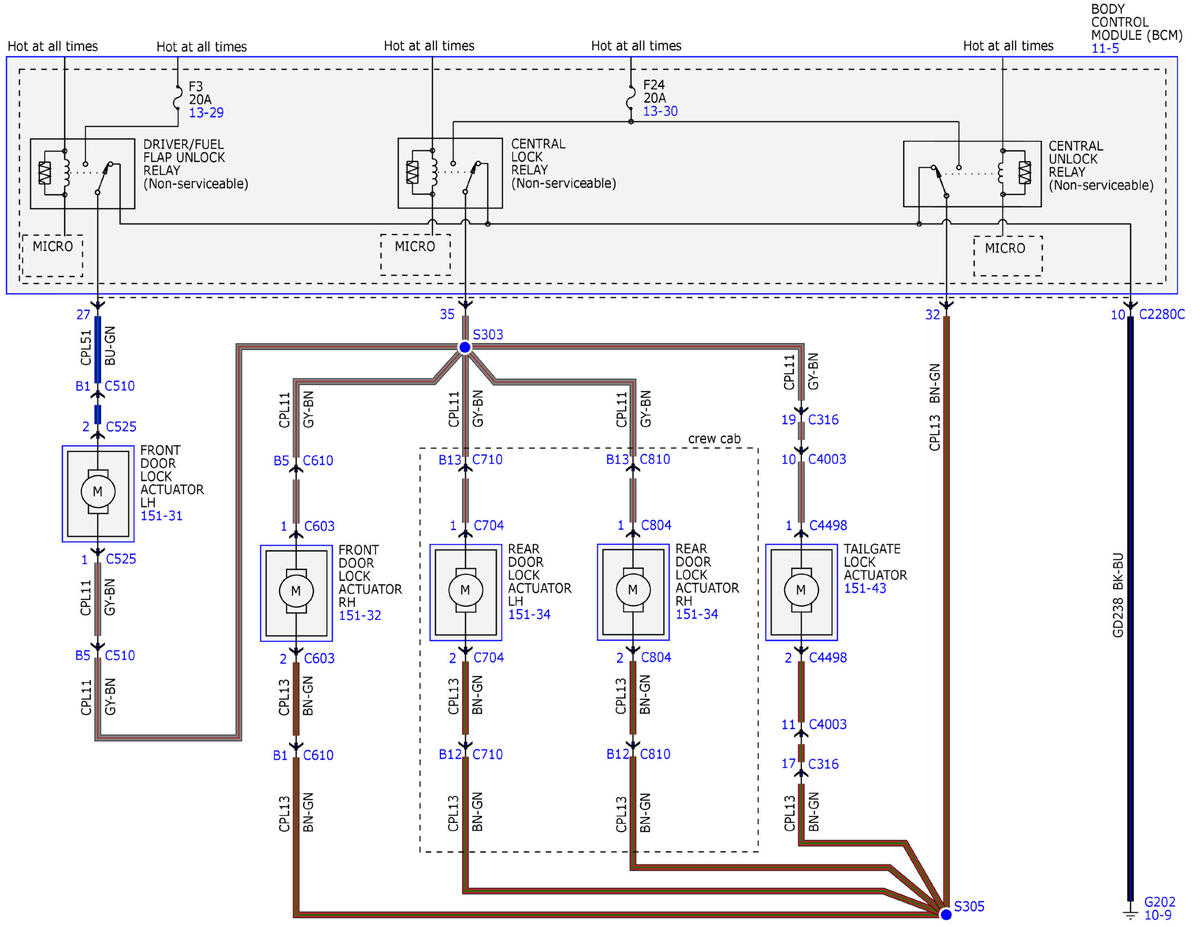

Fig 5: Remote Keyless Entry And Alarm Wiring Diagram (5 Of 9)

GFDWR57250

Courtesy of FORD MOTOR COMPANY

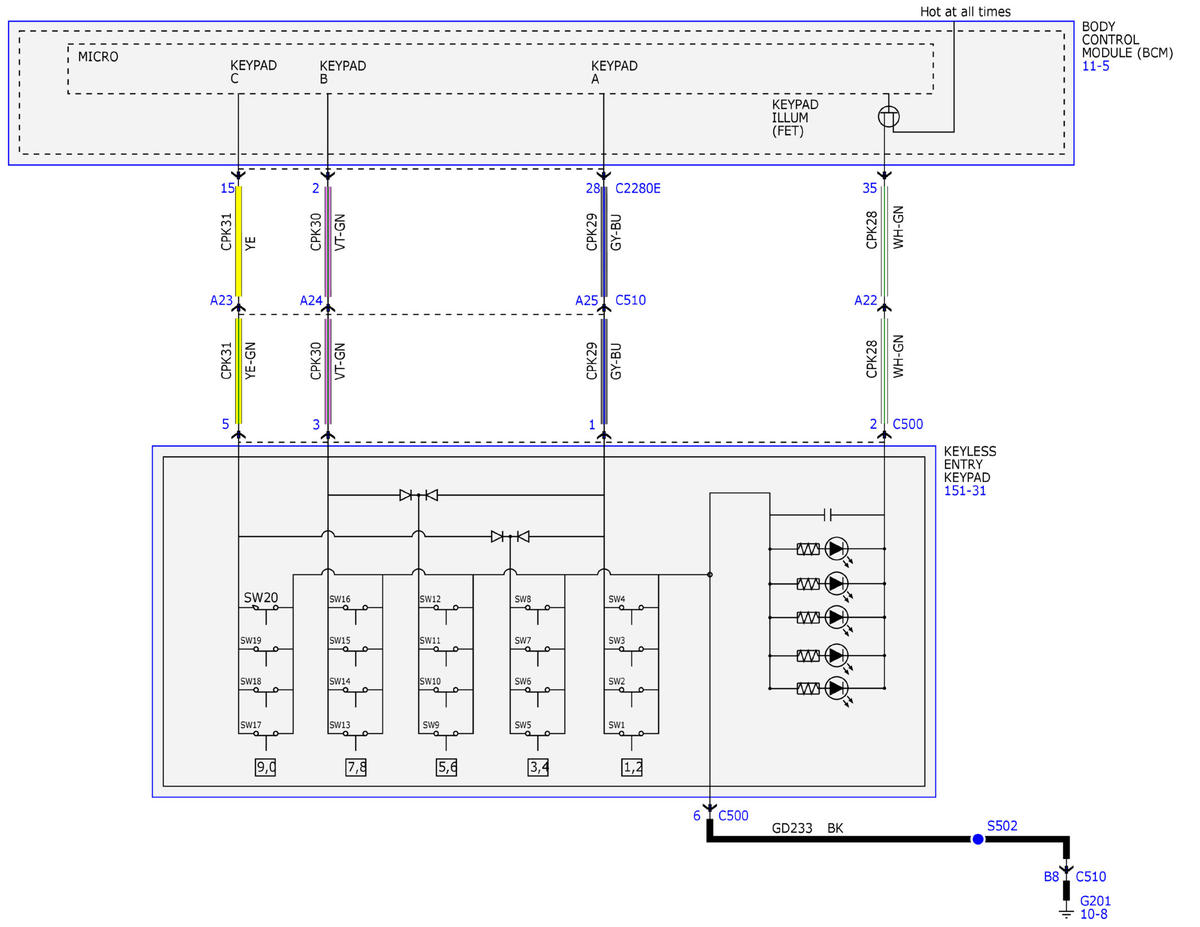

Fig 6: Remote Keyless Entry And Alarm Wiring Diagram (6 Of 9)

GFDWR57251

Courtesy of FORD MOTOR COMPANY

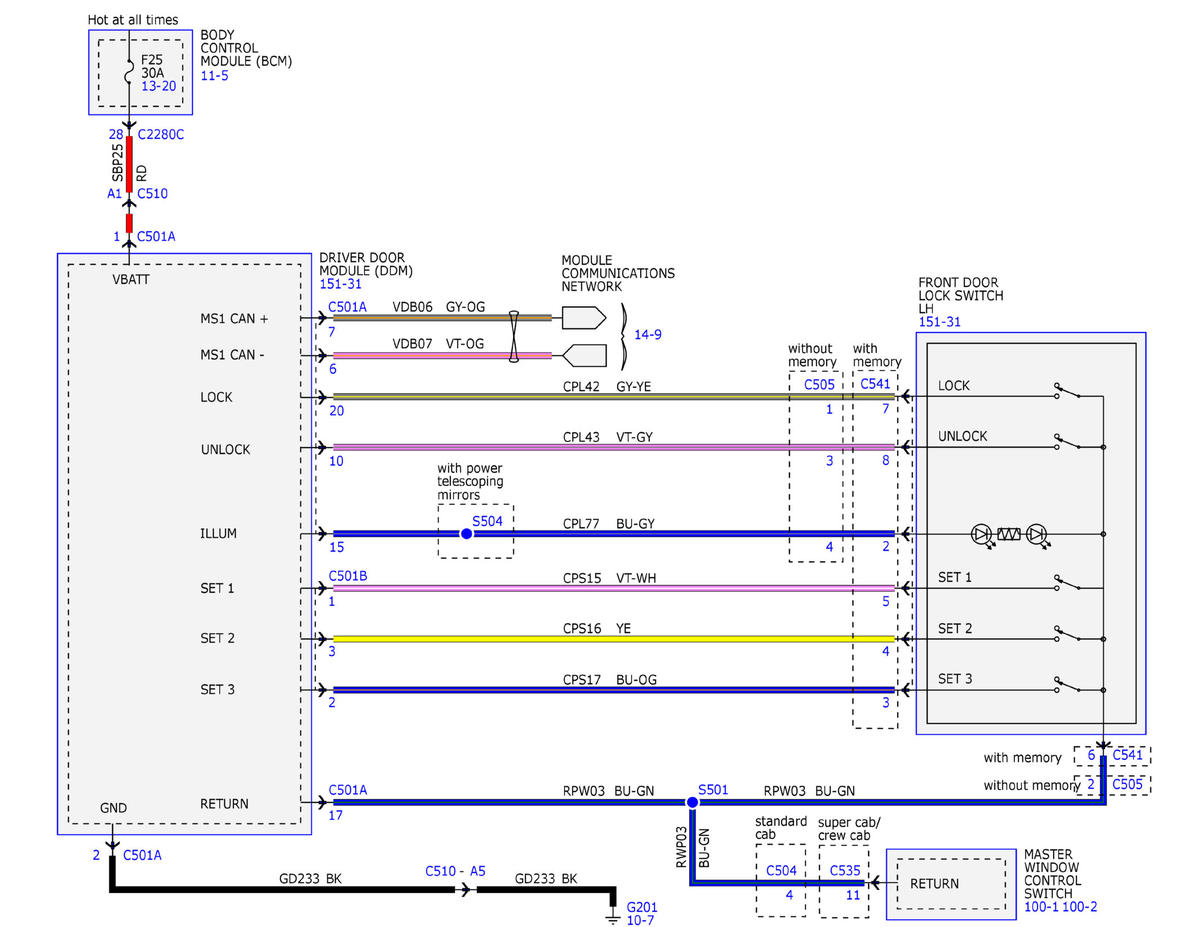

Fig 7: Remote Keyless Entry And Alarm Wiring Diagram (7 Of 9)

GFDWR57252

Courtesy of FORD MOTOR COMPANY

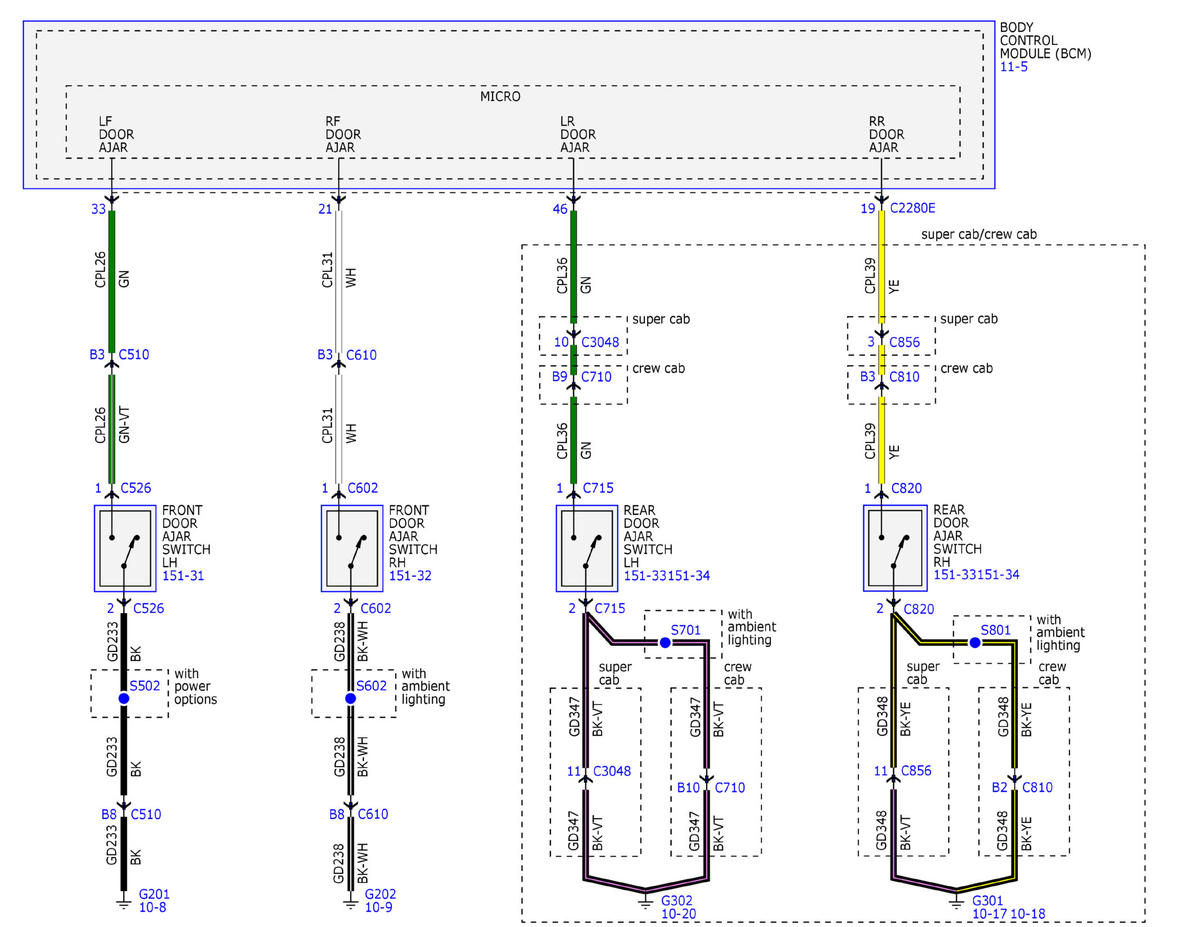

Fig 8: Remote Keyless Entry And Alarm Wiring Diagram (8 Of 9)

GFDWR57253

Courtesy of FORD MOTOR COMPANY

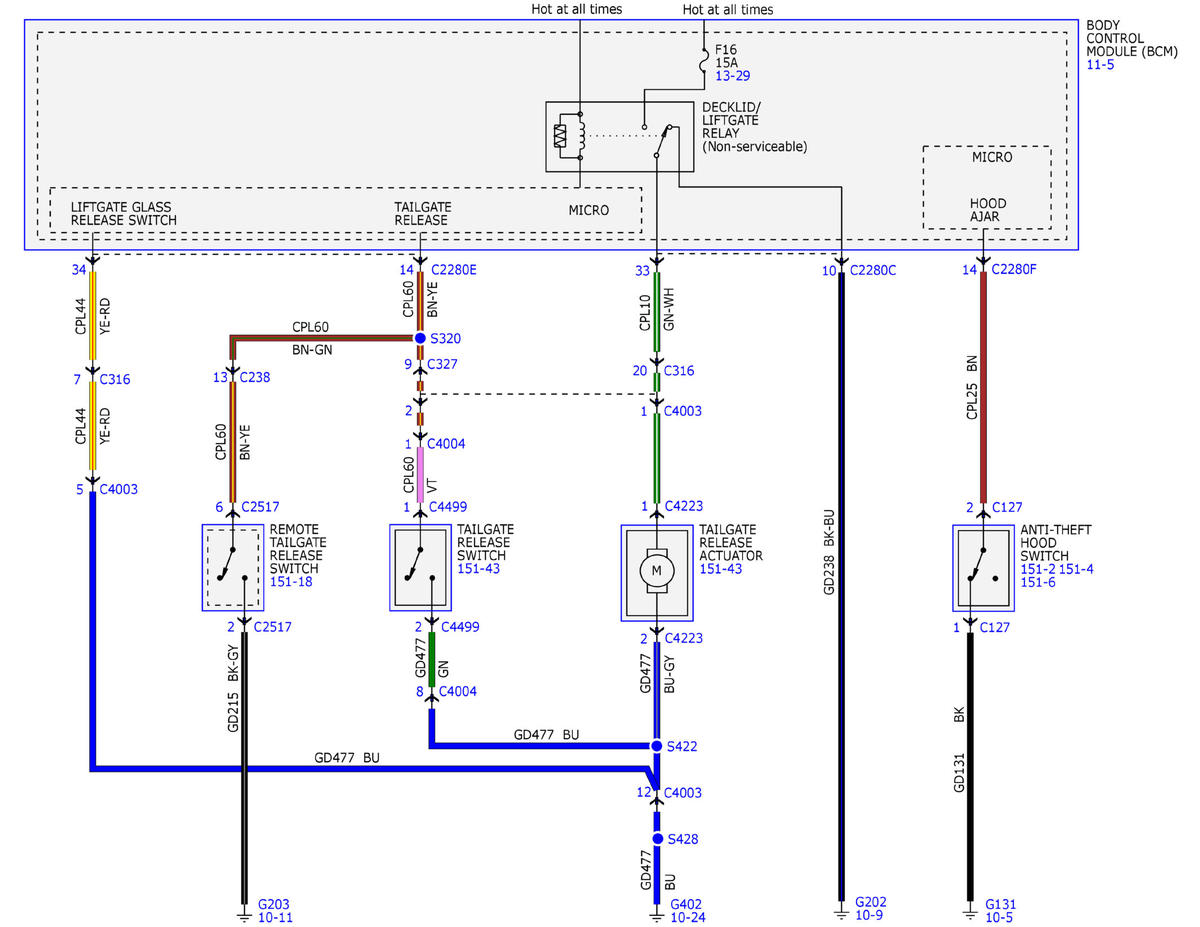

Fig 9: Remote Keyless Entry And Alarm Wiring Diagram (9 Of 9)

GFDWR57254

Courtesy of FORD MOTOR COMPANY
