Power Seats

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

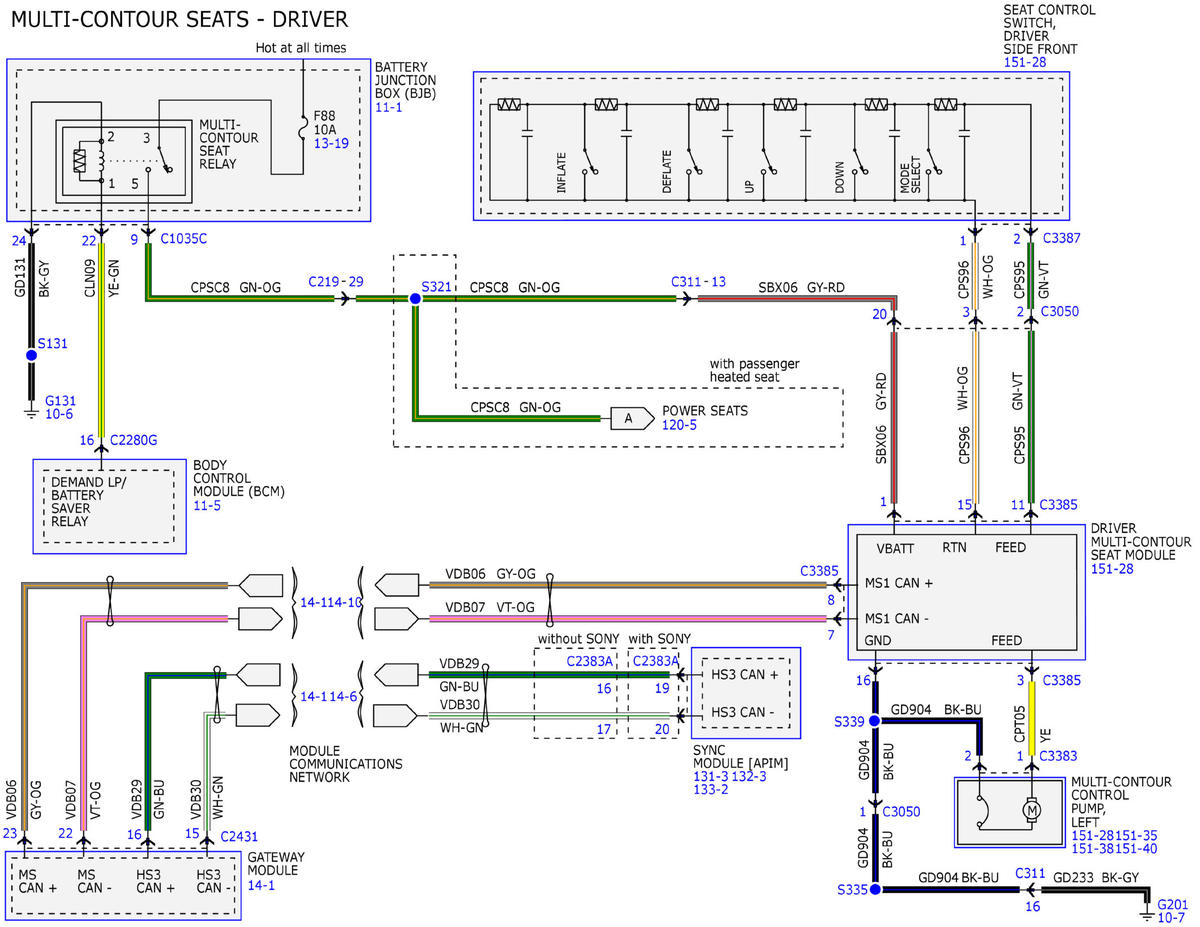

Fig 1: Power Seats Wiring Diagram (1 Of 5)

Courtesy of FORD MOTOR COMPANY

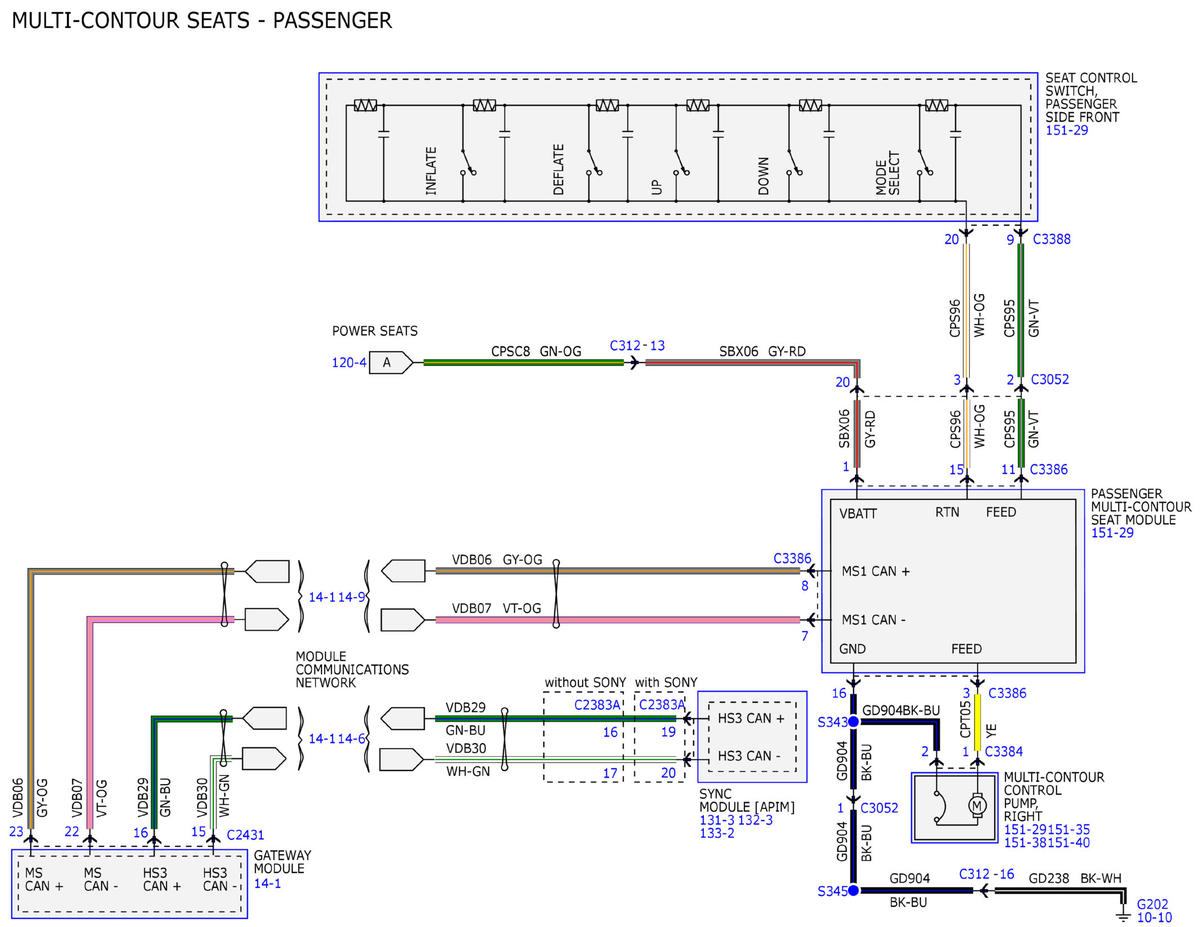

Fig 2: Power Seats Wiring Diagram (2 Of 5)

Courtesy of FORD MOTOR COMPANY

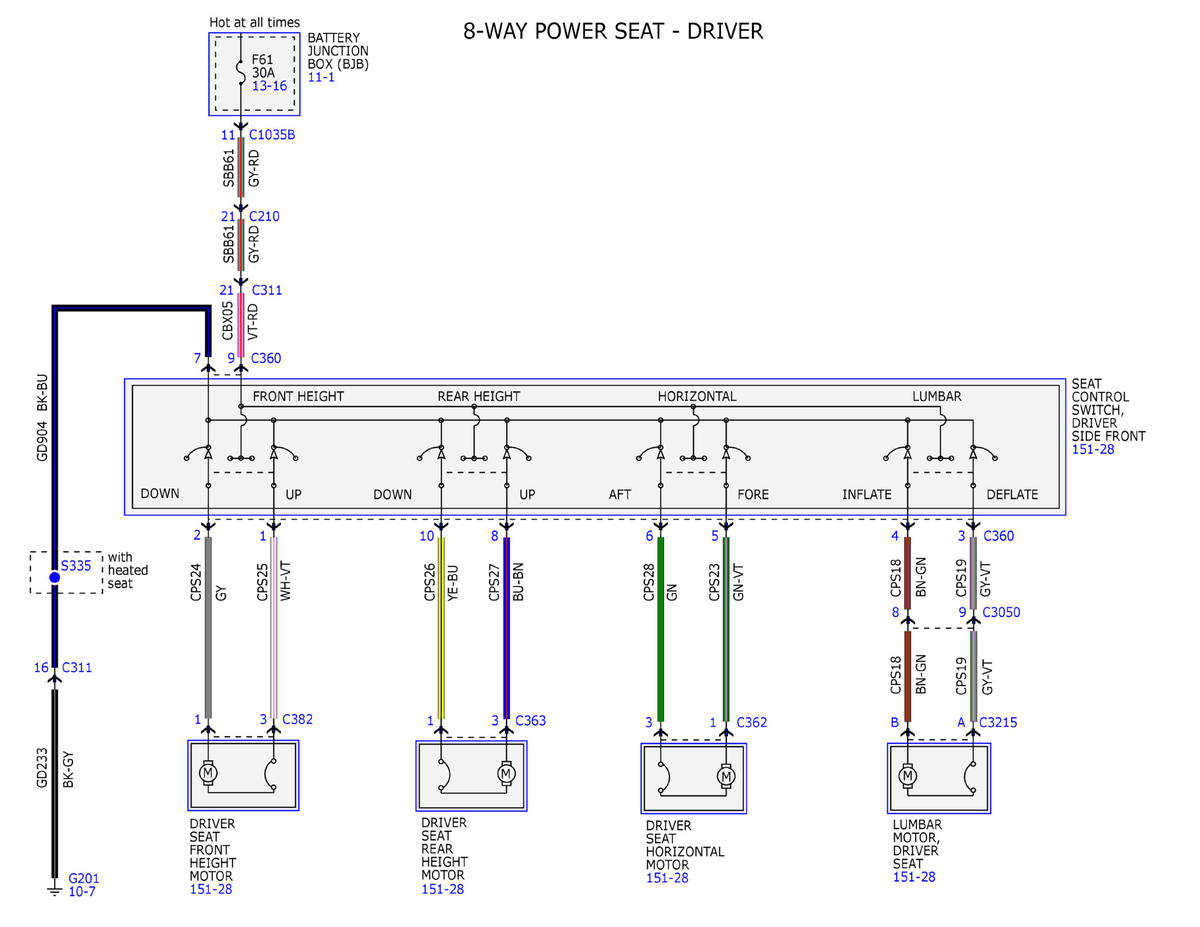

Fig 3: Power Seats Wiring Diagram (3 Of 5)

Courtesy of FORD MOTOR COMPANY

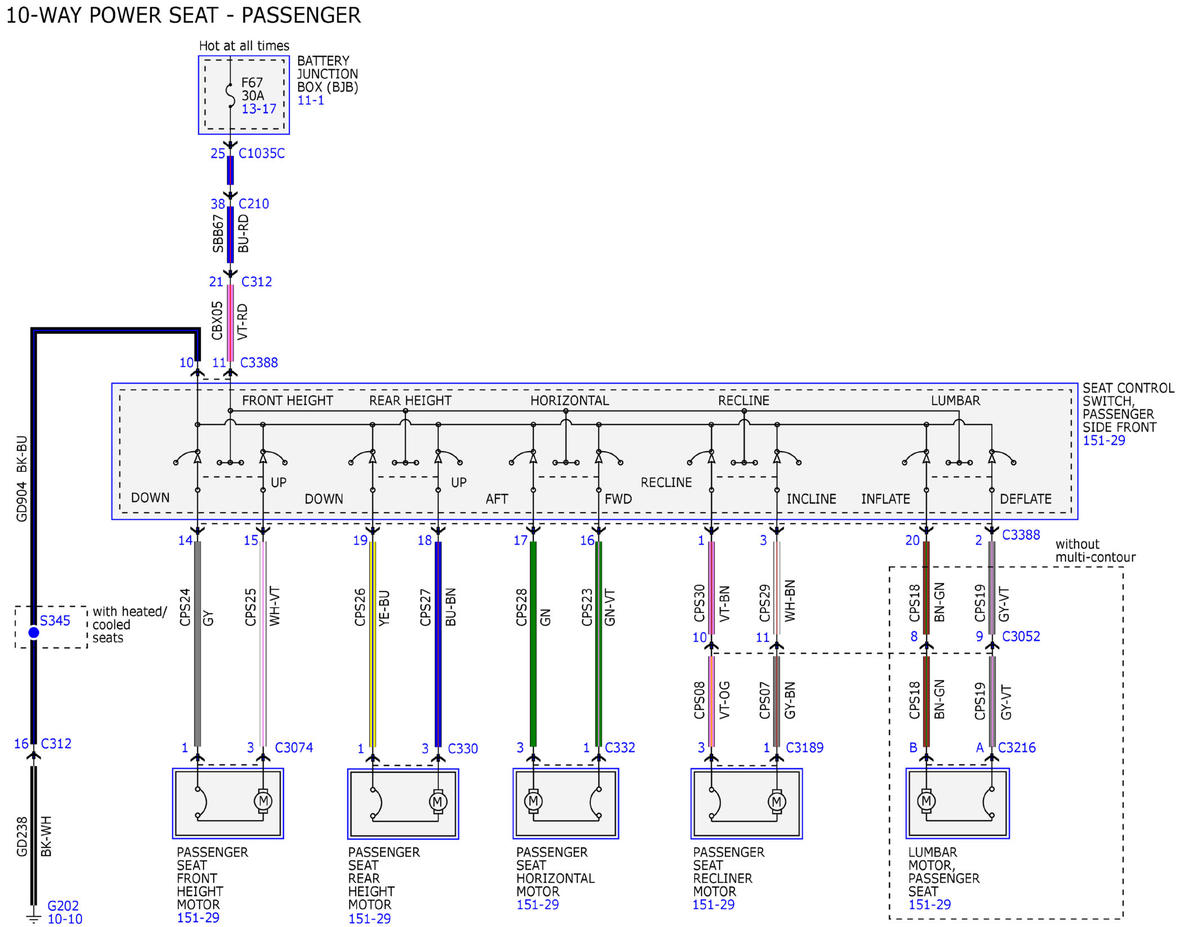

Fig 4: Power Seats Wiring Diagram (4 Of 5)

Courtesy of FORD MOTOR COMPANY

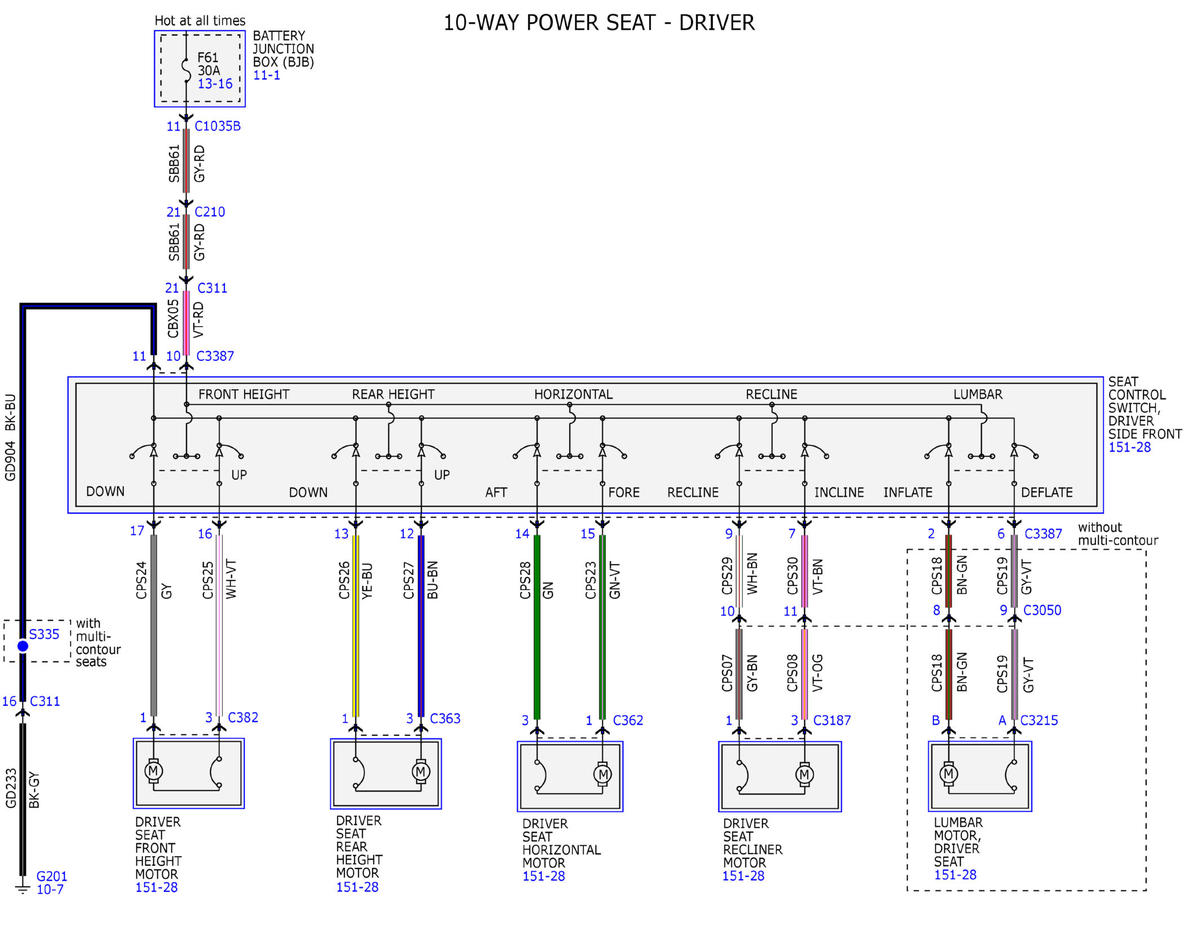

Fig 5: Power Seats Wiring Diagram (5 Of 5)

Courtesy of FORD MOTOR COMPANY
