Passive Anti-Theft System

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

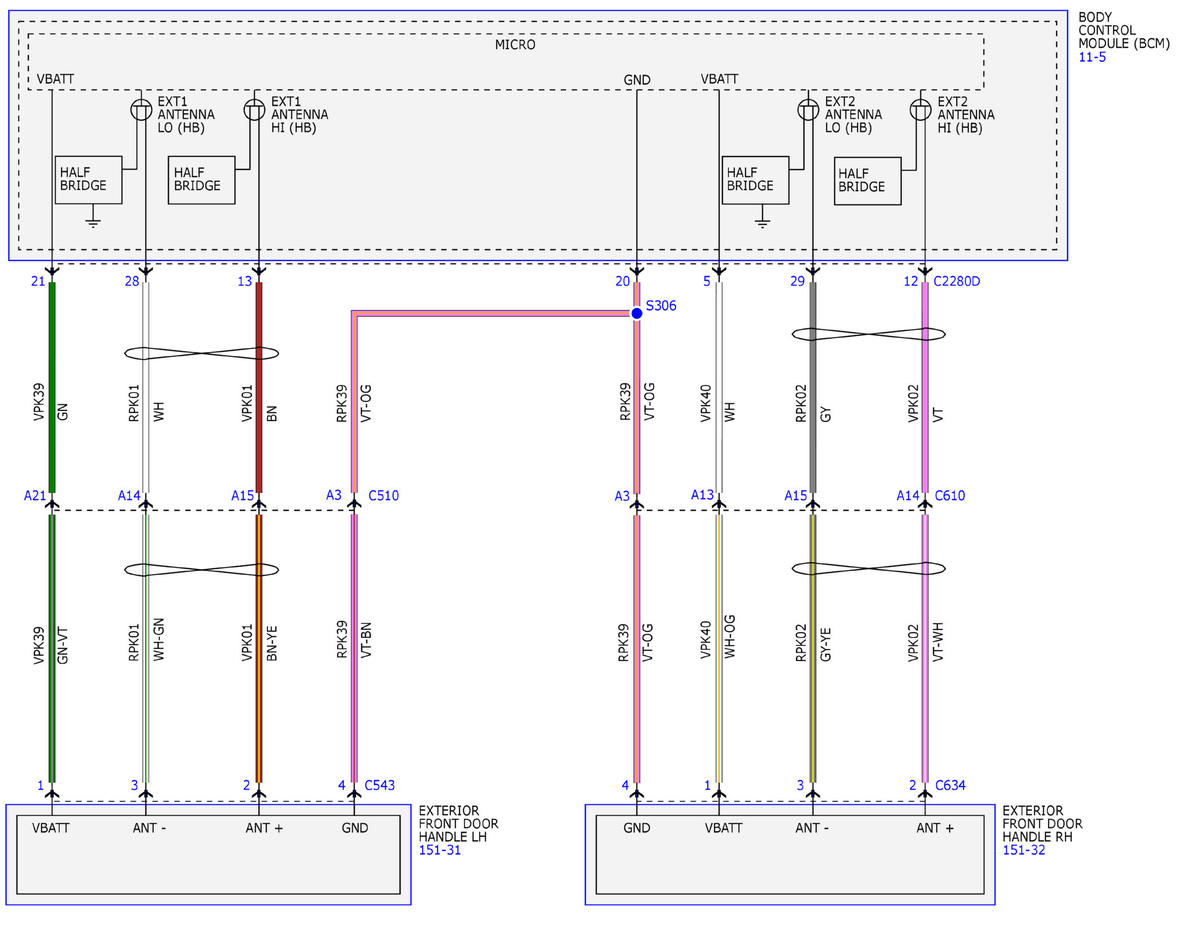

Fig 1: Passive Anti-Theft System Wiring Diagram (1 Of 4)
GFDWR57172Courtesy of FORD MOTOR COMPANY

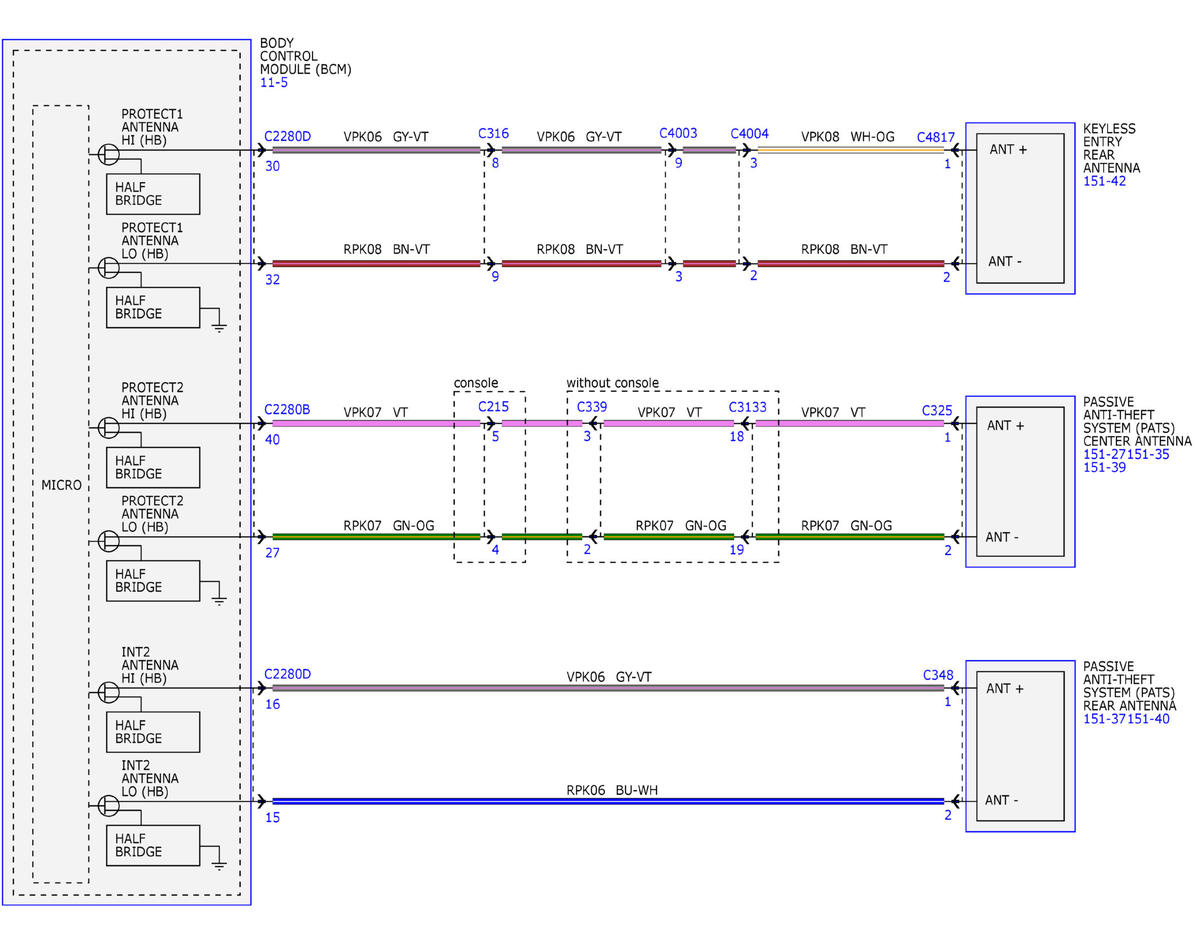

Fig 2: Passive Anti-Theft System Wiring Diagram (2 Of 4)
GFDWR57173Courtesy of FORD MOTOR COMPANY

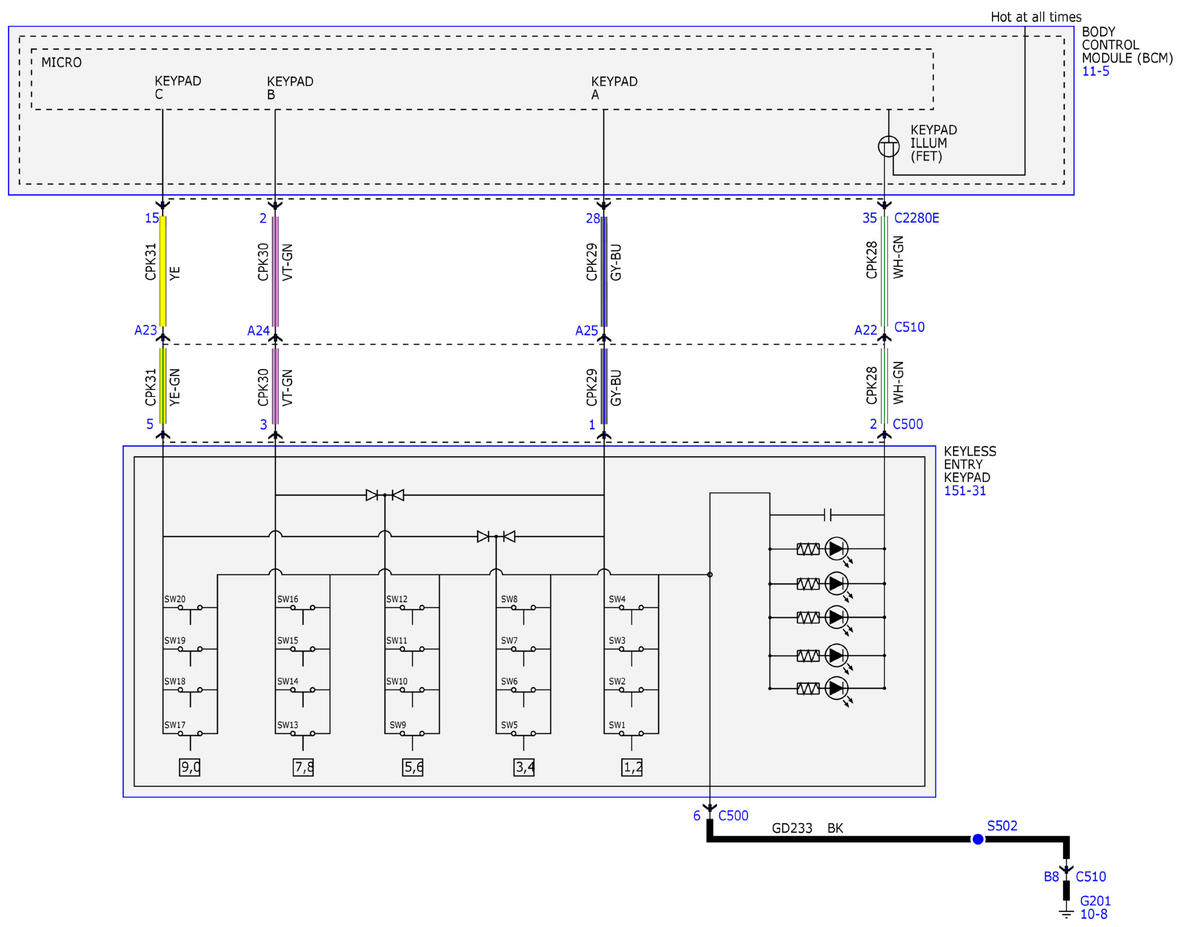

Fig 3: Passive Anti-Theft System Wiring Diagram (3 Of 4)
GFDWR57174Courtesy of FORD MOTOR COMPANY

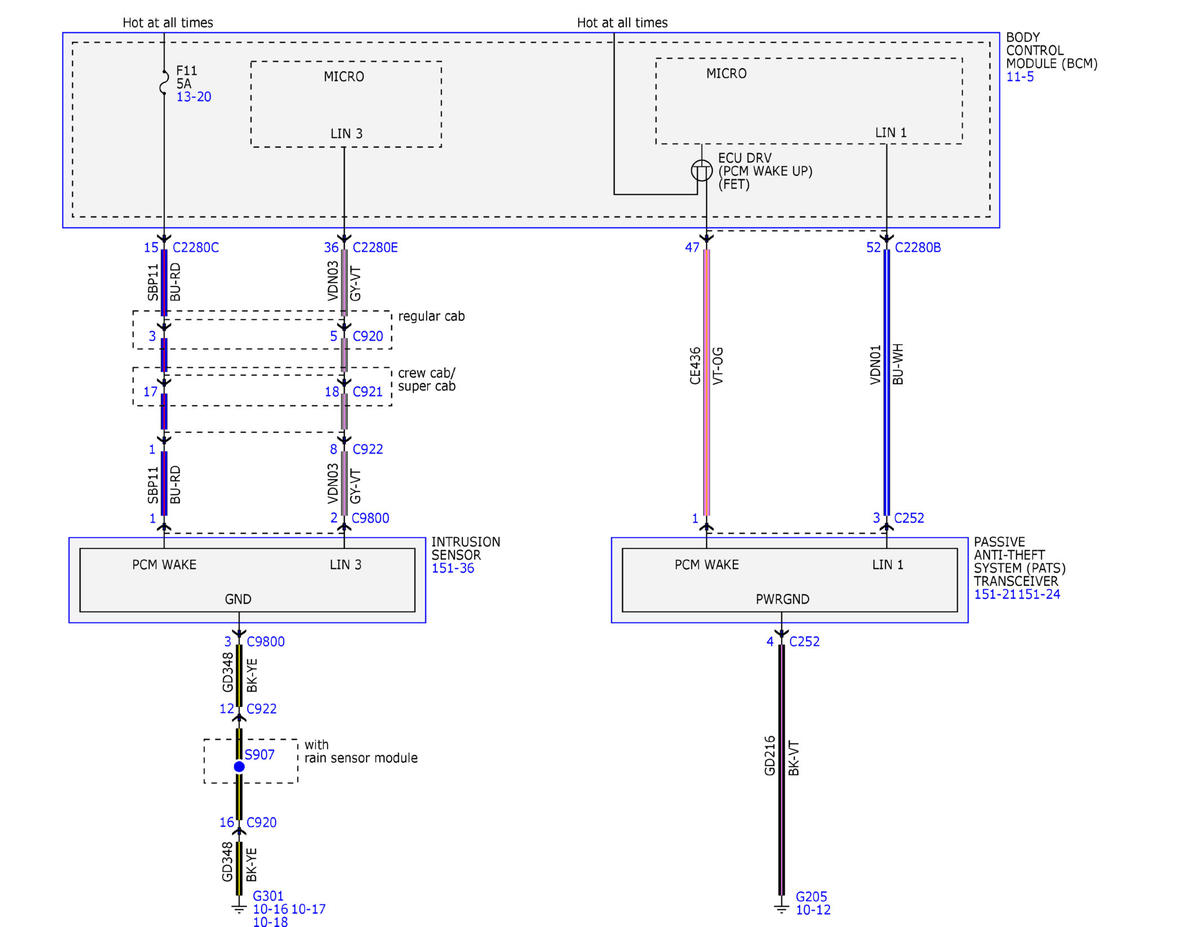

Fig 4: Passive Anti-Theft System Wiring Diagram (4 Of 4)
GFDWR57175Courtesy of FORD MOTOR COMPANY
