Parking Aid

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

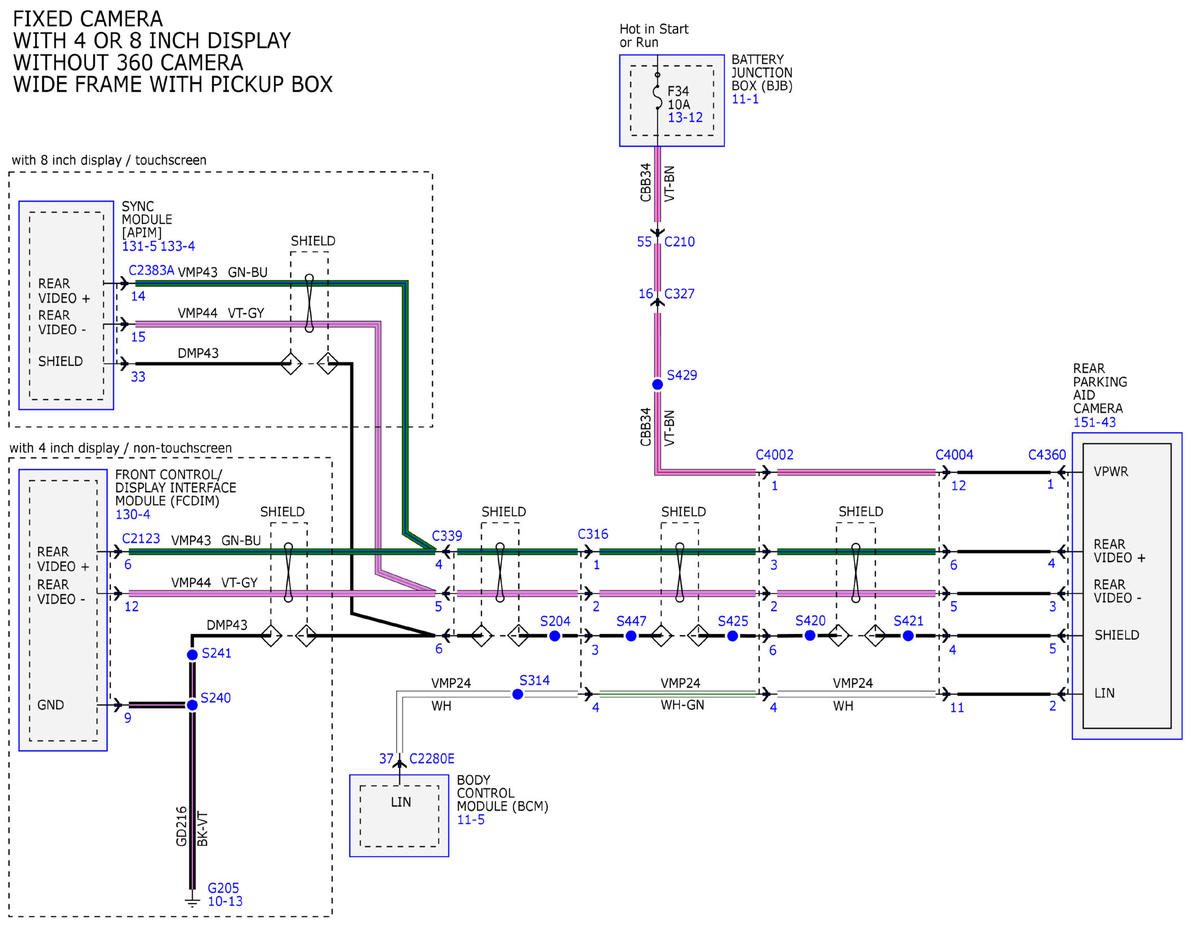

Fig 1: Parking Aid Wiring Diagram (1 Of 14)

GFDWR57144

Courtesy of FORD MOTOR COMPANY

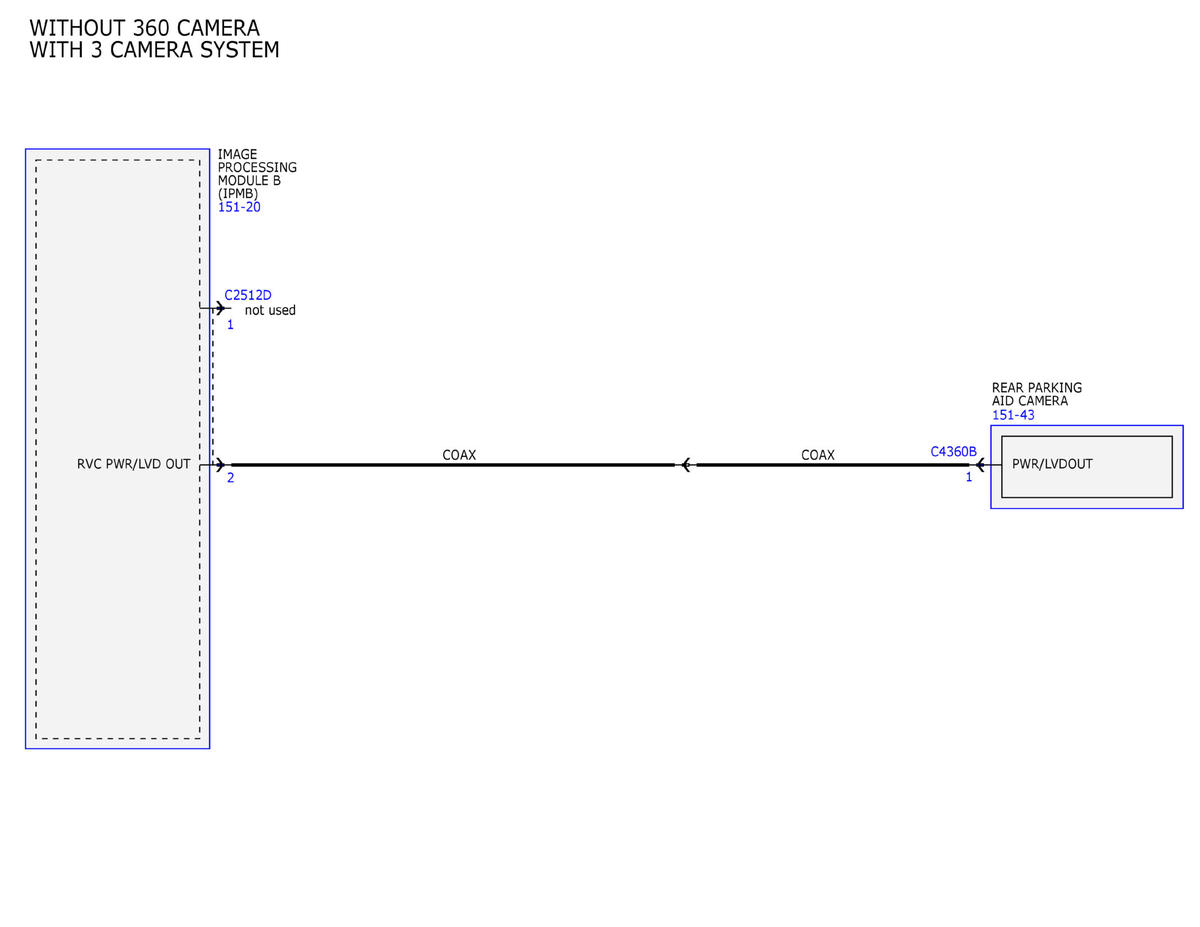

Fig 2: Parking Aid Wiring Diagram (1 Of 14)

GFDWR57145

Courtesy of FORD MOTOR COMPANY

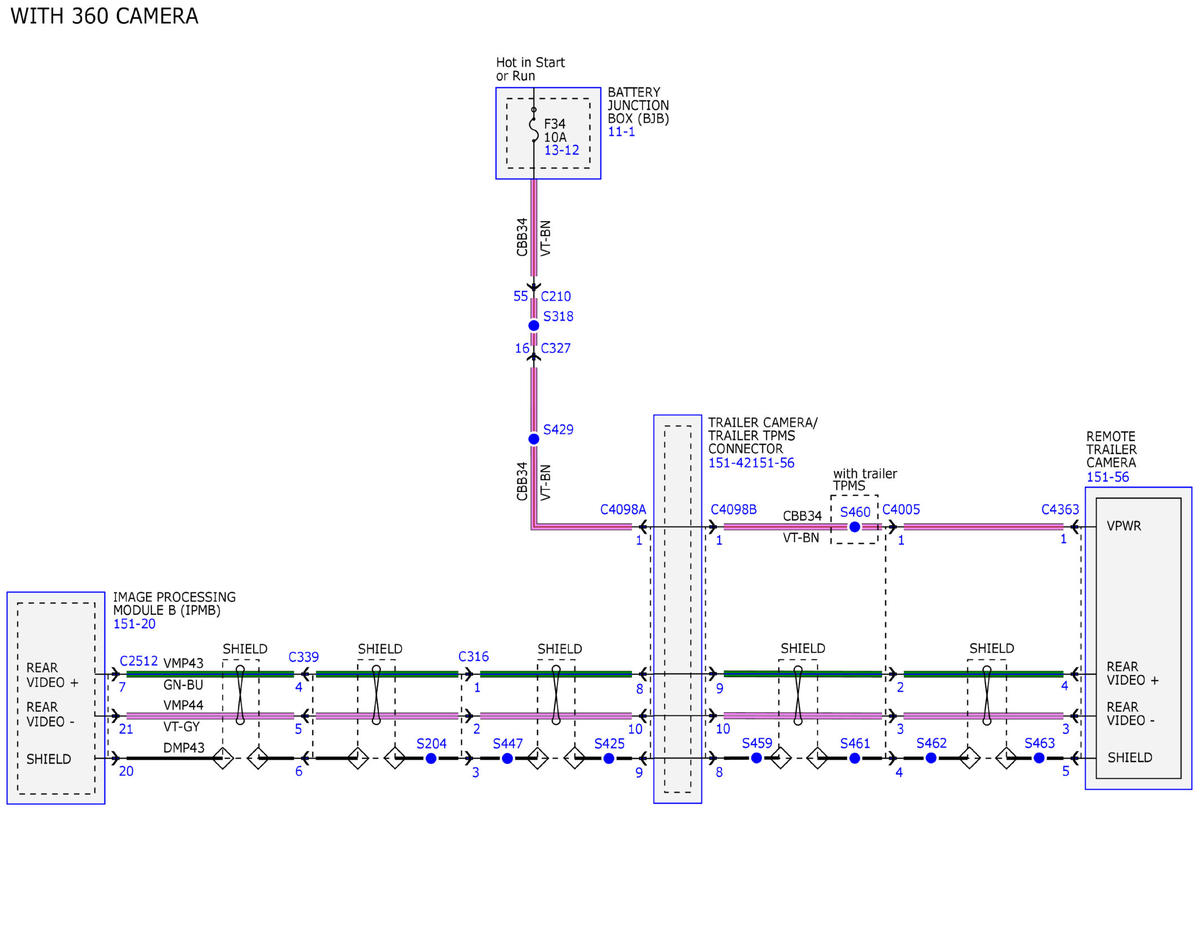

Fig 3: Parking Aid Wiring Diagram (1 Of 14)

GFDWR57146

Courtesy of FORD MOTOR COMPANY

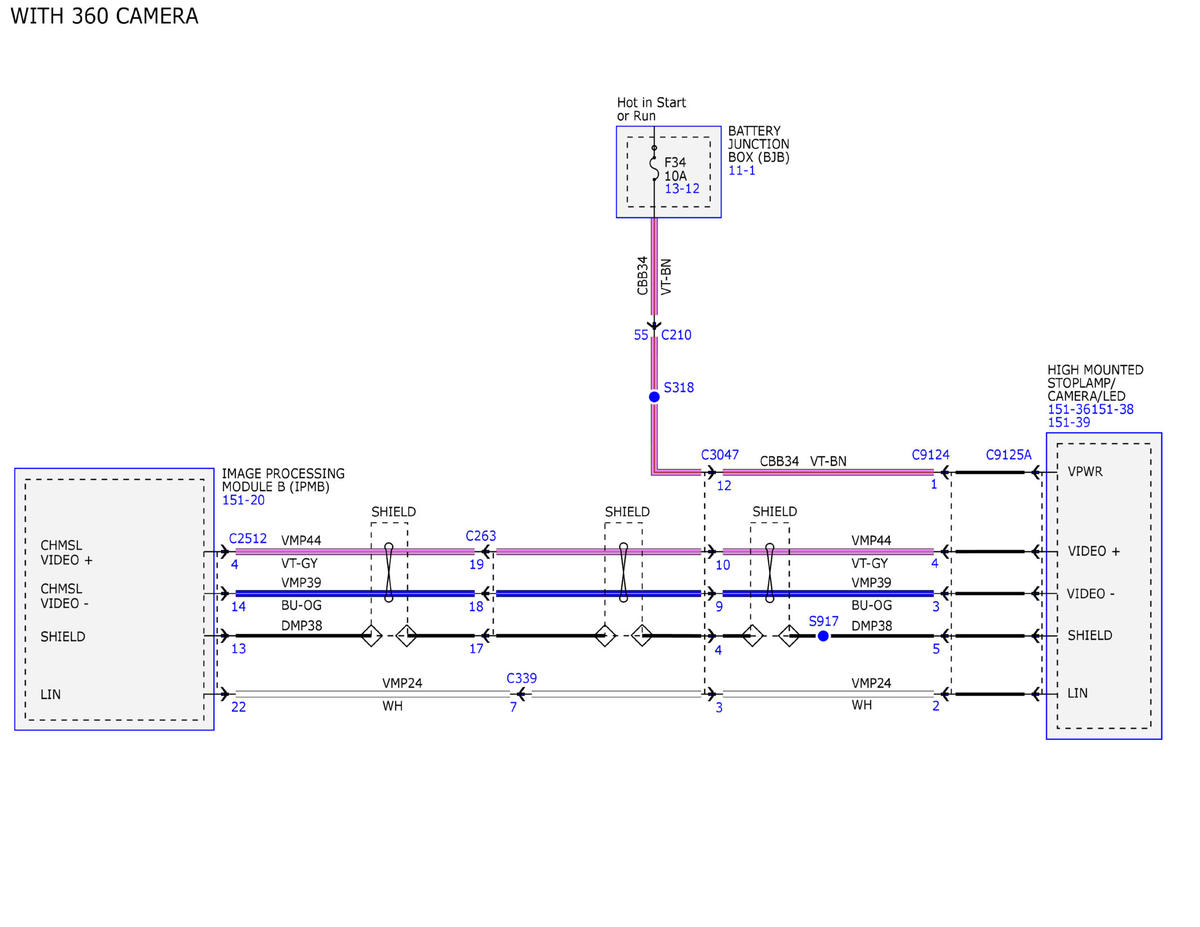

Fig 4: Parking Aid Wiring Diagram (1 Of 14)

GFDWR57147

Courtesy of FORD MOTOR COMPANY

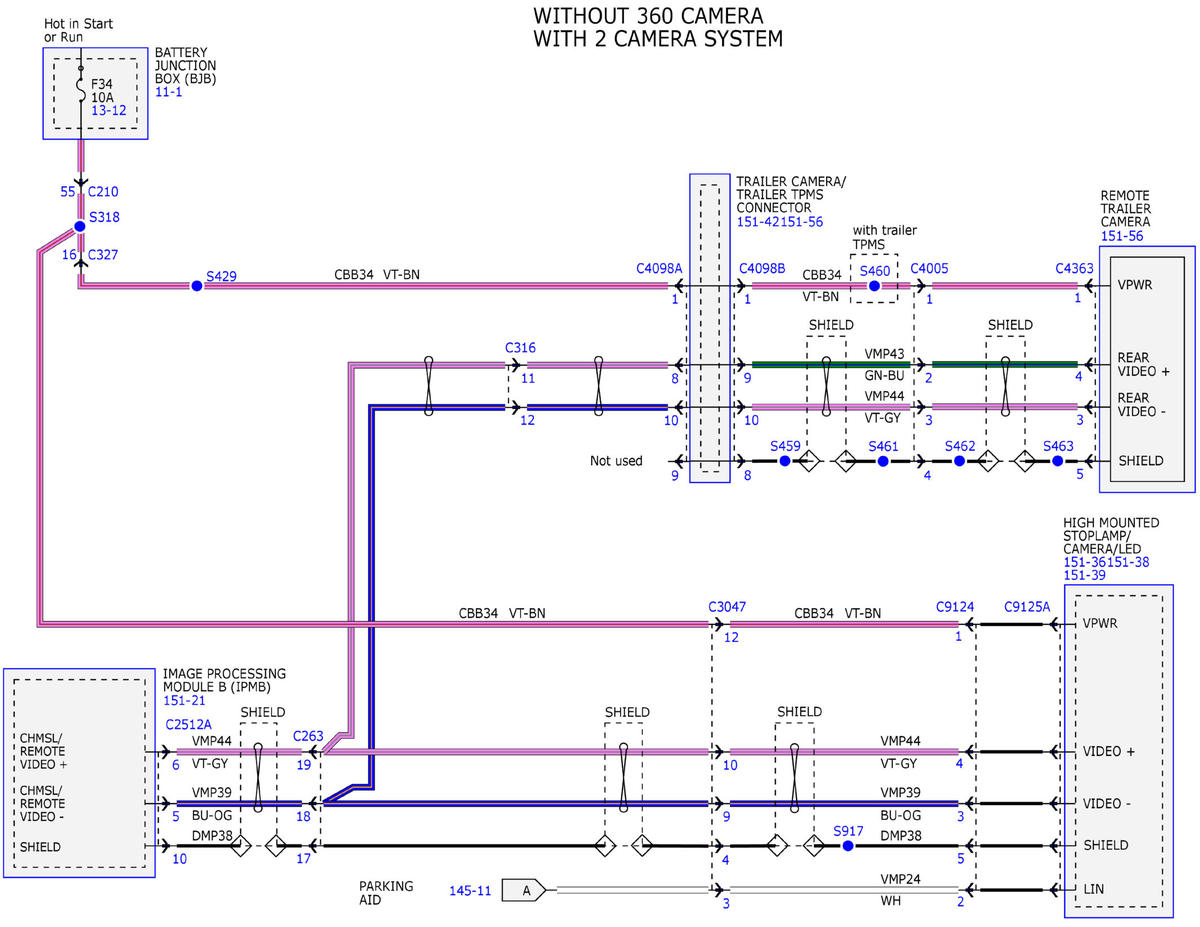

Fig 5: Parking Aid Wiring Diagram (1 Of 14)

GFDWR57148

Courtesy of FORD MOTOR COMPANY

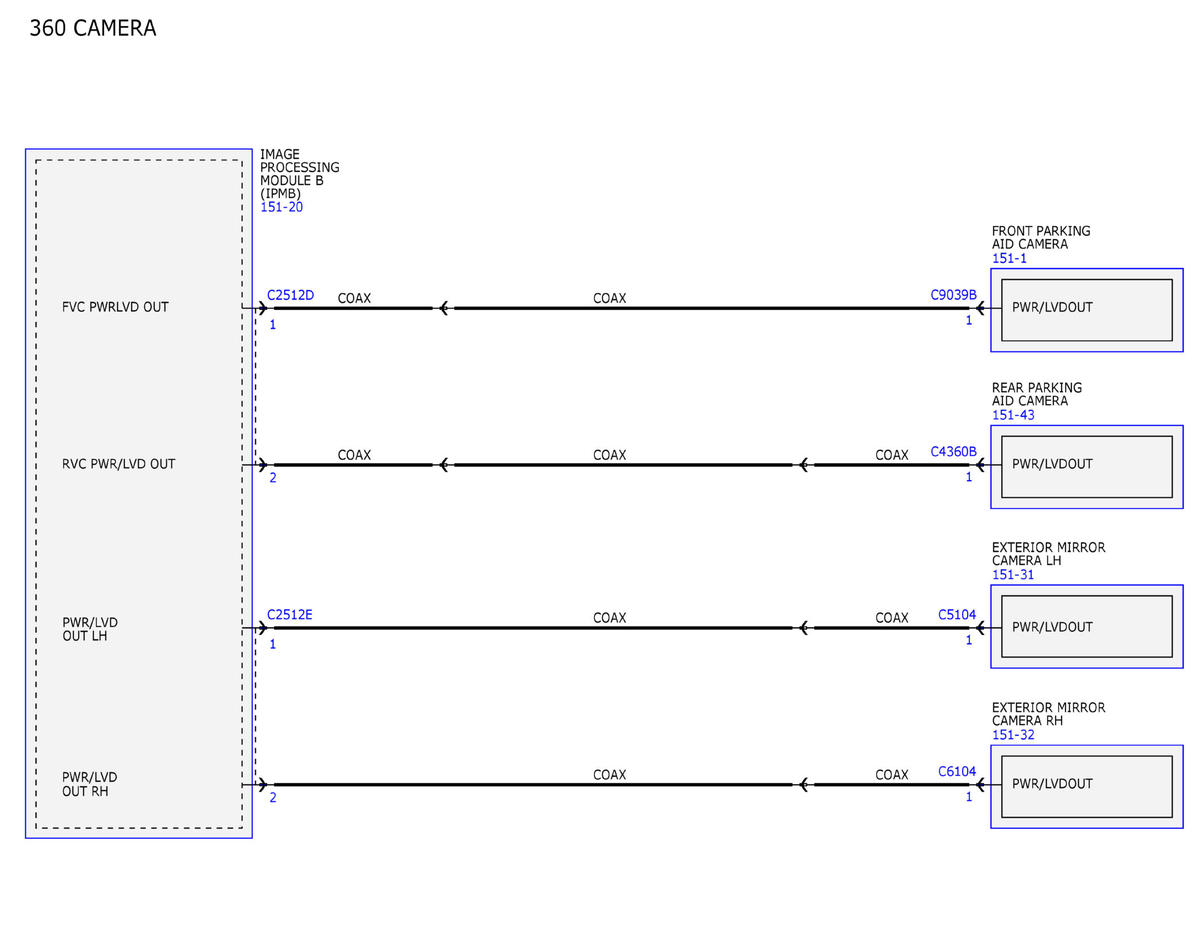

Fig 6: Parking Aid Wiring Diagram (1 Of 14)

GFDWR57149

Courtesy of FORD MOTOR COMPANY

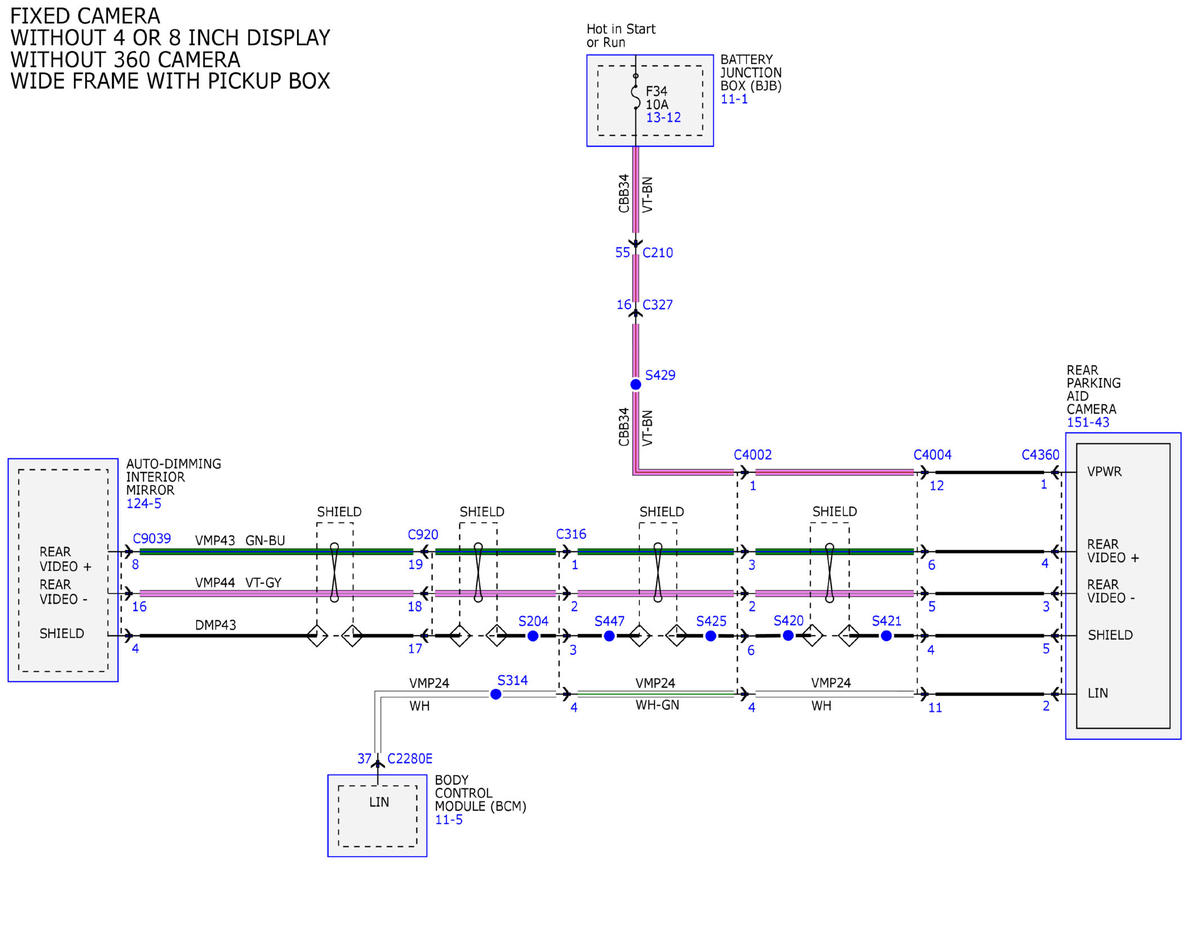

Fig 7: Parking Aid Wiring Diagram (1 Of 14)

GFDWR57150

Courtesy of FORD MOTOR COMPANY

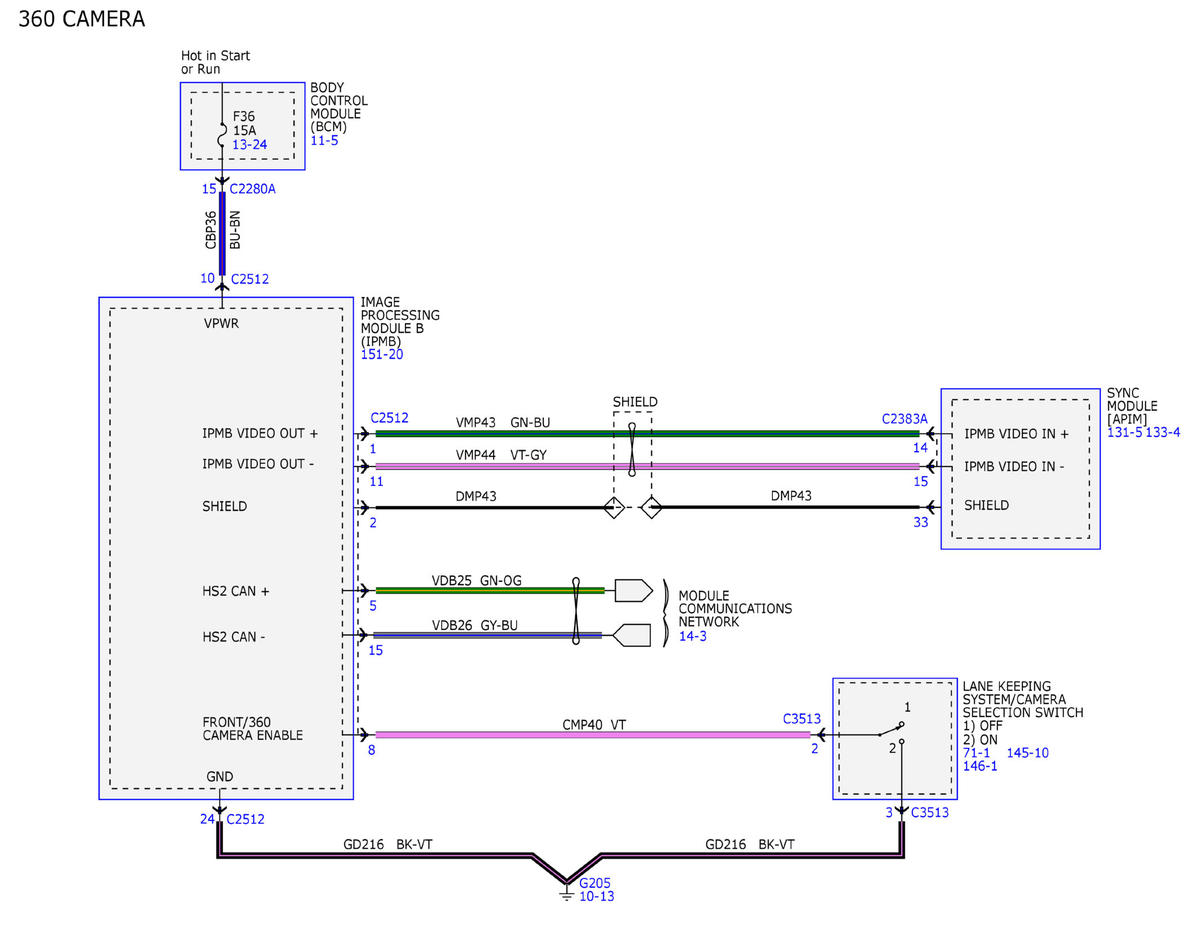

Fig 8: Parking Aid Wiring Diagram (1 Of 14)

GFDWR57151

Courtesy of FORD MOTOR COMPANY

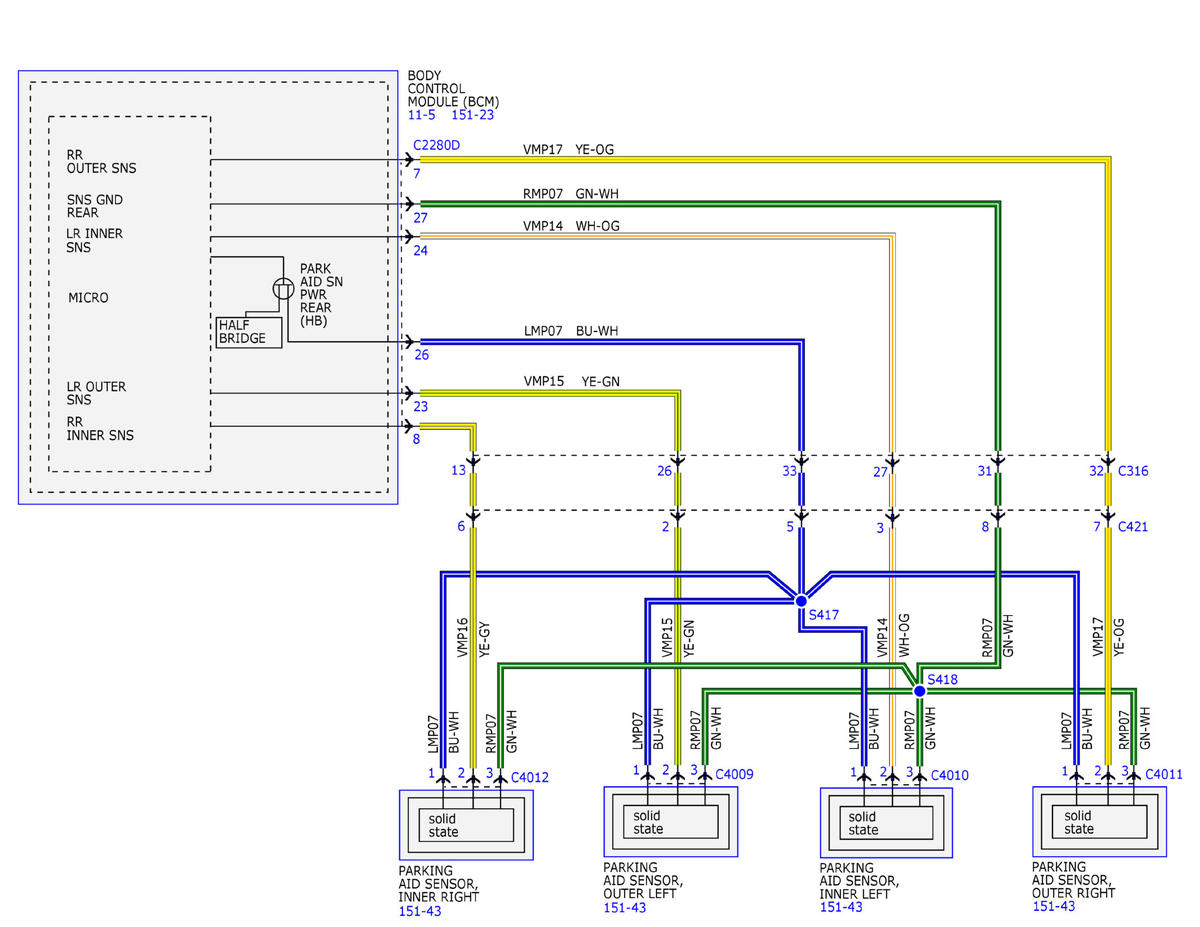

Fig 9: Parking Aid Wiring Diagram (1 Of 14)

GFDWR57152

Courtesy of FORD MOTOR COMPANY

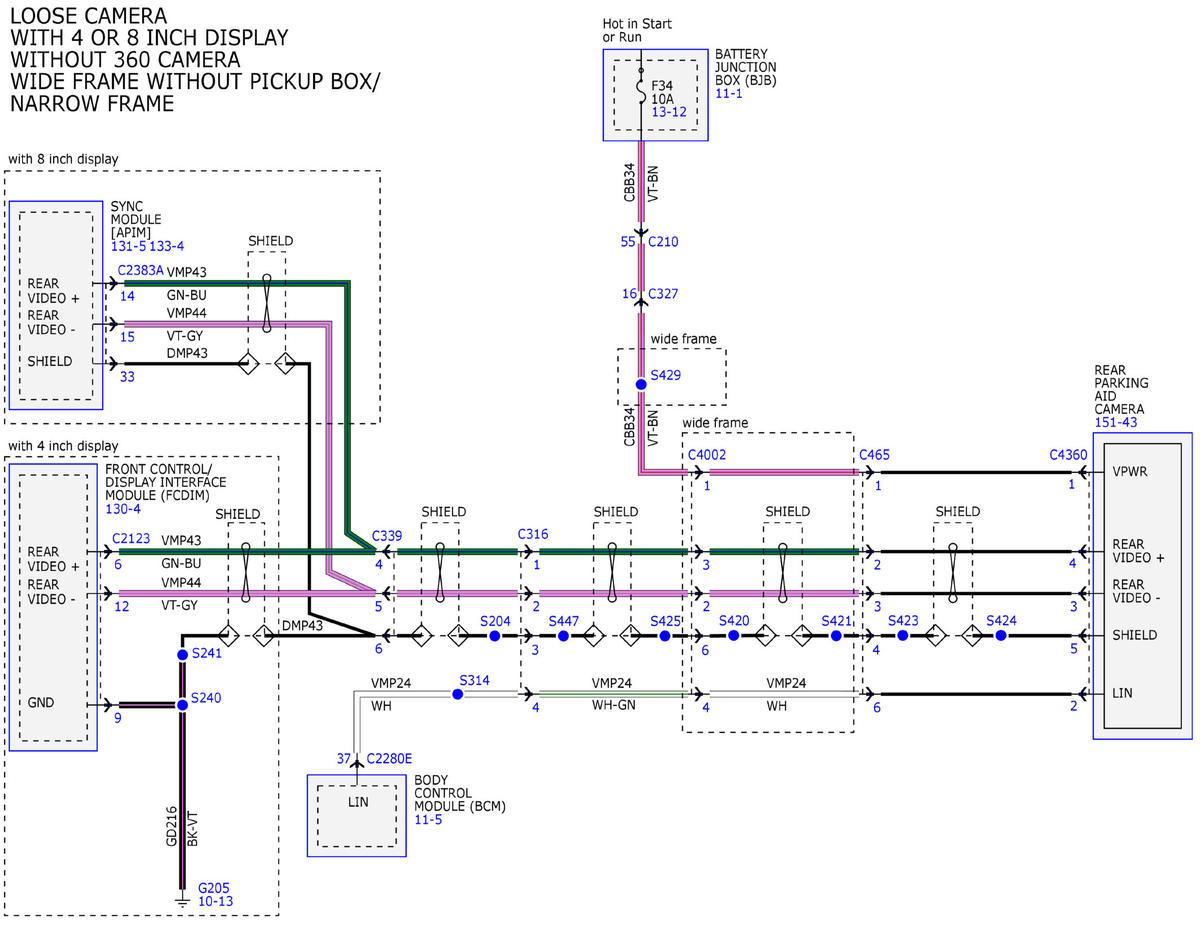

Fig 10: Parking Aid Wiring Diagram (10 Of 14)

GFDWR57153

Courtesy of FORD MOTOR COMPANY

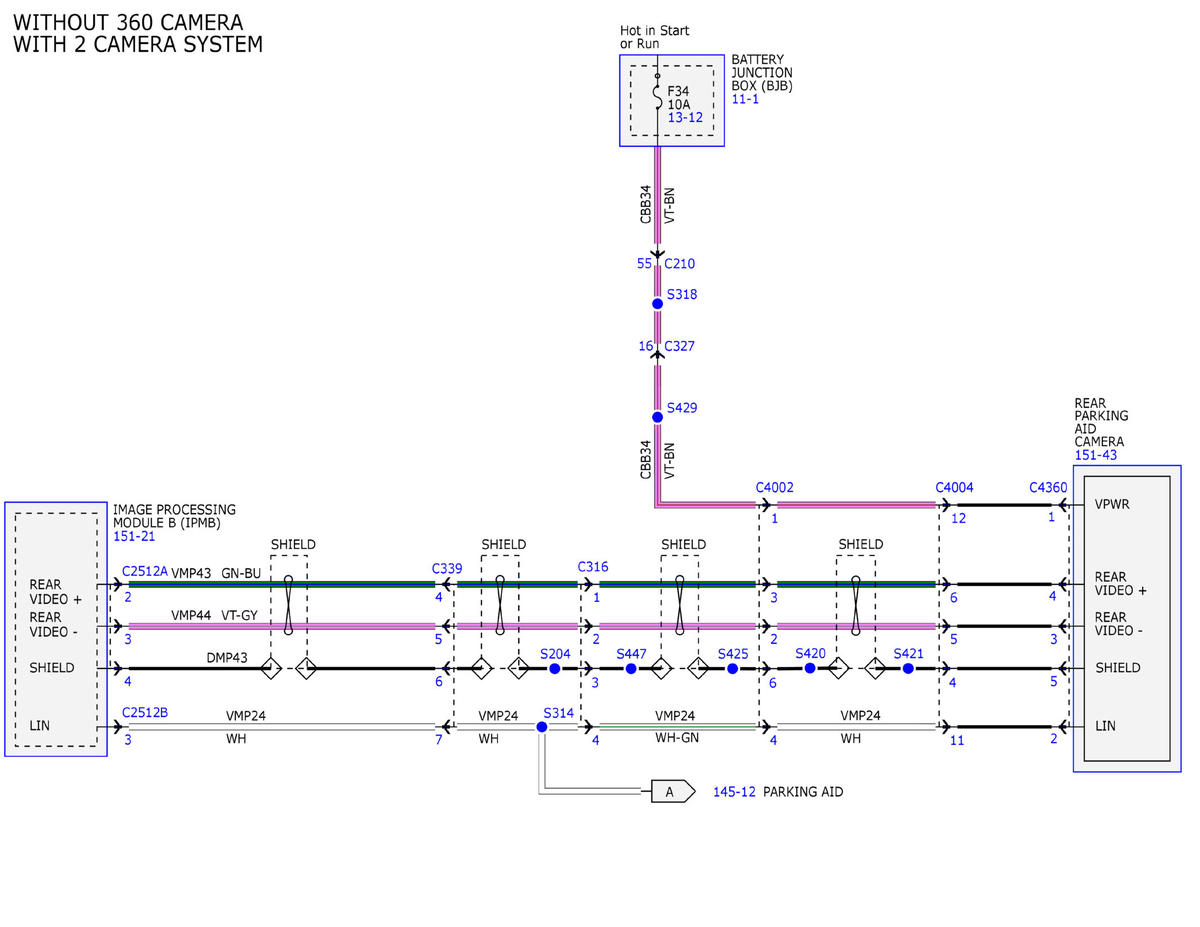

Fig 11: Parking Aid Wiring Diagram (11 Of 14)

GFDWR57154

Courtesy of FORD MOTOR COMPANY

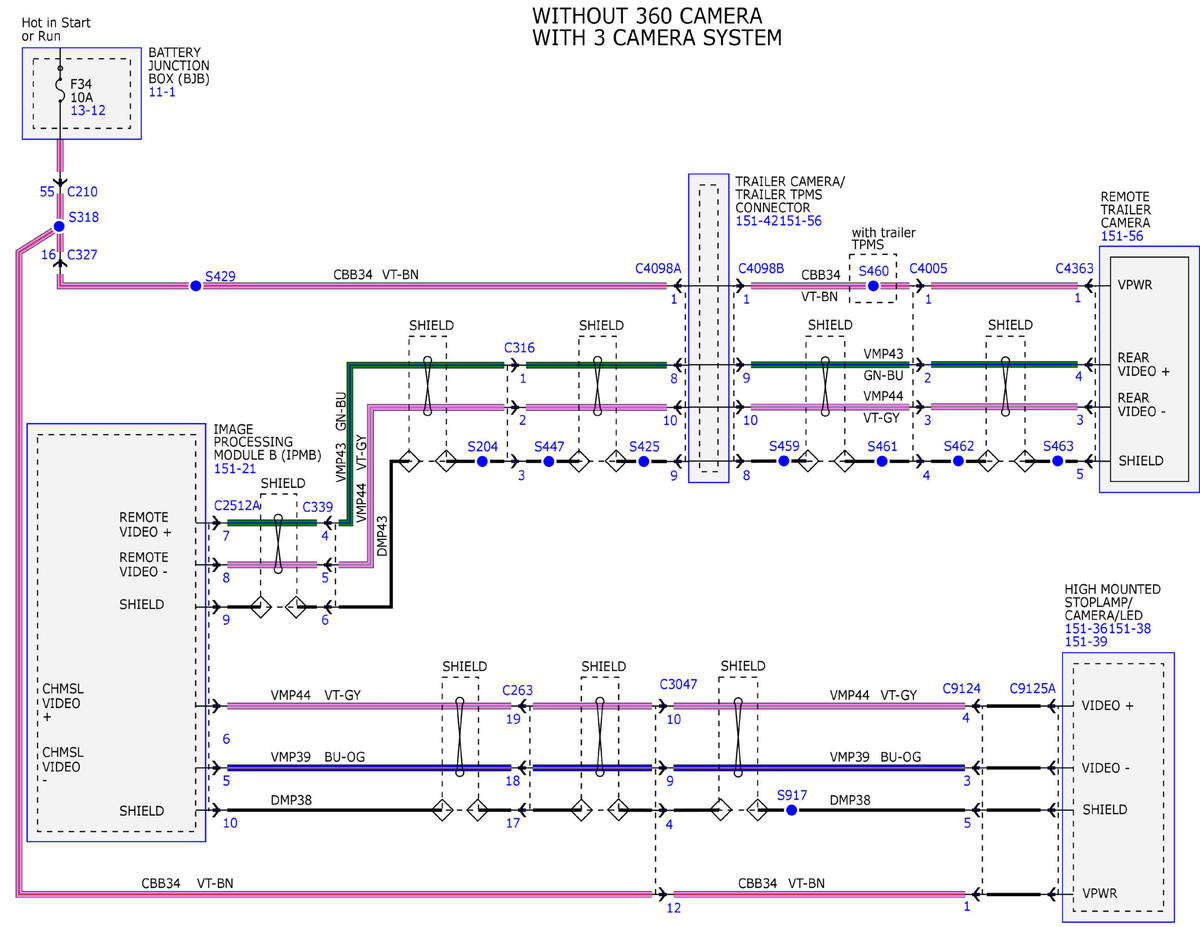

Fig 12: Parking Aid Wiring Diagram (12 Of 14)

GFDWR57155

Courtesy of FORD MOTOR COMPANY

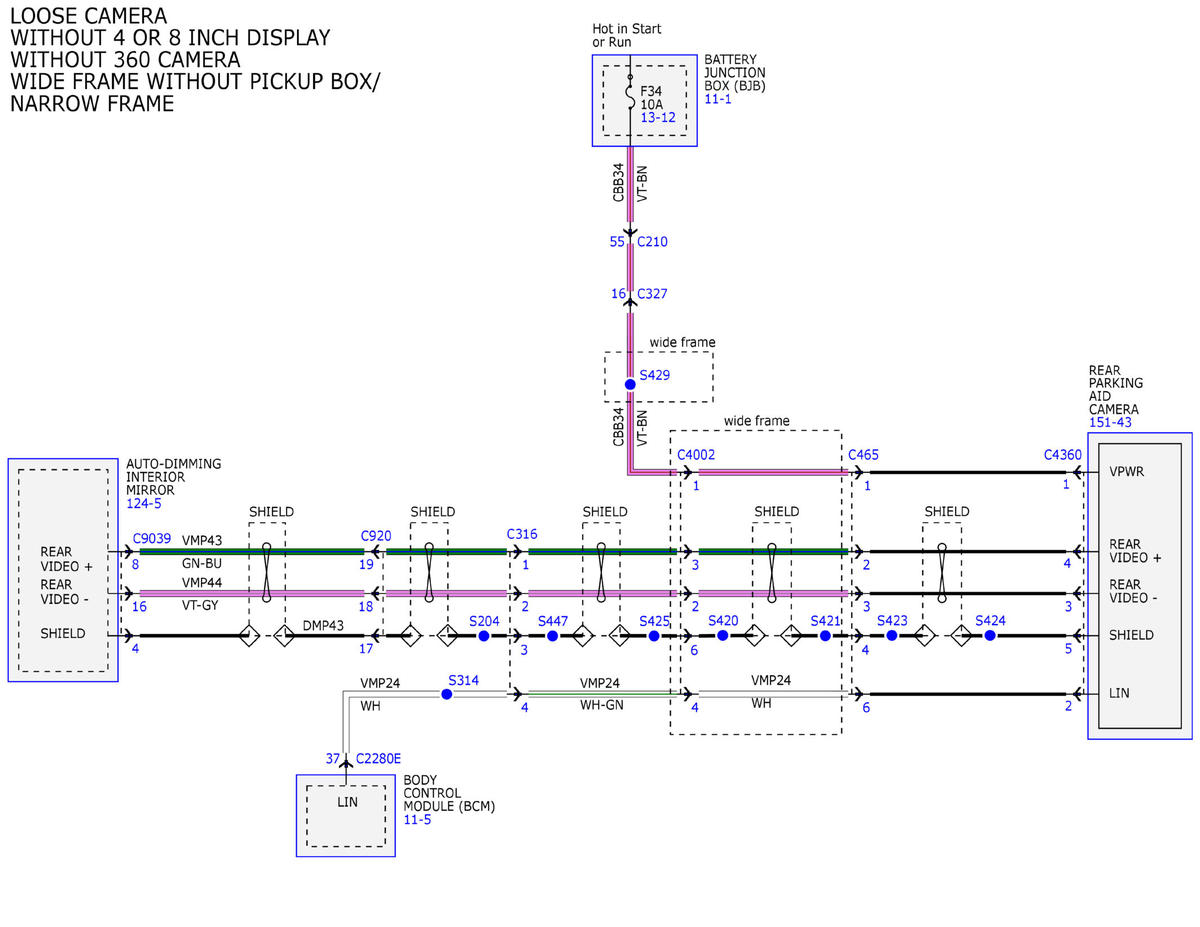

Fig 13: Parking Aid Wiring Diagram (13 Of 14)

GFDWR57156

Courtesy of FORD MOTOR COMPANY

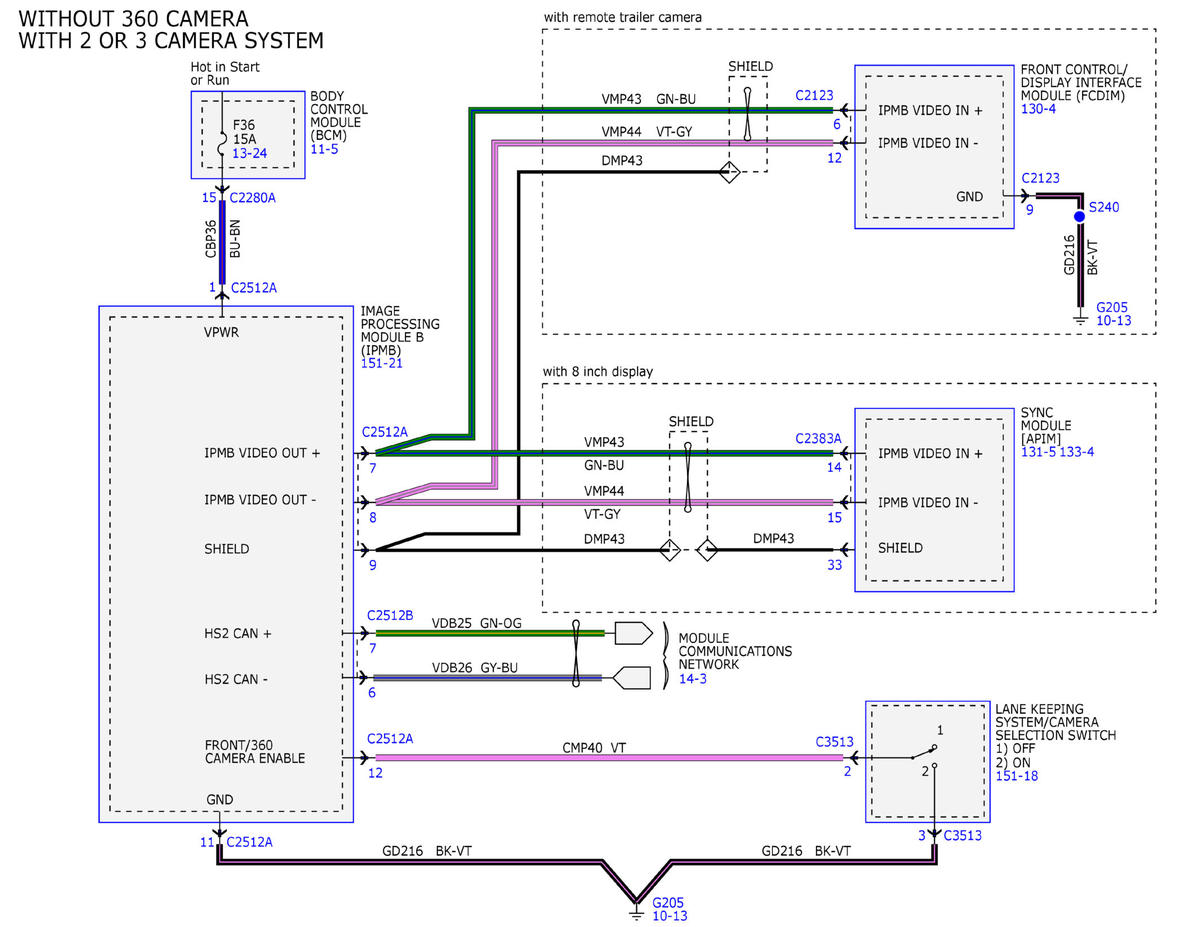

Fig 14: Parking Aid Wiring Diagram (14 Of 14)

GFDWR57157

Courtesy of FORD MOTOR COMPANY
