Manual Climate Control System

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

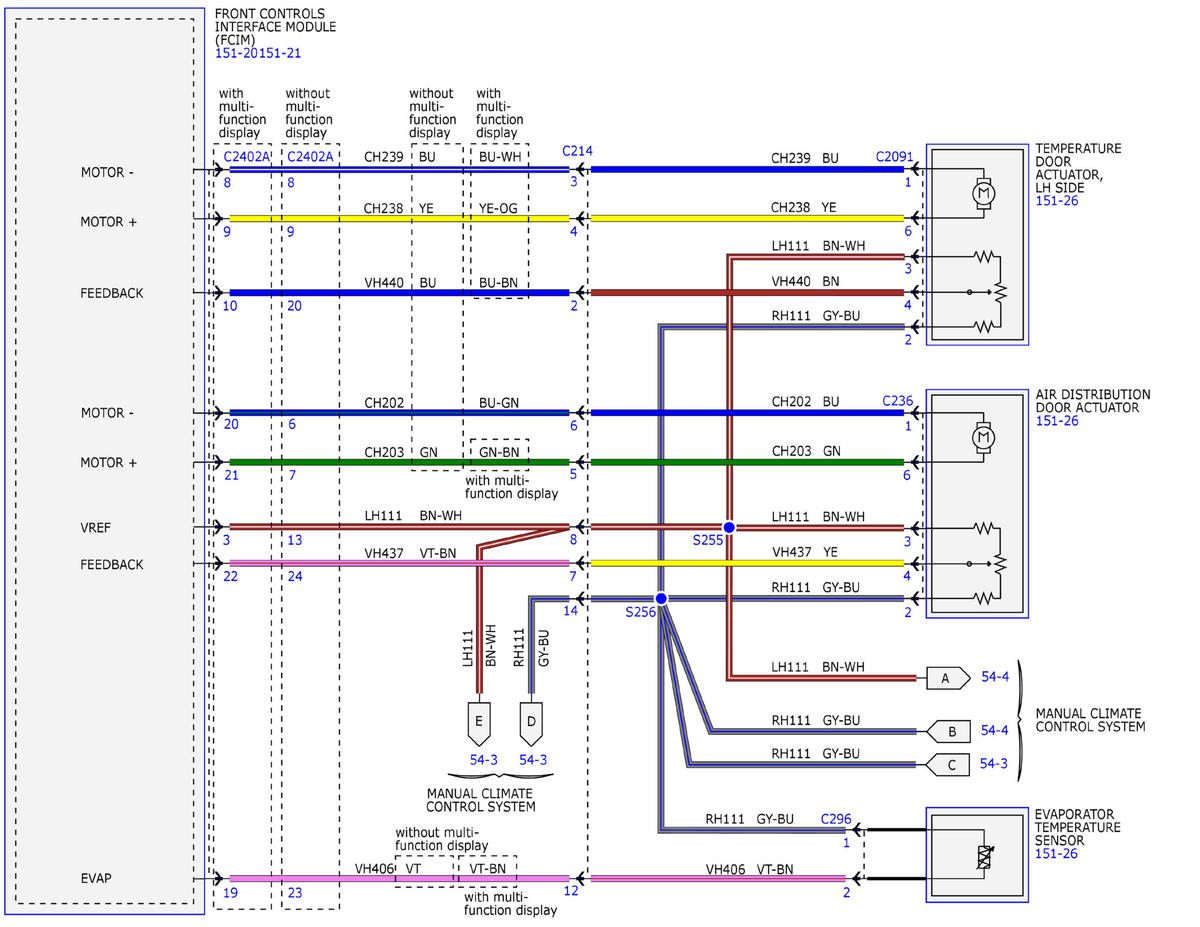

Fig 1: Manual Climate Control System Wiring Diagram (1 Of 7)

GFDWR57121

Courtesy of FORD MOTOR COMPANY

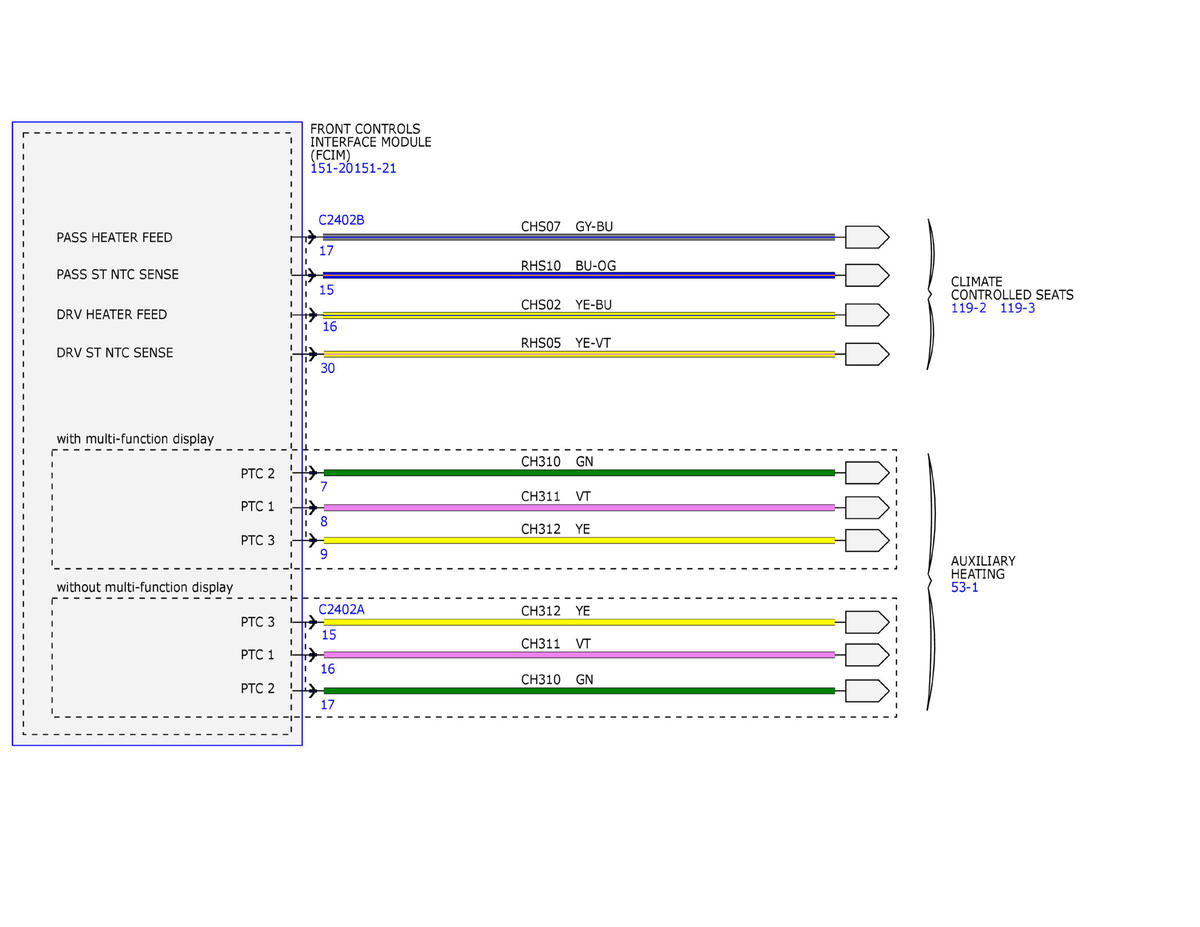

Fig 2: Manual Climate Control System Wiring Diagram (2 Of 7)

GFDWR57122

Courtesy of FORD MOTOR COMPANY

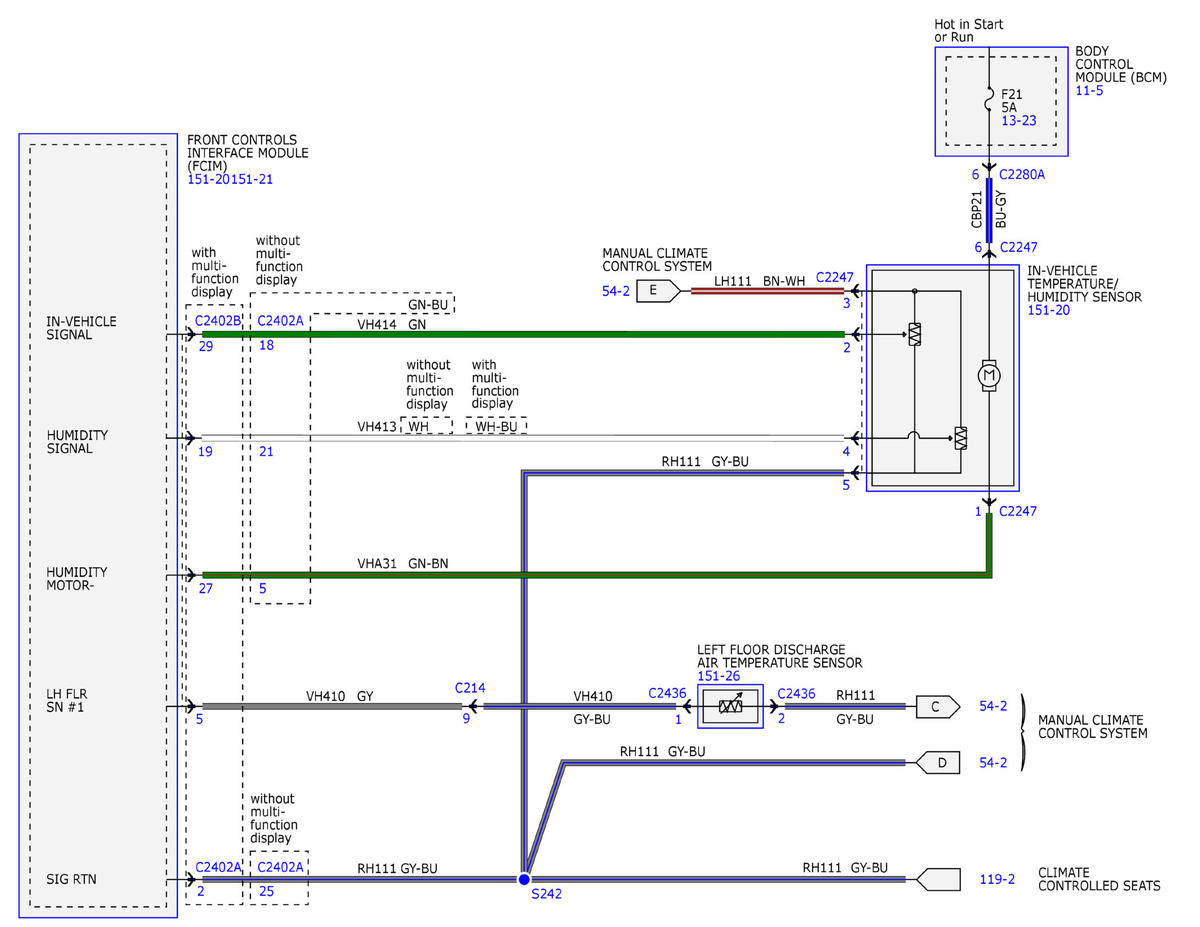

Fig 3: Manual Climate Control System Wiring Diagram (3 Of 7)

GFDWR57123

Courtesy of FORD MOTOR COMPANY

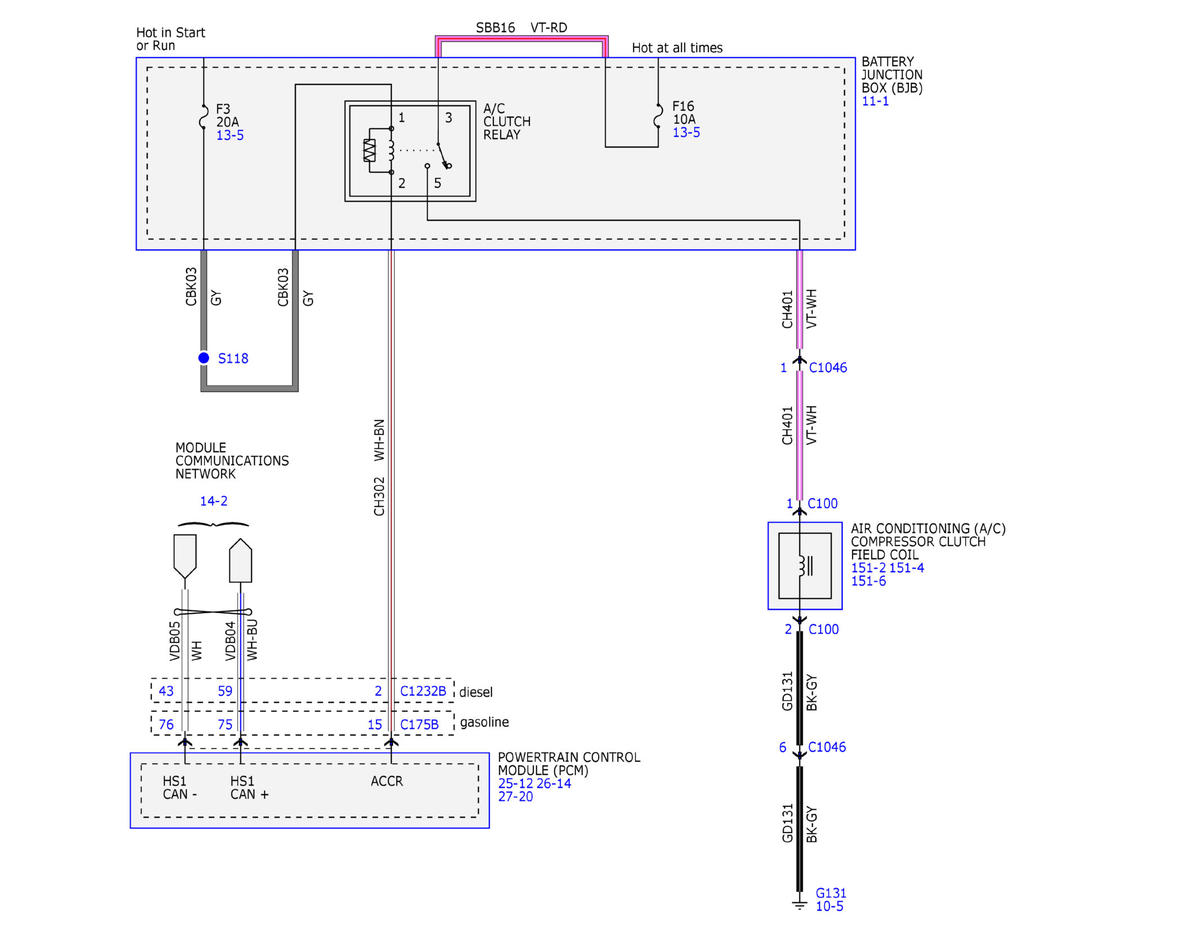

Fig 4: Manual Climate Control System Wiring Diagram (4 Of 7)

GFDWR57124

Courtesy of FORD MOTOR COMPANY

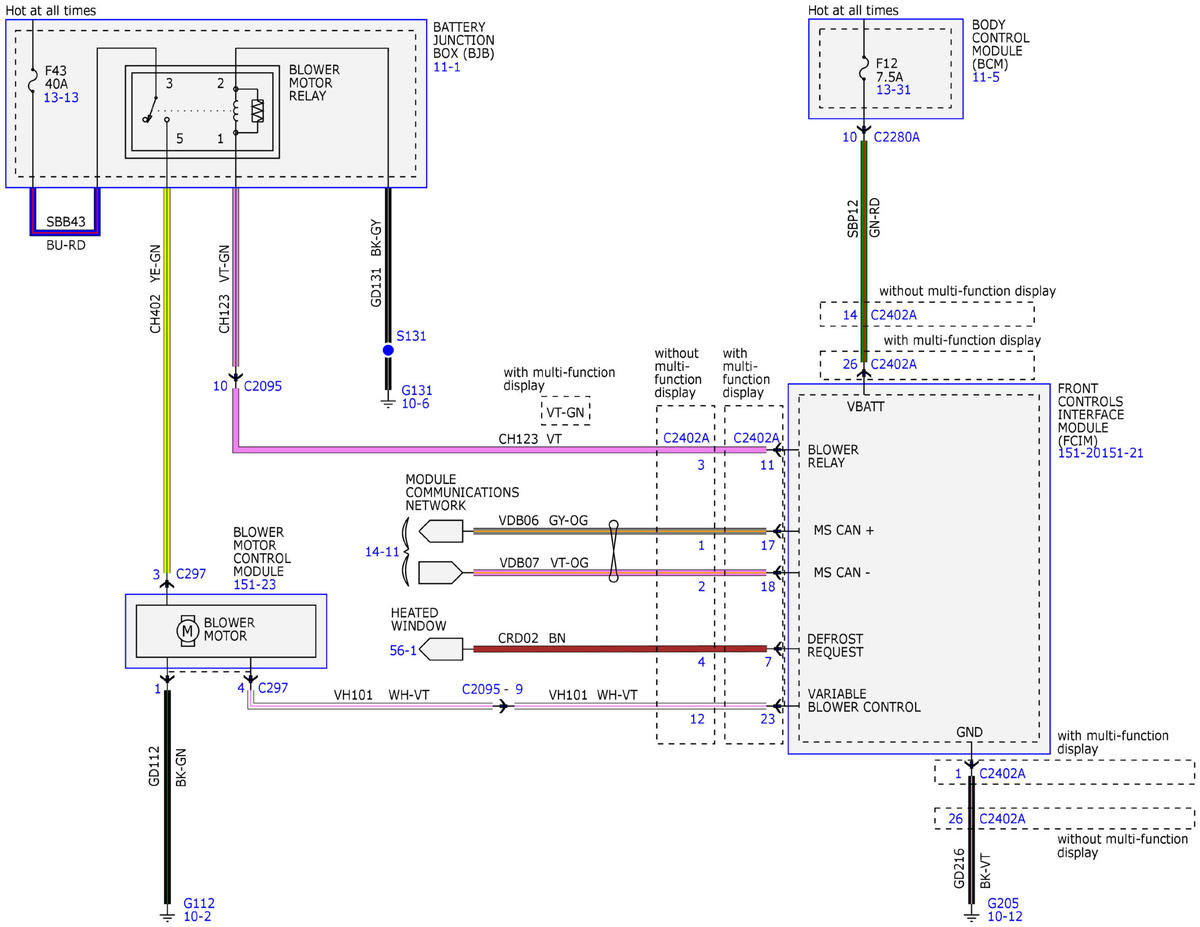

Fig 5: Manual Climate Control System Wiring Diagram (5 Of 7)

GFDWR57125

Courtesy of FORD MOTOR COMPANY

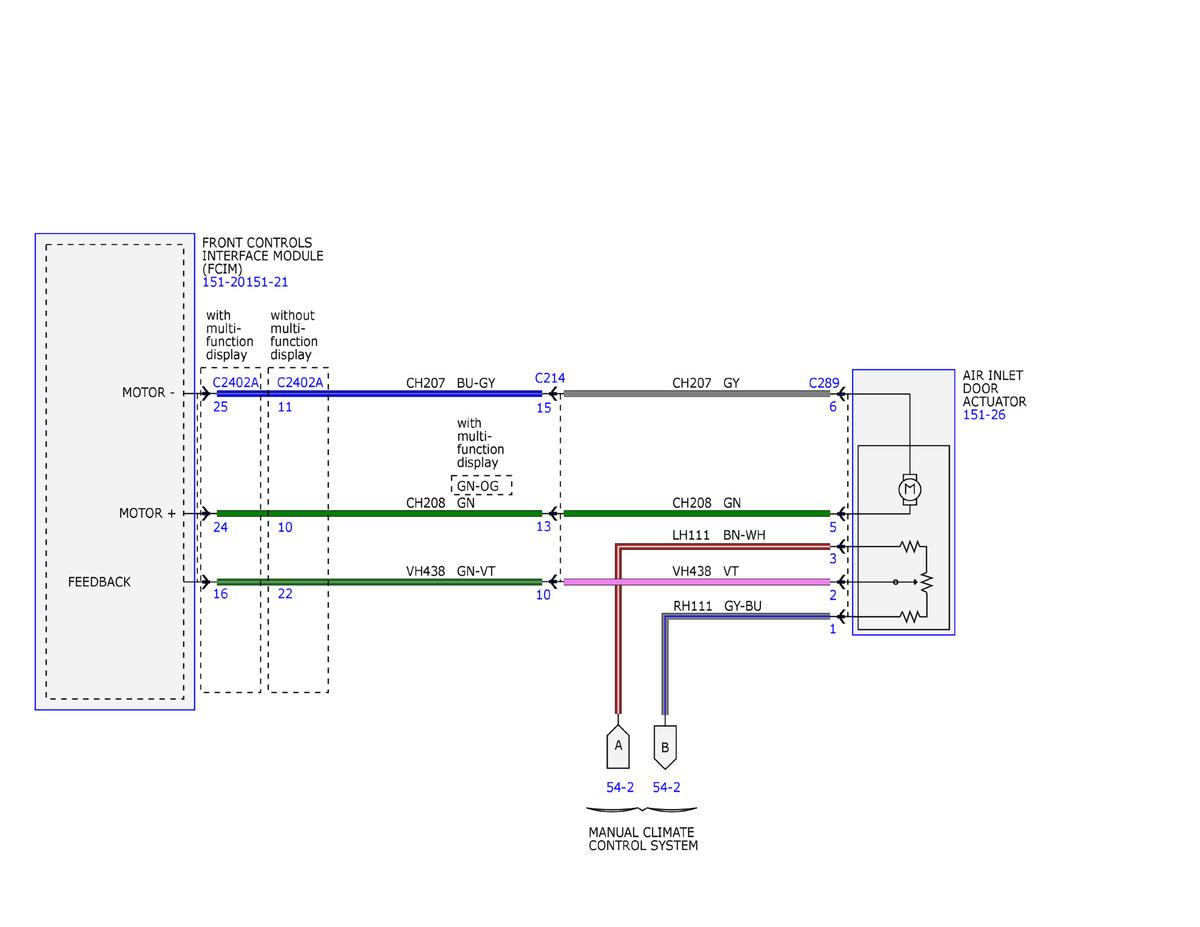

Fig 6: Manual Climate Control System Wiring Diagram (6 Of 7)

GFDWR57126

Courtesy of FORD MOTOR COMPANY

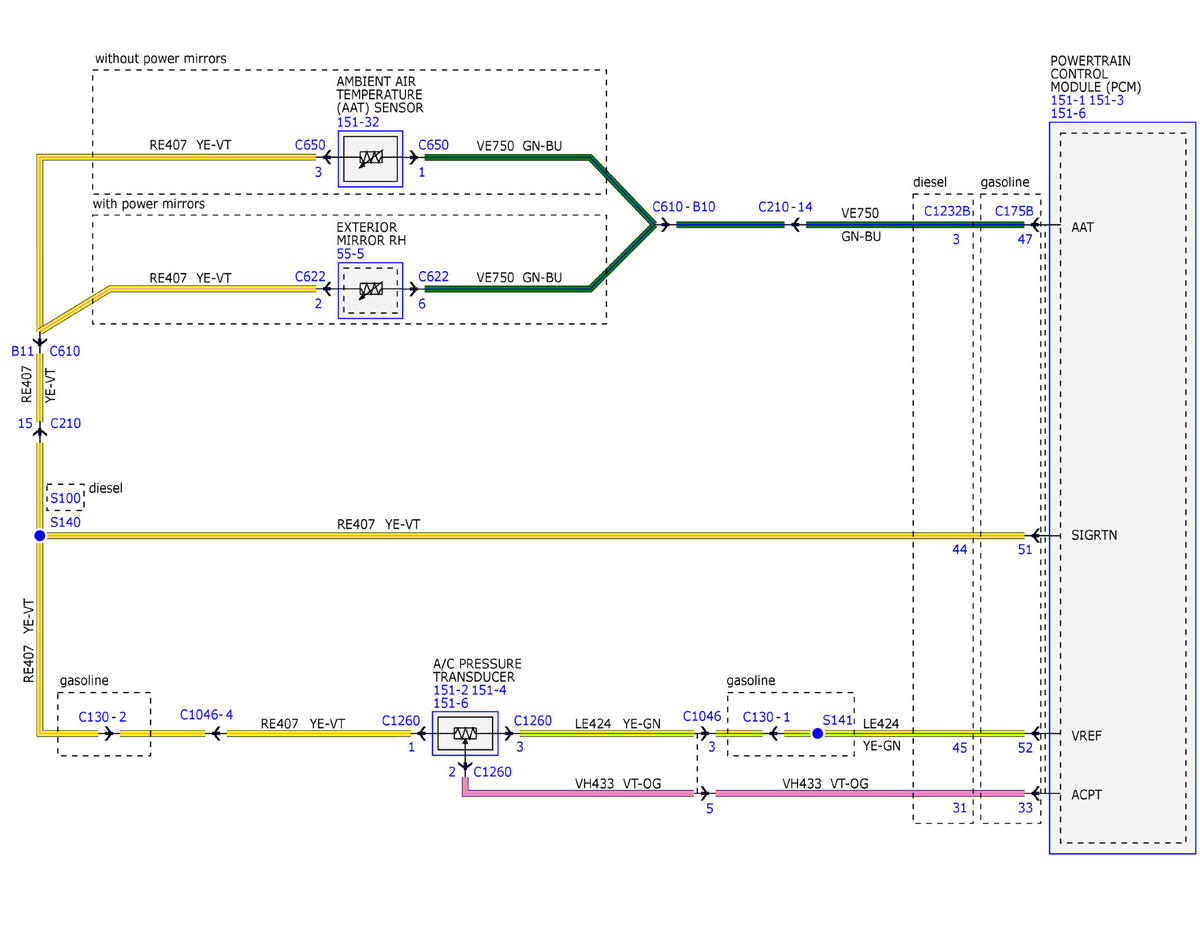

Fig 7: Manual Climate Control System Wiring Diagram (7 Of 7)

GFDWR57127

Courtesy of FORD MOTOR COMPANY
