Instrument Cluster

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

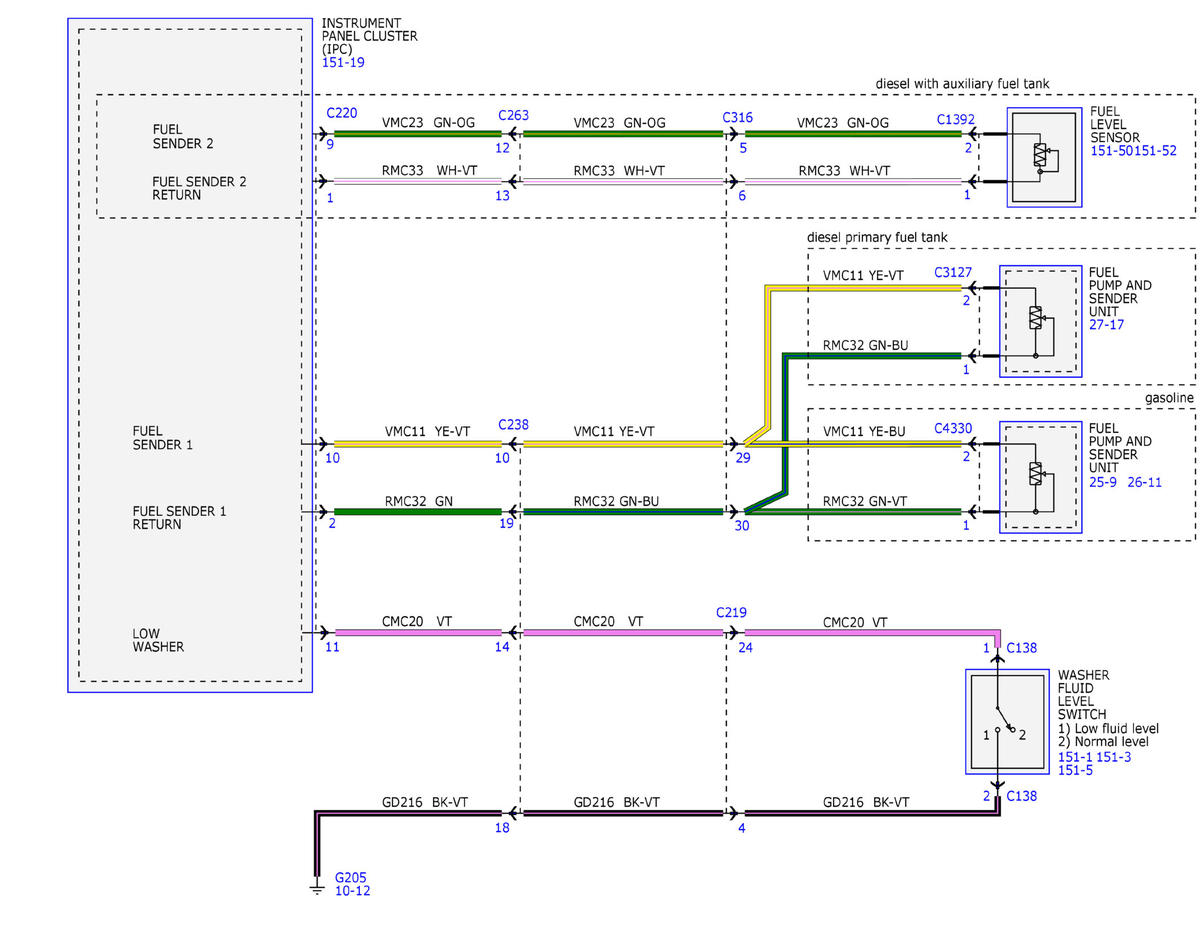

Fig 1: Instrument Cluster Wiring Diagram (1 Of 8)

GFDWR57104

Courtesy of FORD MOTOR COMPANY

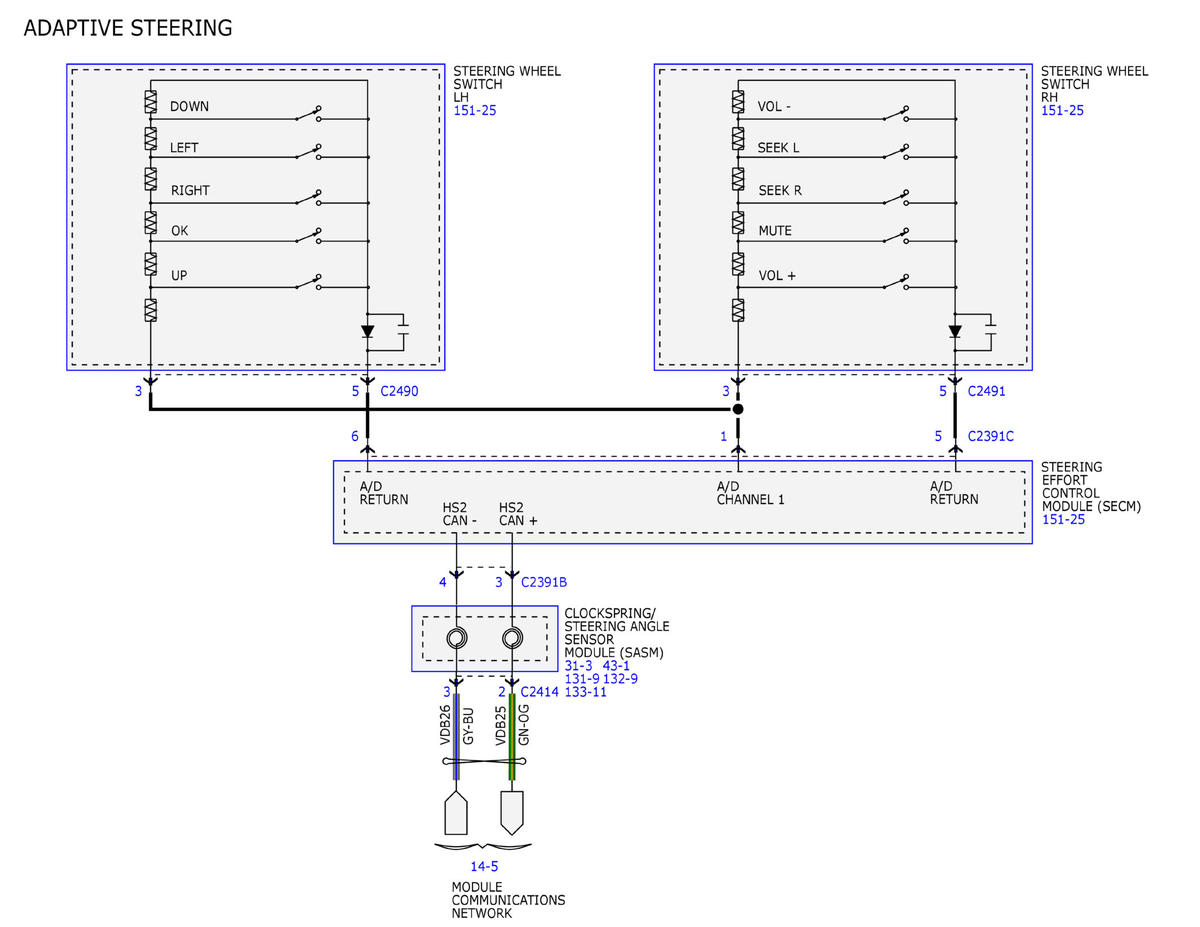

Fig 2: Instrument Cluster Wiring Diagram (2 Of 8)

GFDWR57105

Courtesy of FORD MOTOR COMPANY

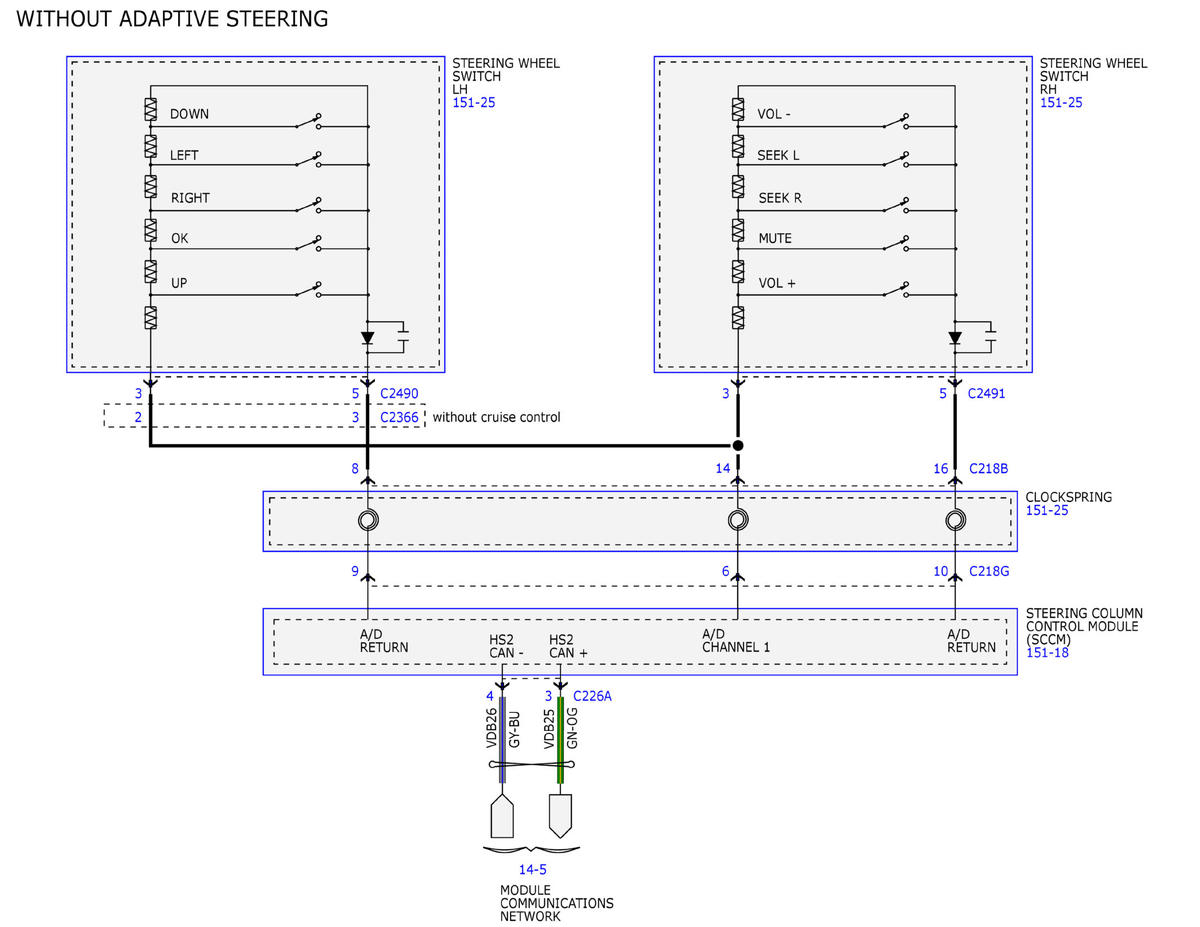

Fig 3: Instrument Cluster Wiring Diagram (3 Of 8)

GFDWR57106

Courtesy of FORD MOTOR COMPANY

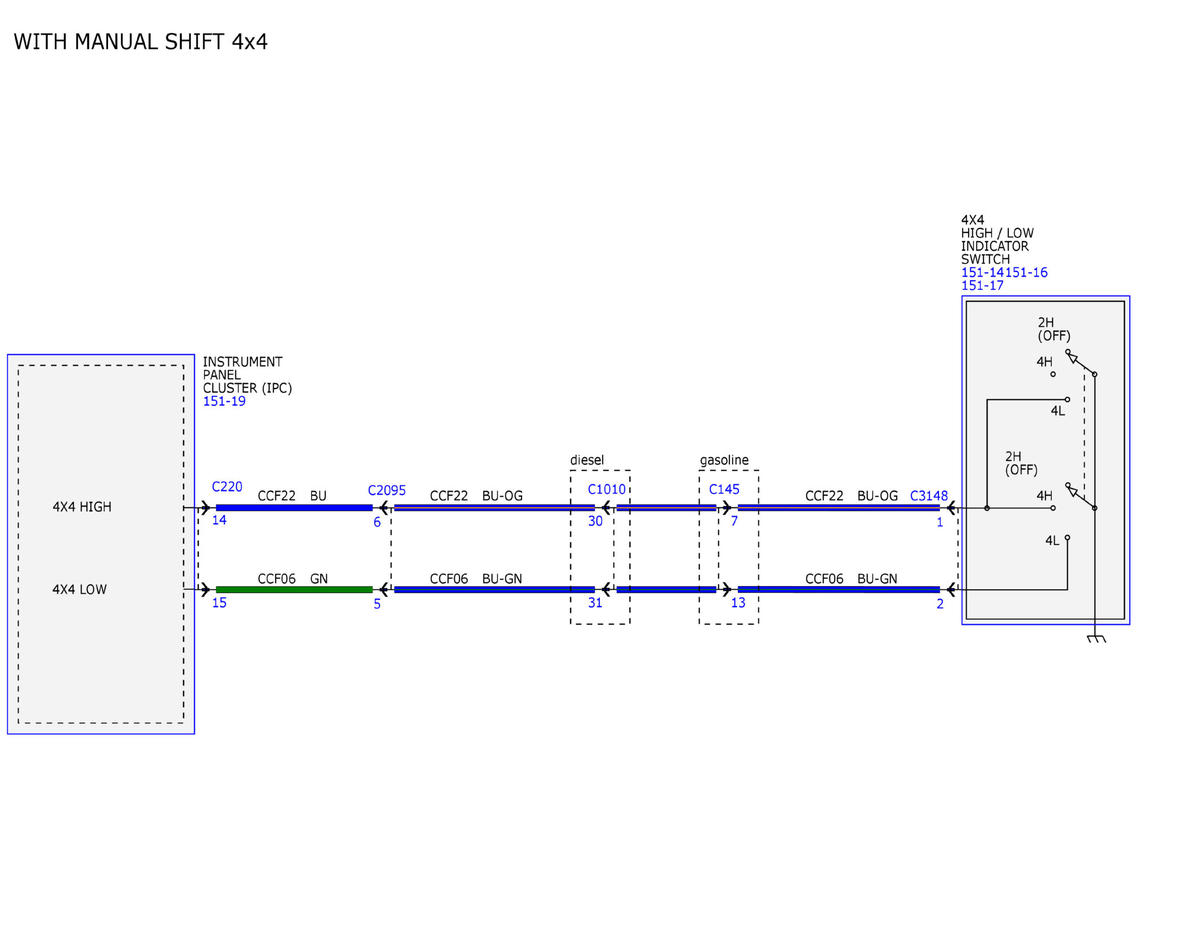

Fig 4: Instrument Cluster Wiring Diagram (4 Of 8)

GFDWR57107

Courtesy of FORD MOTOR COMPANY

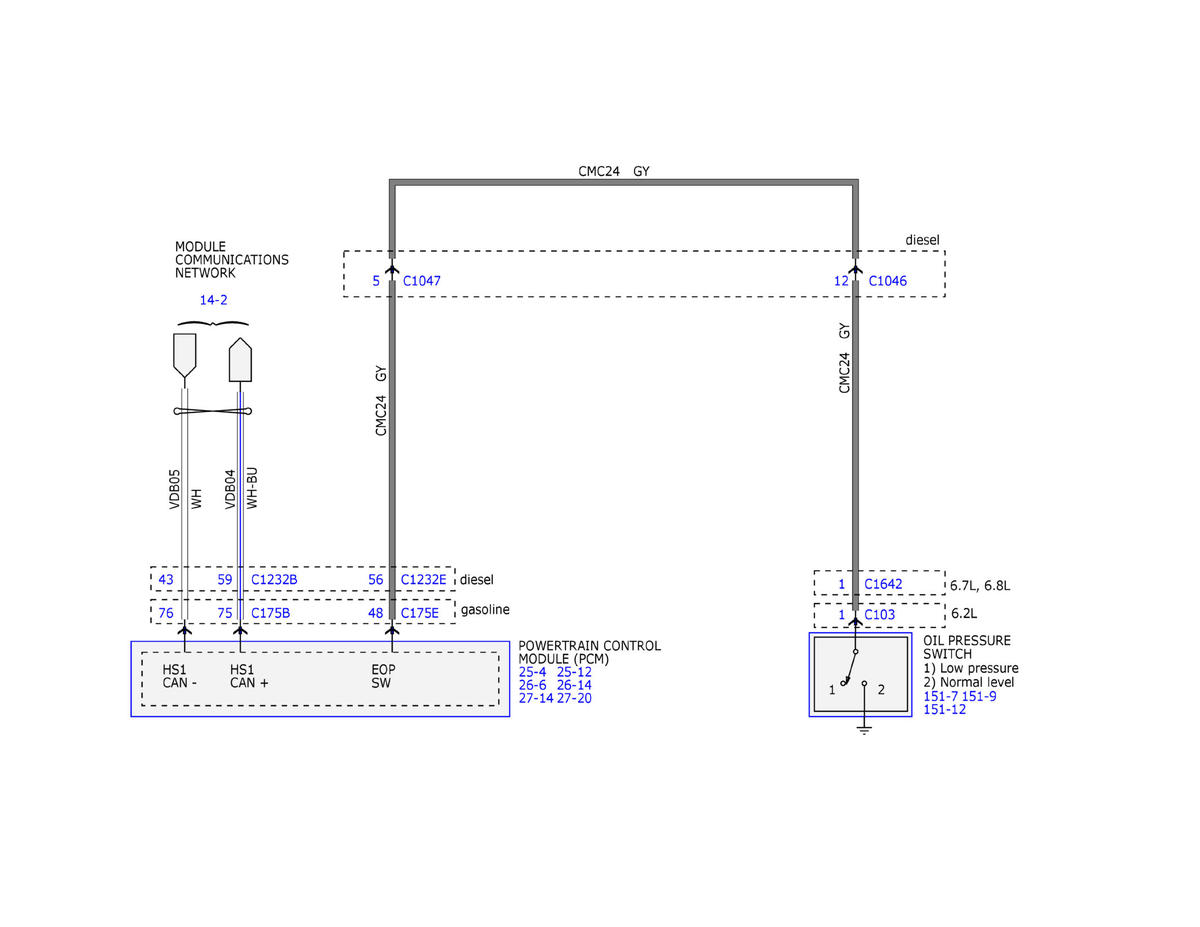

Fig 5: Instrument Cluster Wiring Diagram (5 Of 8)

GFDWR57108

Courtesy of FORD MOTOR COMPANY

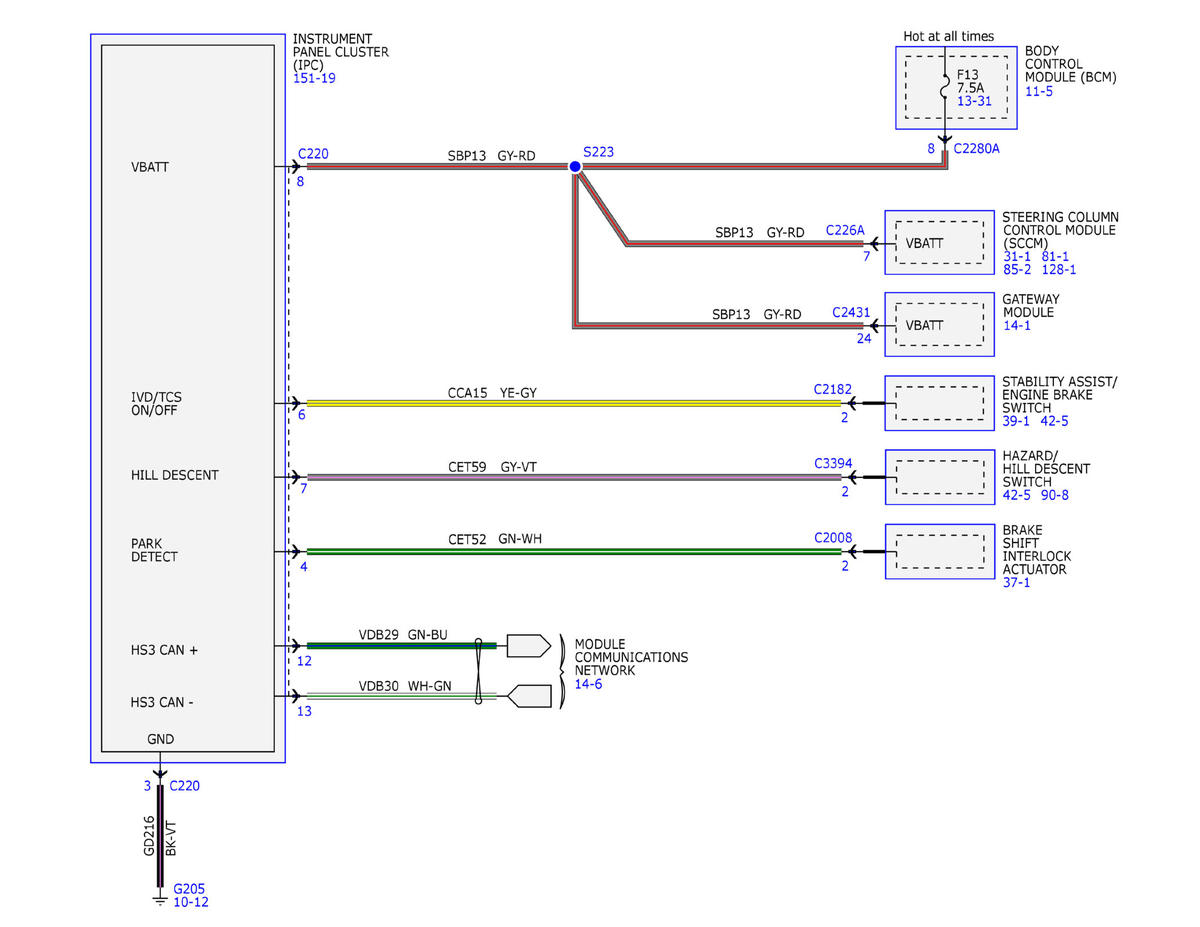

Fig 6: Instrument Cluster Wiring Diagram (6 Of 8)

GFDWR57109

Courtesy of FORD MOTOR COMPANY

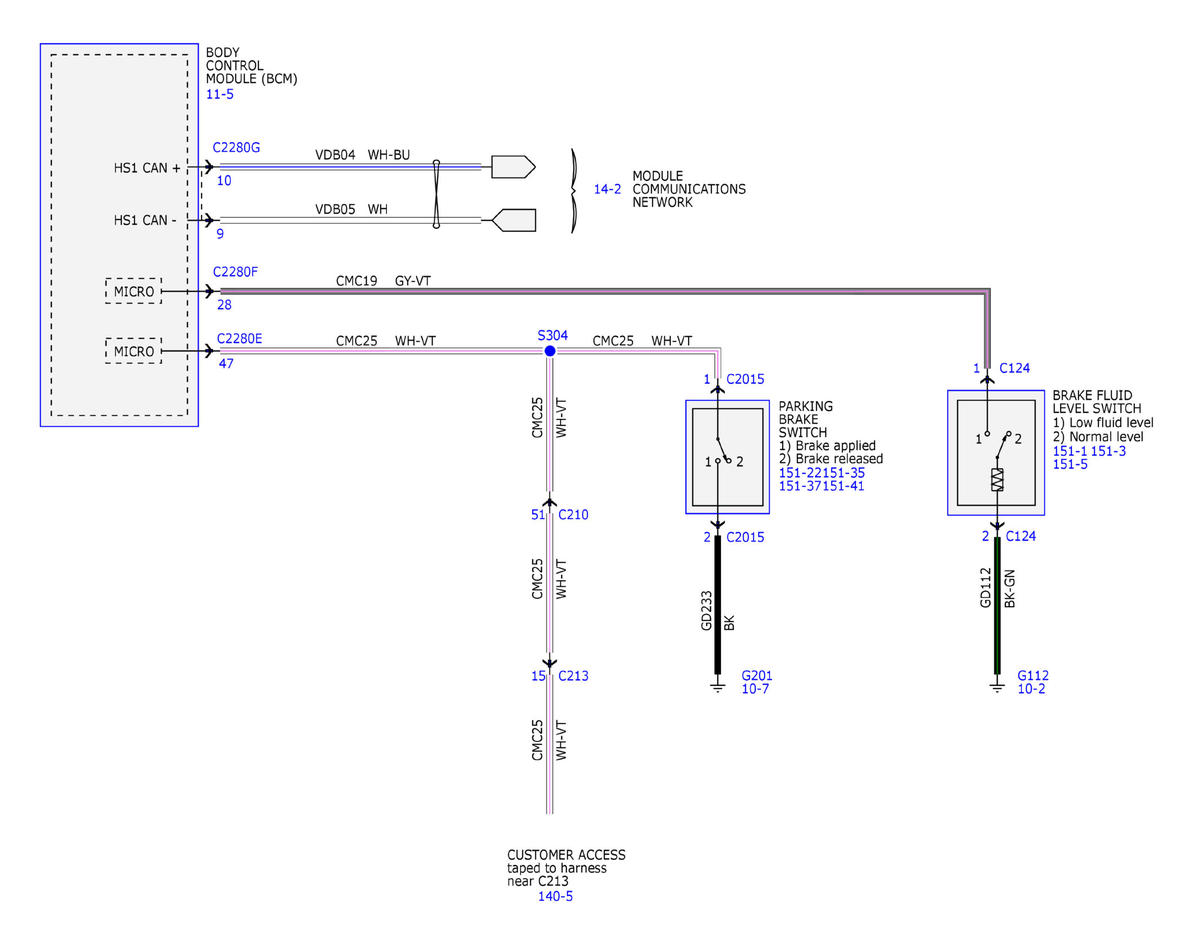

Fig 7: Instrument Cluster Wiring Diagram (7 Of 8)

GFDWR57110

Courtesy of FORD MOTOR COMPANY

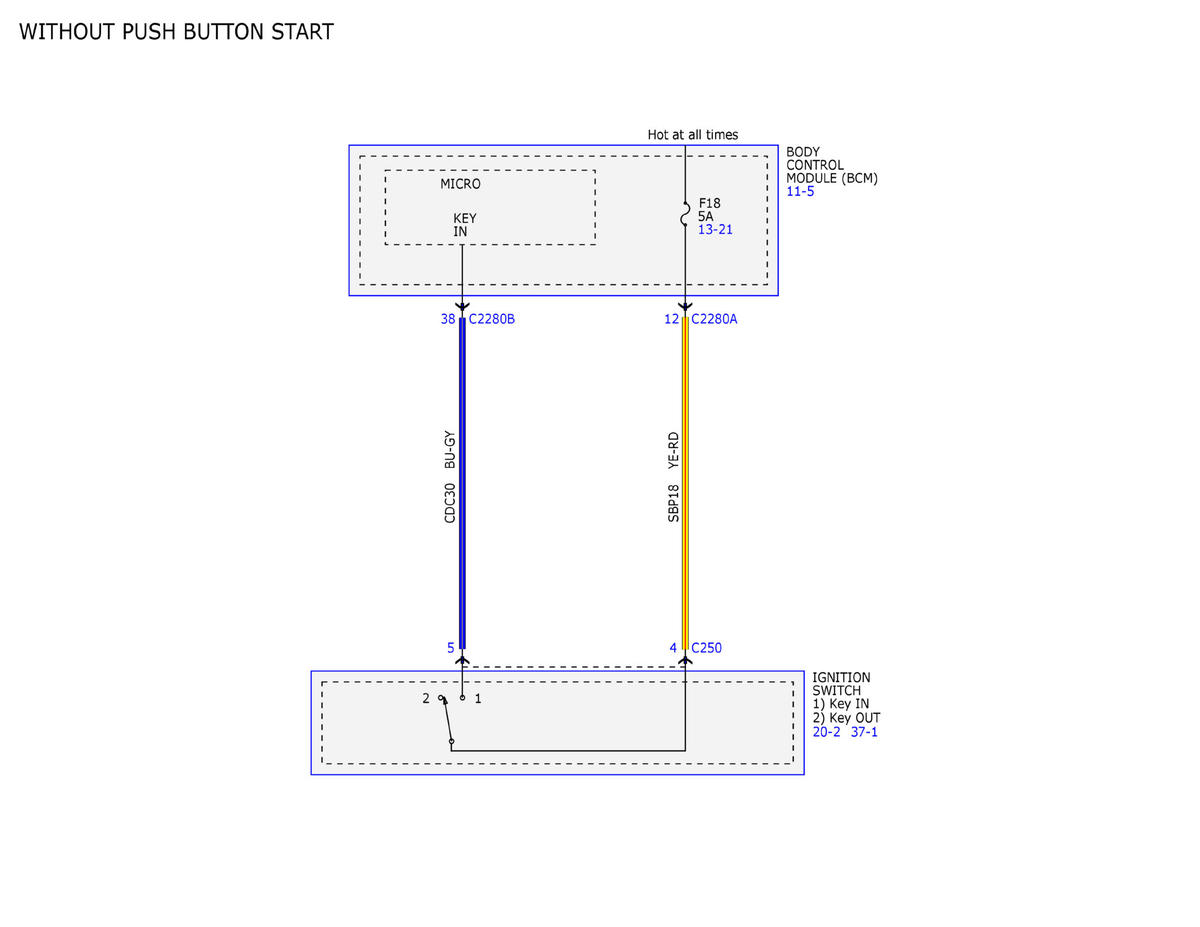

Fig 8: Instrument Cluster Wiring Diagram (8 Of 8)

GFDWR57111

Courtesy of FORD MOTOR COMPANY
