Section 156 (OEM Wiring Diagrams): Headlamps/AUTOLAMPS

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Headlamps/Autolamps Wiring Diagram (1 Of 7)

GFDWR57090

Courtesy of FORD MOTOR COMPANY

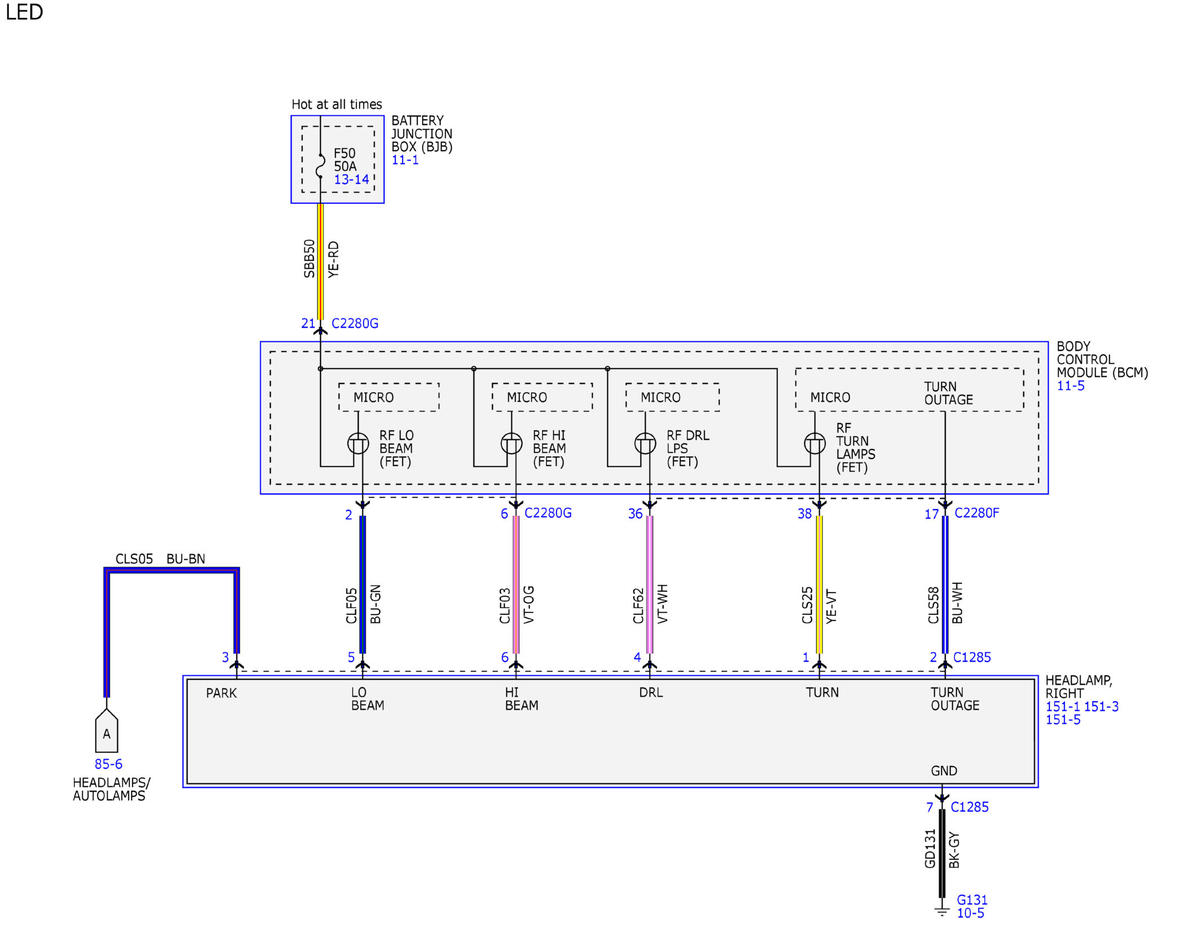

Fig 2: Headlamps/Autolamps Wiring Diagram (2 Of 7)

GFDWR57091

Courtesy of FORD MOTOR COMPANY

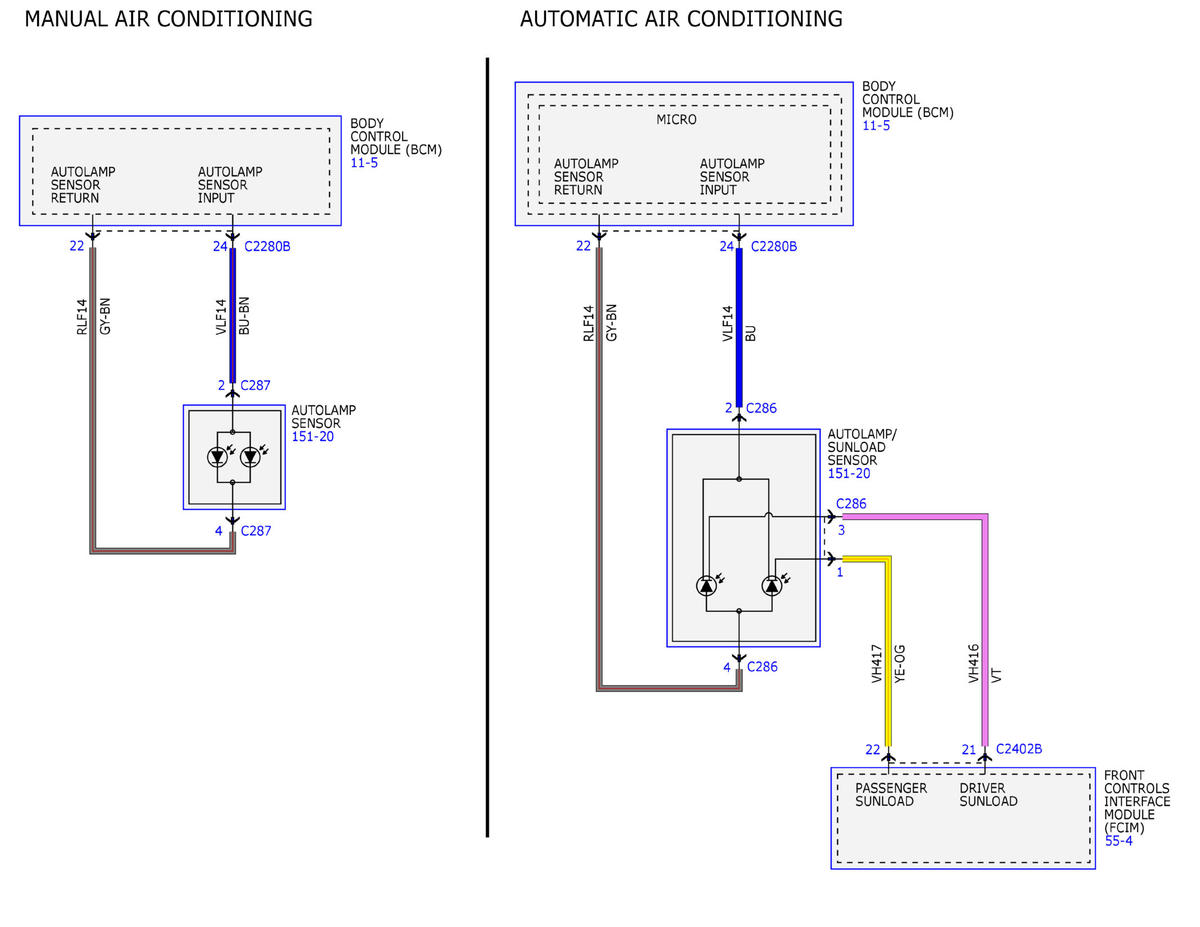

Fig 3: Headlamps/Autolamps Wiring Diagram (3 Of 7)

GFDWR57092

Courtesy of FORD MOTOR COMPANY

Fig 4: Headlamps/Autolamps Wiring Diagram (4 Of 7)

GFDWR57093

Courtesy of FORD MOTOR COMPANY

Fig 5: Headlamps/Autolamps Wiring Diagram (5 Of 7)

GFDWR57094

Courtesy of FORD MOTOR COMPANY

Fig 6: Headlamps/Autolamps Wiring Diagram (6 Of 7)

GFDWR57095

Courtesy of FORD MOTOR COMPANY

Fig 7: Headlamps/Autolamps Wiring Diagram (7 Of 7)

GFDWR57096

Courtesy of FORD MOTOR COMPANY
