Electronic Engine Controls - 6.8L

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

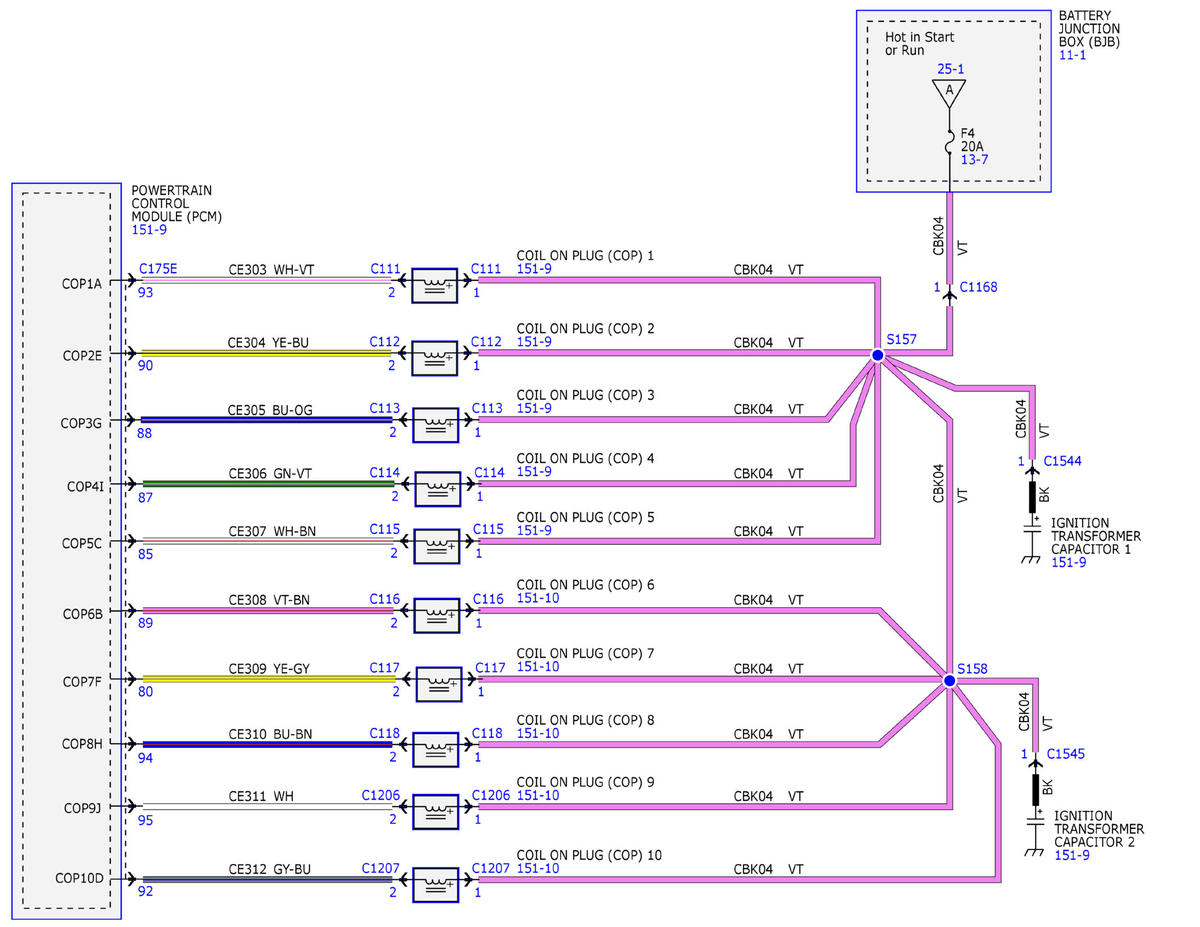

Fig 1: Electronic Engine Controls - 6.8L Wiring Diagram (1 Of 14)

GFDWR57069

Courtesy of FORD MOTOR COMPANY

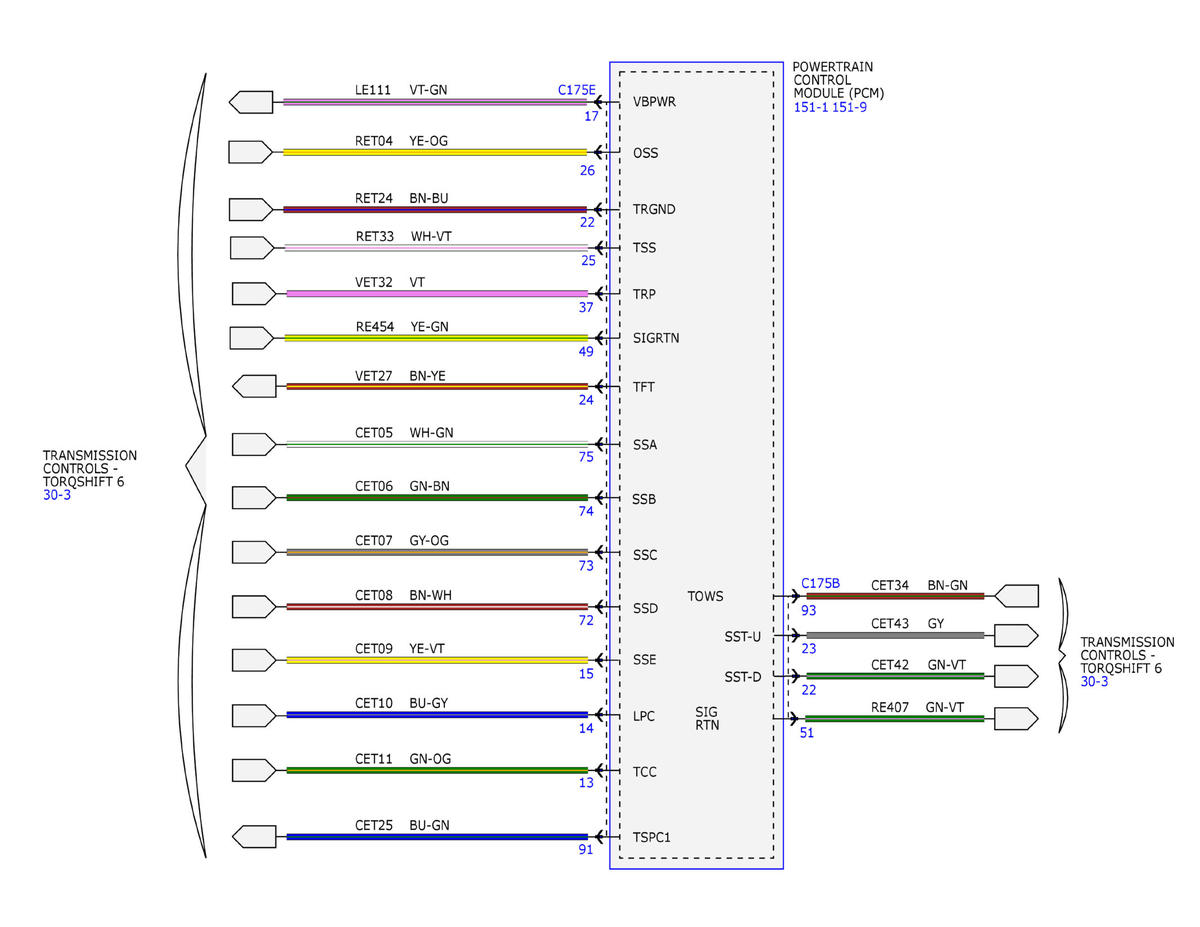

Fig 2: Electronic Engine Controls - 6.8L Wiring Diagram (2 Of 14)

GFDWR57070

Courtesy of FORD MOTOR COMPANY

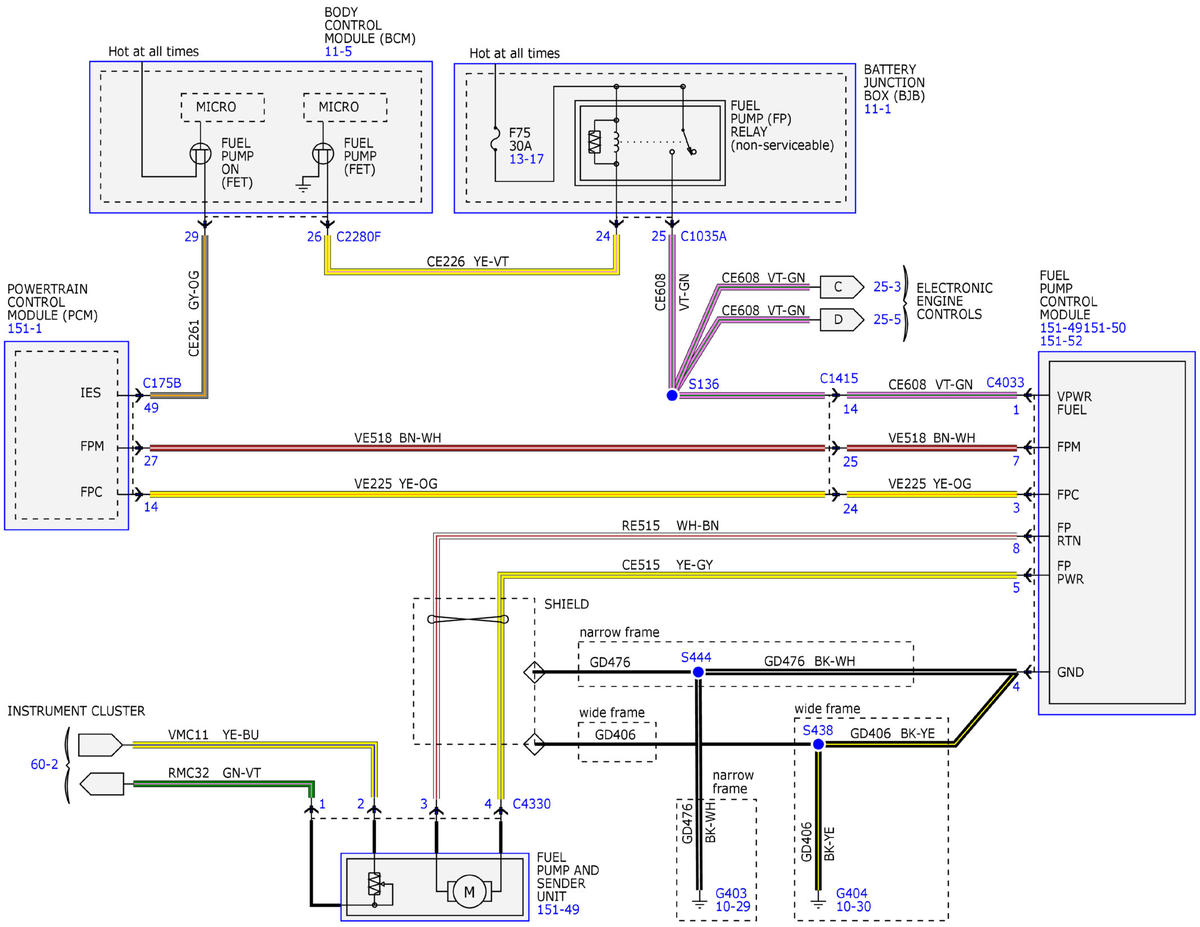

Fig 3: Electronic Engine Controls - 6.8L Wiring Diagram (3 Of 14)

GFDWR57071

Courtesy of FORD MOTOR COMPANY

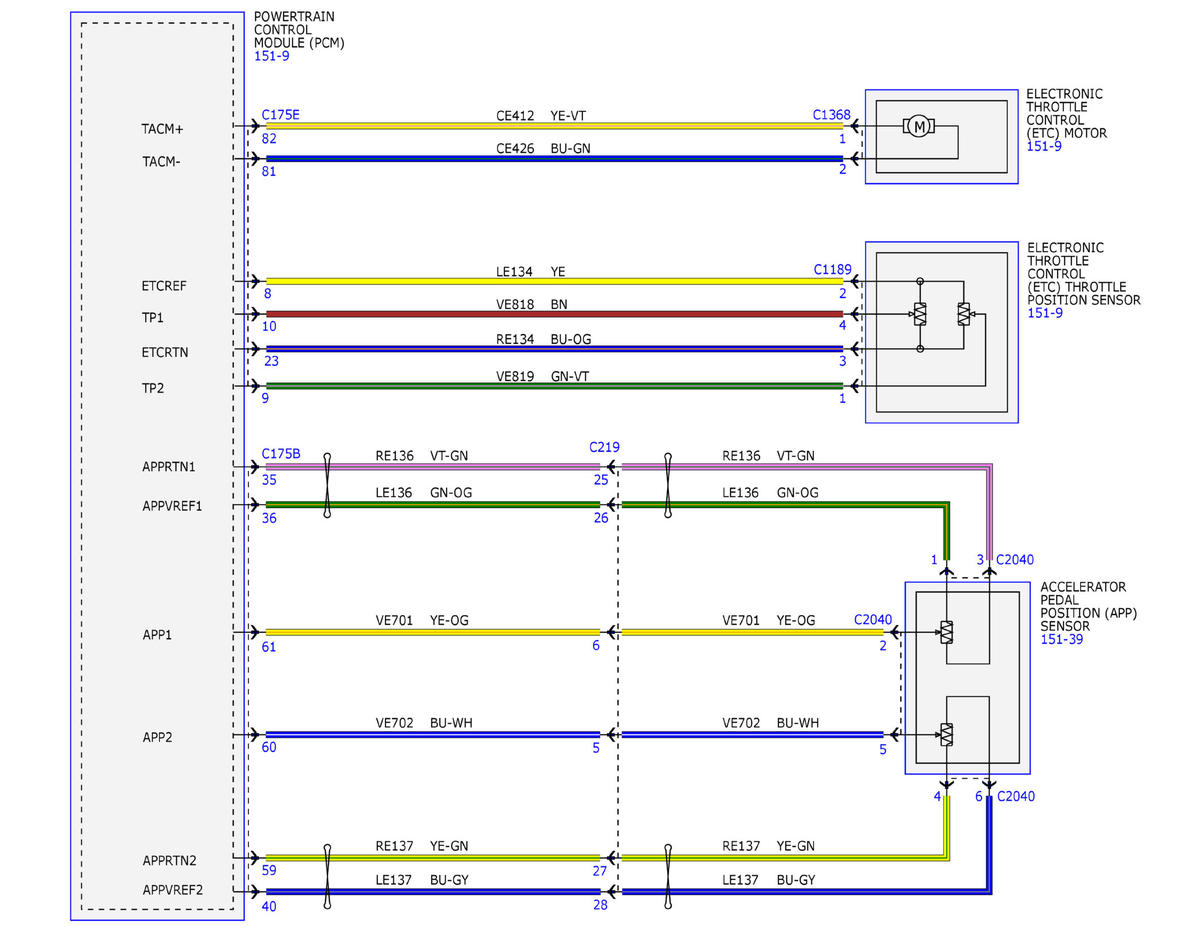

Fig 4: Electronic Engine Controls - 6.8L Wiring Diagram (4 Of 14)

GFDWR57072

Courtesy of FORD MOTOR COMPANY

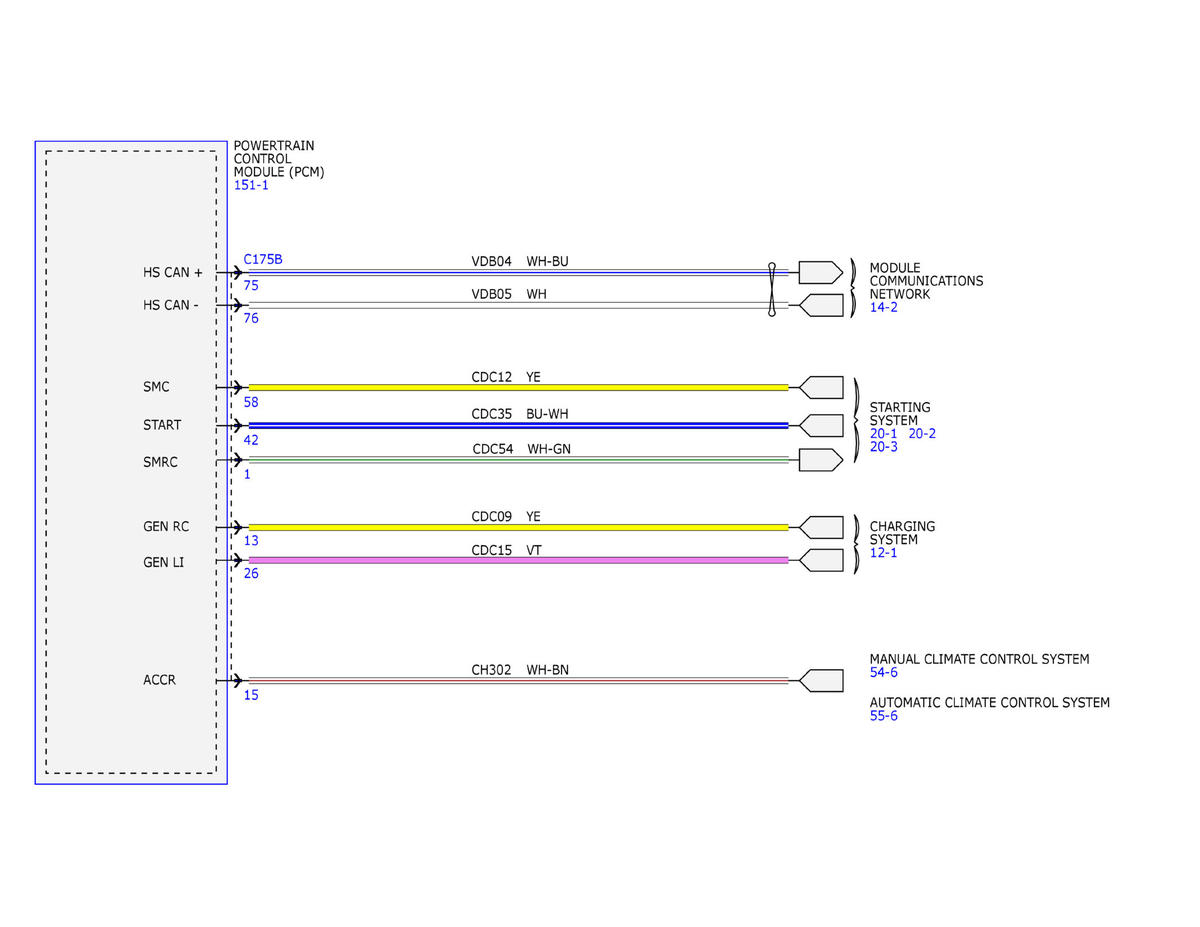

Fig 5: Electronic Engine Controls - 6.8L Wiring Diagram (5 Of 14)

GFDWR57073

Courtesy of FORD MOTOR COMPANY

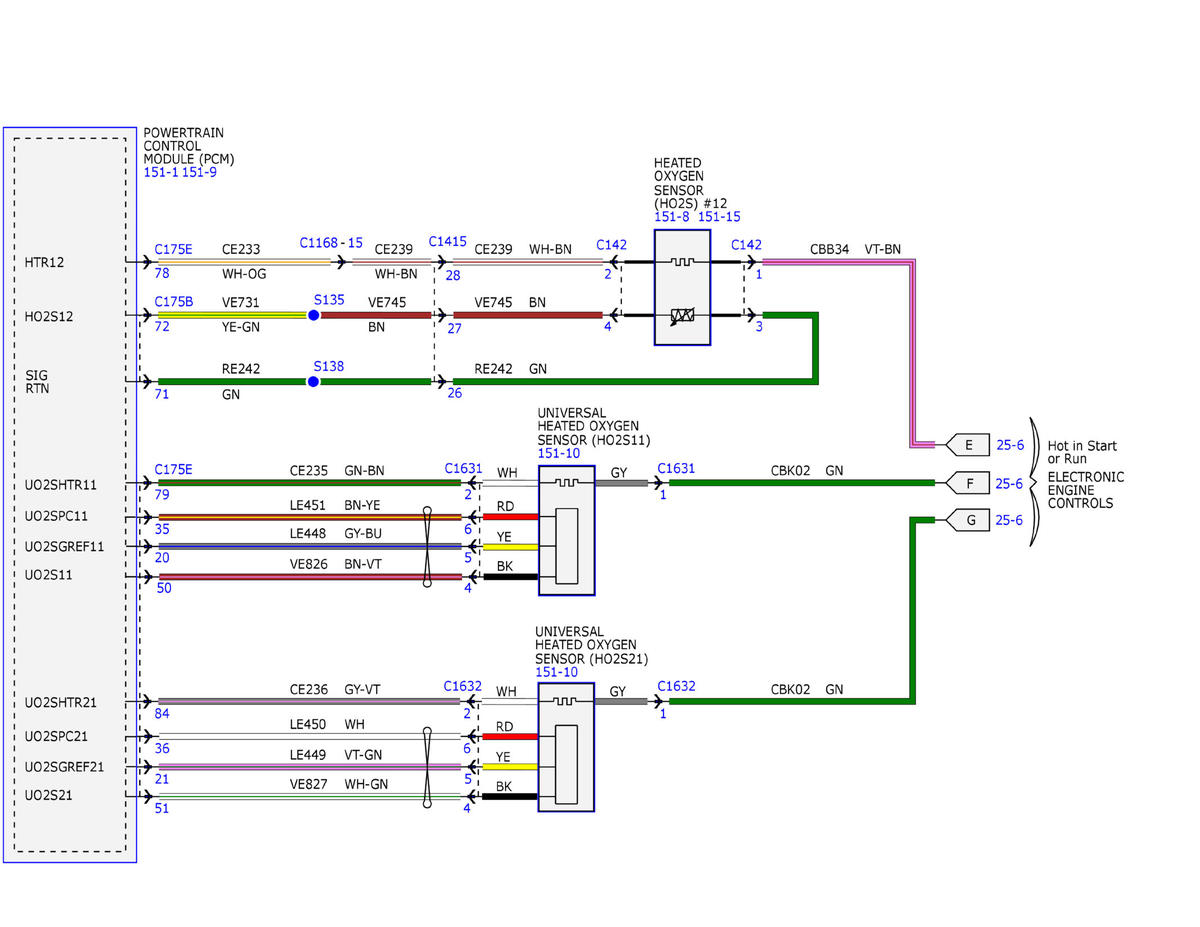

Fig 6: Electronic Engine Controls - 6.8L Wiring Diagram (6 Of 14)

GFDWR57074

Courtesy of FORD MOTOR COMPANY

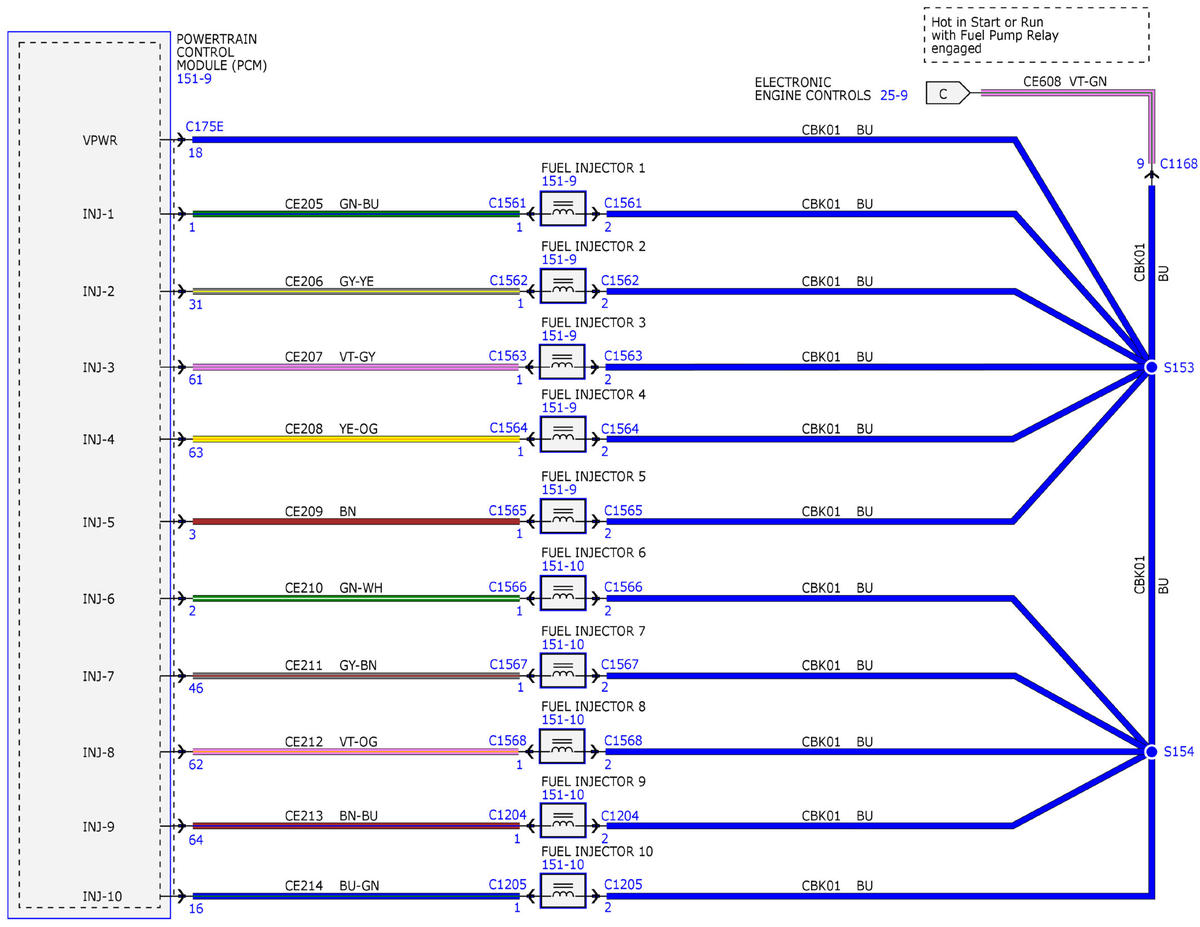

Fig 7: Electronic Engine Controls - 6.8L Wiring Diagram (7 Of 14)

GFDWR57075

Courtesy of FORD MOTOR COMPANY

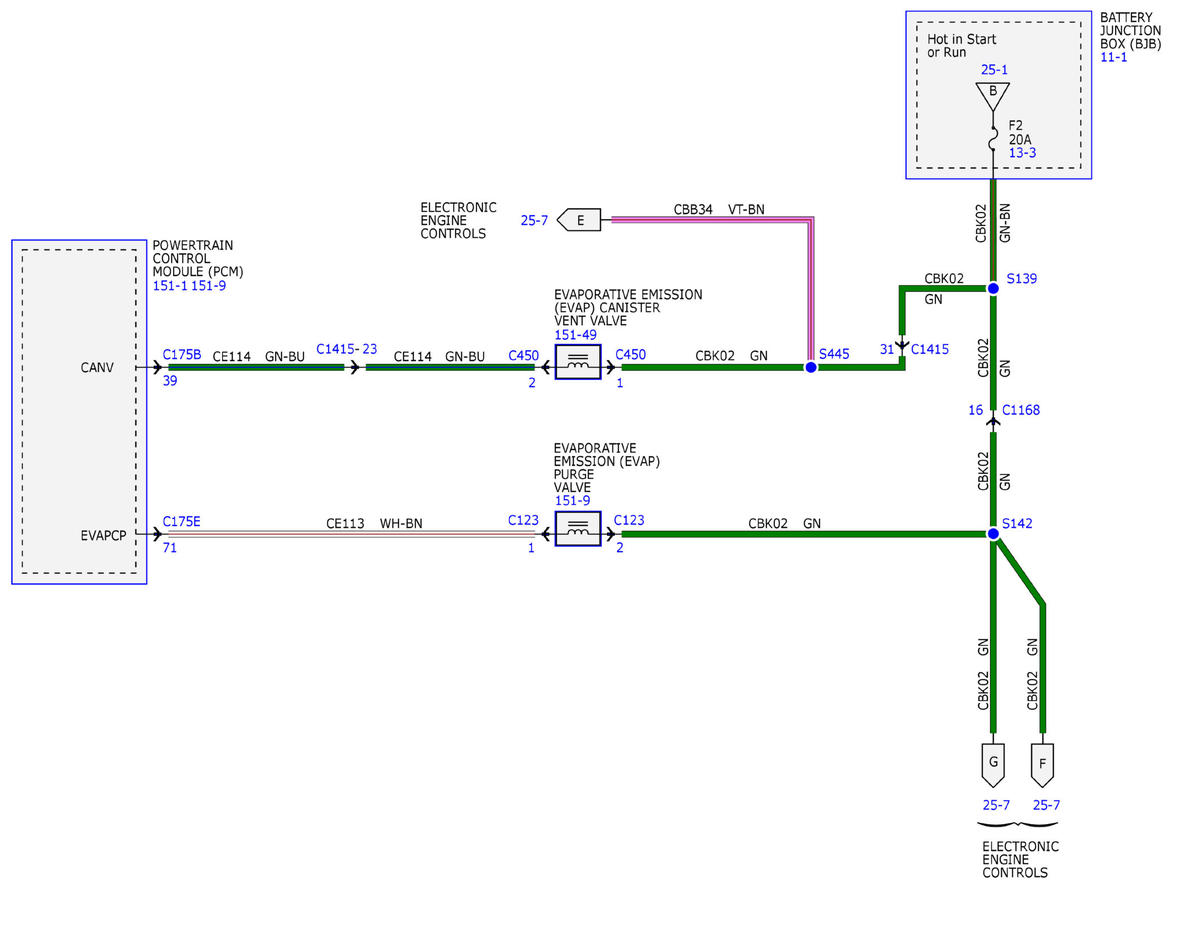

Fig 8: Electronic Engine Controls - 6.8L Wiring Diagram (8 Of 14)

GFDWR57076

Courtesy of FORD MOTOR COMPANY

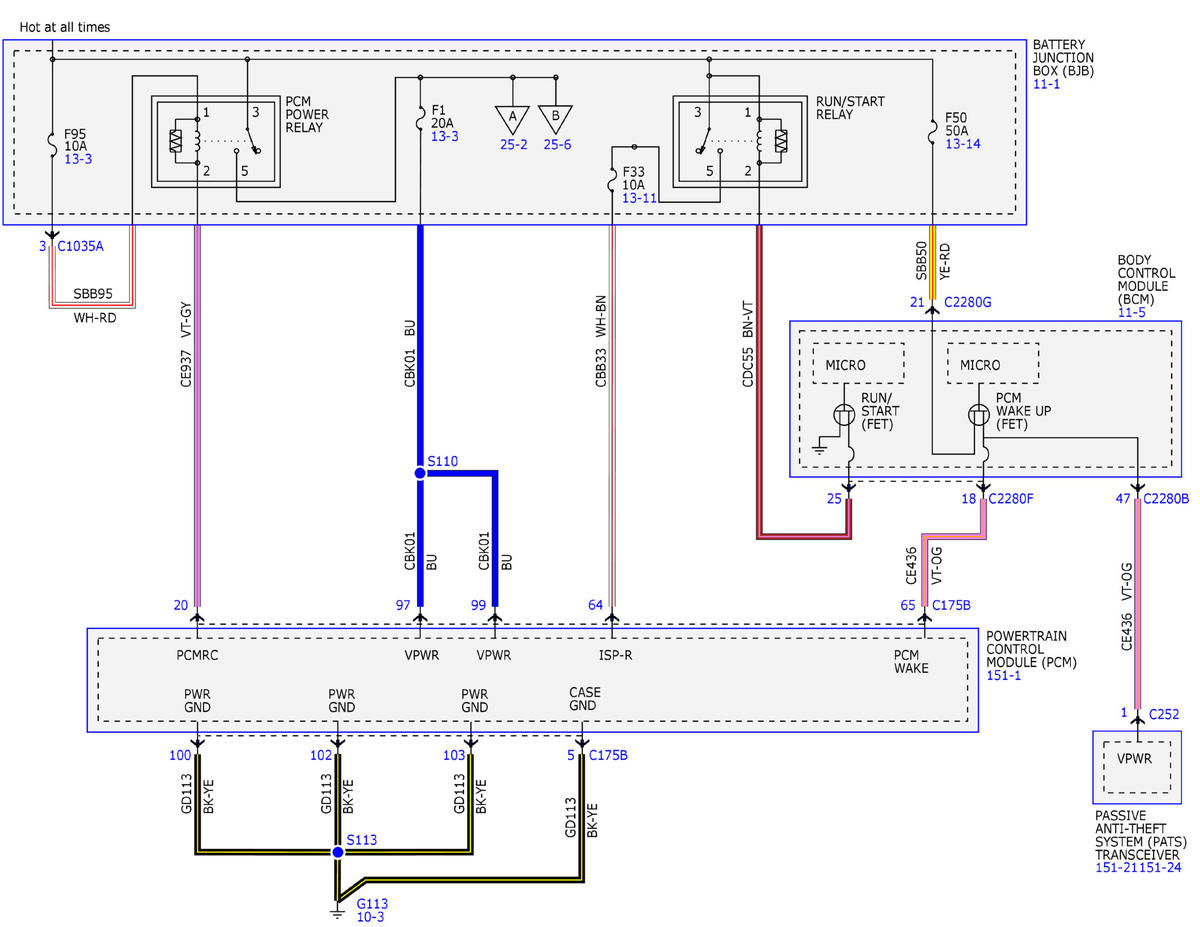

Fig 9: Electronic Engine Controls - 6.8L Wiring Diagram (9 Of 14)

GFDWR57077

Courtesy of FORD MOTOR COMPANY

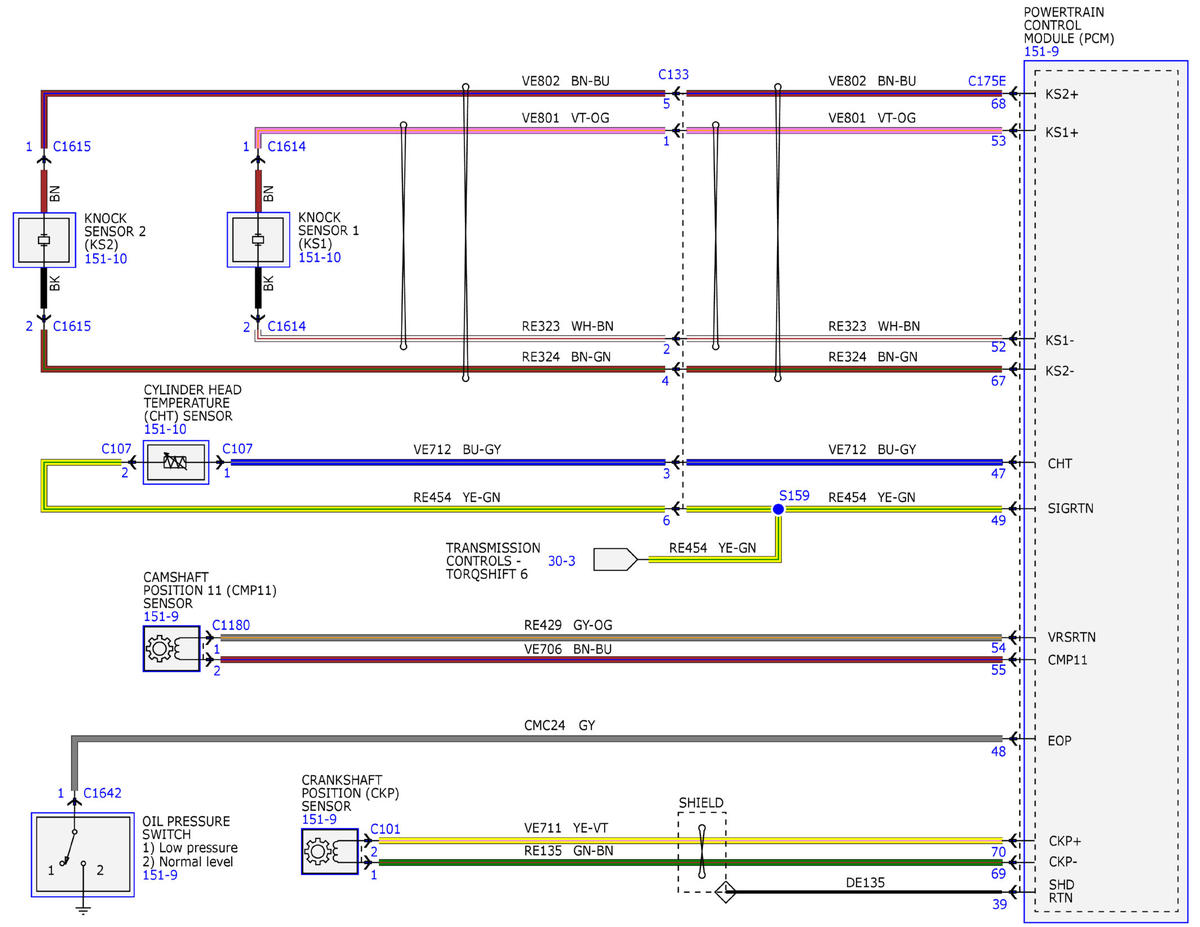

Fig 10: Electronic Engine Controls - 6.8L Wiring Diagram (10 Of 14)

GFDWR57078

Courtesy of FORD MOTOR COMPANY

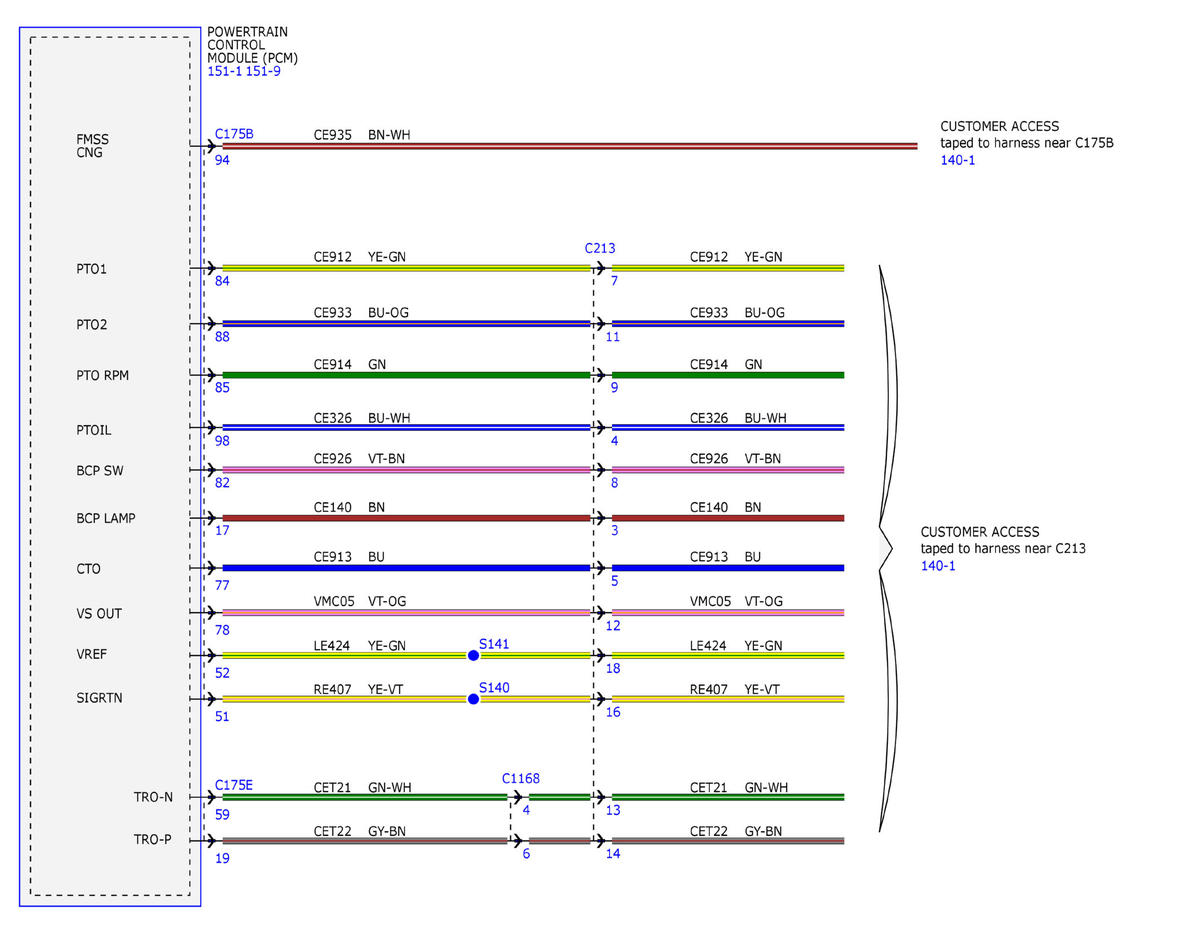

Fig 11: Electronic Engine Controls - 6.8L Wiring Diagram (11 Of 14)

GFDWR57079

Courtesy of FORD MOTOR COMPANY

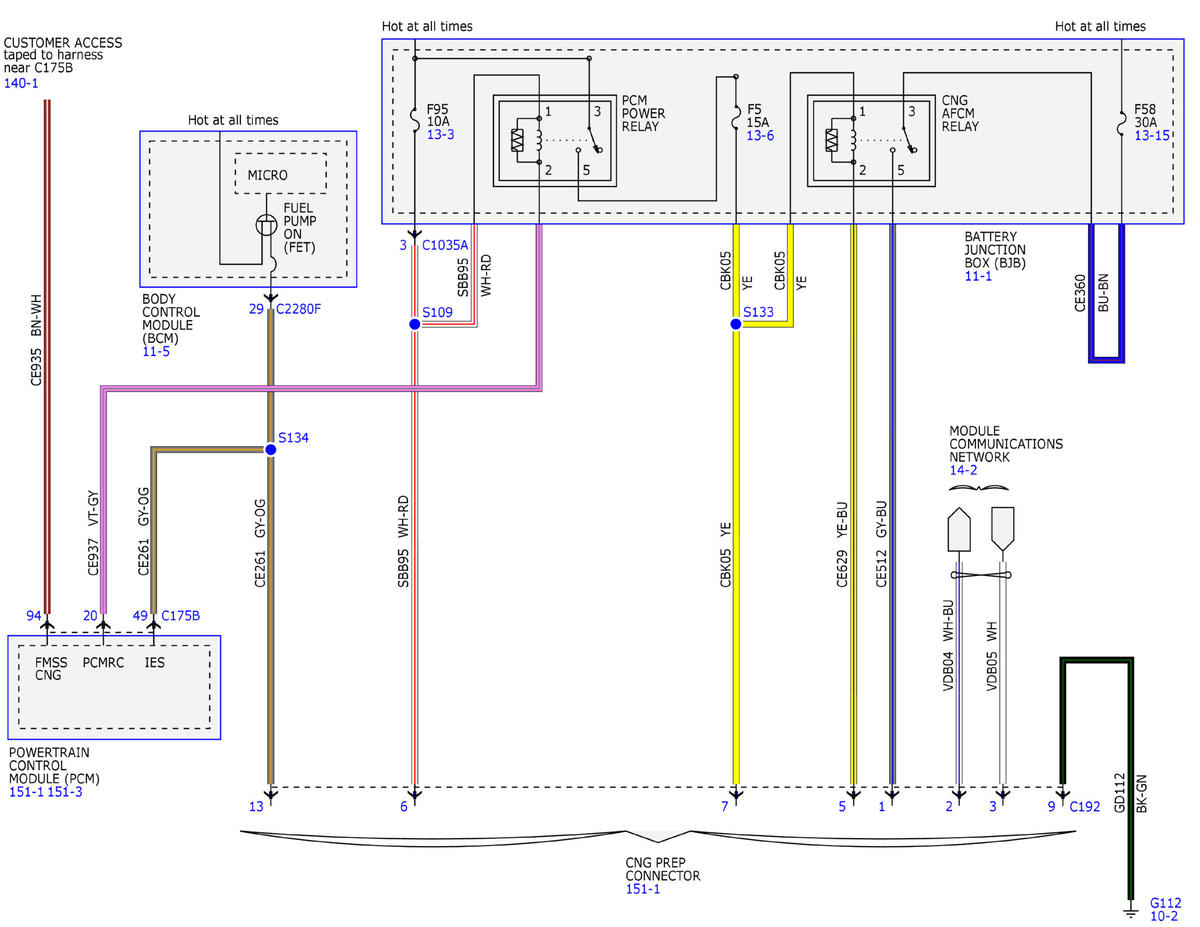

Fig 12: Electronic Engine Controls - 6.8L Wiring Diagram (12 Of 14)

GFDWR57080

Courtesy of FORD MOTOR COMPANY

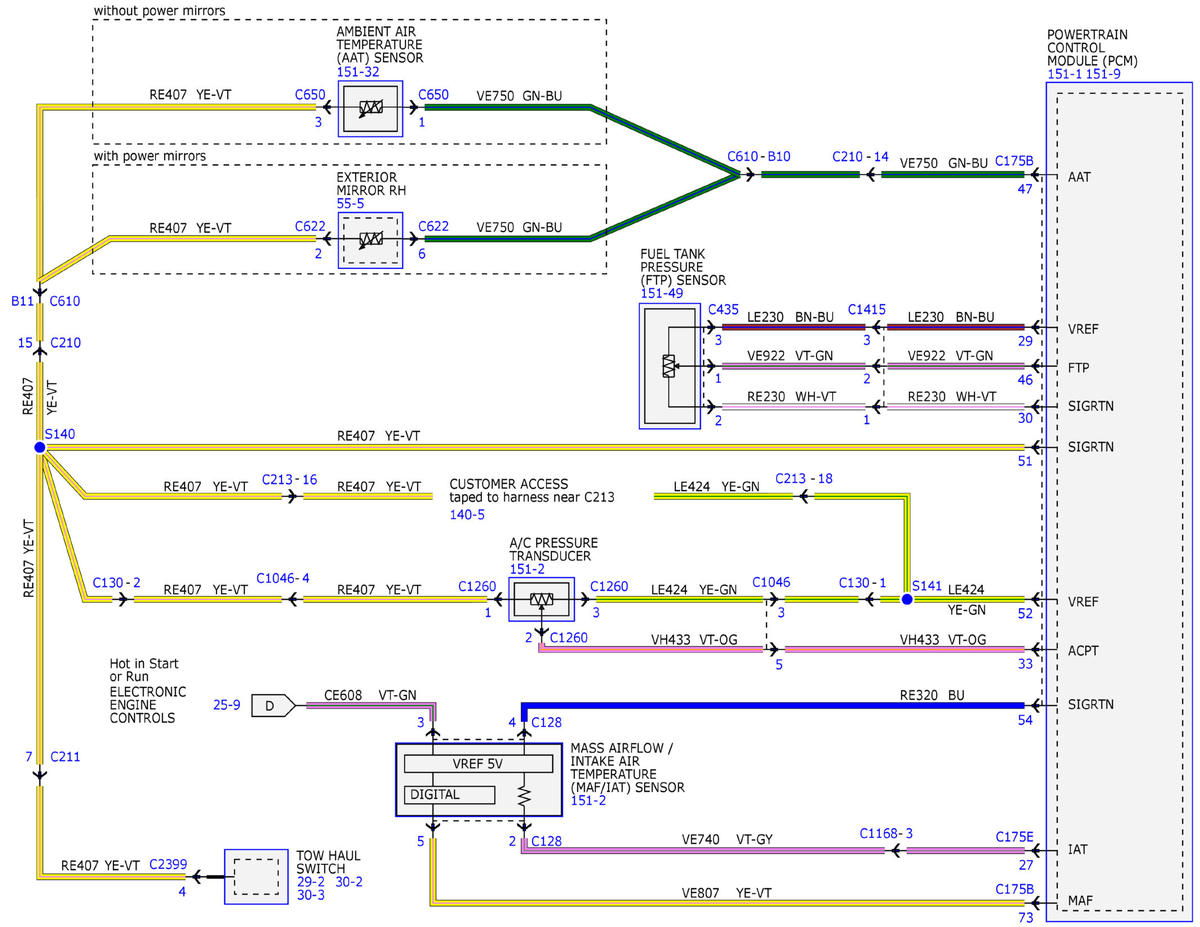

Fig 13: Electronic Engine Controls - 6.8L Wiring Diagram (13 Of 14)

GFDWR57081

Courtesy of FORD MOTOR COMPANY

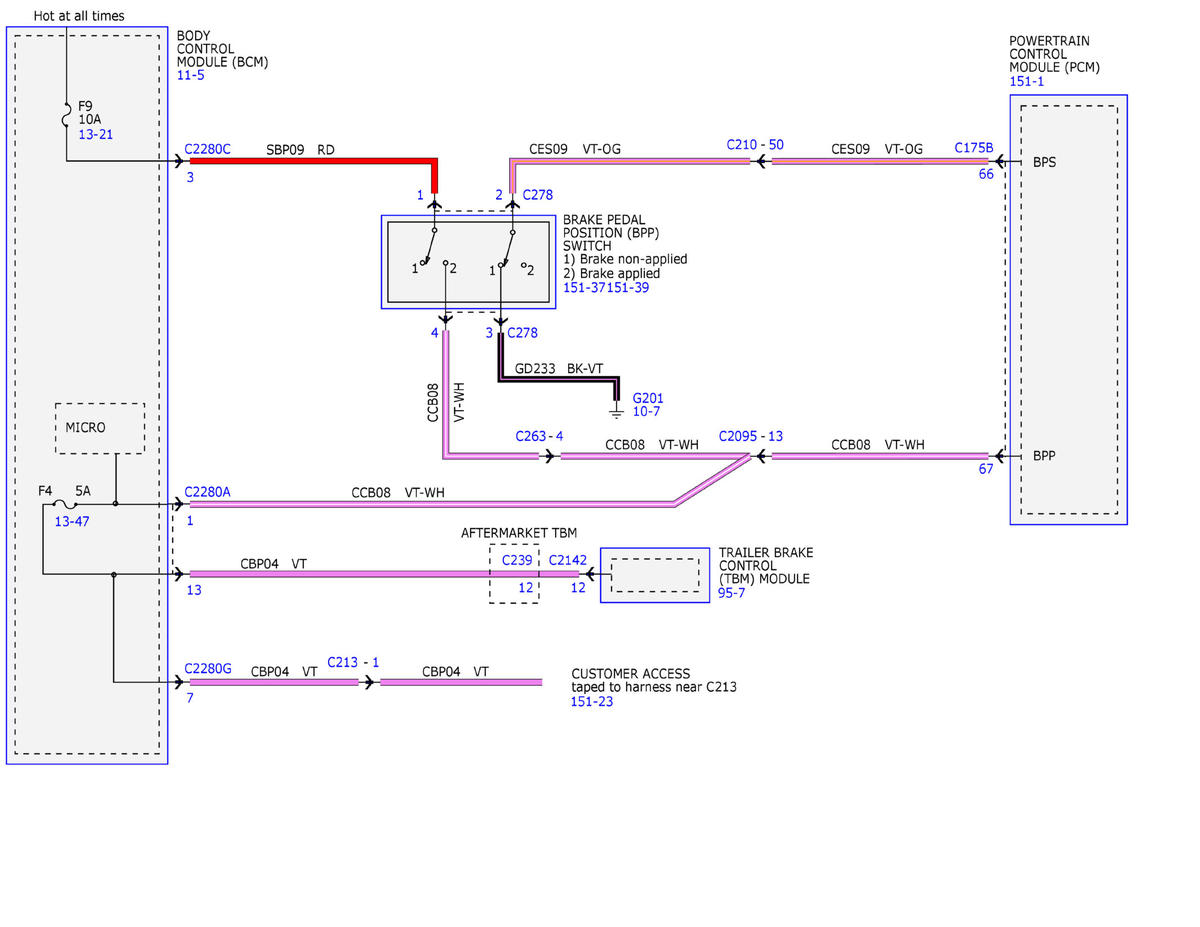

Fig 14: Electronic Engine Controls - 6.8L Wiring Diagram (14 Of 14)

GFDWR57082

Courtesy of FORD MOTOR COMPANY
