Electronic Engine Controls - 6.7L Diesel

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

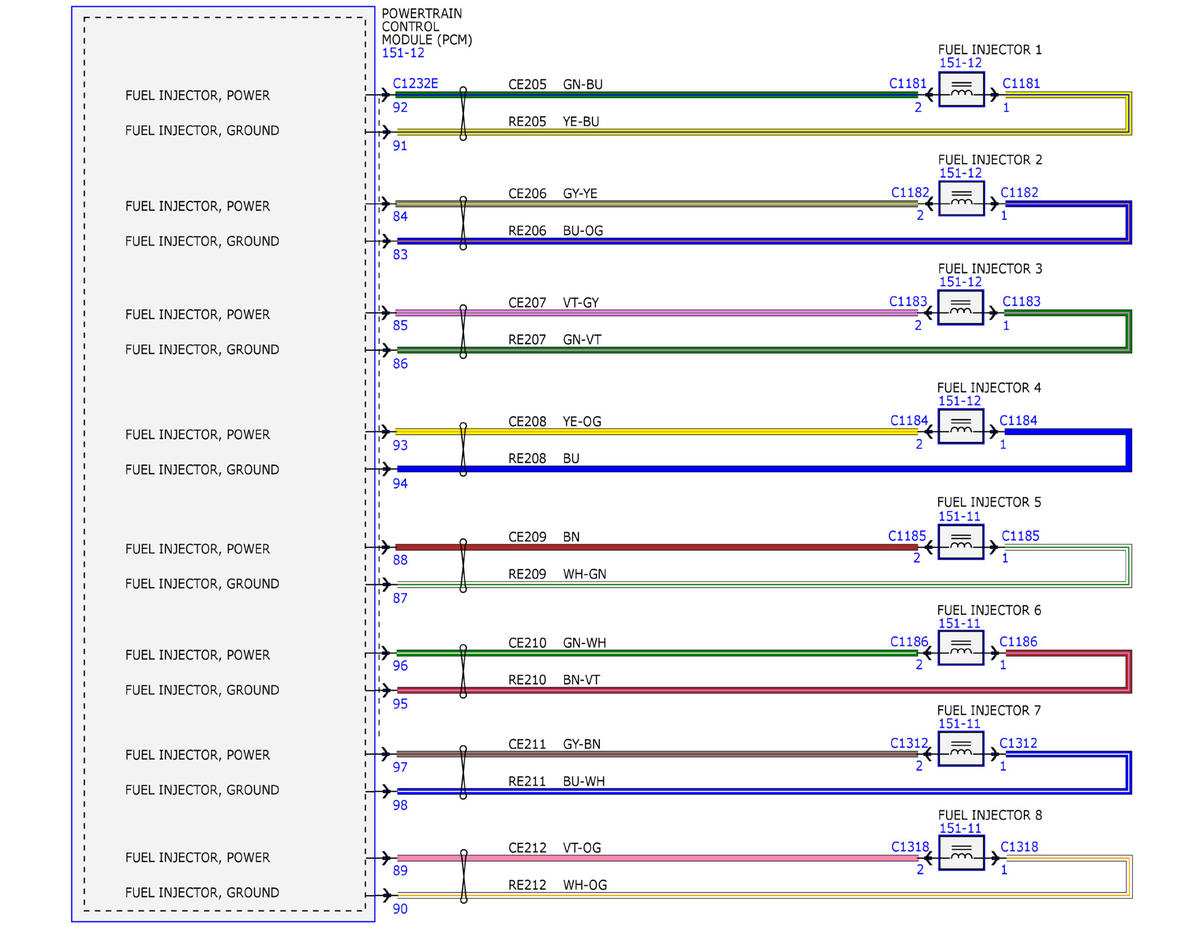

Fig 1: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (1 Of 20)

GFDWR57049

Courtesy of FORD MOTOR COMPANY

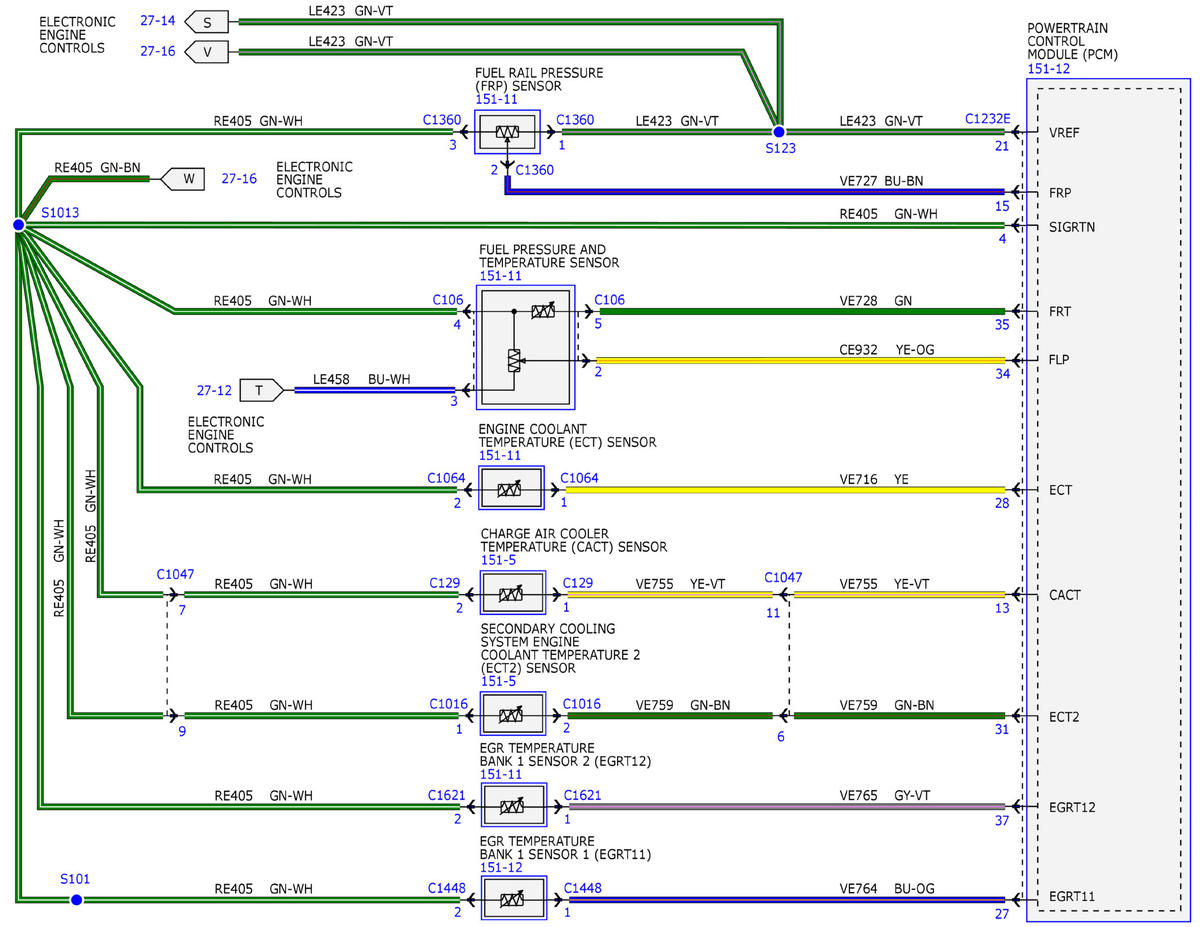

Fig 2: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (2 Of 20)

GFDWR57050

Courtesy of FORD MOTOR COMPANY

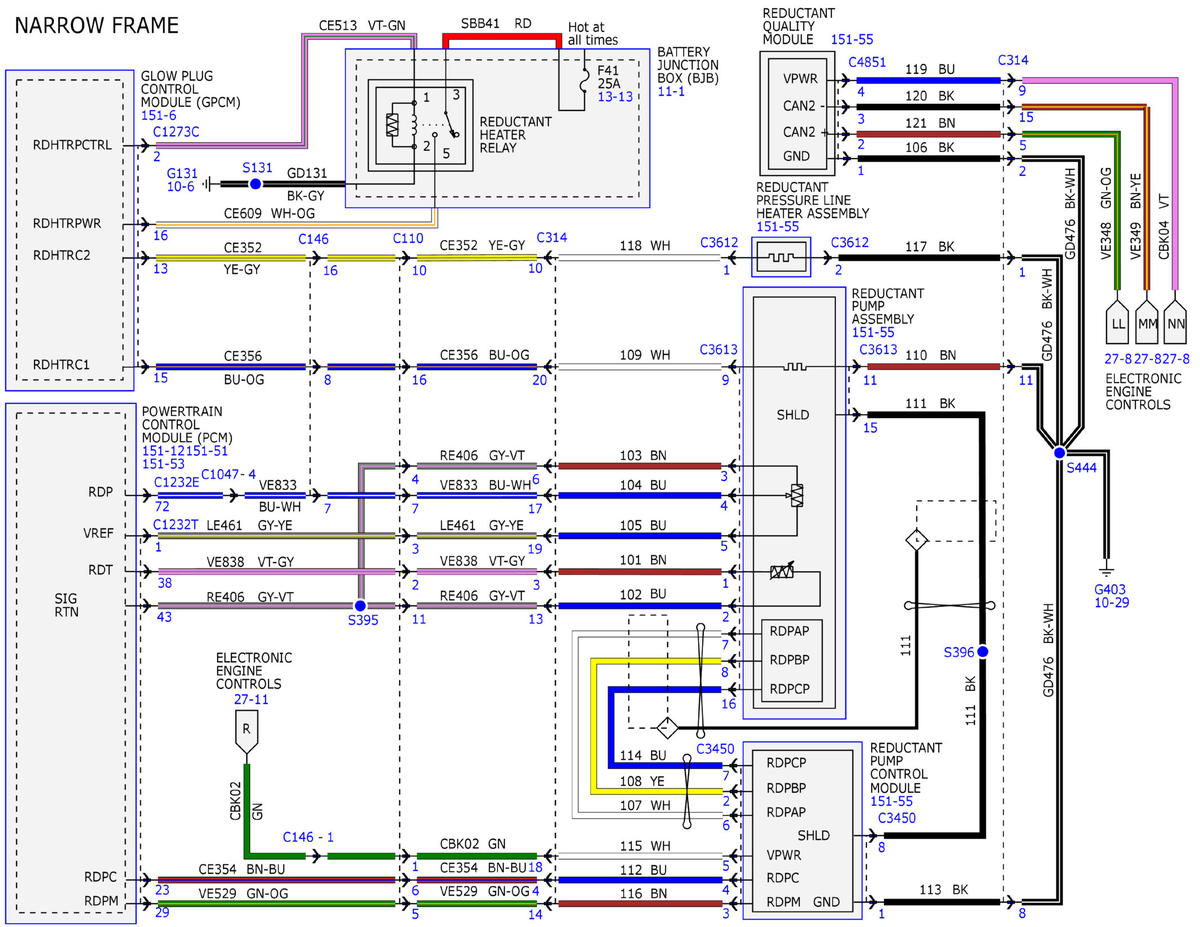

Fig 3: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (3 Of 20)

GFDWR57051

Courtesy of FORD MOTOR COMPANY

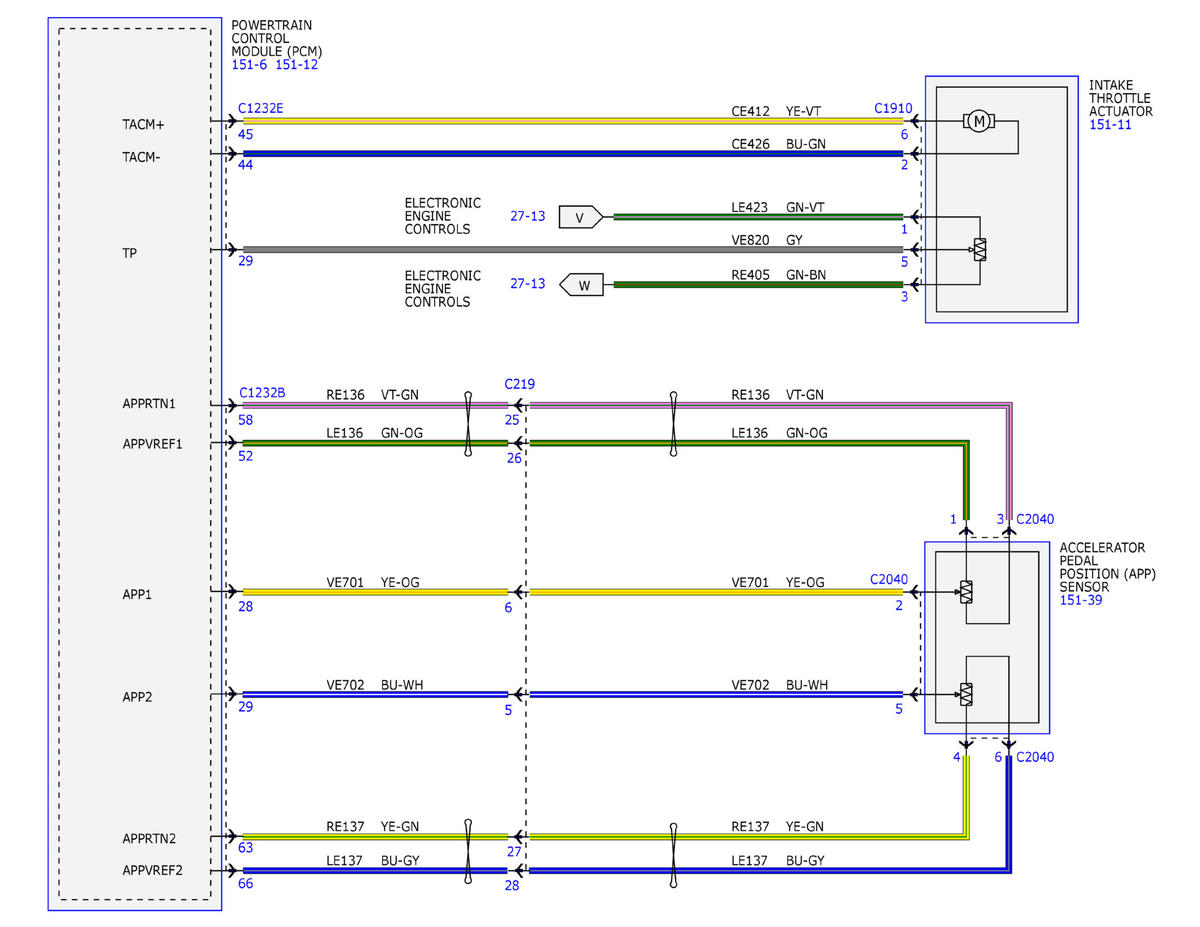

Fig 4: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (4 Of 20)

GFDWR57052

Courtesy of FORD MOTOR COMPANY

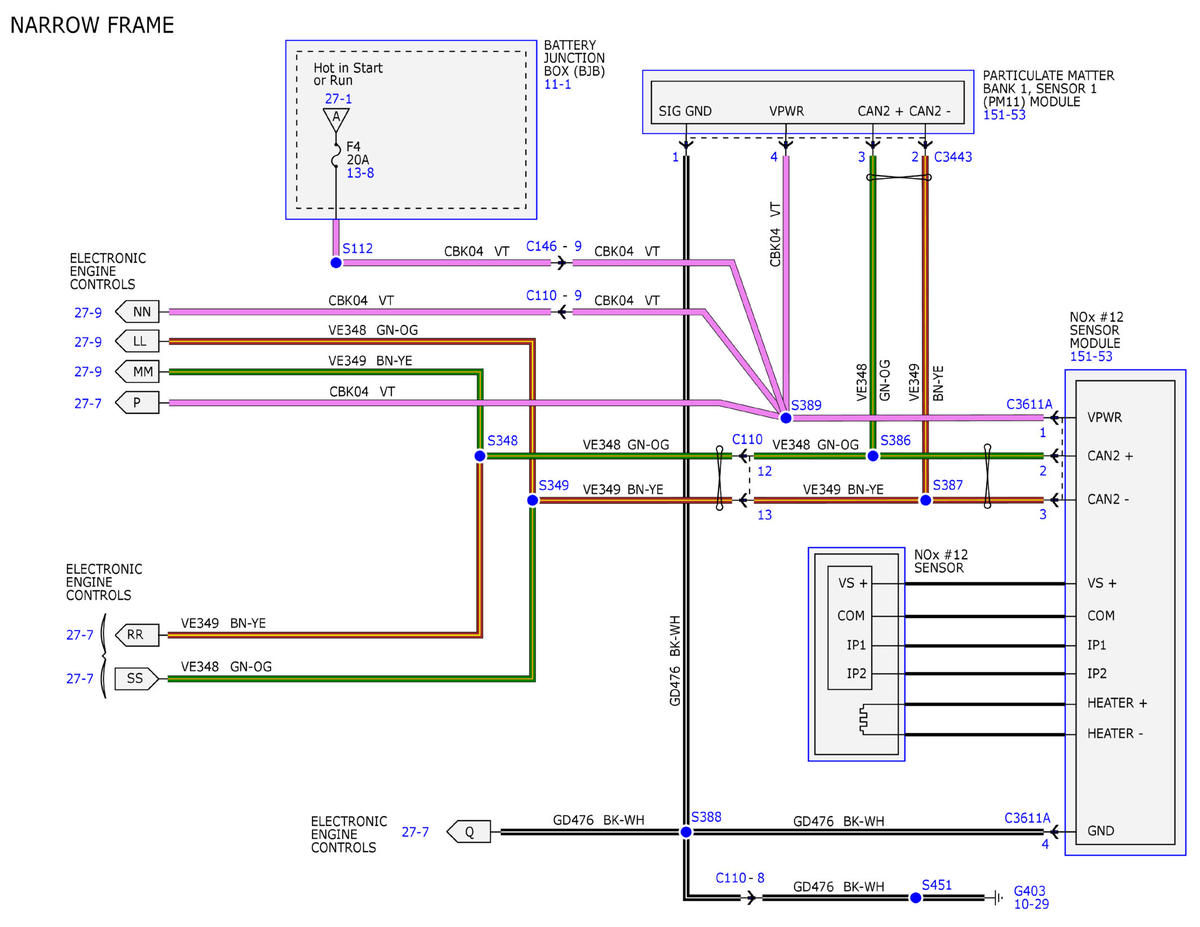

Fig 5: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (5 Of 20)

GFDWR57053

Courtesy of FORD MOTOR COMPANY

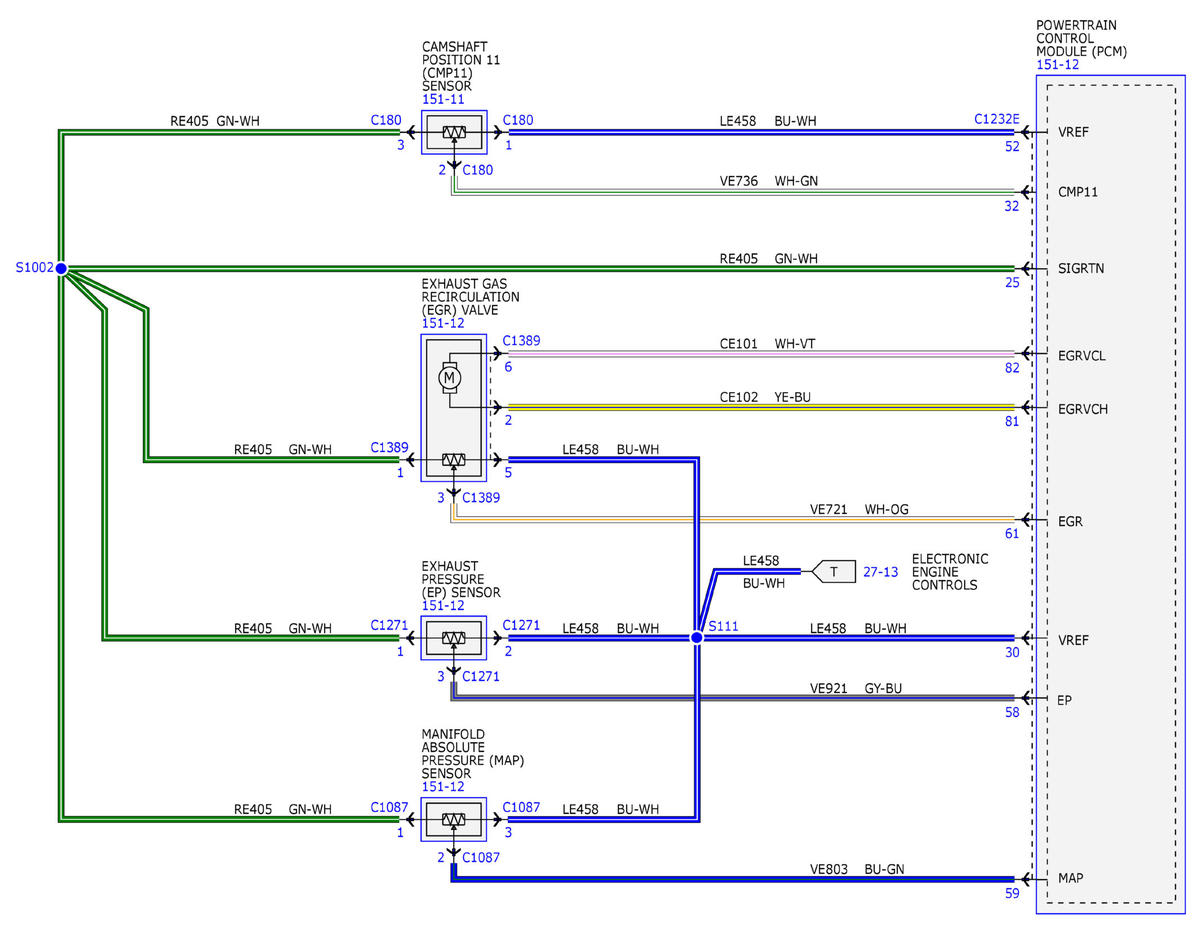

Fig 6: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (6 Of 20)

GFDWR57054

Courtesy of FORD MOTOR COMPANY

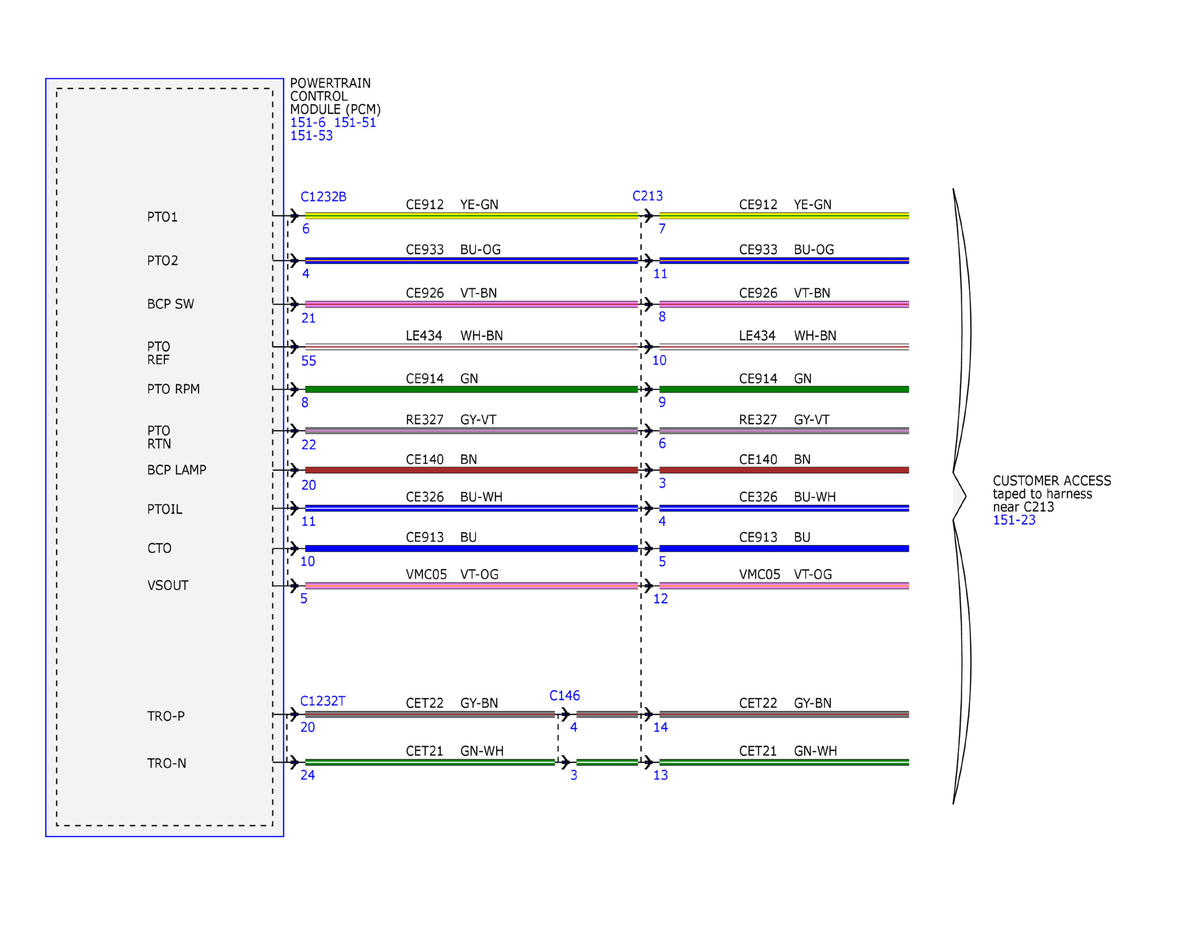

Fig 7: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (7 Of 20)

GFDWR57055

Courtesy of FORD MOTOR COMPANY

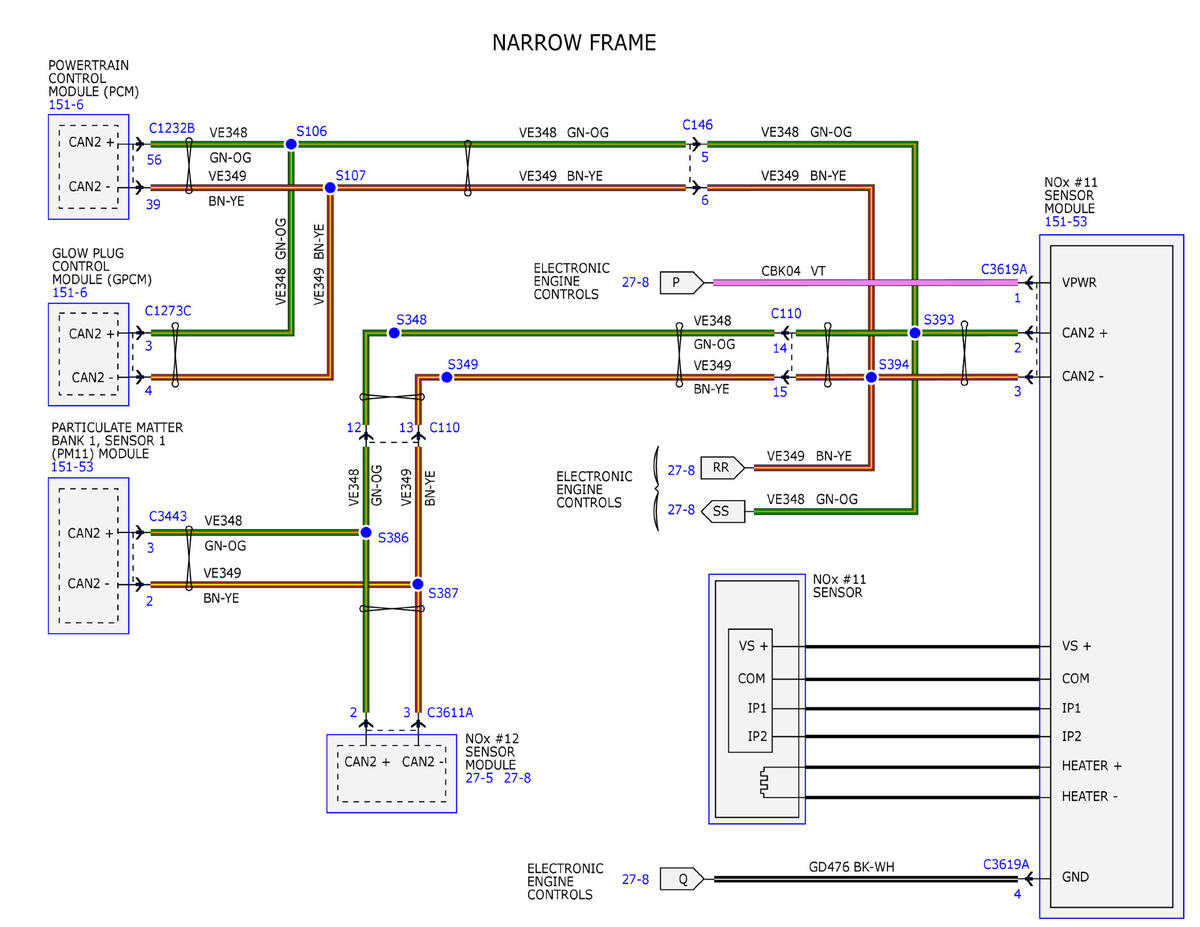

Fig 8: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (8 Of 20)

GFDWR57056

Courtesy of FORD MOTOR COMPANY

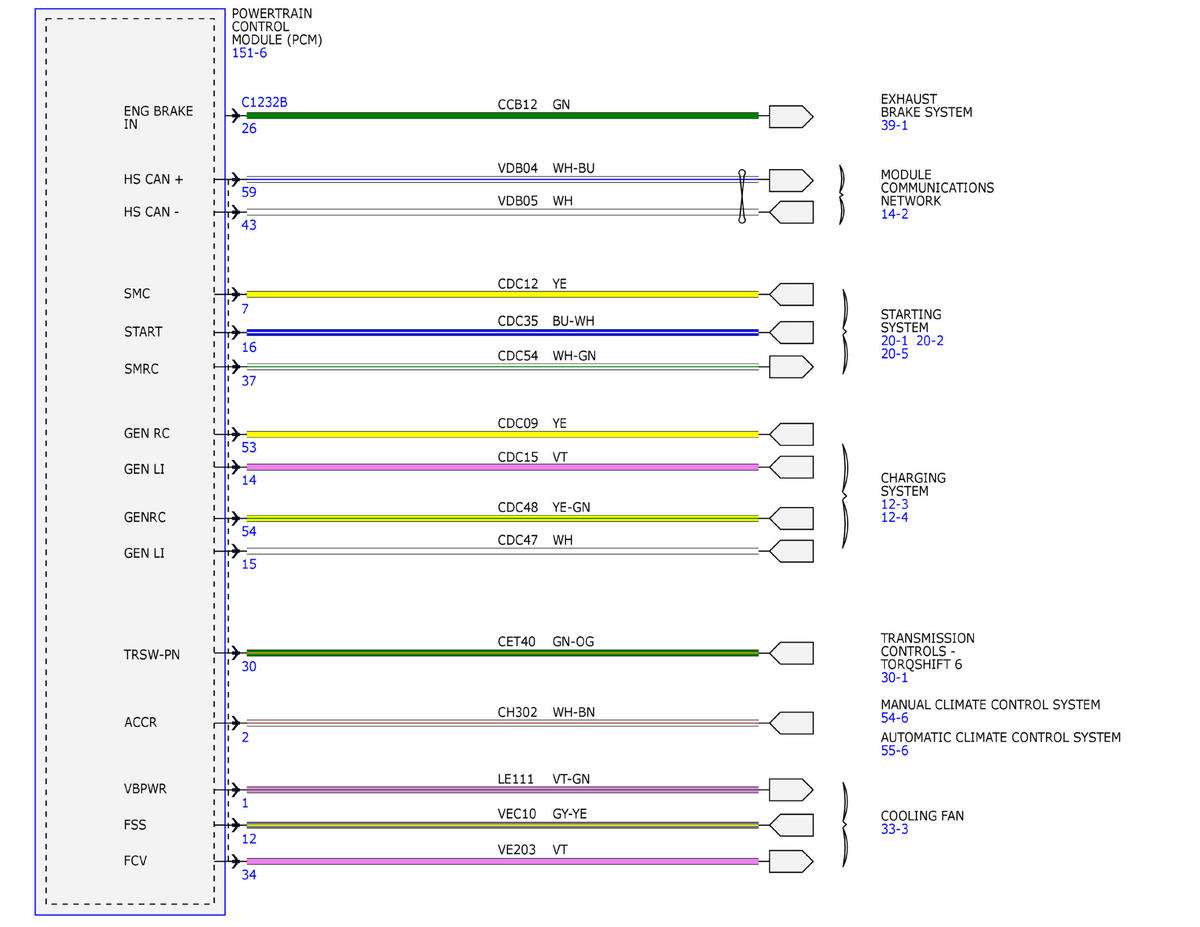

Fig 9: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (9 Of 20)

GFDWR57057

Courtesy of FORD MOTOR COMPANY

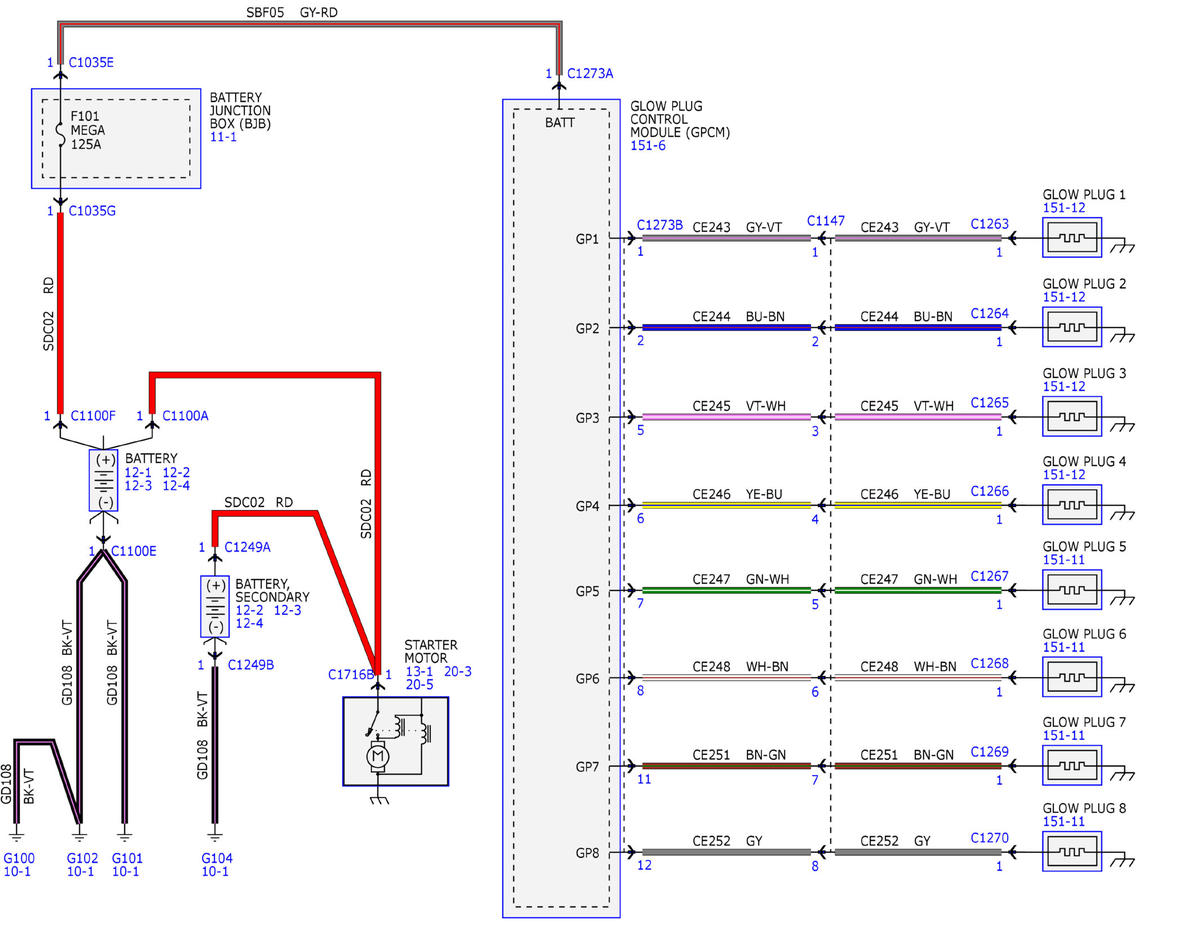

Fig 10: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (10 Of 20)

GFDWR57058

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (11 Of 20)

GFDWR57059

Courtesy of FORD MOTOR COMPANY

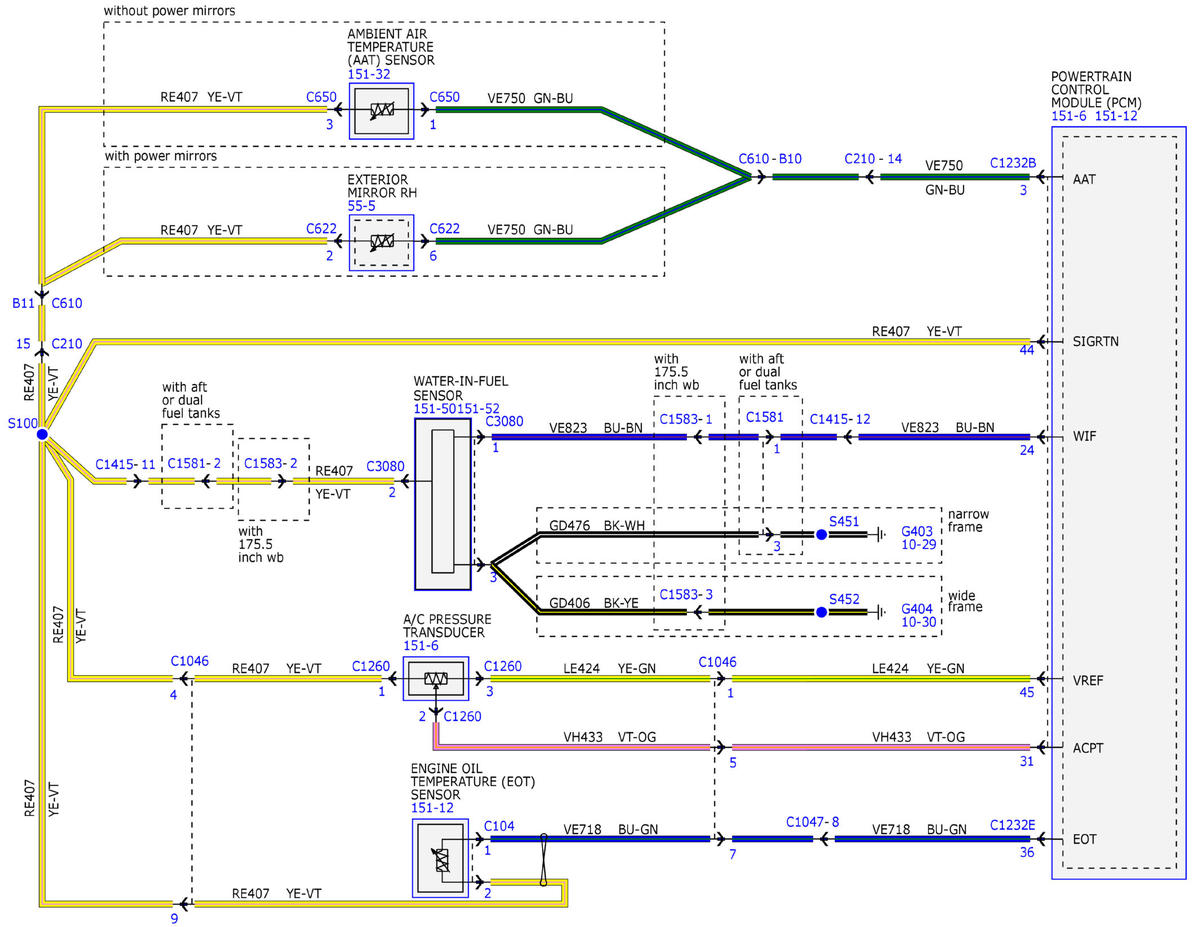

Fig 12: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (12 Of 20)

GFDWR57060

Courtesy of FORD MOTOR COMPANY

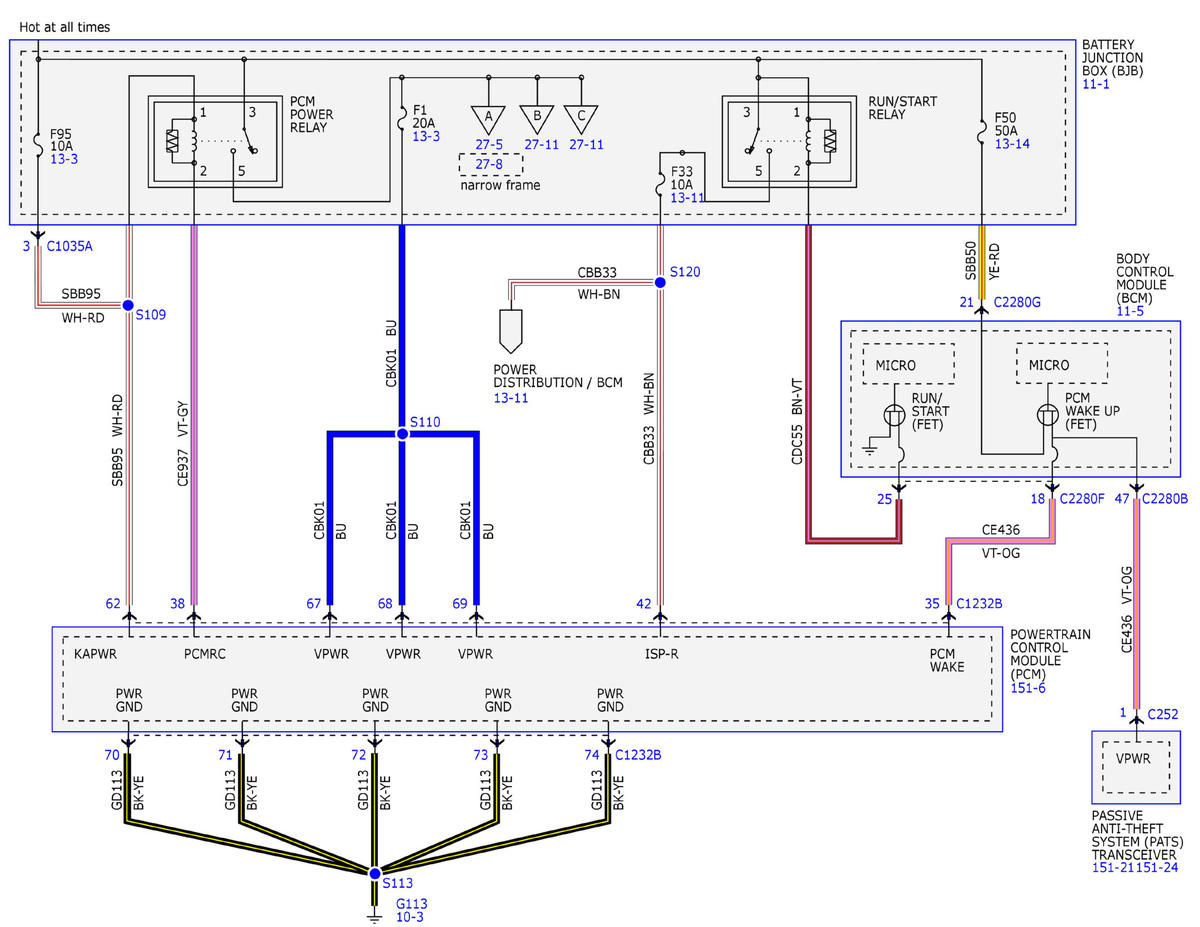

Fig 13: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (13 Of 20)

GFDWR57061

Courtesy of FORD MOTOR COMPANY

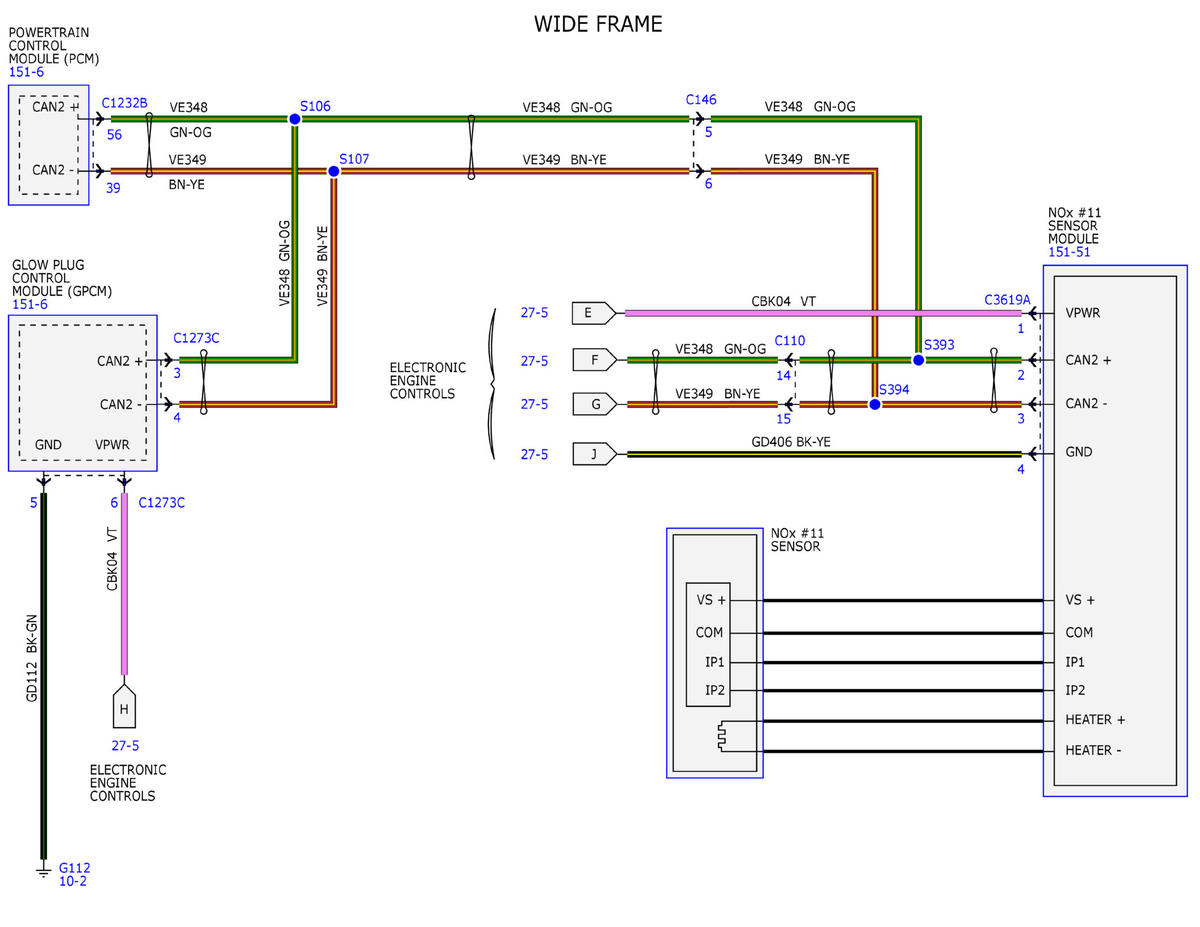

Fig 14: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (14 Of 20)

GFDWR57062

Courtesy of FORD MOTOR COMPANY

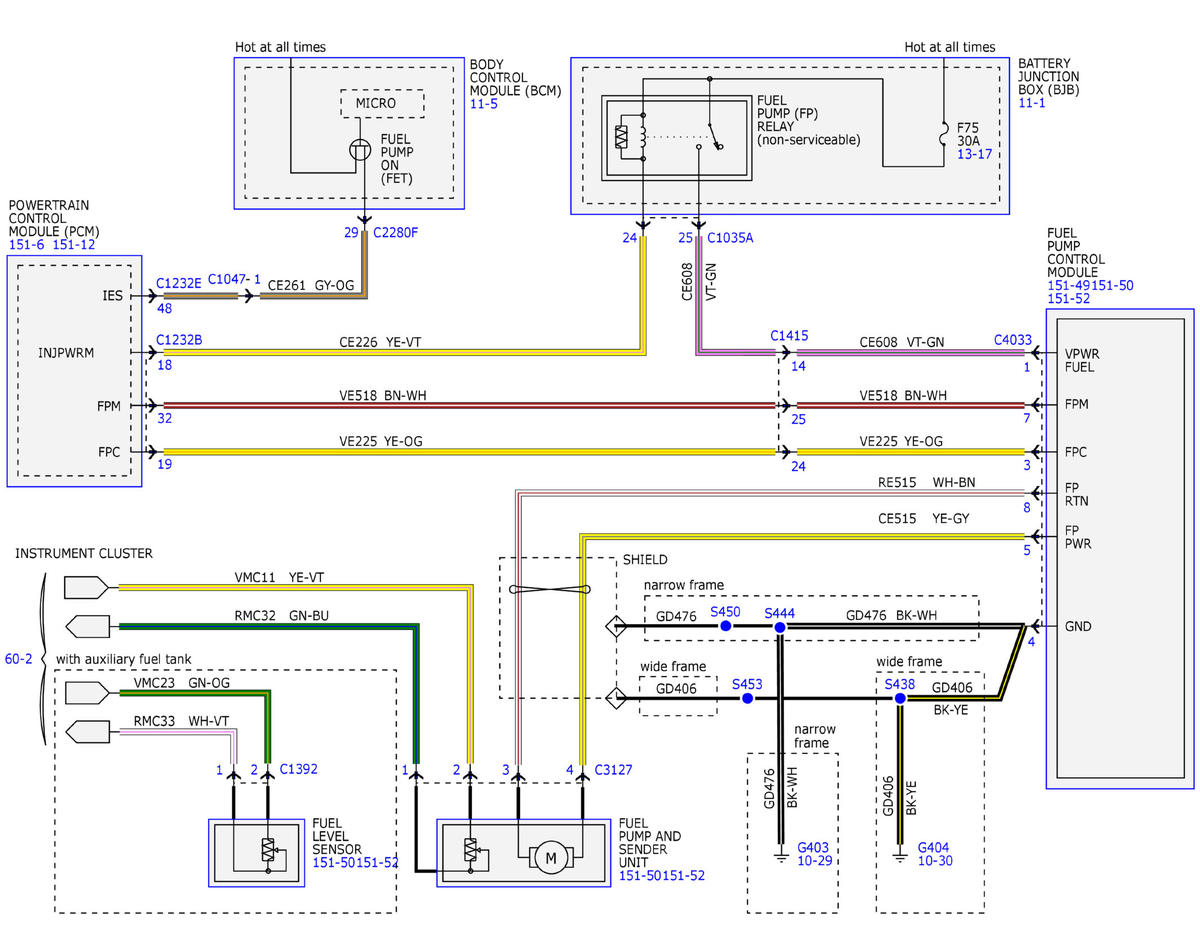

Fig 15: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (15 Of 20)

GFDWR57063

Courtesy of FORD MOTOR COMPANY

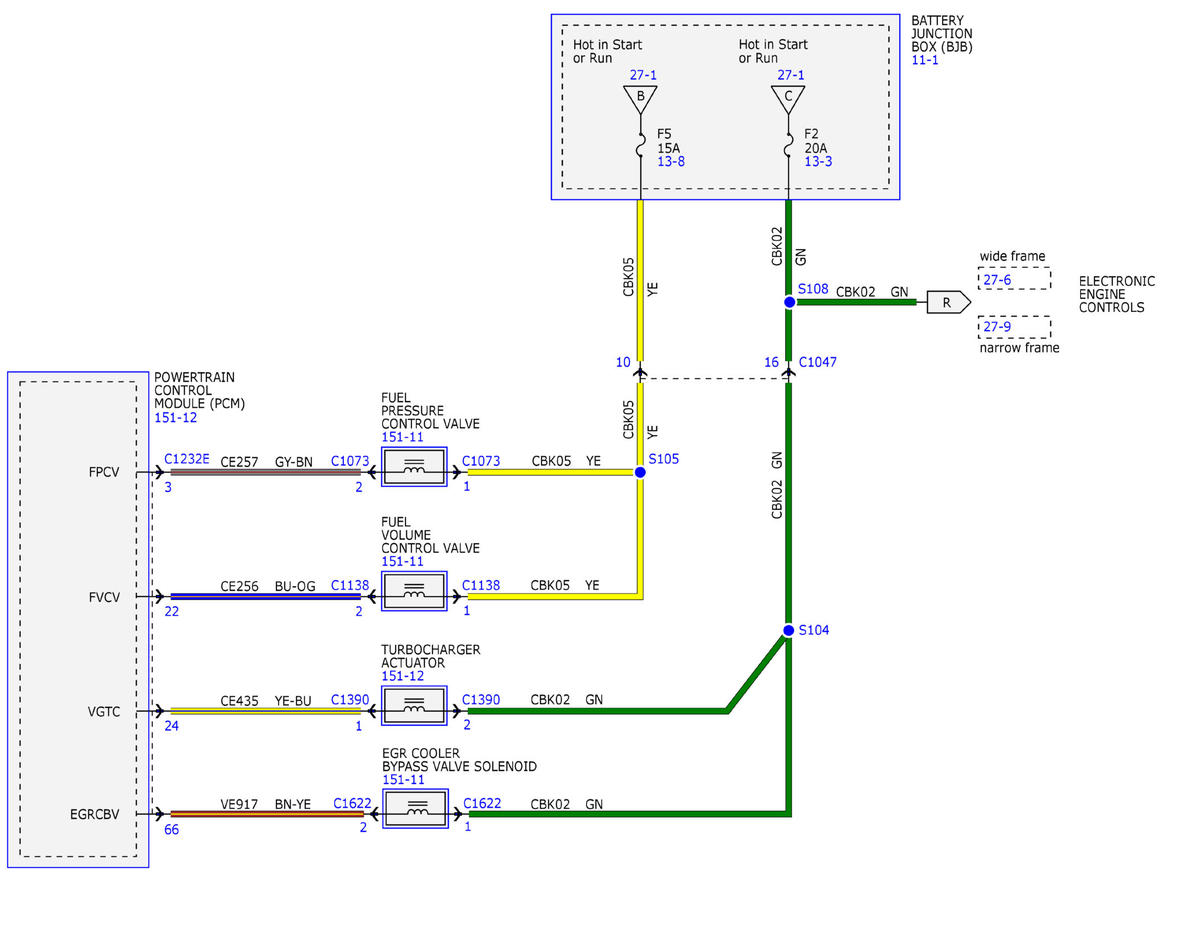

Fig 16: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (16 Of 20)

GFDWR57064

Courtesy of FORD MOTOR COMPANY

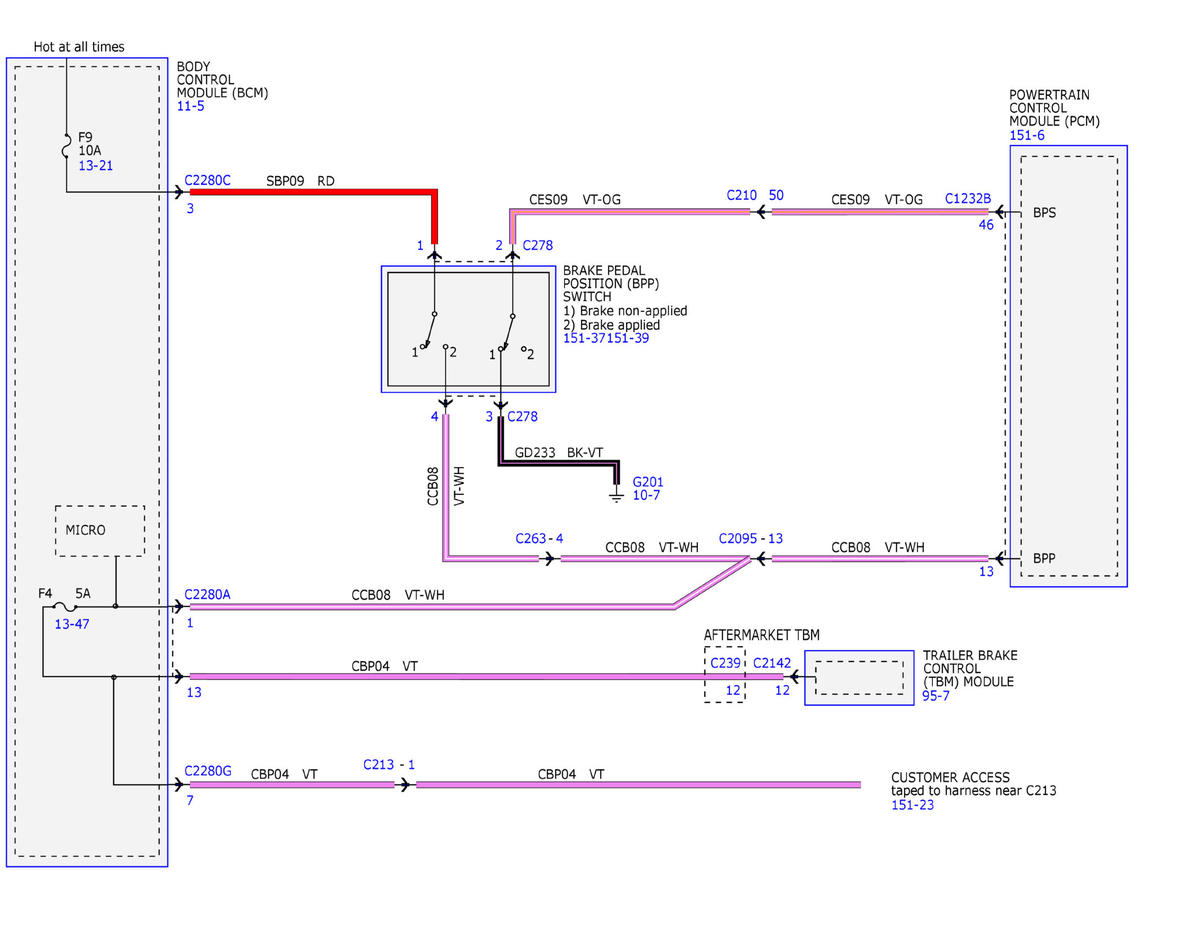

Fig 17: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (17 Of 20)

GFDWR57065

Courtesy of FORD MOTOR COMPANY

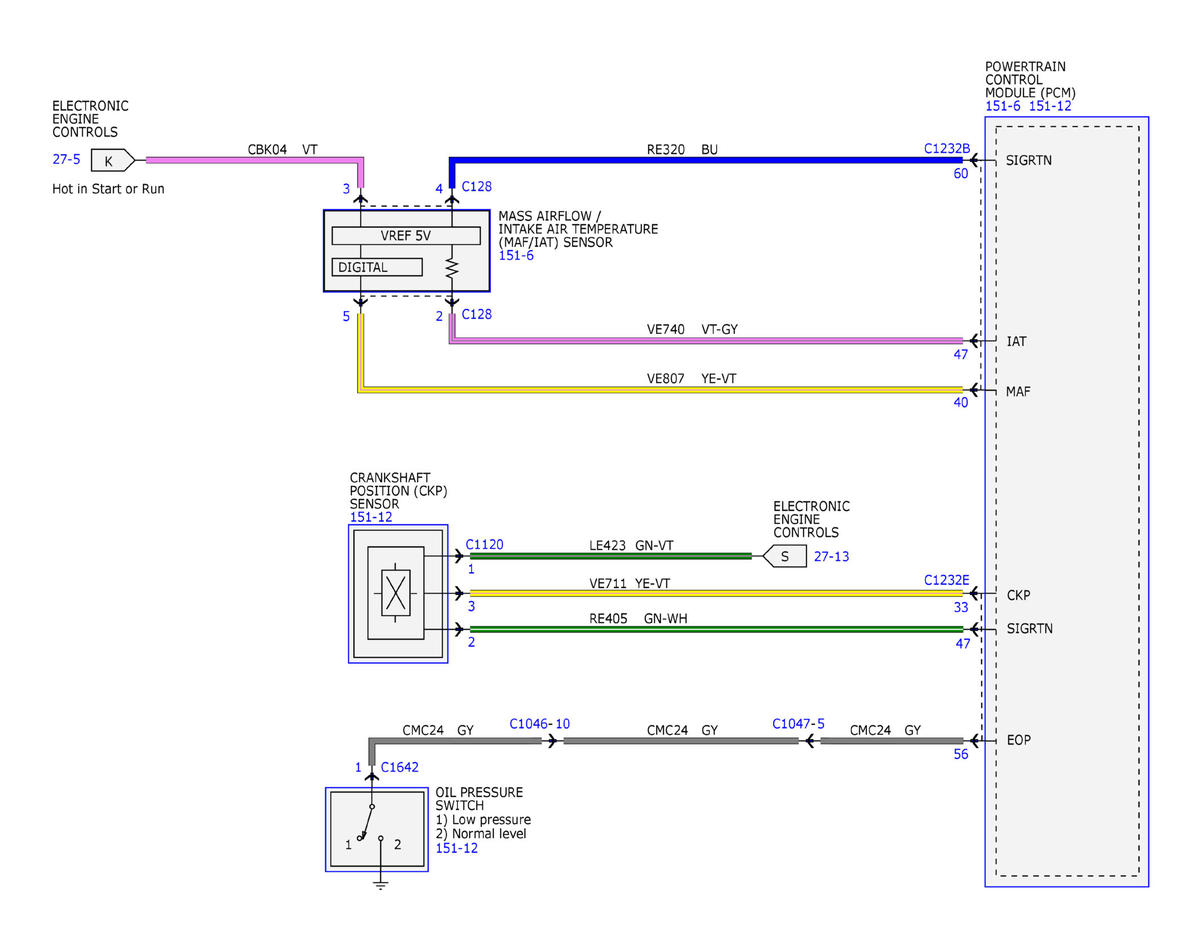

Fig 18: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (18 Of 20)

GFDWR57066

Courtesy of FORD MOTOR COMPANY

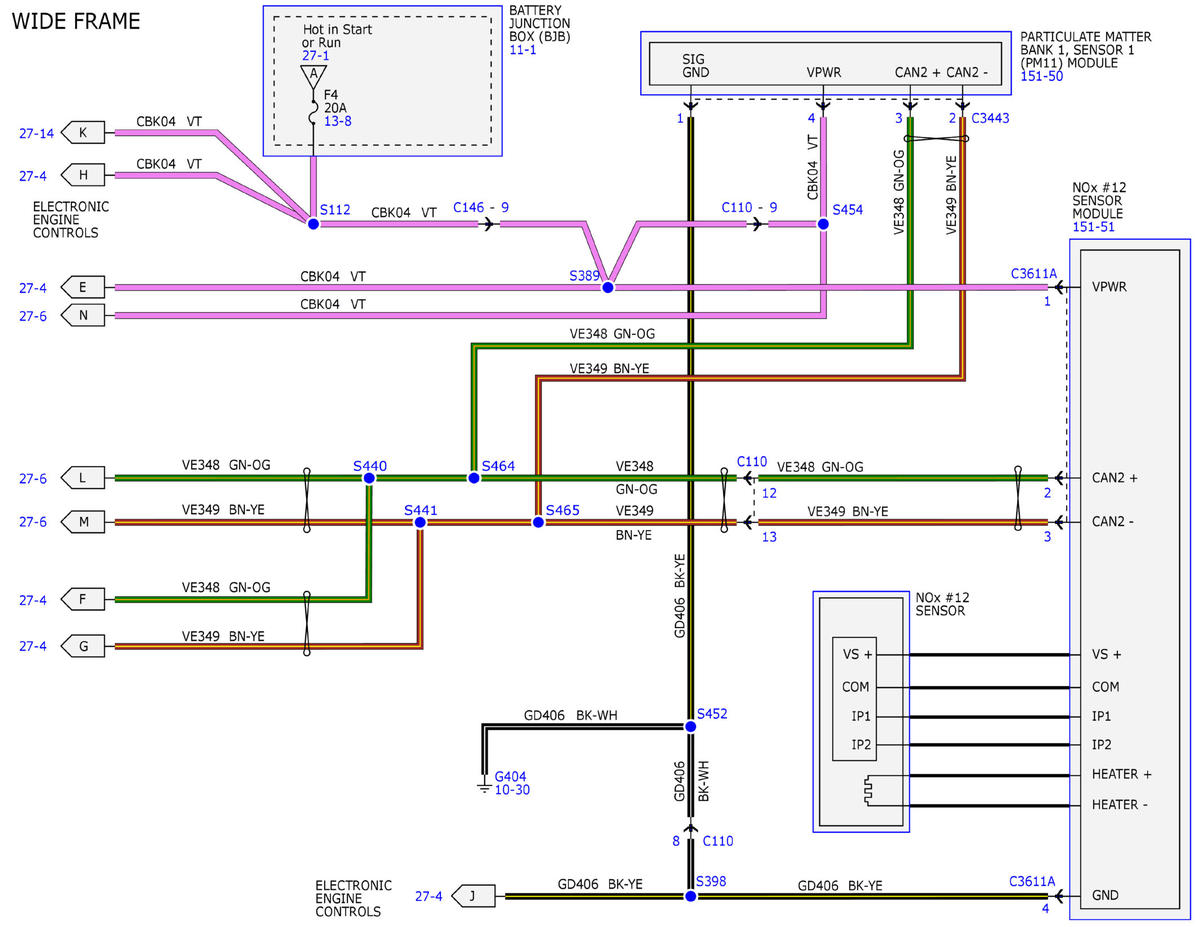

Fig 19: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (19 Of 20)

GFDWR57067

Courtesy of FORD MOTOR COMPANY

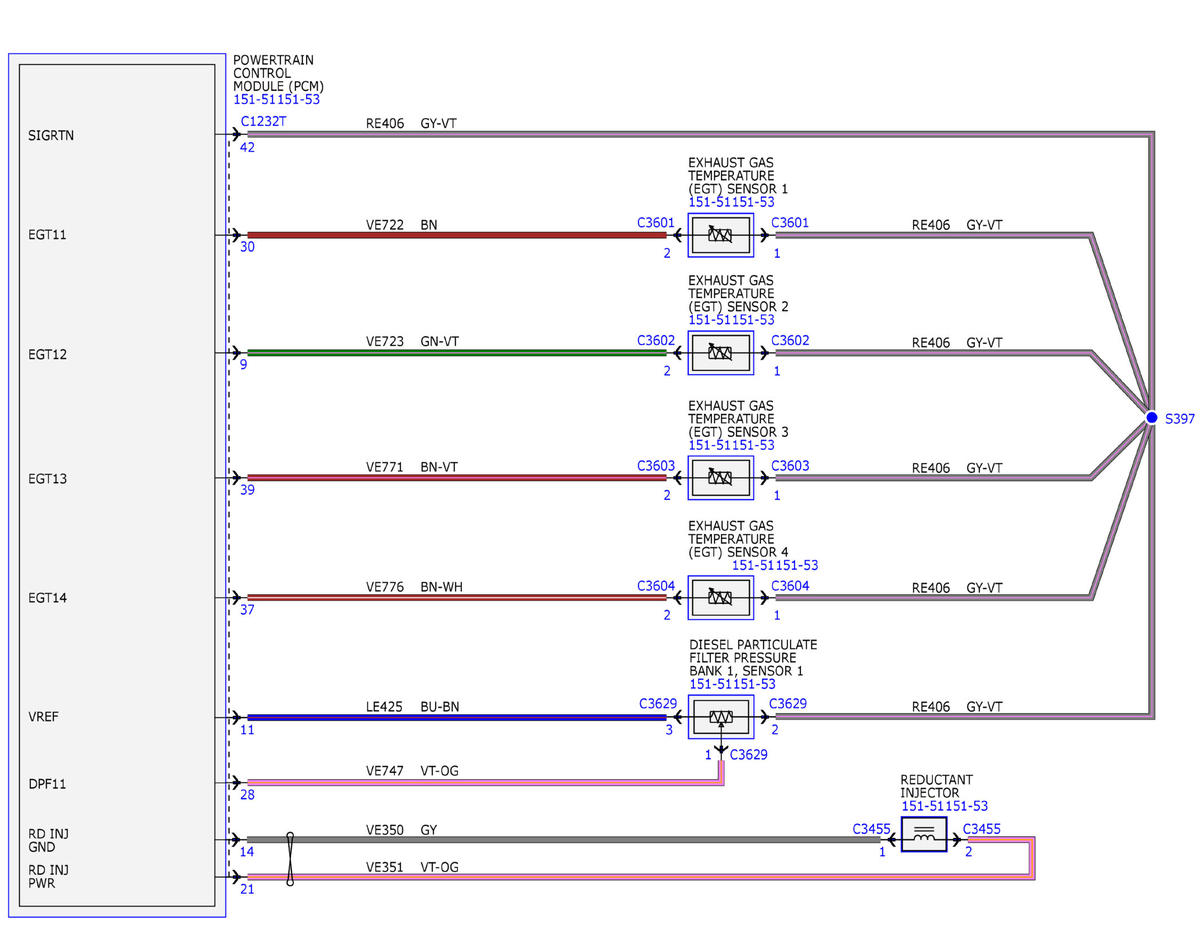

Fig 20: Electronic Engine Controls - 6.7L Diesel Wiring Diagram (20 Of 20)

GFDWR57068

Courtesy of FORD MOTOR COMPANY
