Electronic Engine Controls - 6.2L

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

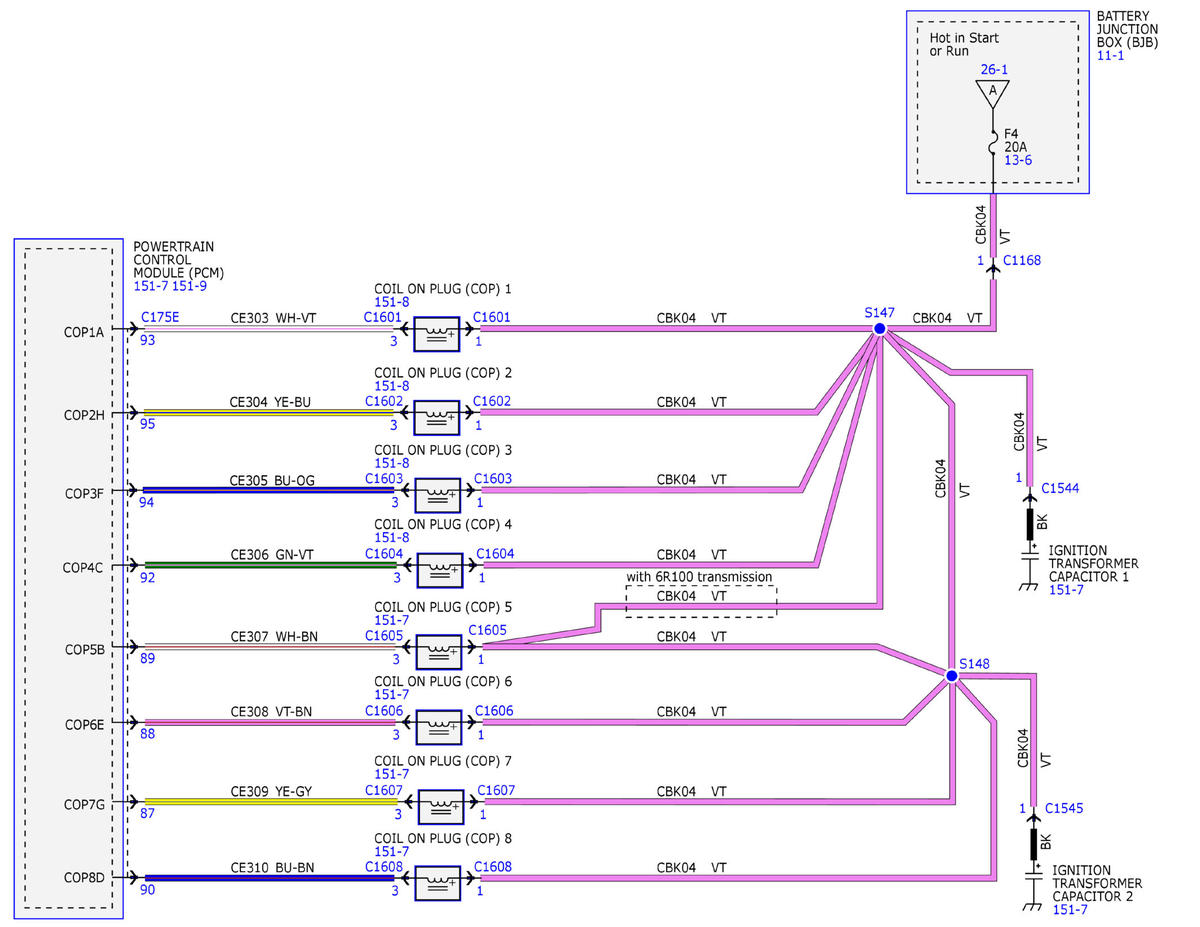

Fig 1: Electronic Engine Controls - 6.2L Wiring Diagram (1 Of 17)

GFDWR57032

Courtesy of FORD MOTOR COMPANY

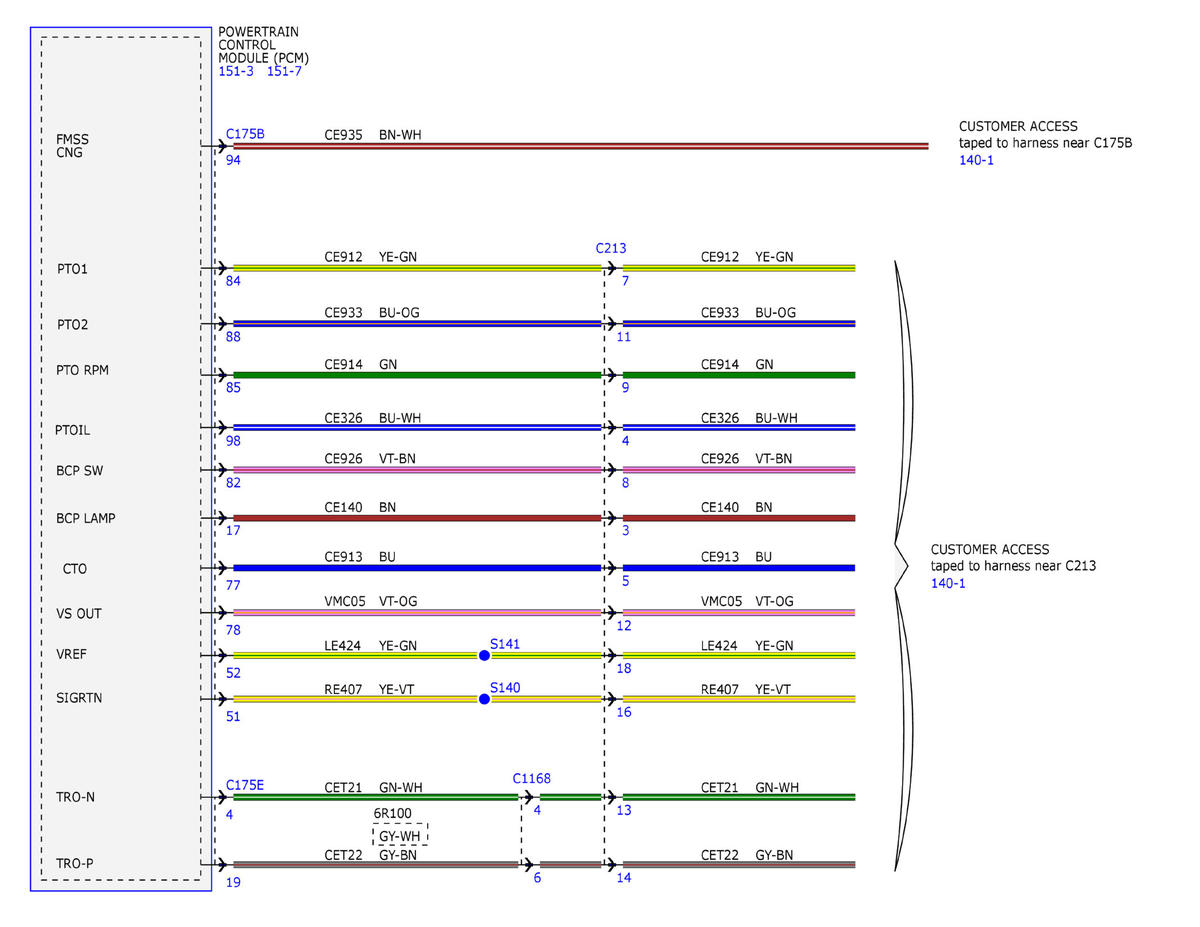

Fig 2: Electronic Engine Controls - 6.2L Wiring Diagram (2 Of 17)

GFDWR57033

Courtesy of FORD MOTOR COMPANY

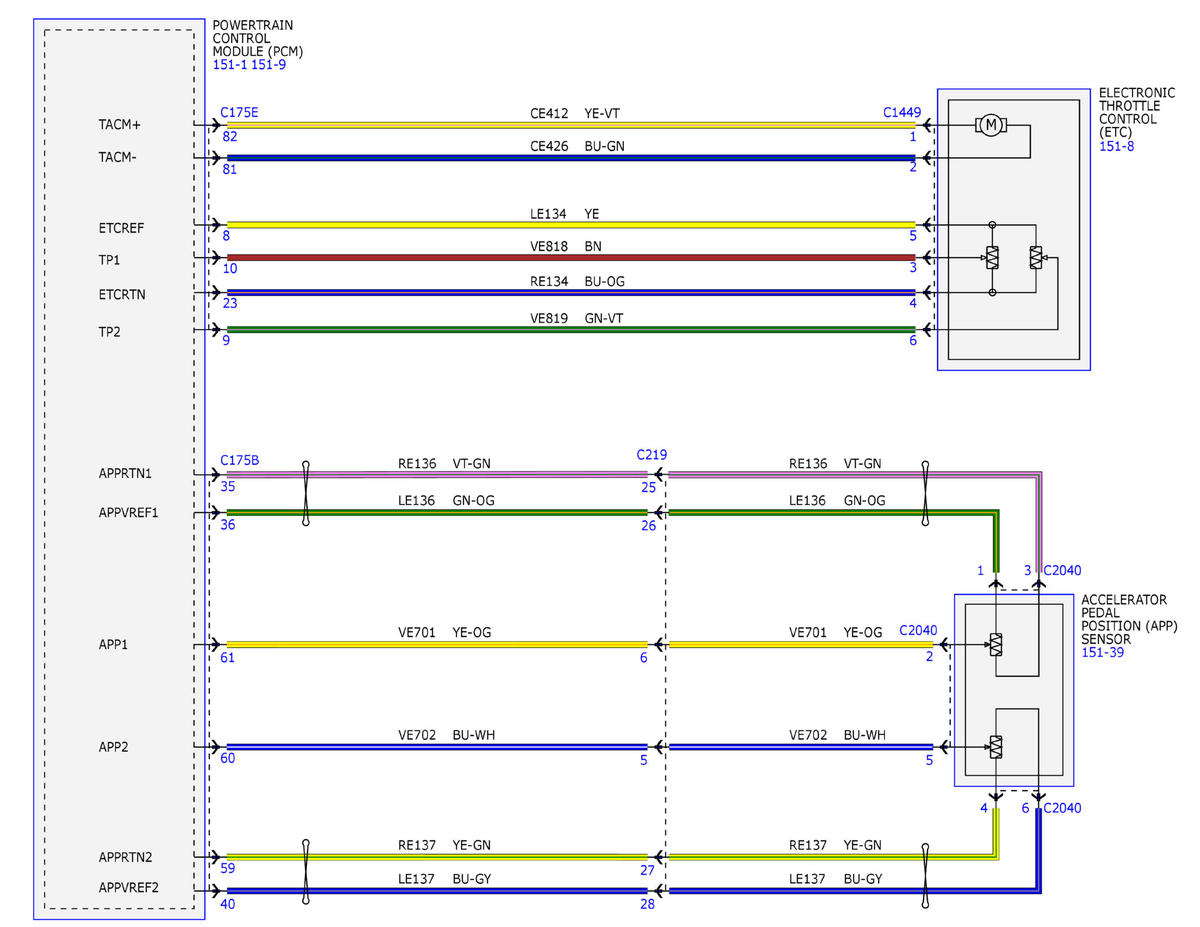

Fig 3: Electronic Engine Controls - 6.2L Wiring Diagram (3 Of 17)

GFDWR57034

Courtesy of FORD MOTOR COMPANY

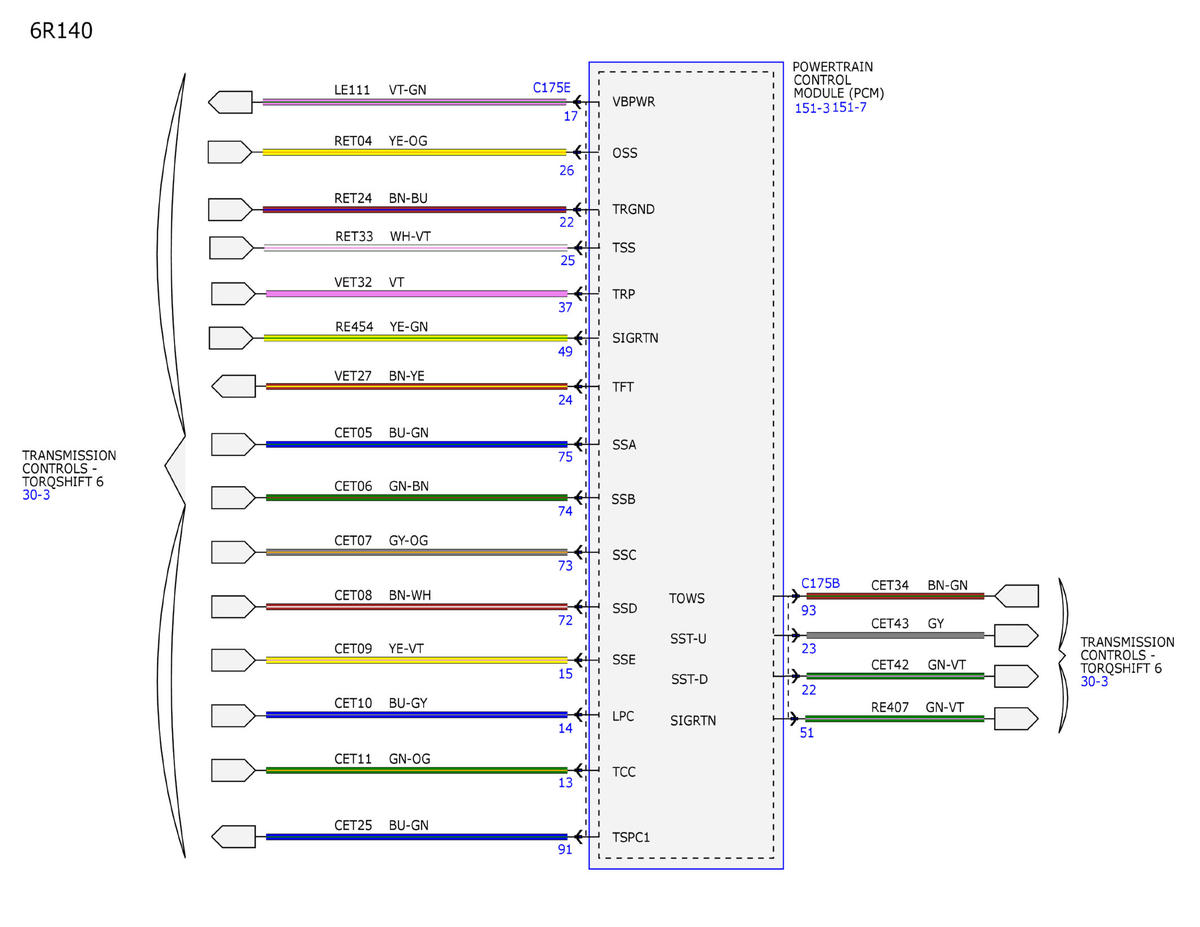

Fig 4: Electronic Engine Controls - 6.2L Wiring Diagram (4 Of 17)

GFDWR57035

Courtesy of FORD MOTOR COMPANY

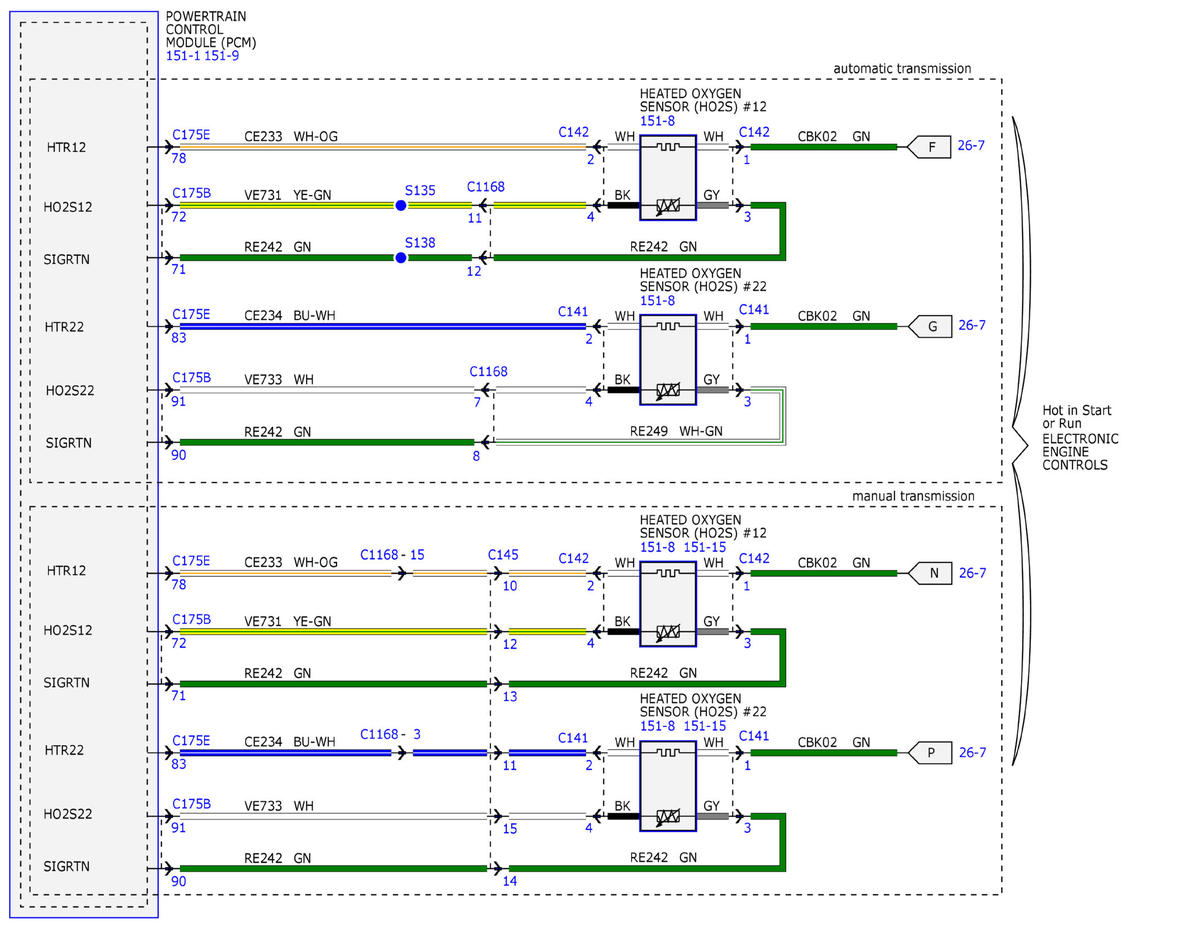

Fig 5: Electronic Engine Controls - 6.2L Wiring Diagram (5 Of 17)

GFDWR57036

Courtesy of FORD MOTOR COMPANY

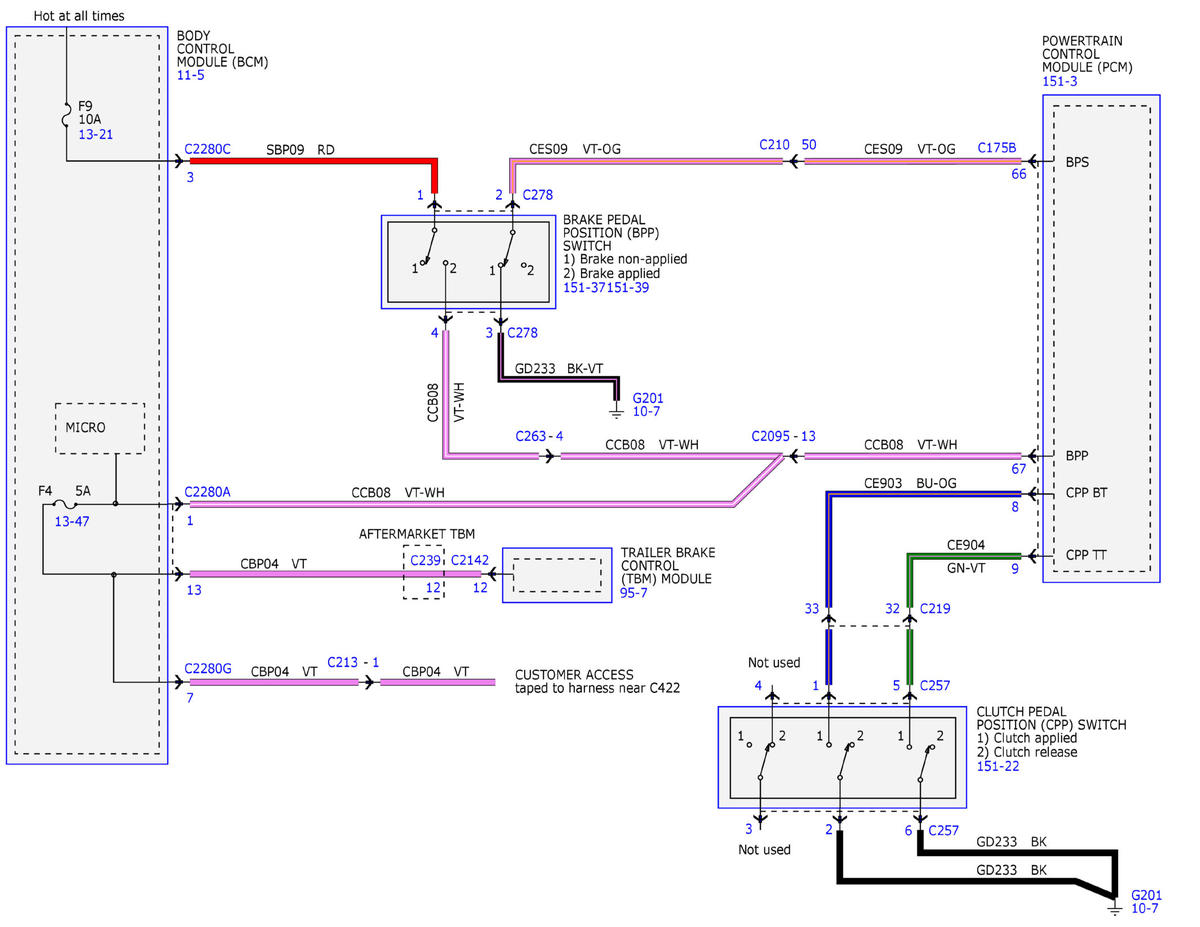

Fig 6: Electronic Engine Controls - 6.2L Wiring Diagram (6 Of 17)

GFDWR57037

Courtesy of FORD MOTOR COMPANY

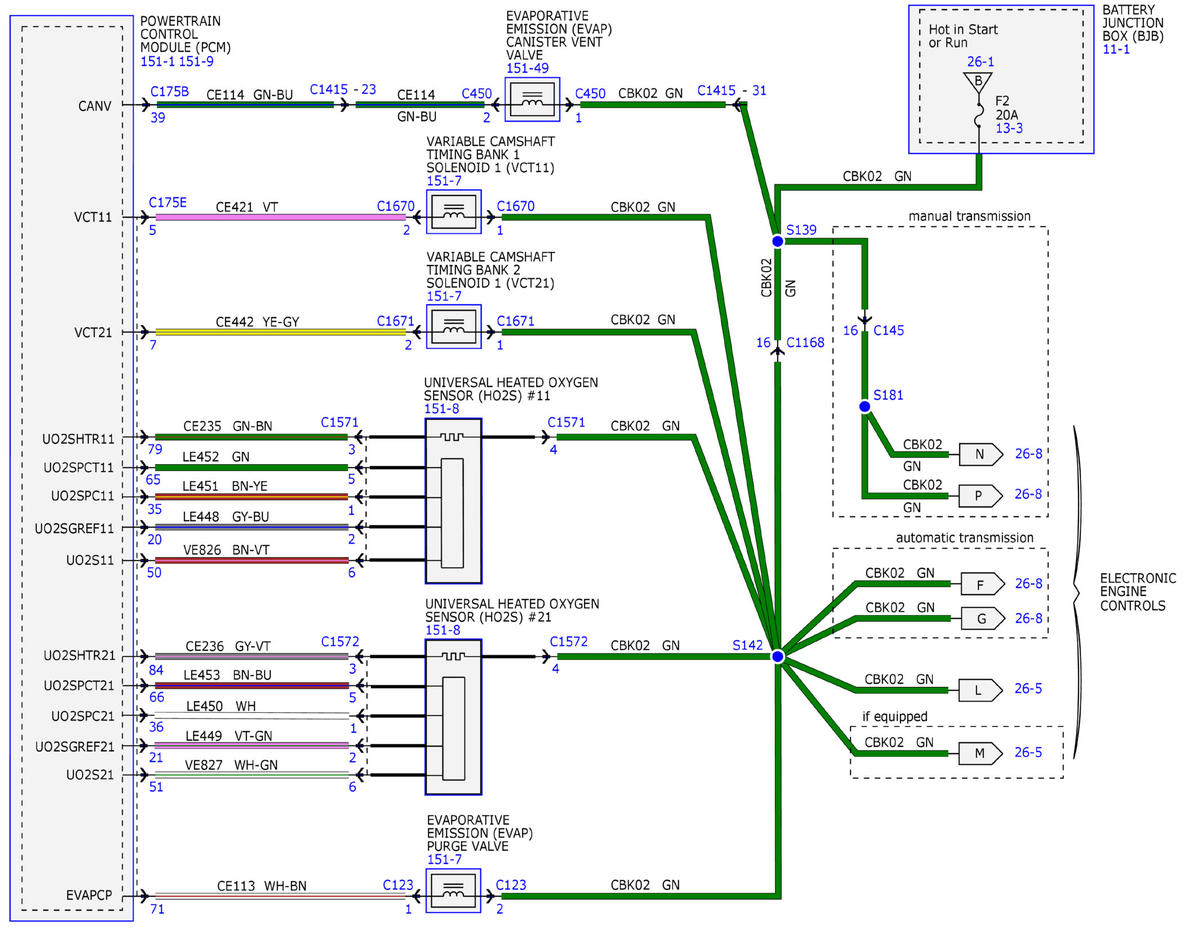

Fig 7: Electronic Engine Controls - 6.2L Wiring Diagram (7 Of 17)

GFDWR57038

Courtesy of FORD MOTOR COMPANY

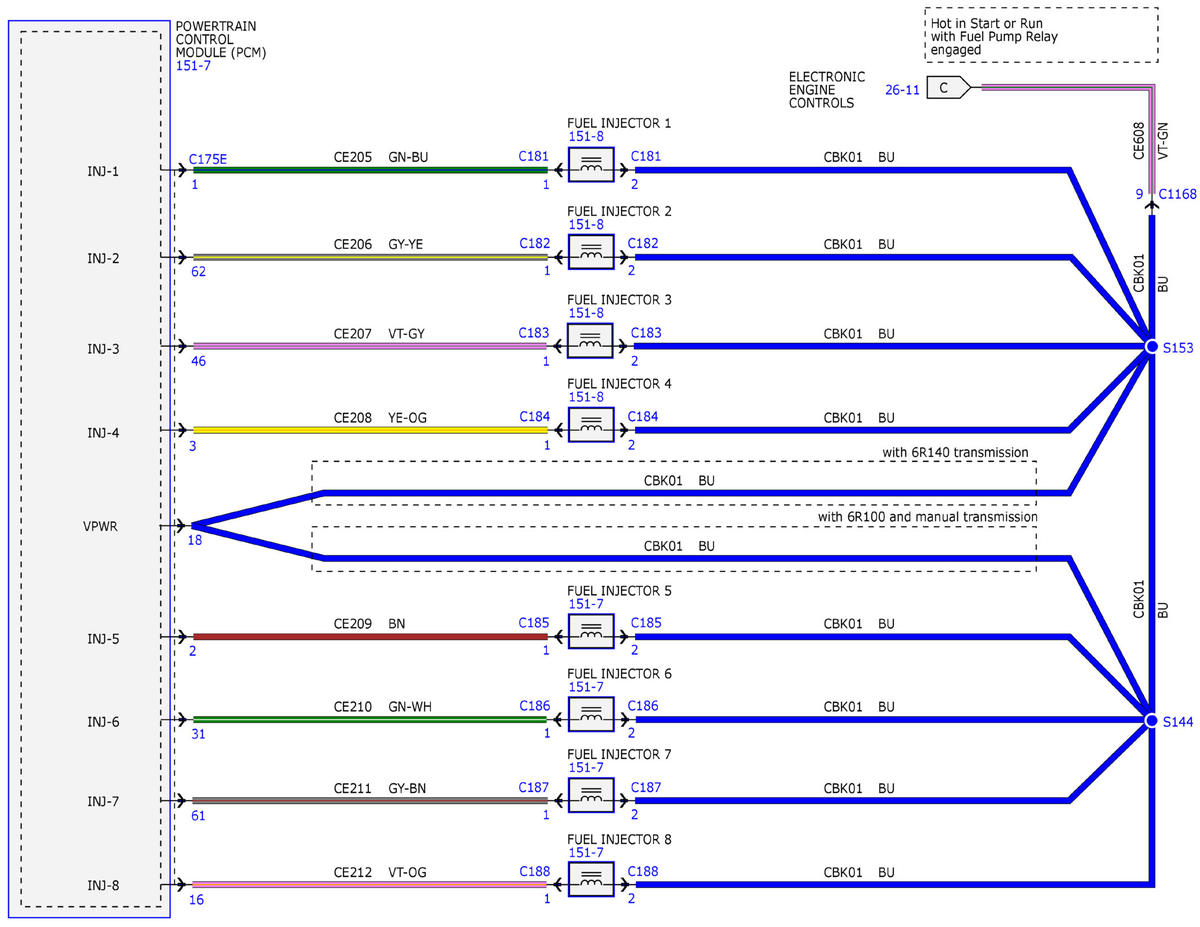

Fig 8: Electronic Engine Controls - 6.2L Wiring Diagram (8 Of 17)

GFDWR57039

Courtesy of FORD MOTOR COMPANY

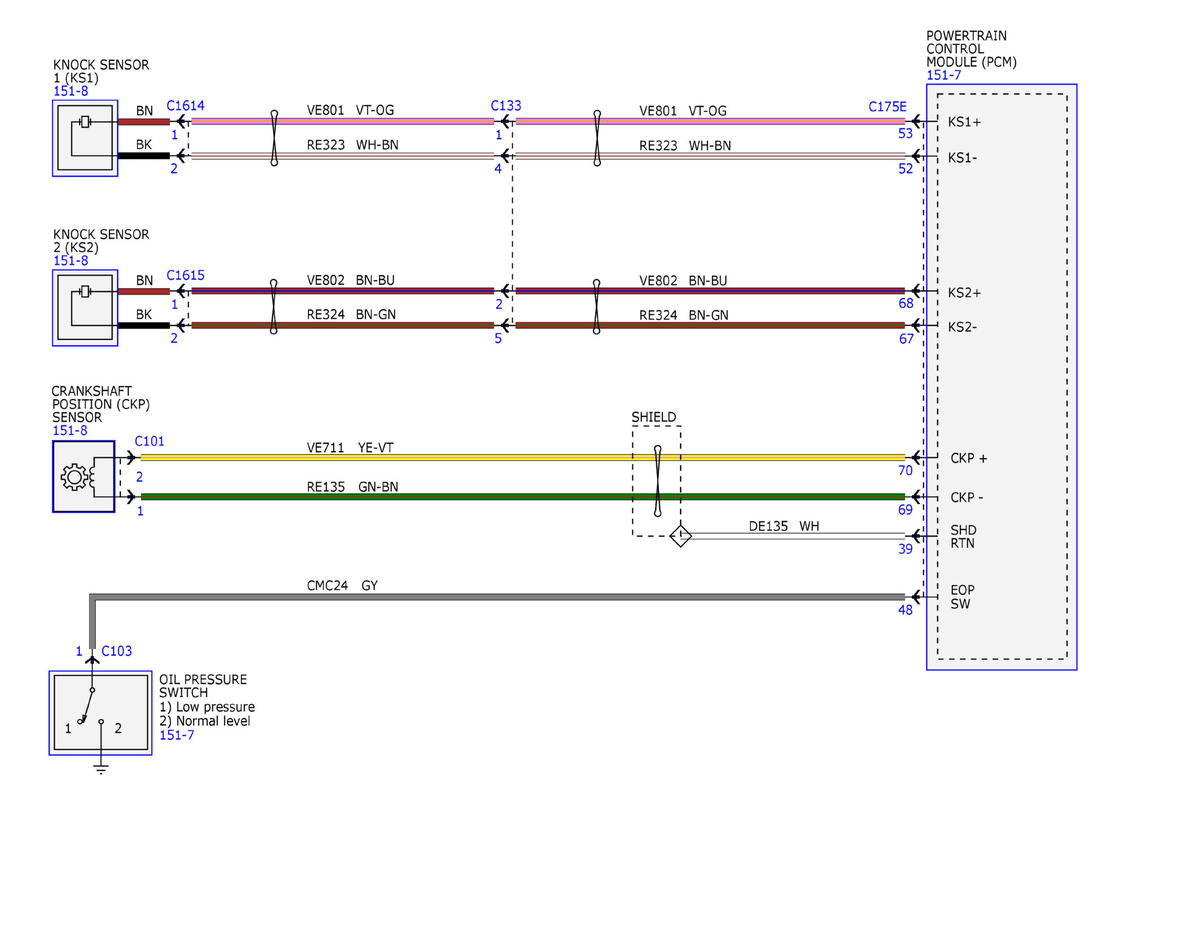

Fig 9: Electronic Engine Controls - 6.2L Wiring Diagram (9 Of 17)

GFDWR57040

Courtesy of FORD MOTOR COMPANY

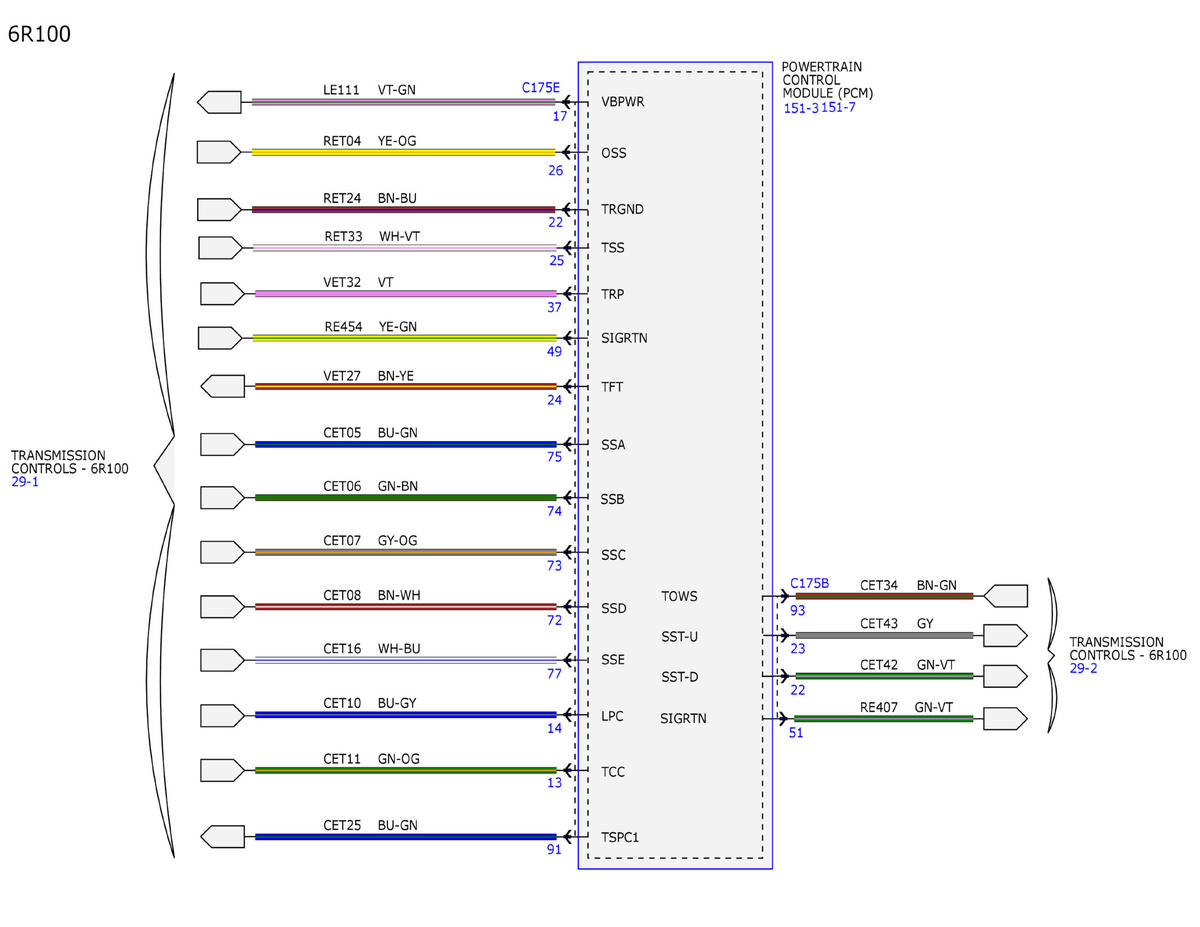

Fig 10: Electronic Engine Controls - 6.2L Wiring Diagram (10 Of 17)

GFDWR57041

Courtesy of FORD MOTOR COMPANY

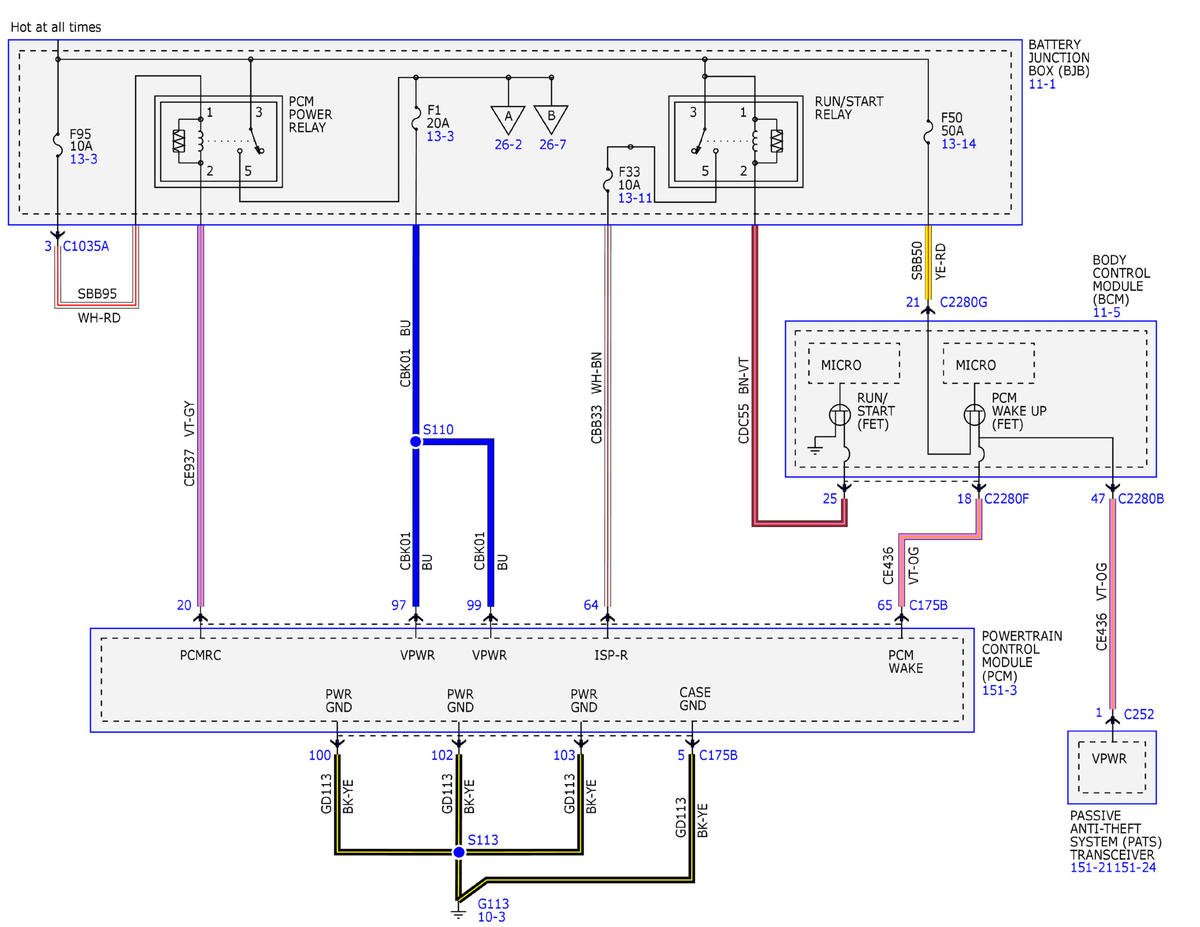

Fig 11: Electronic Engine Controls - 6.2L Wiring Diagram (11 Of 17)

GFDWR57042

Courtesy of FORD MOTOR COMPANY

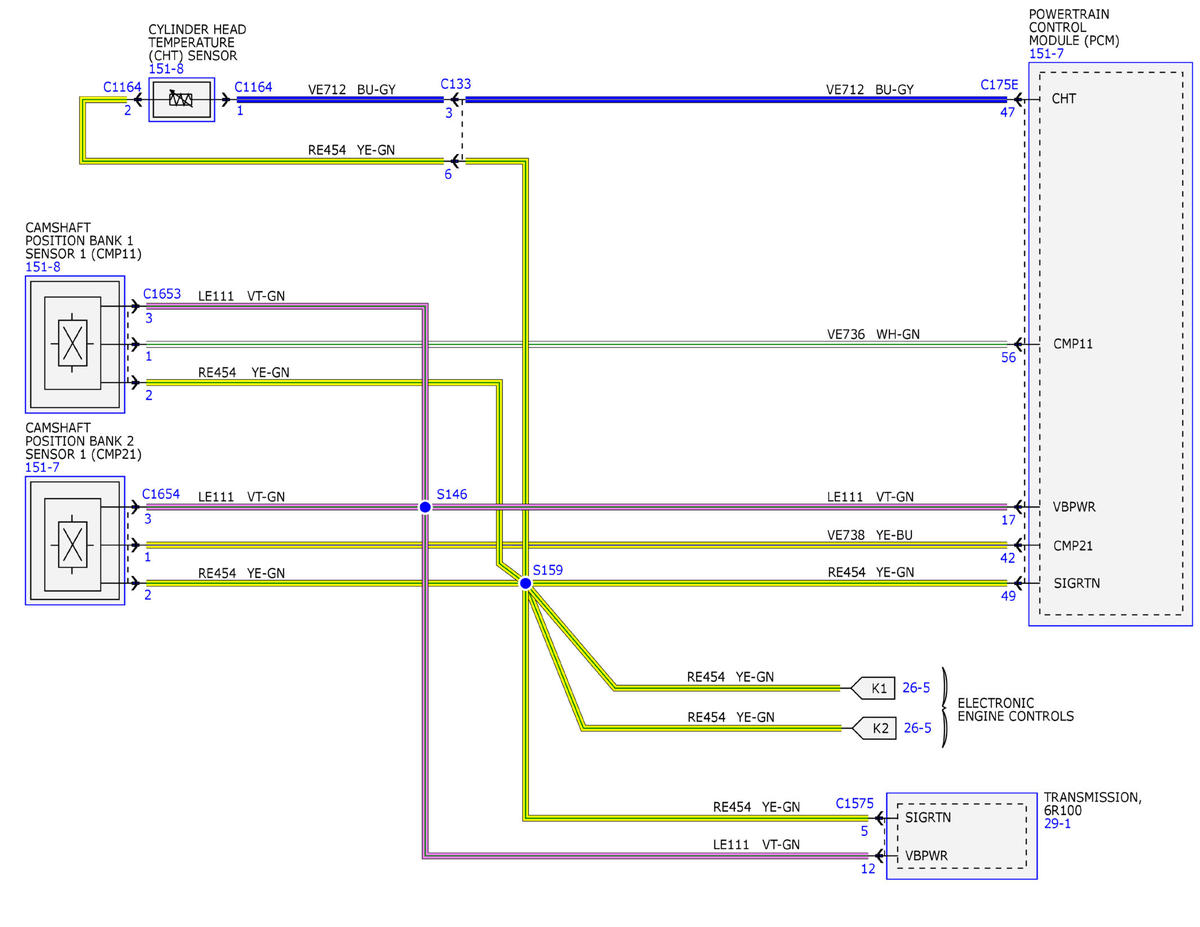

Fig 12: Electronic Engine Controls - 6.2L Wiring Diagram (12 Of 17)

GFDWR57043

Courtesy of FORD MOTOR COMPANY

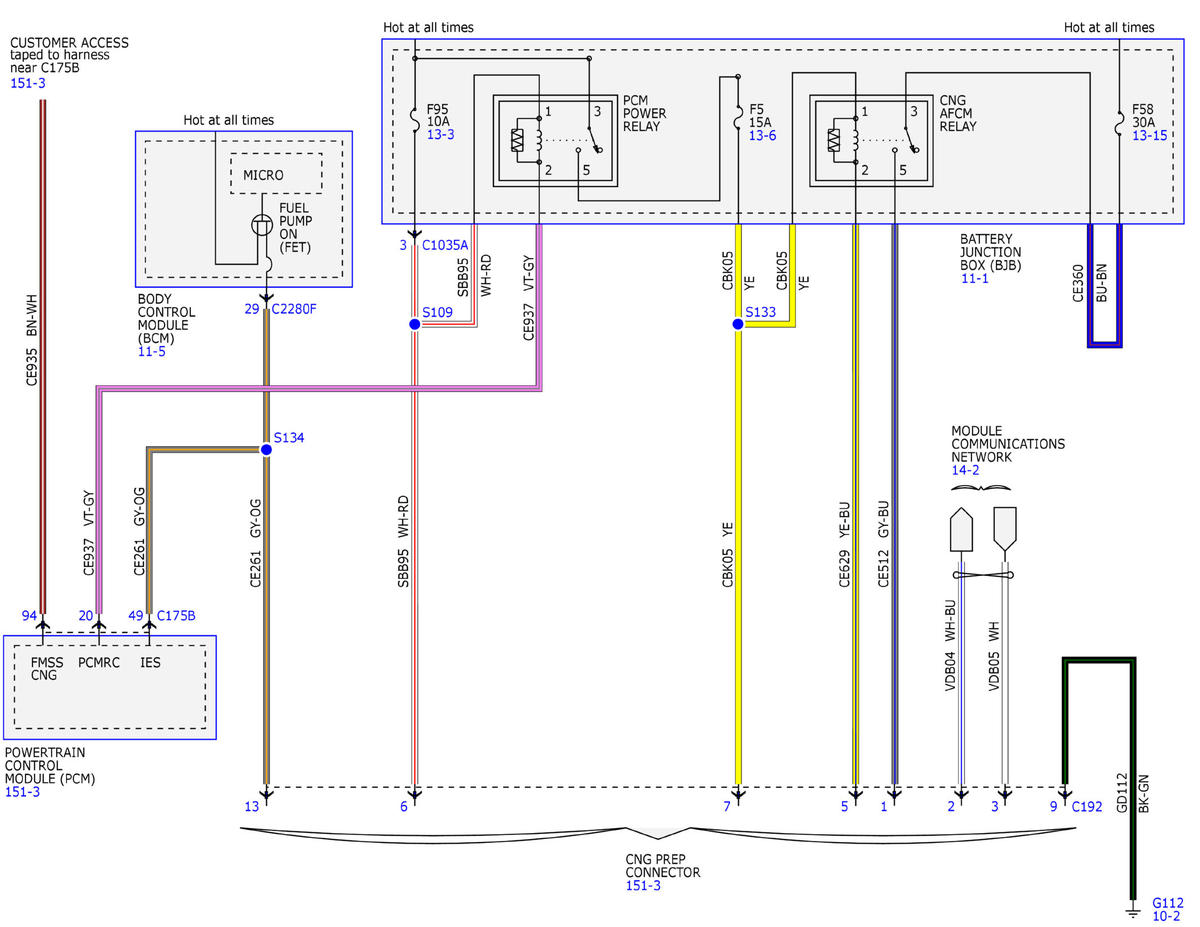

Fig 13: Electronic Engine Controls - 6.2L Wiring Diagram (13 Of 17)

GFDWR57044

Courtesy of FORD MOTOR COMPANY

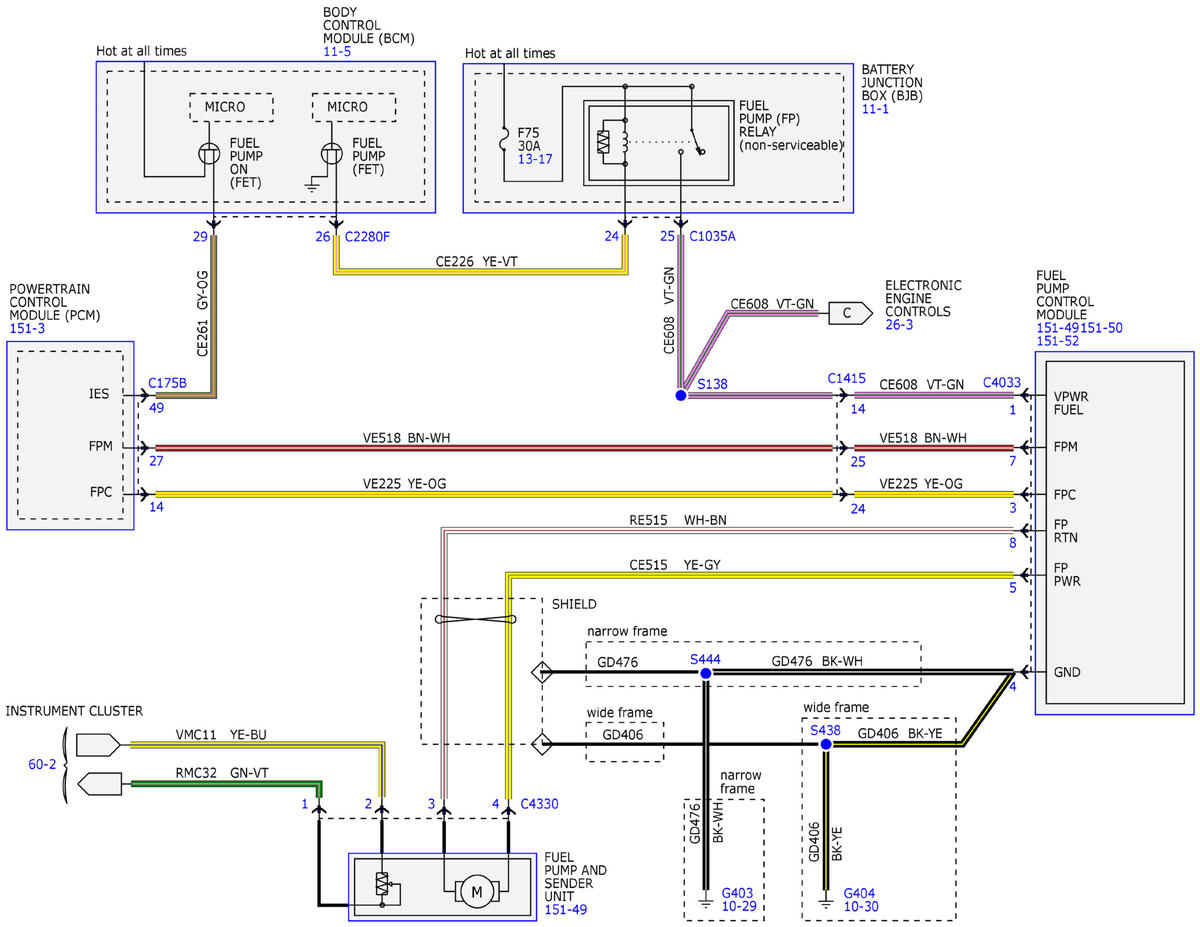

Fig 14: Electronic Engine Controls - 6.2L Wiring Diagram (14 Of 17)

GFDWR57045

Courtesy of FORD MOTOR COMPANY

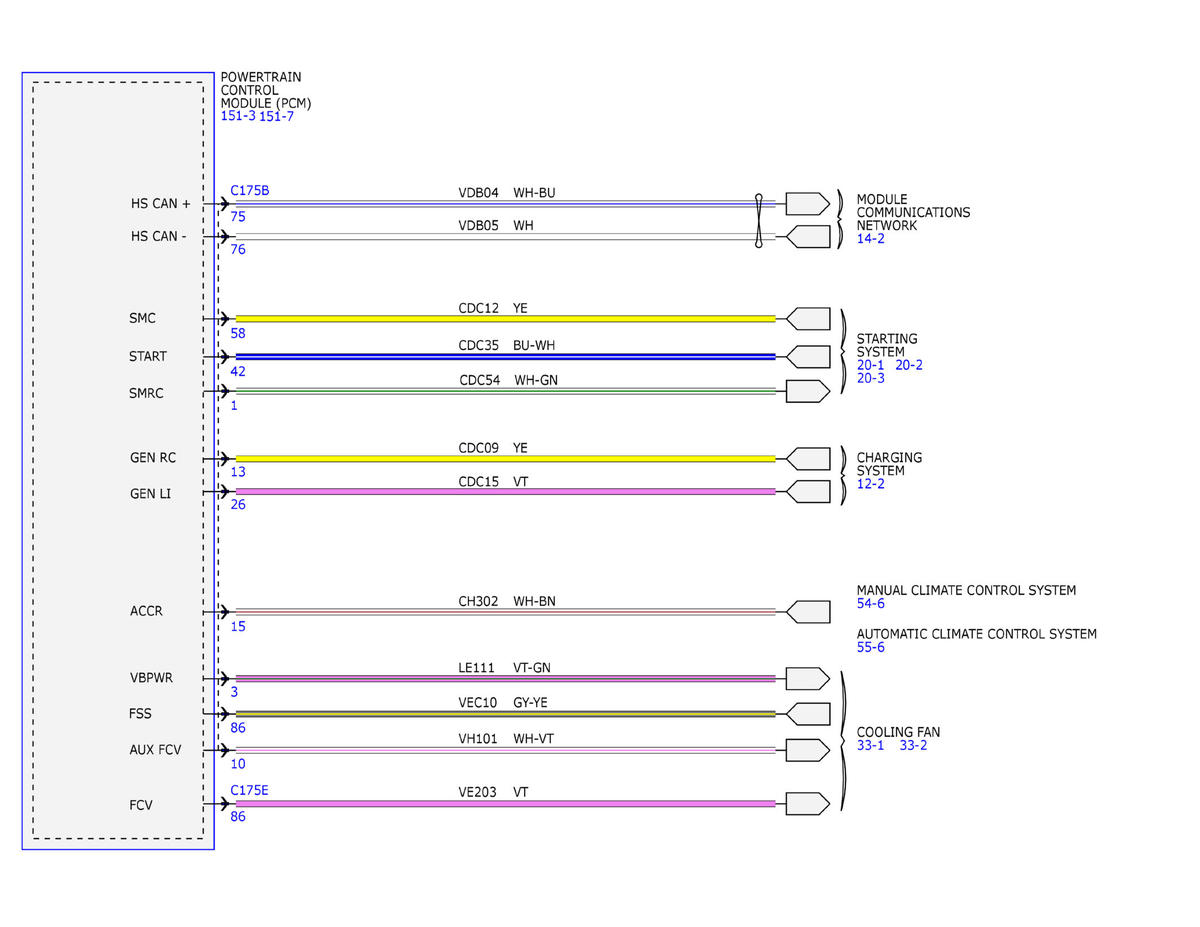

Fig 15: Electronic Engine Controls - 6.2L Wiring Diagram (15 Of 17)

GFDWR57046

Courtesy of FORD MOTOR COMPANY

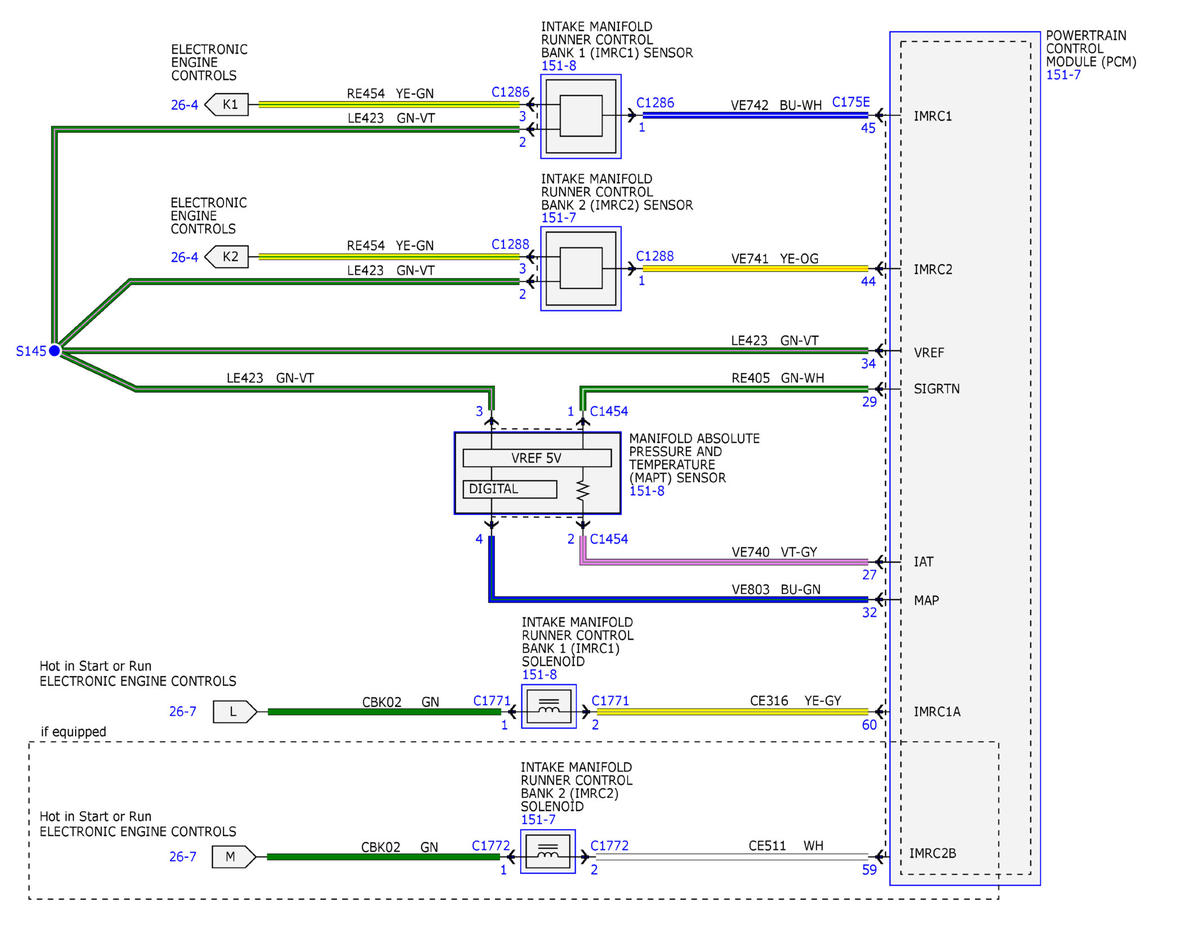

Fig 16: Electronic Engine Controls - 6.2L Wiring Diagram (16 Of 17)

GFDWR57047

Courtesy of FORD MOTOR COMPANY

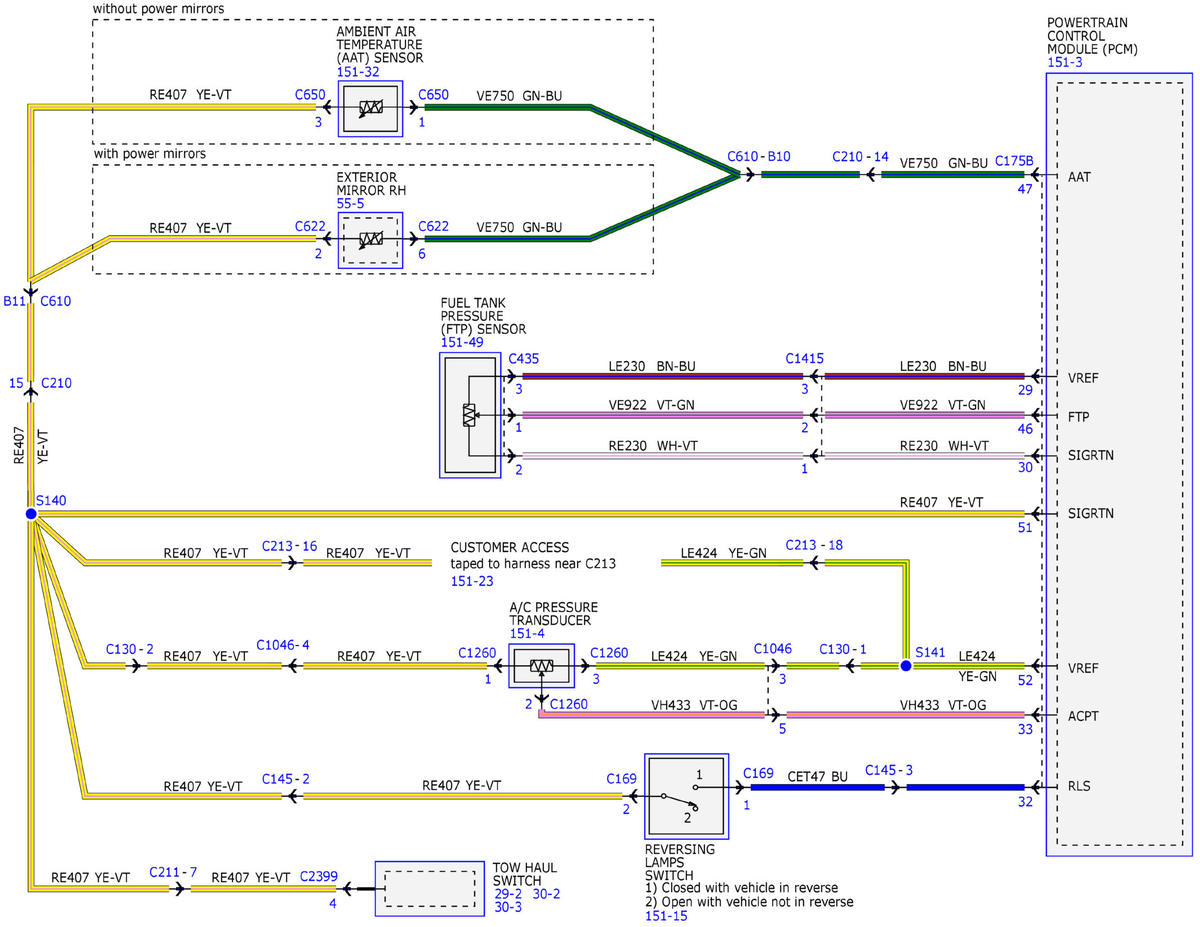

Fig 17: Electronic Engine Controls - 6.2L Wiring Diagram (17 Of 17)

GFDWR57048

Courtesy of FORD MOTOR COMPANY
