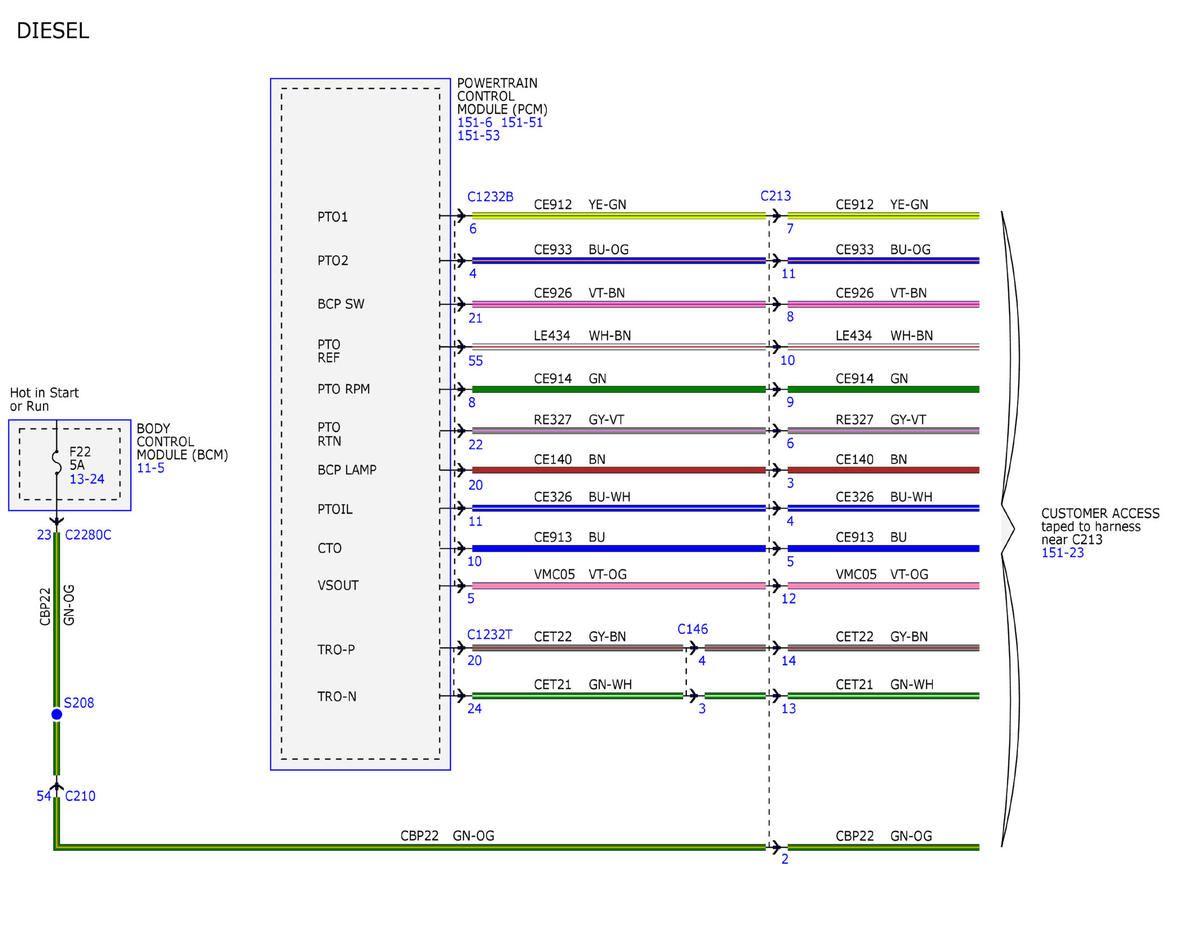

Fig 1: Customer Access Wiring Diagram (1 Of 14)

GFDWR57018

Courtesy of FORD MOTOR COMPANY

Fig 2: Customer Access Wiring Diagram (2 Of 14)

GFDWR57019

Courtesy of FORD MOTOR COMPANY

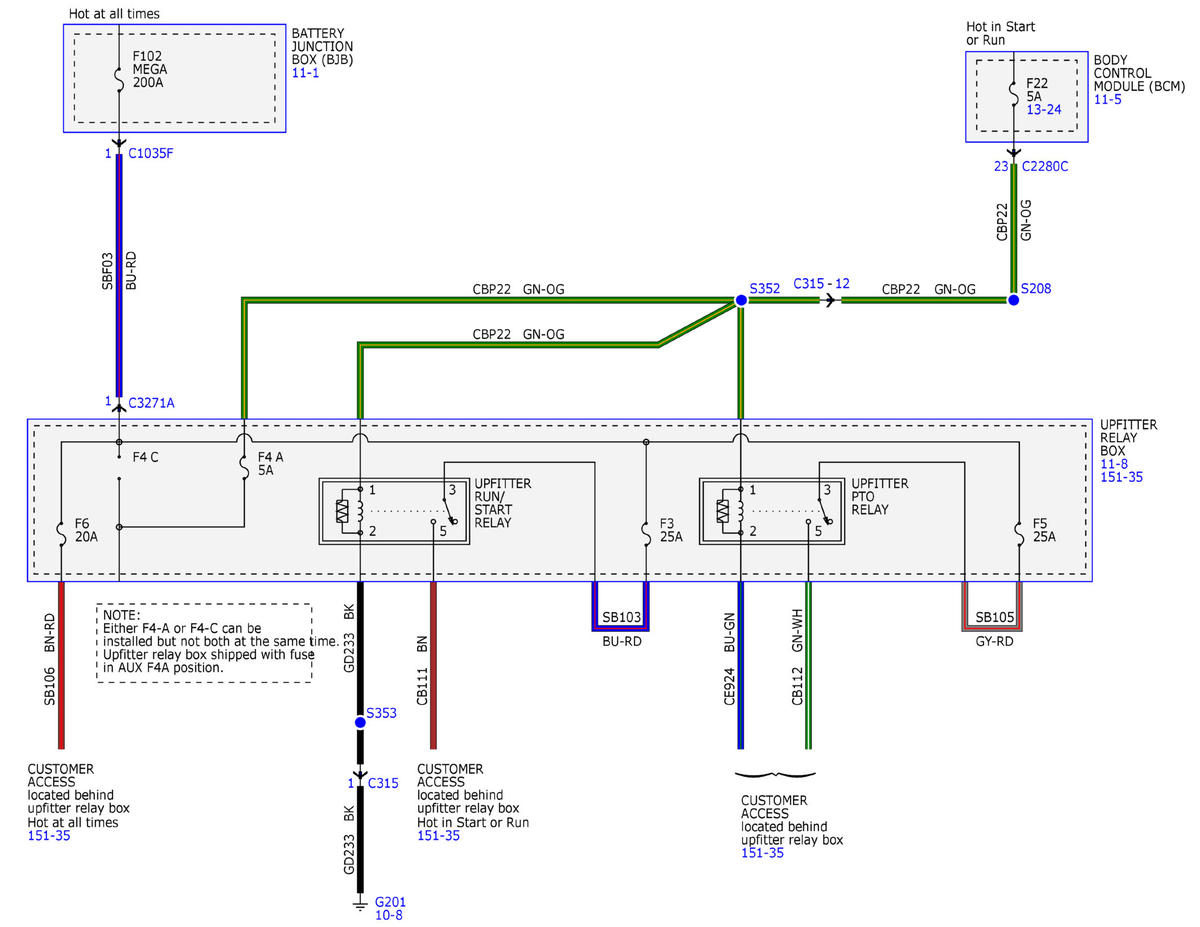

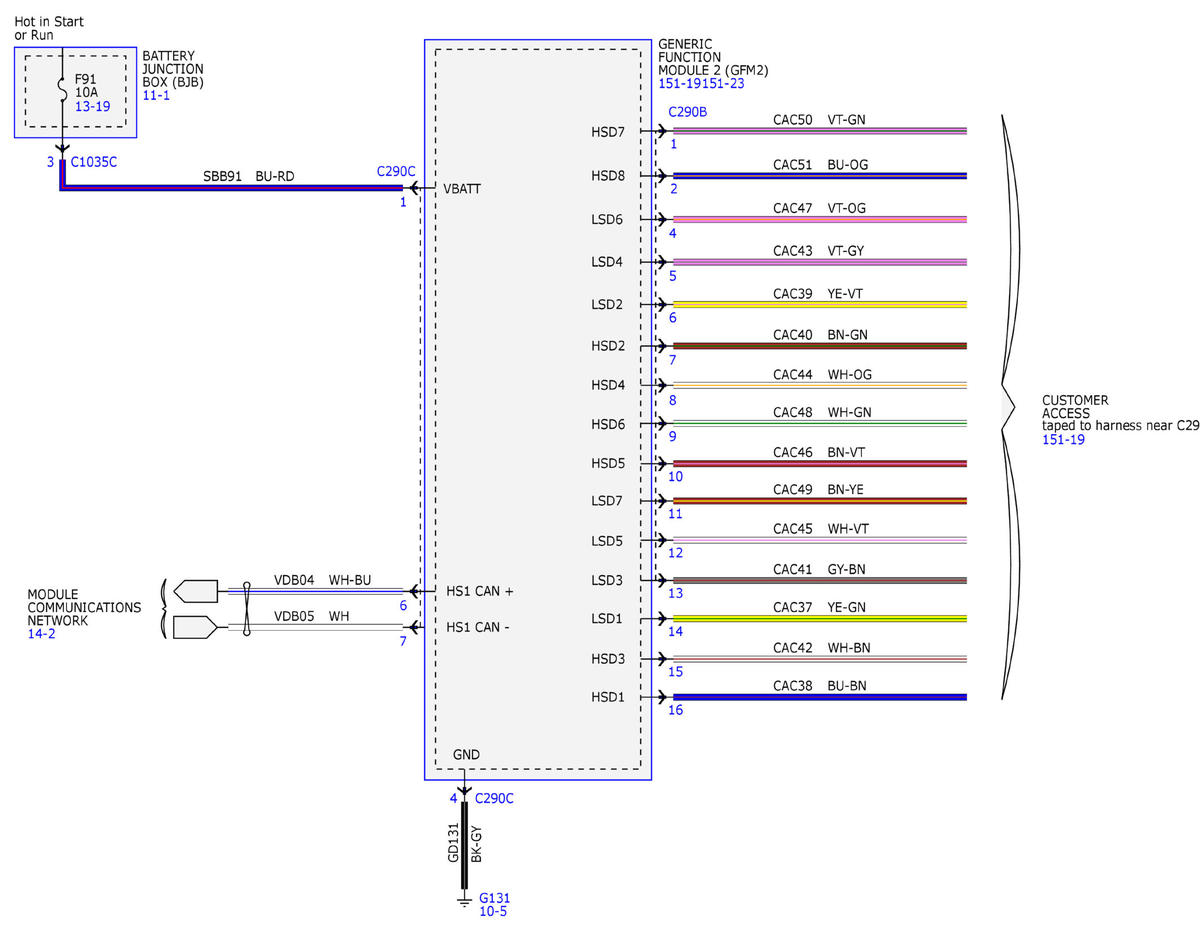

Fig 3: Customer Access Wiring Diagram (3 Of 14)

GFDWR57020

Courtesy of FORD MOTOR COMPANY

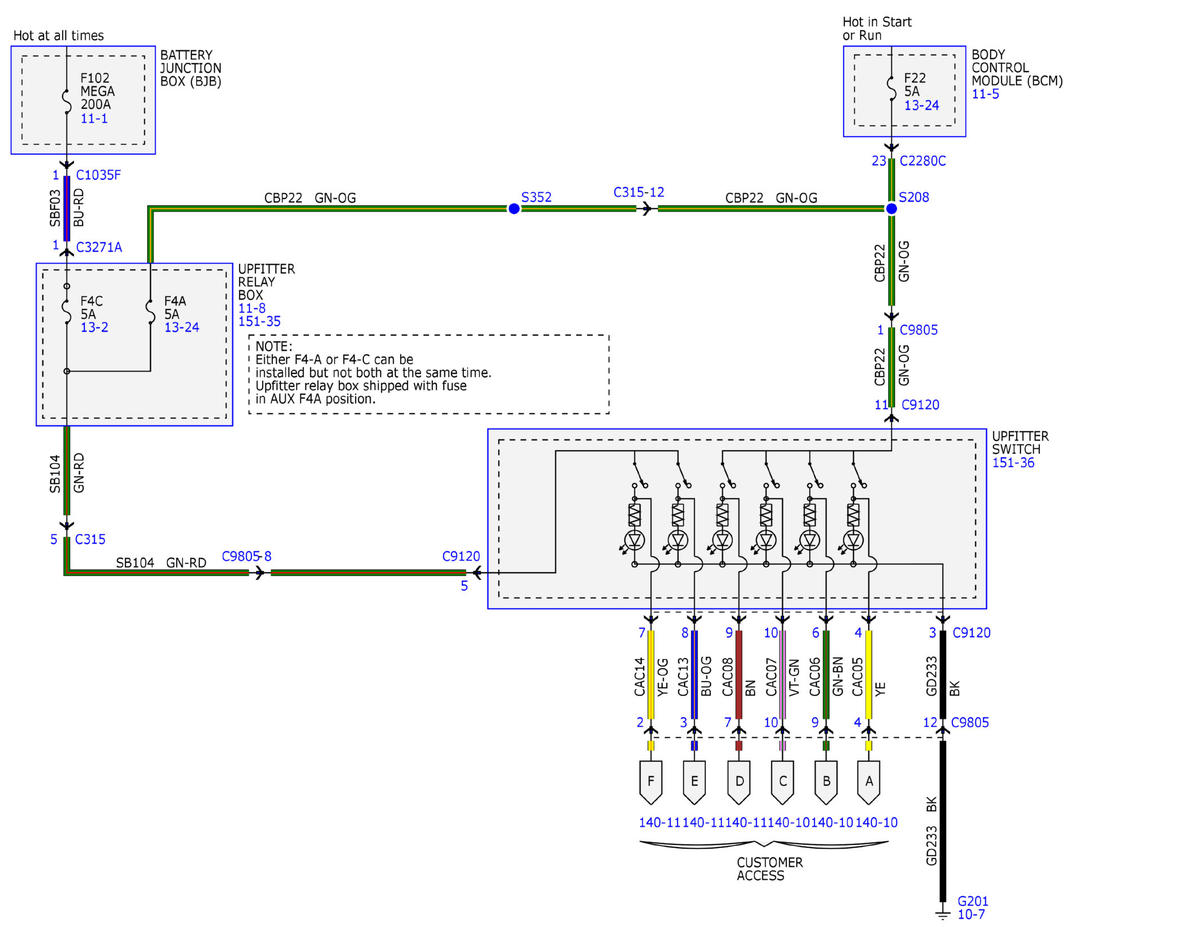

Fig 4: Customer Access Wiring Diagram (4 Of 14)

GFDWR57021

Courtesy of FORD MOTOR COMPANY

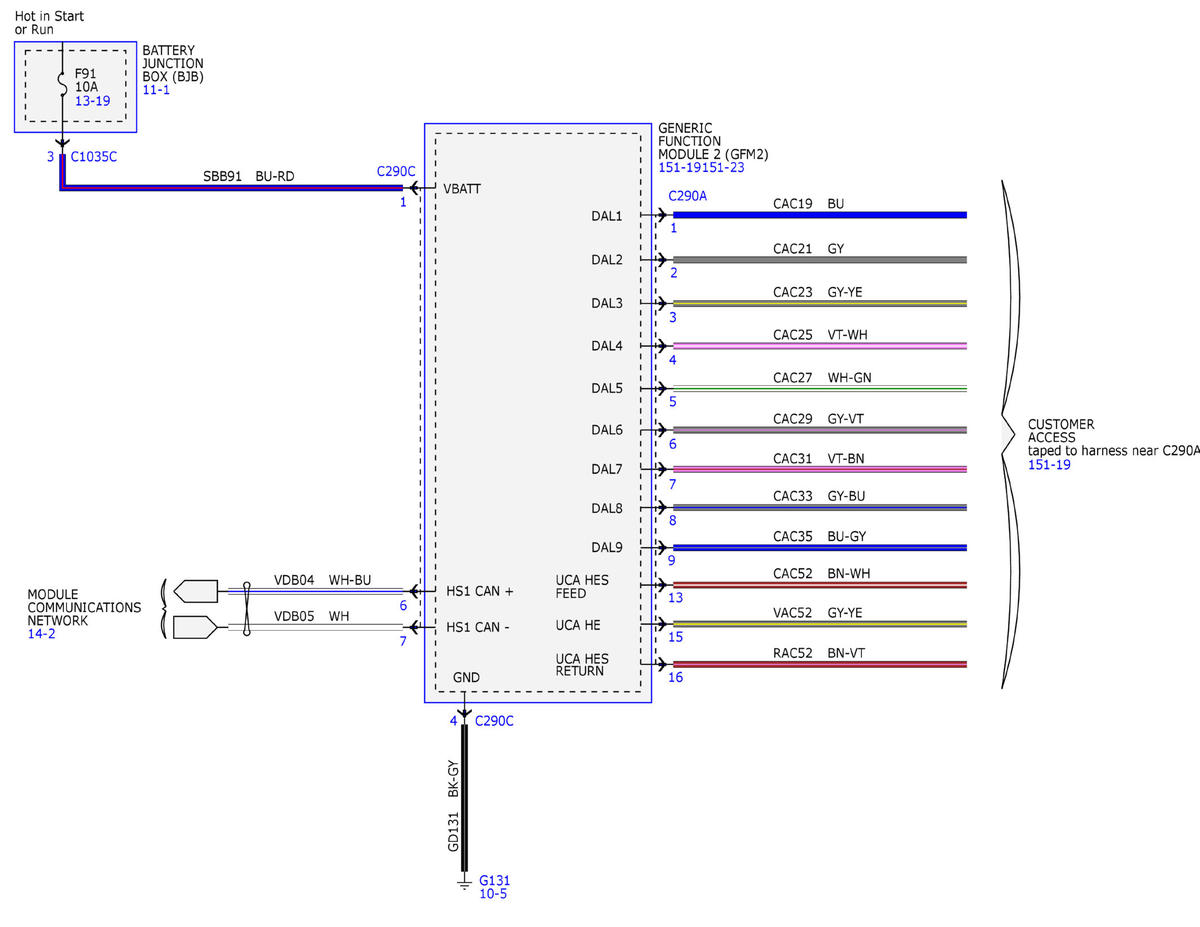

Fig 5: Customer Access Wiring Diagram (5 Of 14)

GFDWR57022

Courtesy of FORD MOTOR COMPANY

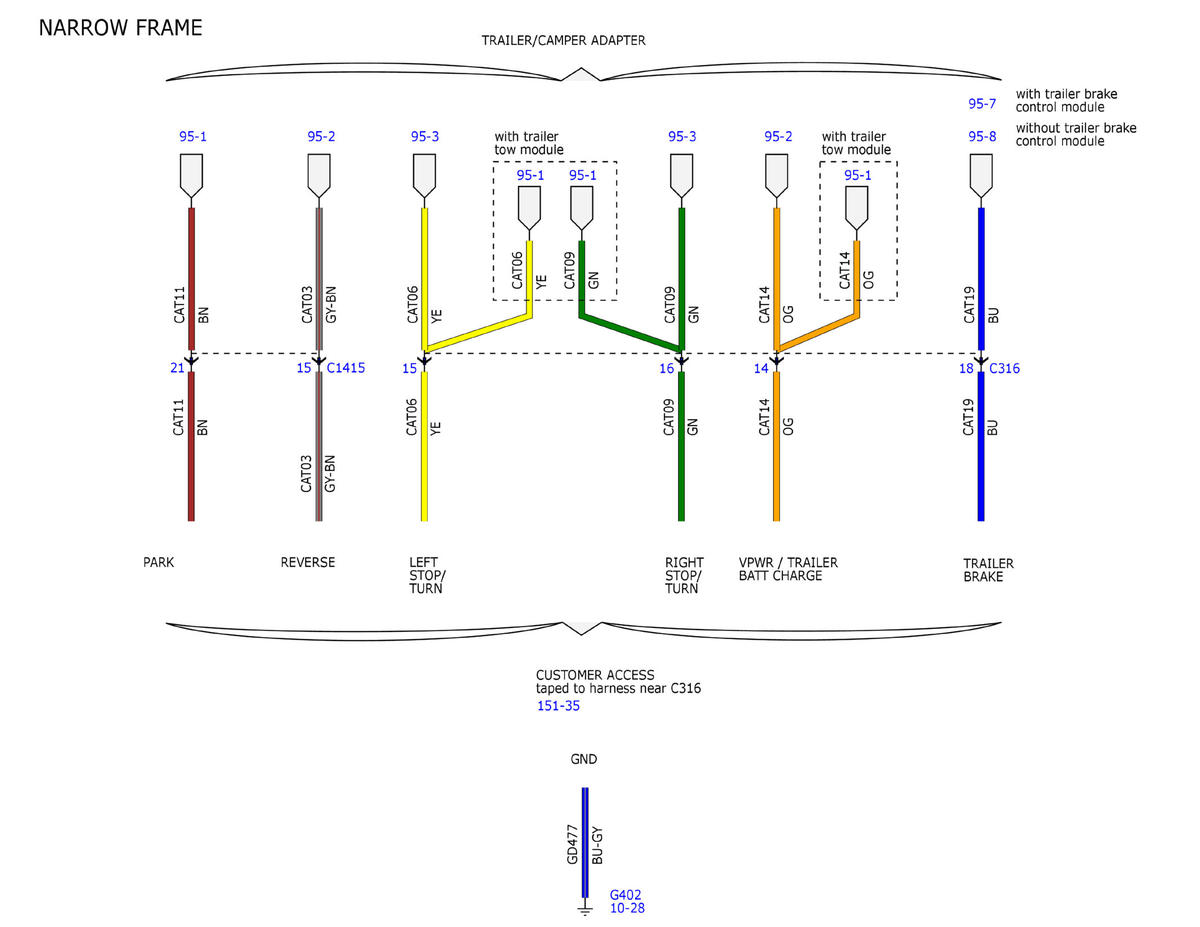

Fig 6: Customer Access Wiring Diagram (6 Of 14)

GFDWR57023

Courtesy of FORD MOTOR COMPANY

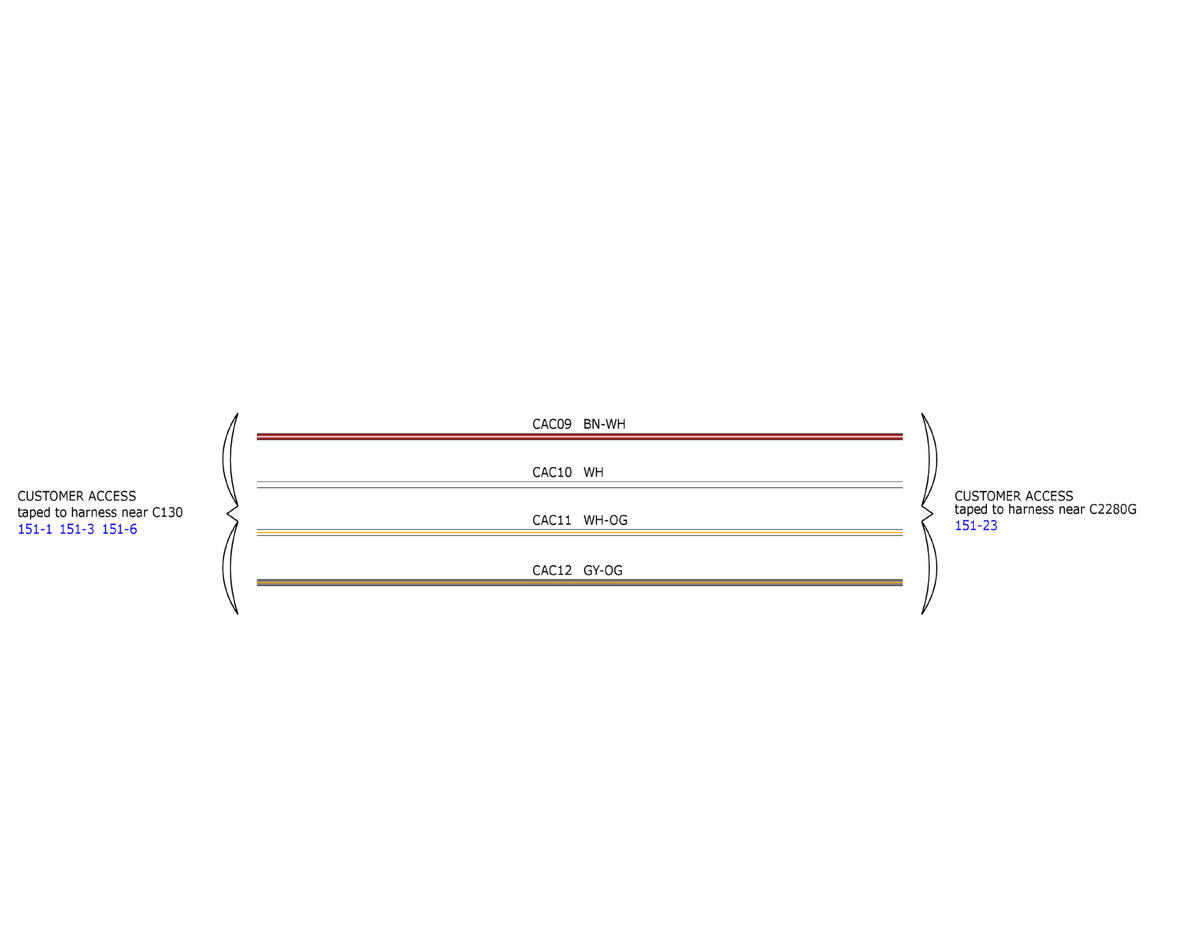

Fig 7: Customer Access Wiring Diagram (7 Of 14)

GFDWR57024

Courtesy of FORD MOTOR COMPANY

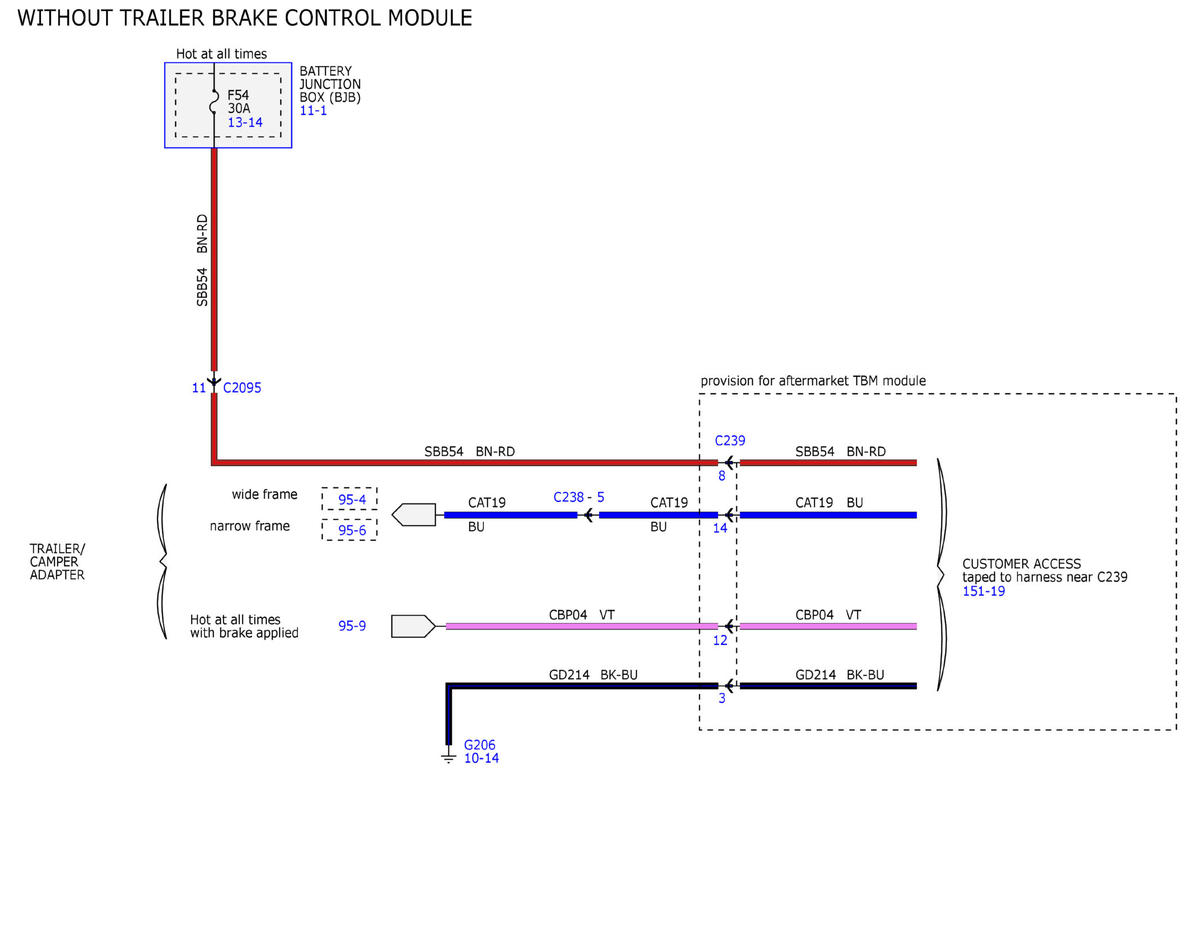

Fig 8: Customer Access Wiring Diagram (8 Of 14)

GFDWR57025

Courtesy of FORD MOTOR COMPANY

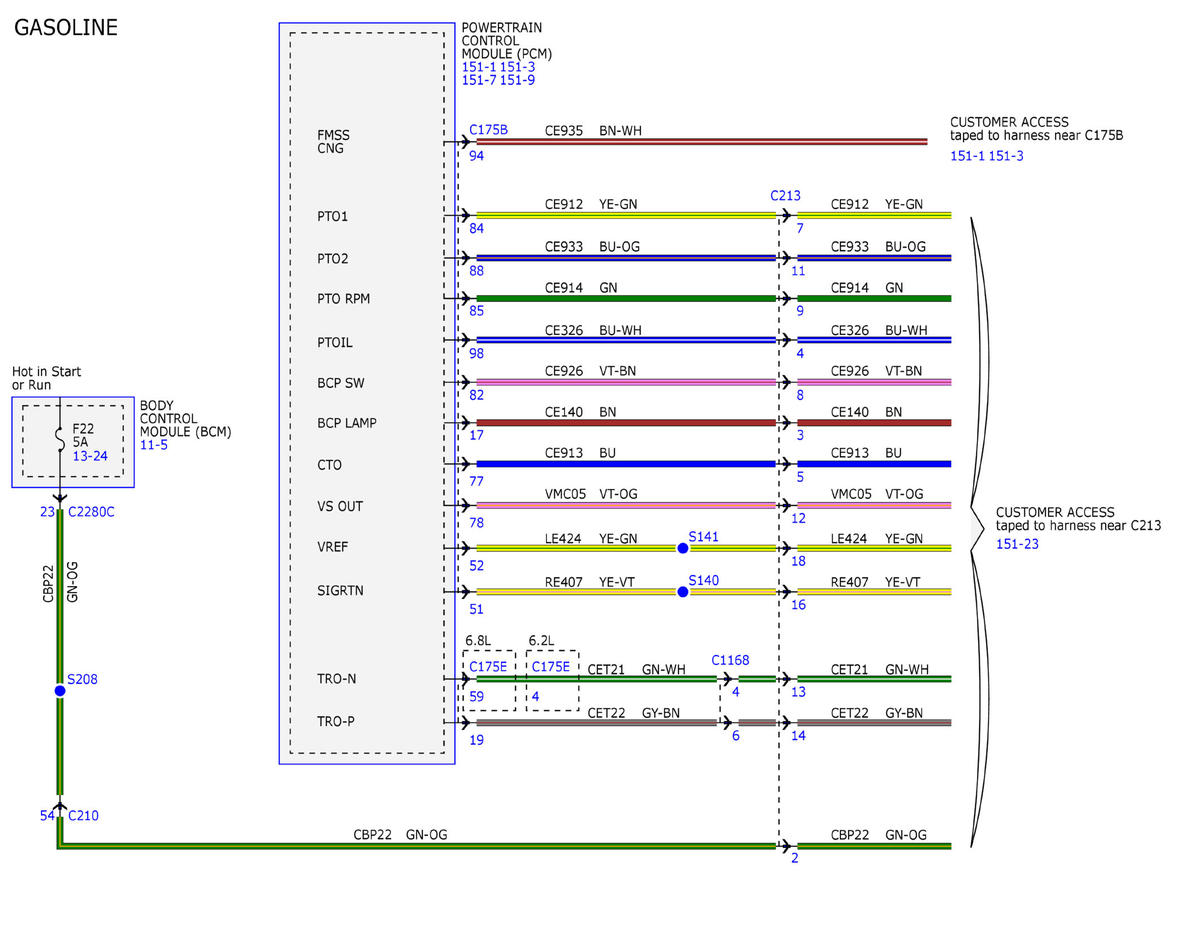

Fig 9: Customer Access Wiring Diagram (9 Of 14)

GFDWR57026

Courtesy of FORD MOTOR COMPANY

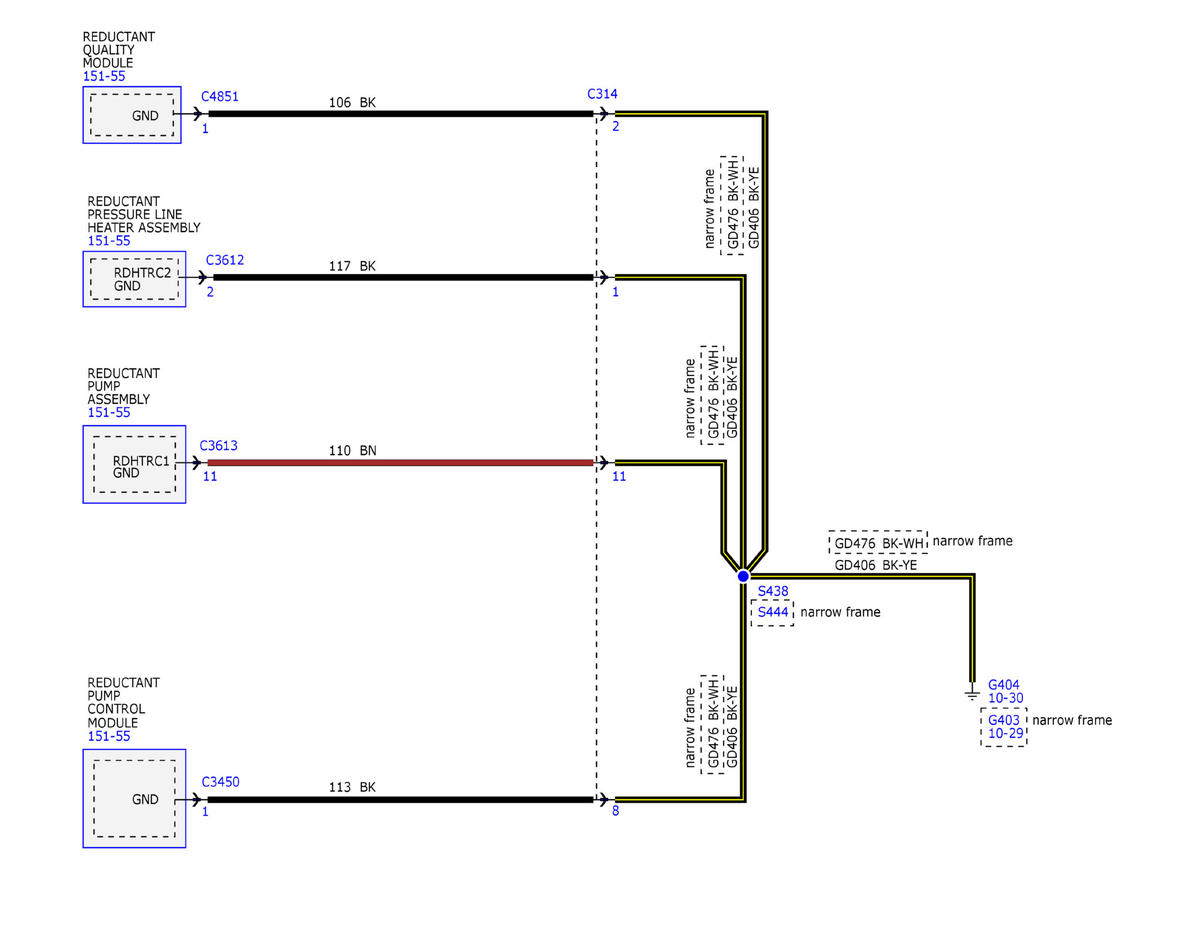

Fig 10: Customer Access Wiring Diagram (10 Of 14)

GFDWR57027

Courtesy of FORD MOTOR COMPANY

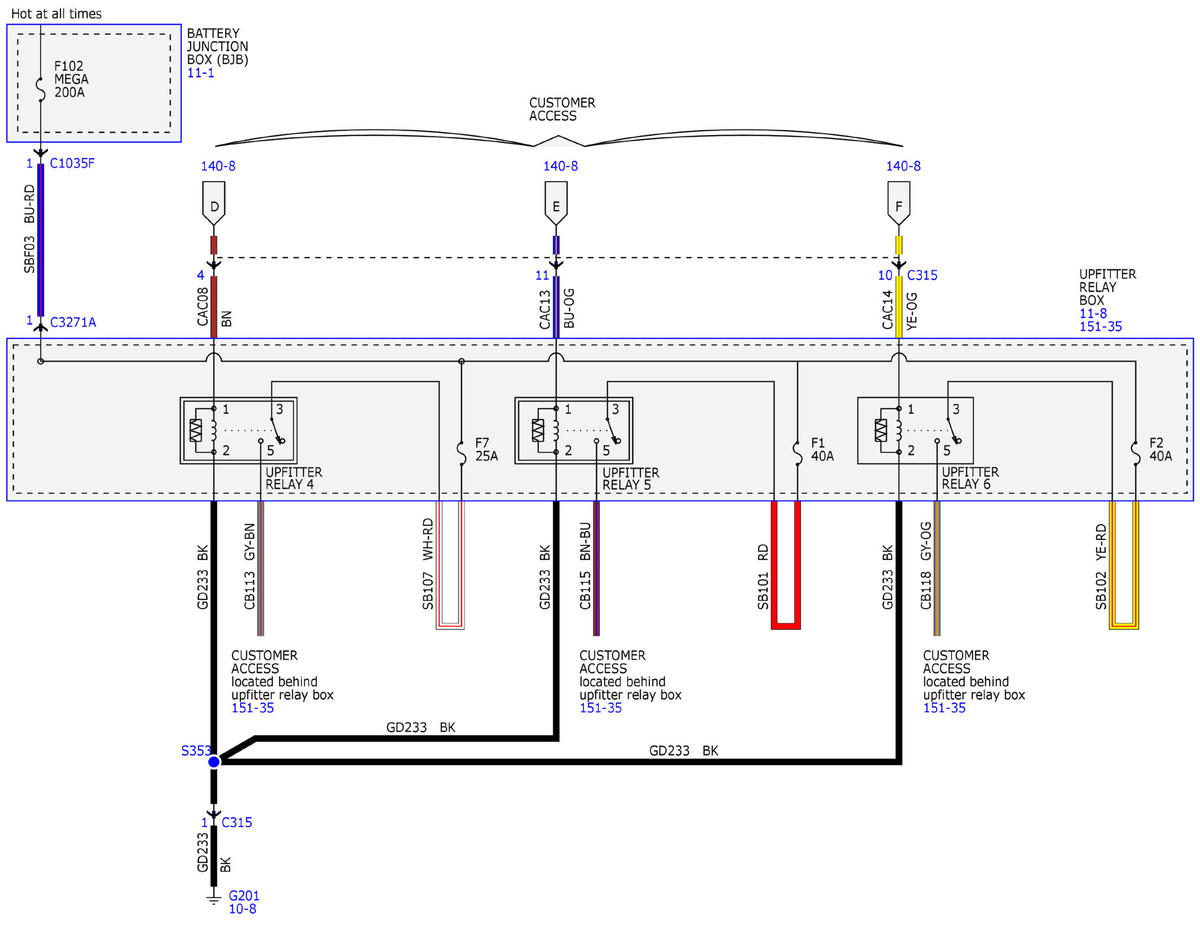

Fig 11: Customer Access Wiring Diagram (11 Of 14)

GFDWR57028

Courtesy of FORD MOTOR COMPANY

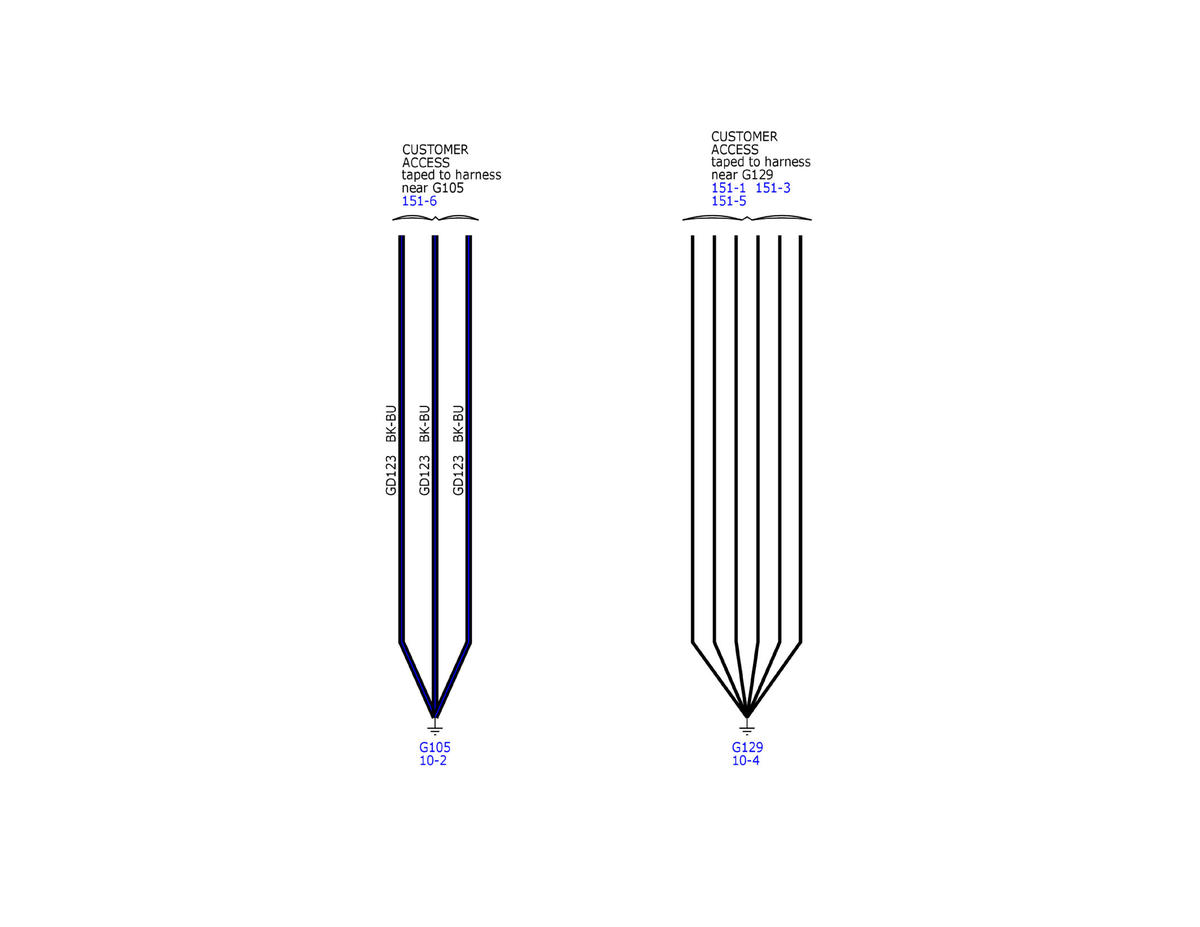

Fig 12: Customer Access Wiring Diagram (12 Of 14)

GFDWR57029

Courtesy of FORD MOTOR COMPANY

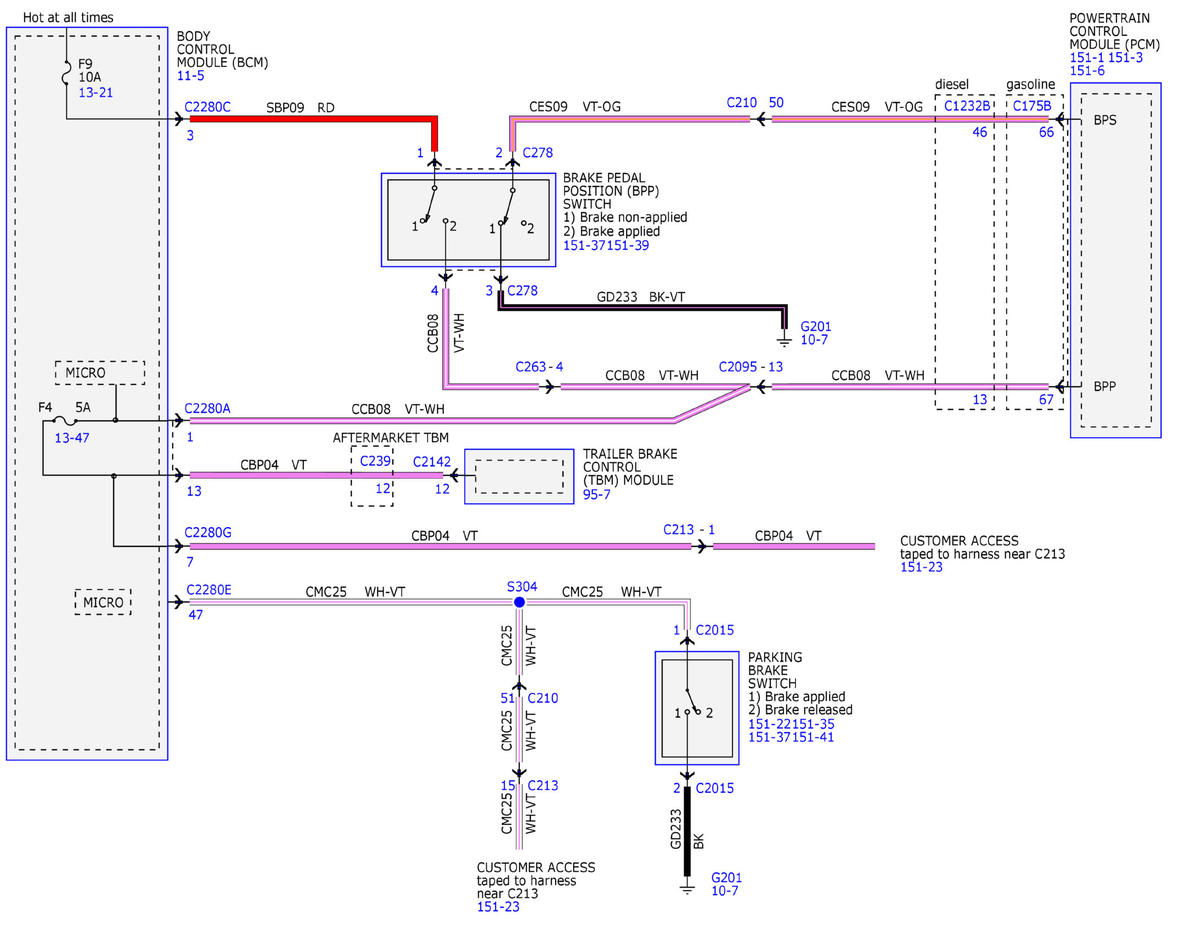

Fig 13: Customer Access Wiring Diagram (13 Of 14)

GFDWR57030

Courtesy of FORD MOTOR COMPANY

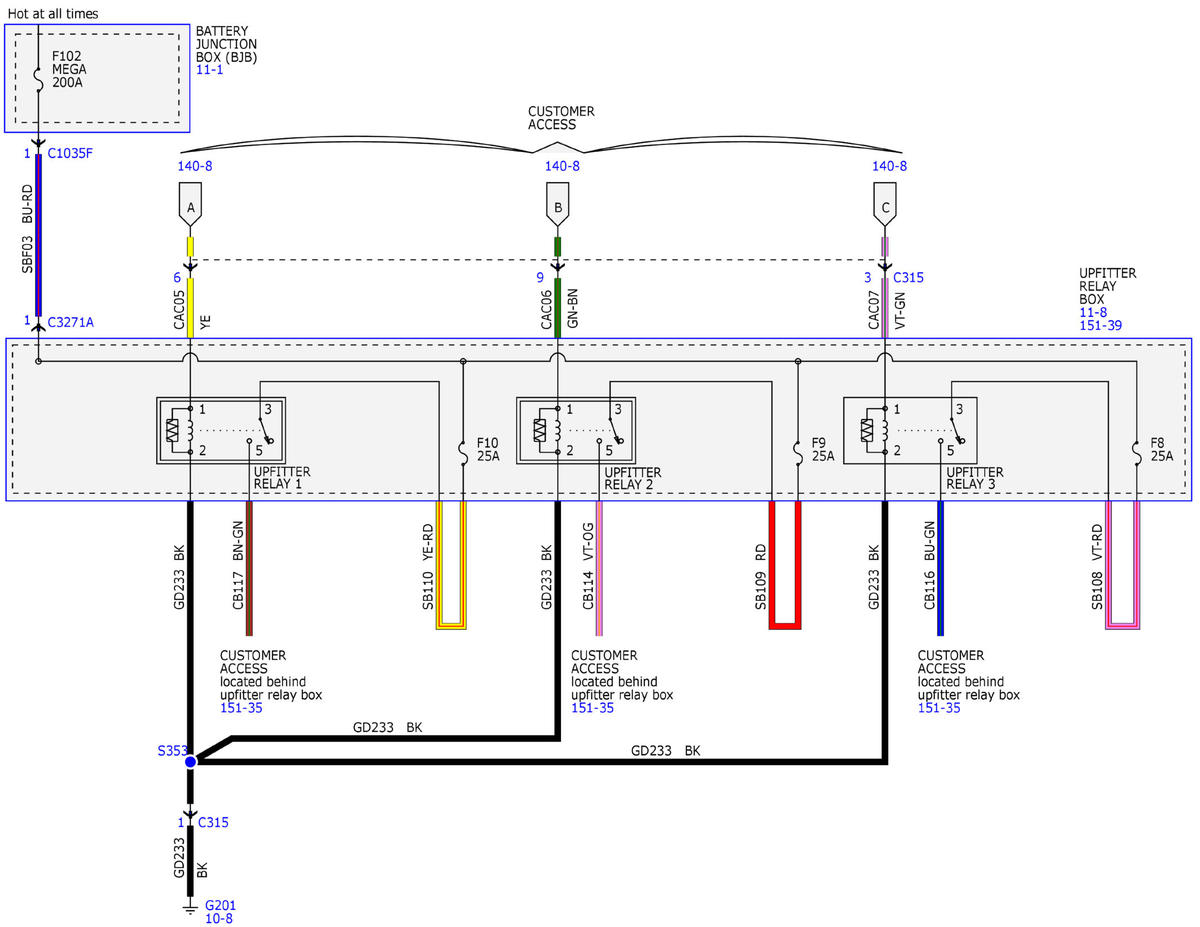

Fig 14: Customer Access Wiring Diagram (14 Of 14)

GFDWR57031

Courtesy of FORD MOTOR COMPANY
