Climate Controlled Seats

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

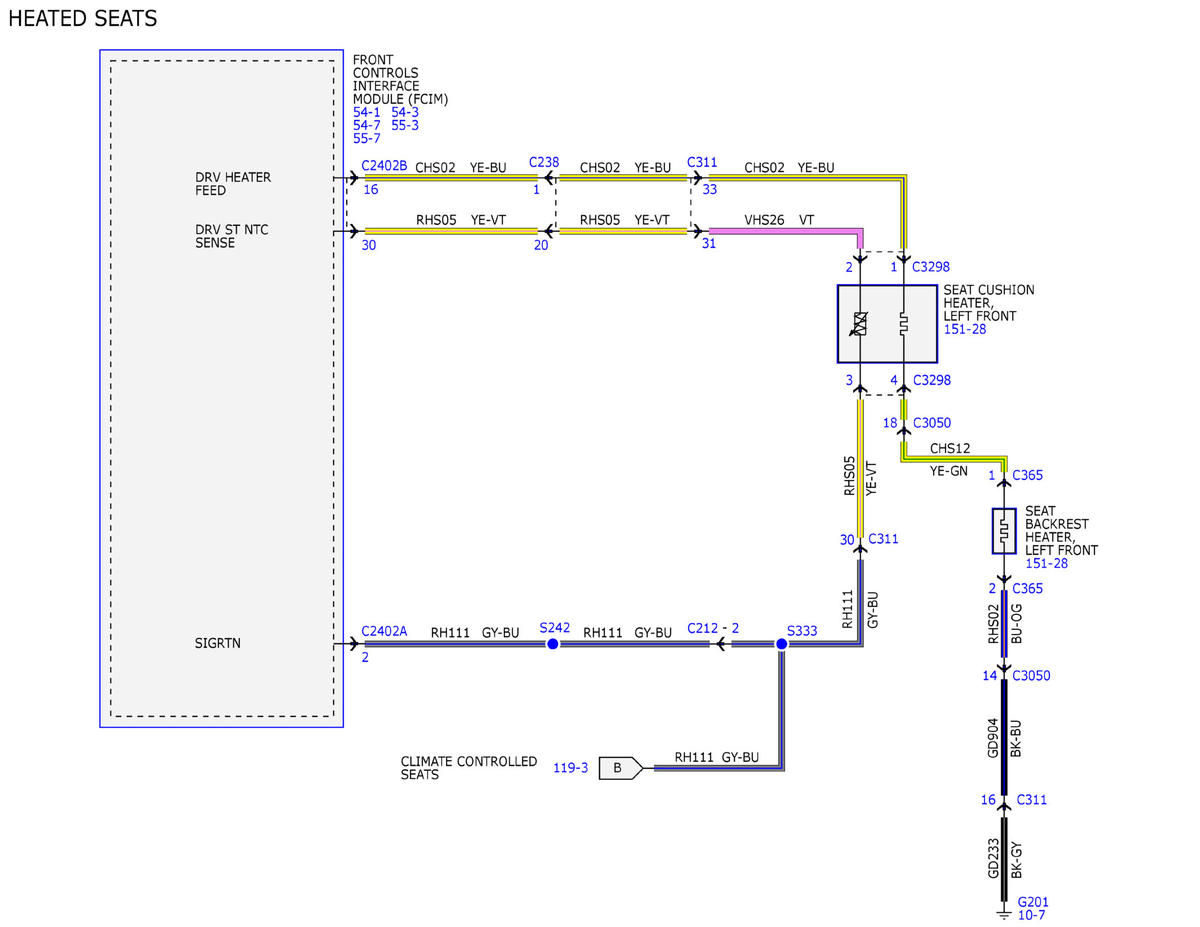

Fig 1: Climate Controlled Seats Wiring Diagram (1 Of 9)

GFDWR56994

Courtesy of FORD MOTOR COMPANY

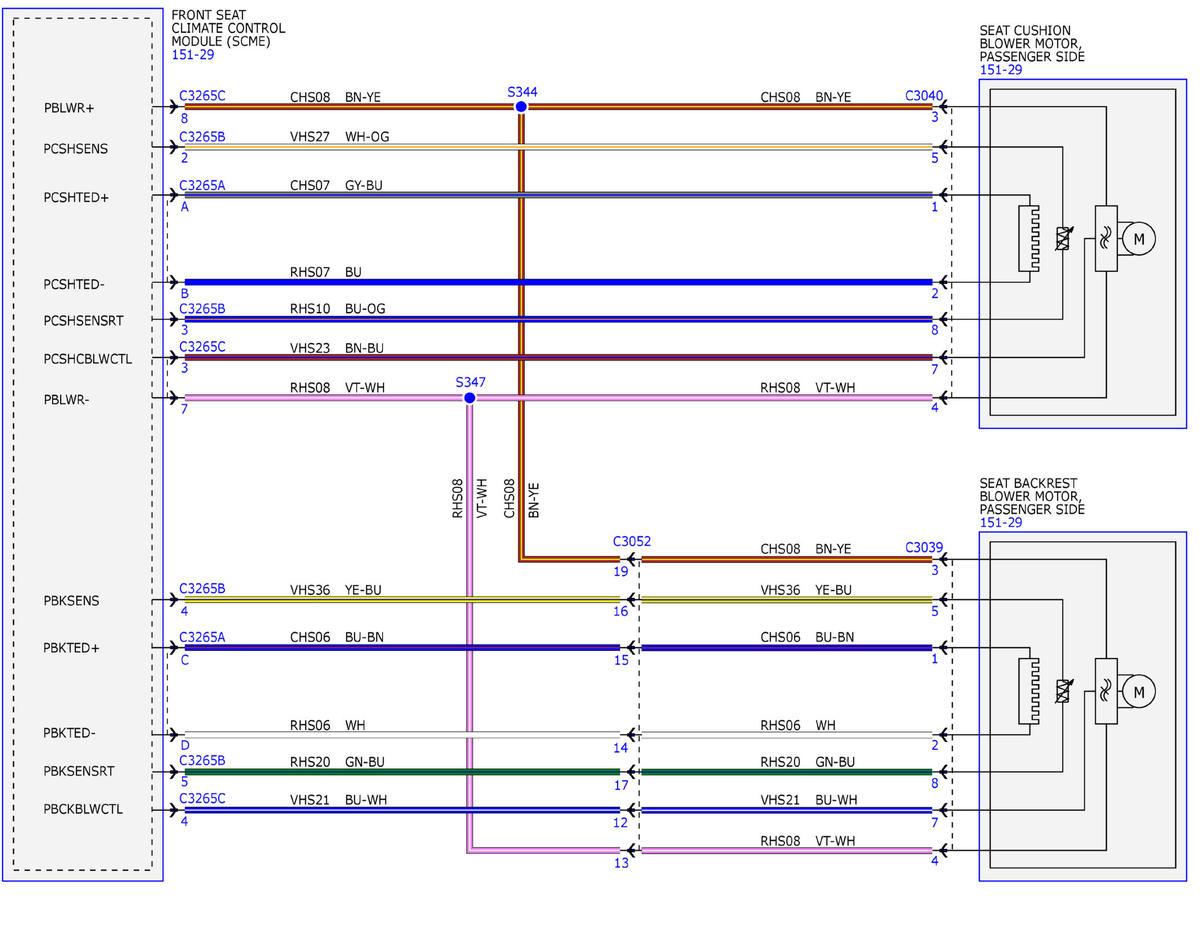

Fig 2: Climate Controlled Seats Wiring Diagram (2 Of 9)

GFDWR56995

Courtesy of FORD MOTOR COMPANY

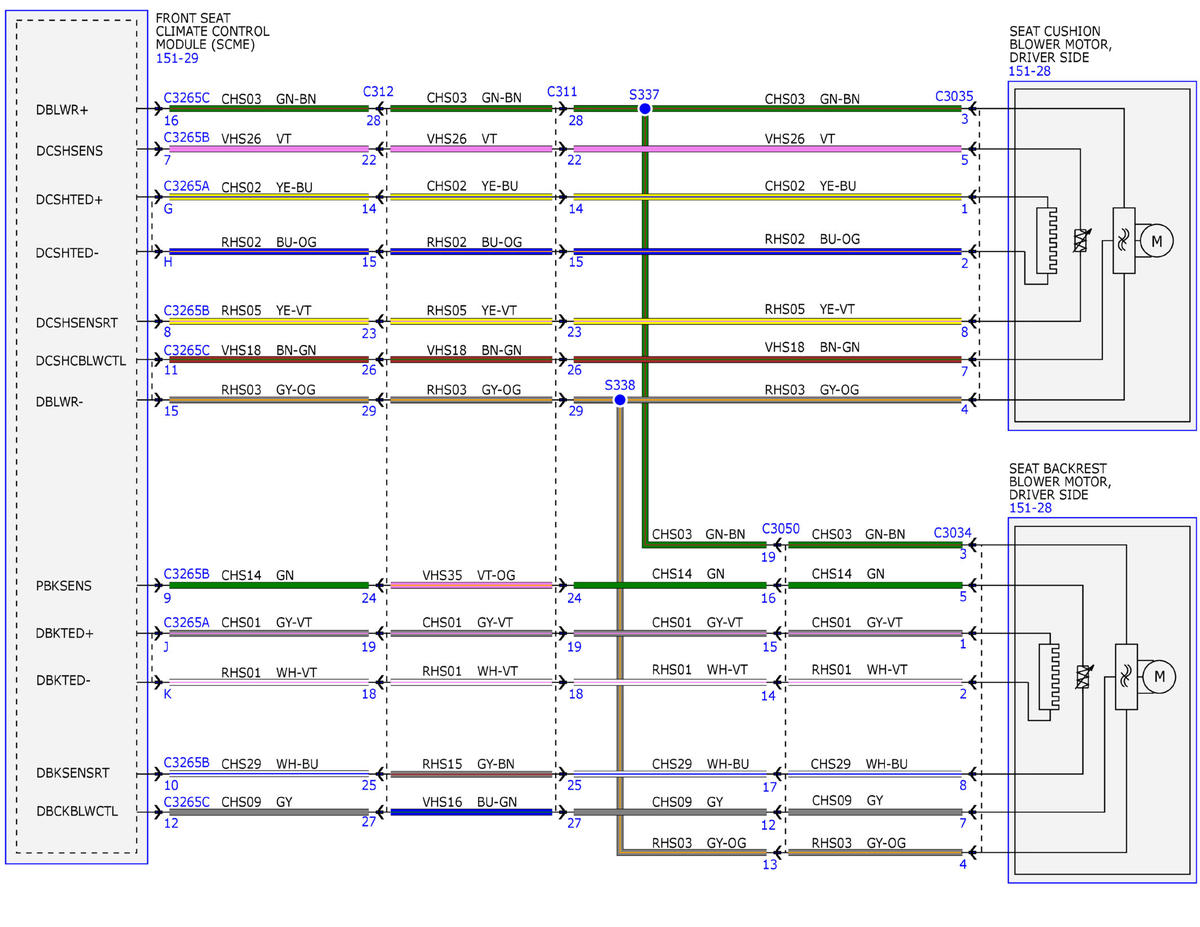

Fig 3: Climate Controlled Seats Wiring Diagram (3 Of 9)

GFDWR56996

Courtesy of FORD MOTOR COMPANY

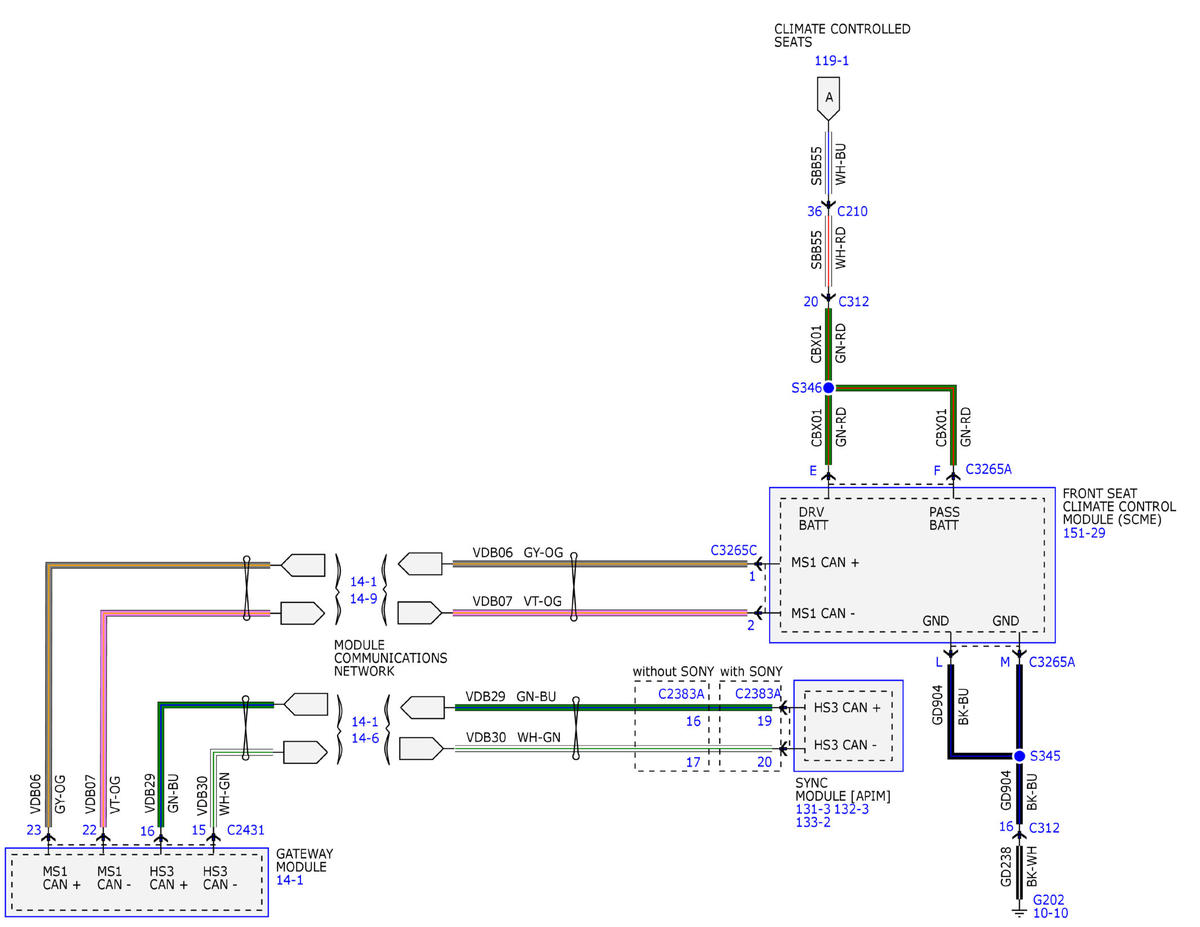

Fig 4: Climate Controlled Seats Wiring Diagram (4 Of 9)

GFDWR56997

Courtesy of FORD MOTOR COMPANY

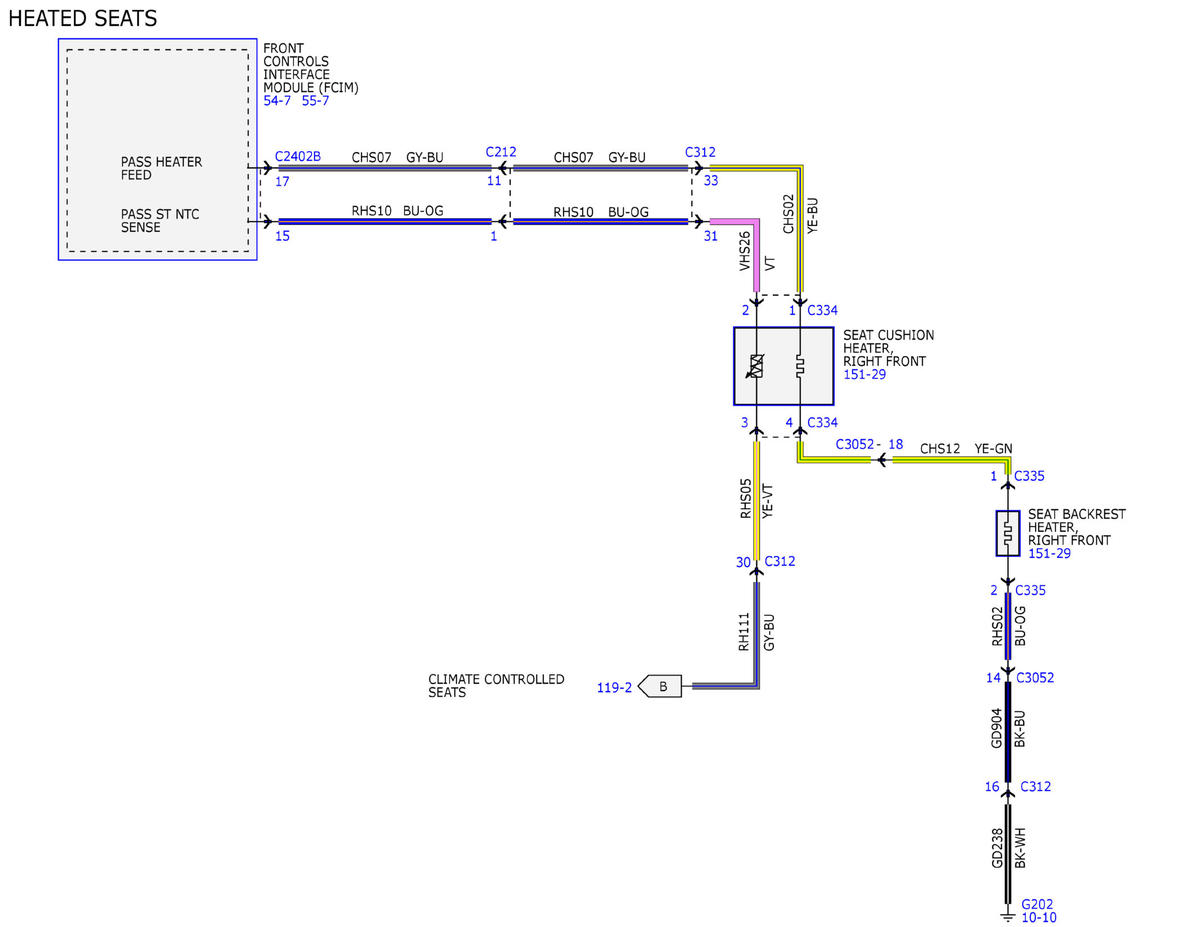

Fig 5: Climate Controlled Seats Wiring Diagram (5 Of 9)

GFDWR56998

Courtesy of FORD MOTOR COMPANY

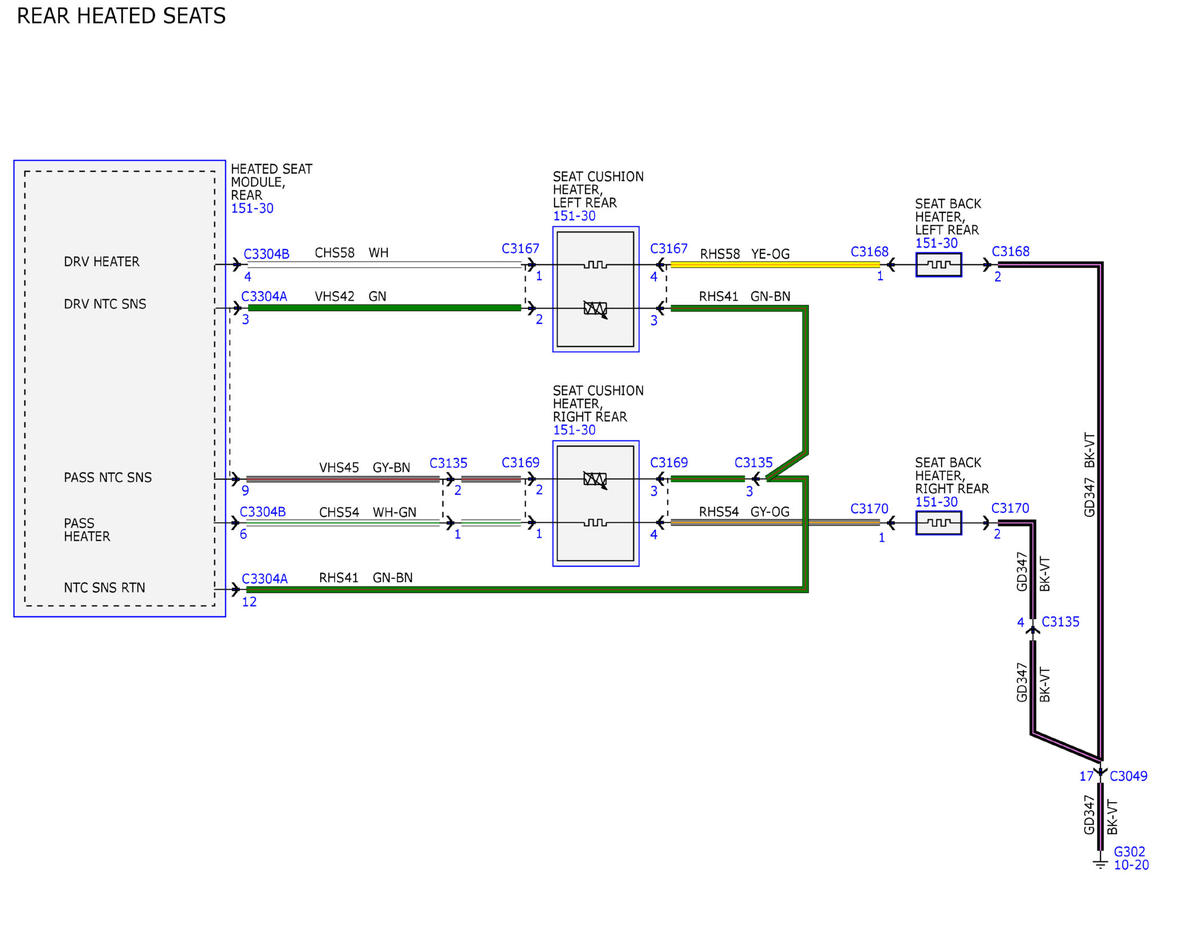

Fig 6: Climate Controlled Seats Wiring Diagram (6 Of 9)

GFDWR56999

Courtesy of FORD MOTOR COMPANY

Fig 7: Climate Controlled Seats Wiring Diagram (7 Of 9)

GFDWR57000

Courtesy of FORD MOTOR COMPANY

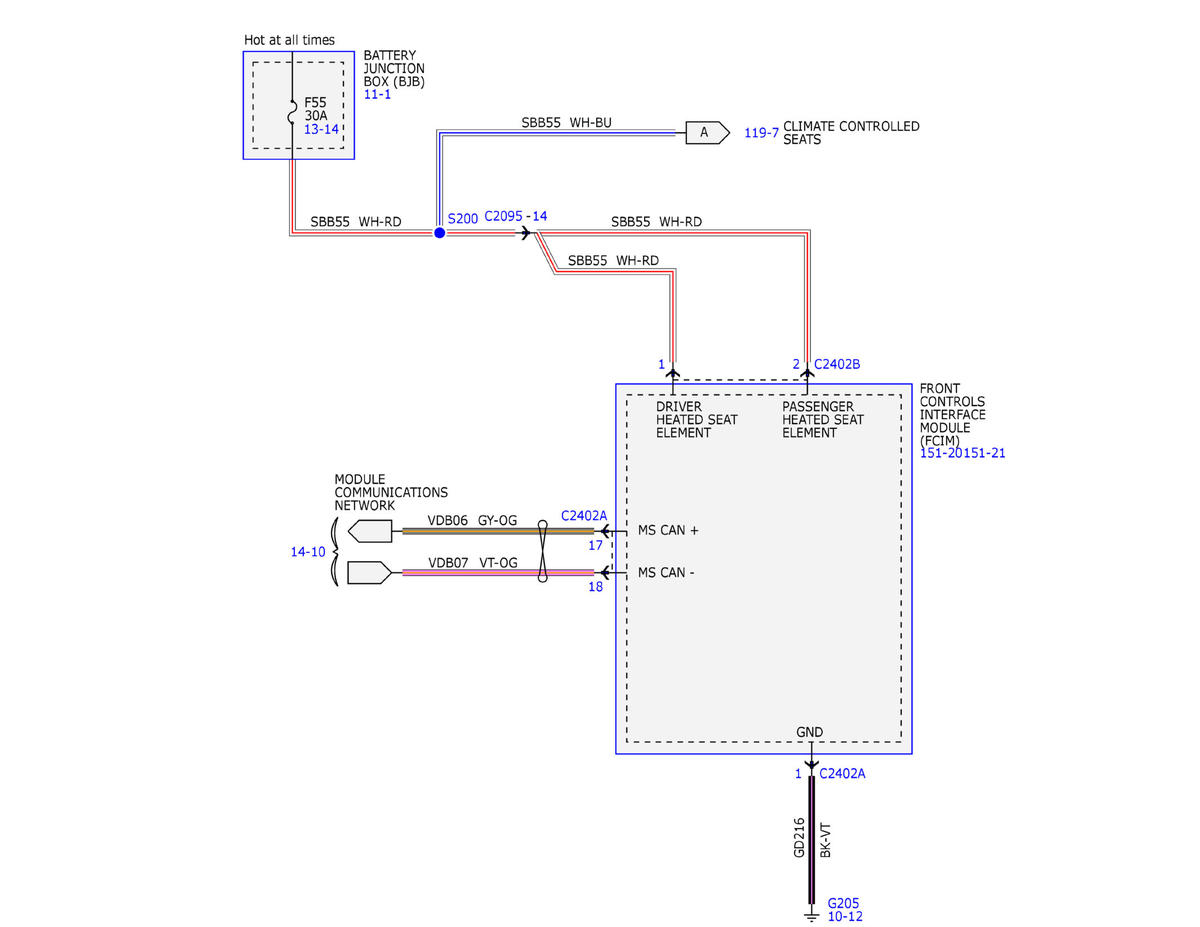

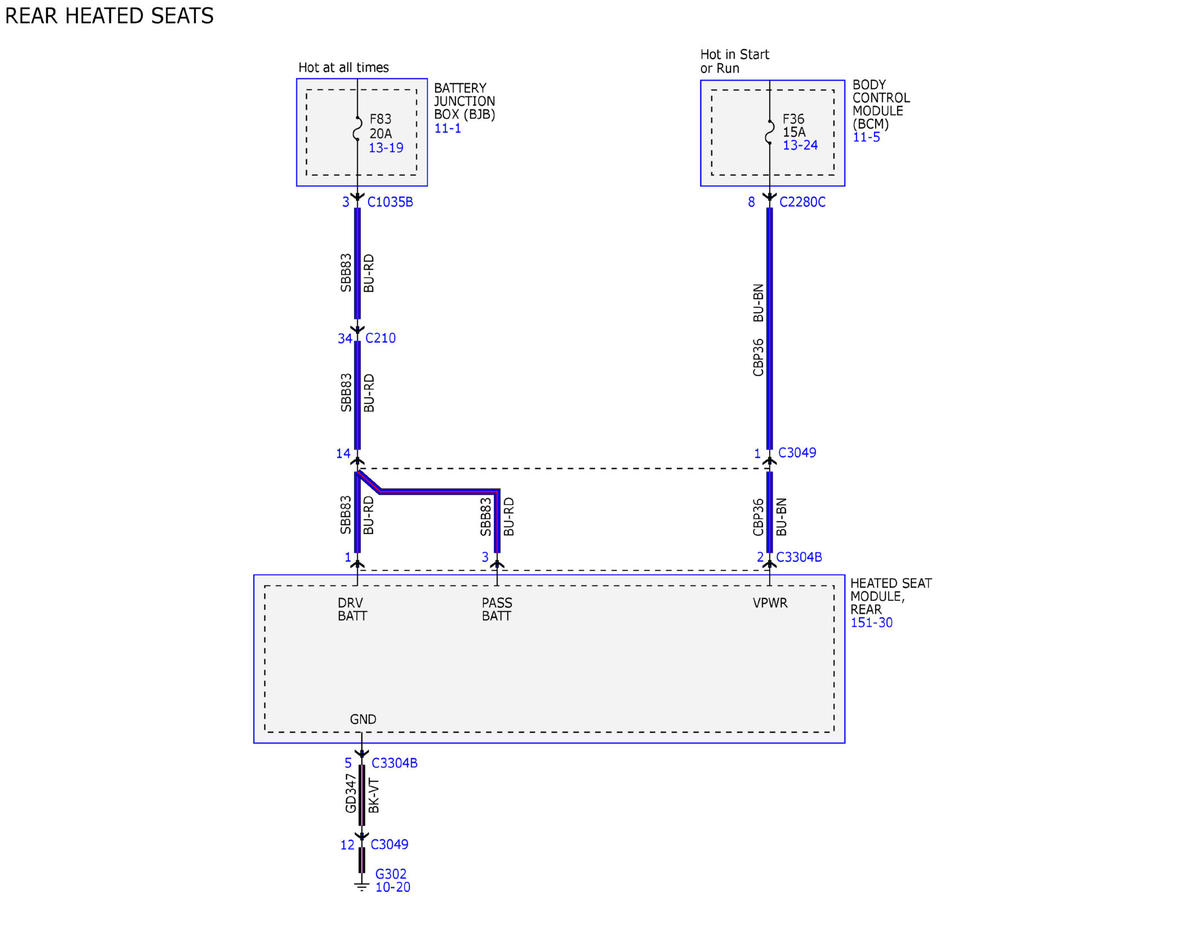

Fig 8: Climate Controlled Seats Wiring Diagram (8 Of 9)

GFDWR57001

Courtesy of FORD MOTOR COMPANY

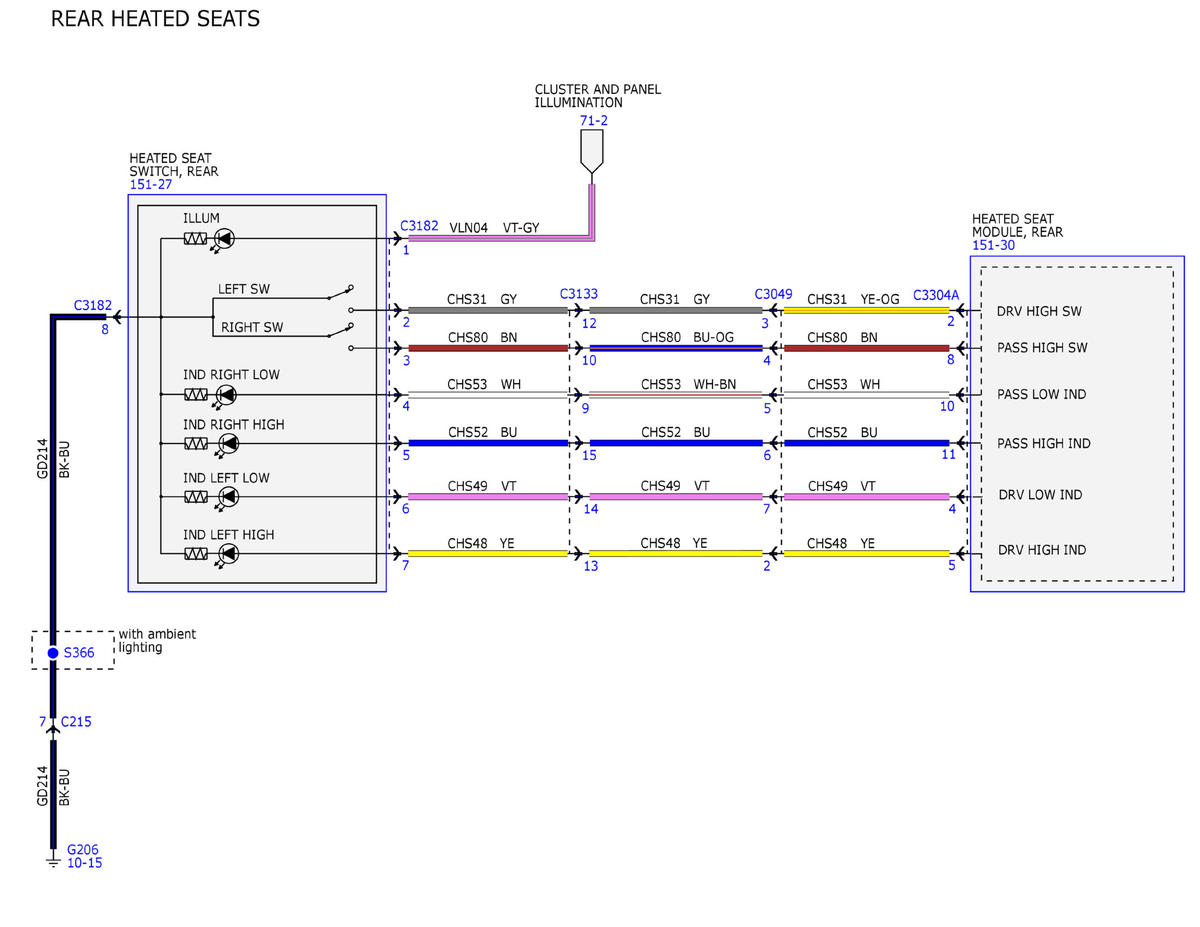

Fig 9: Climate Controlled Seats Wiring Diagram (9 Of 9)

GFDWR57002

Courtesy of FORD MOTOR COMPANY
