Audio System/Navigation - With Touchscreen/Without SONY

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

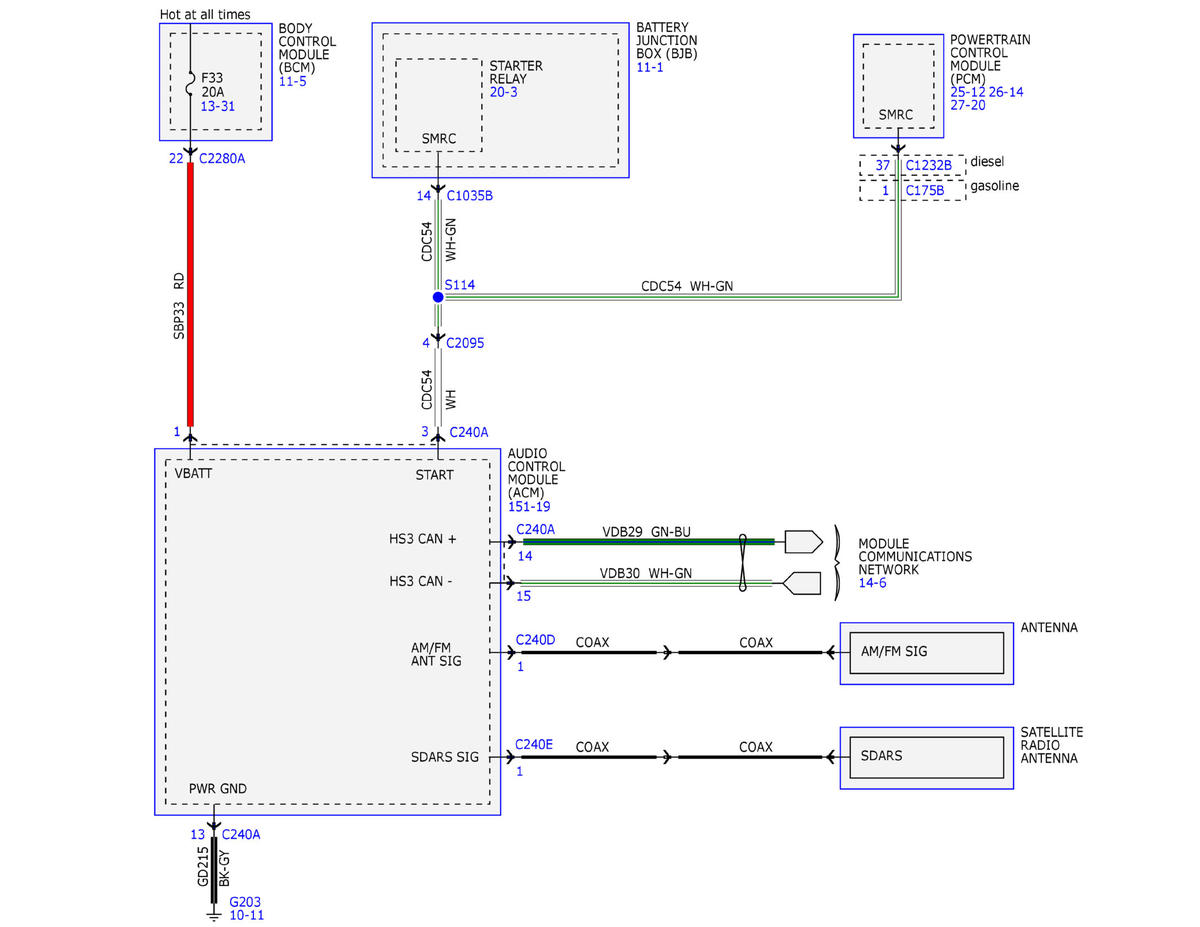

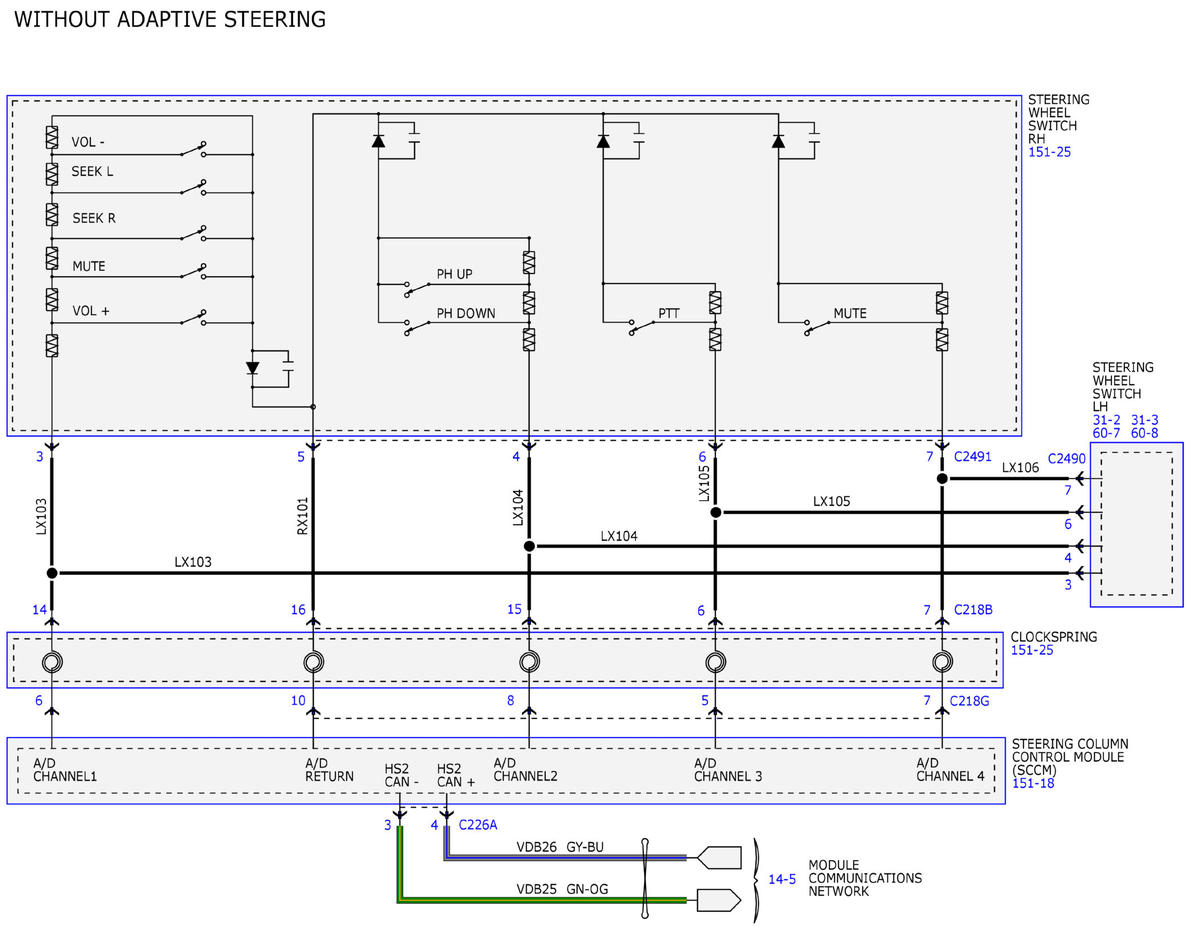

Fig 1: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (1 Of 10)

Courtesy of FORD MOTOR COMPANY

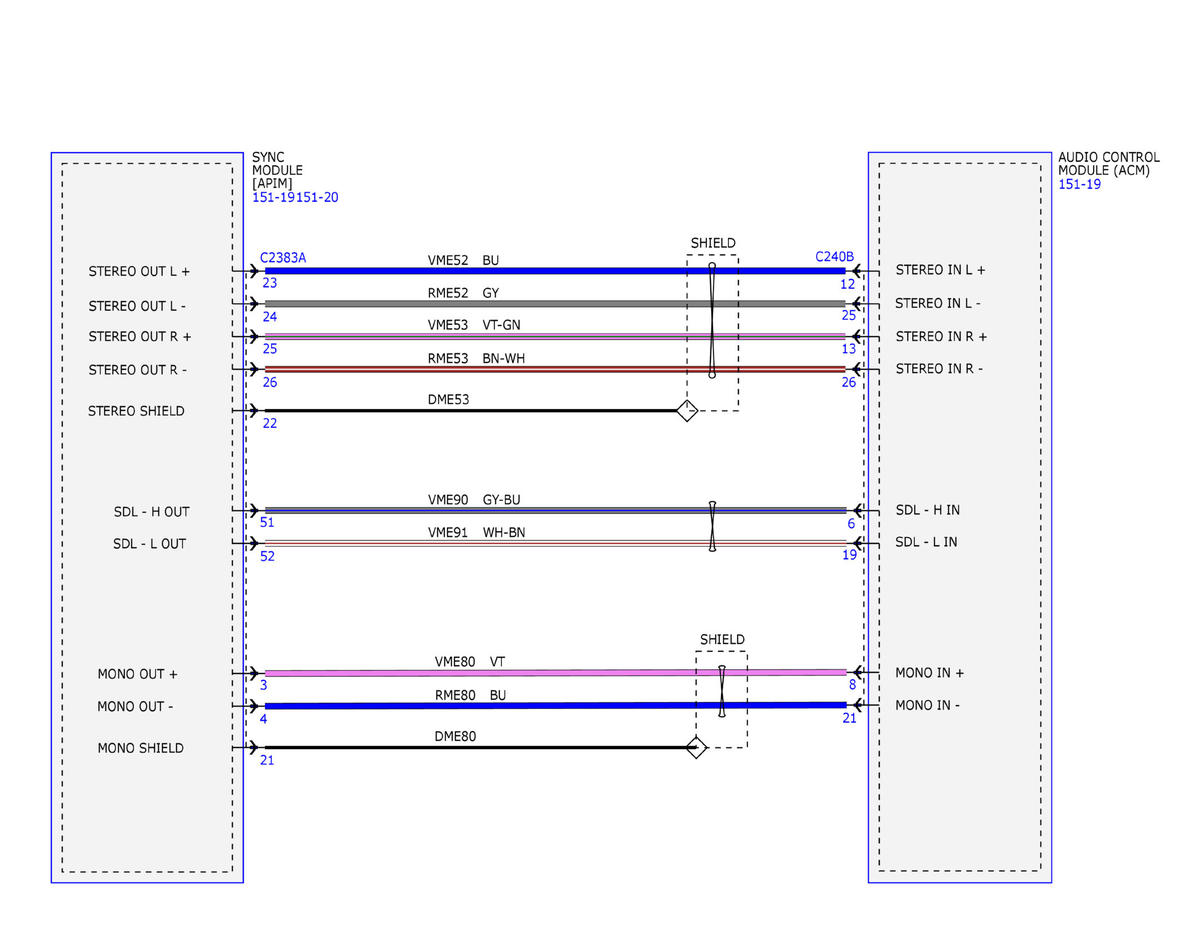

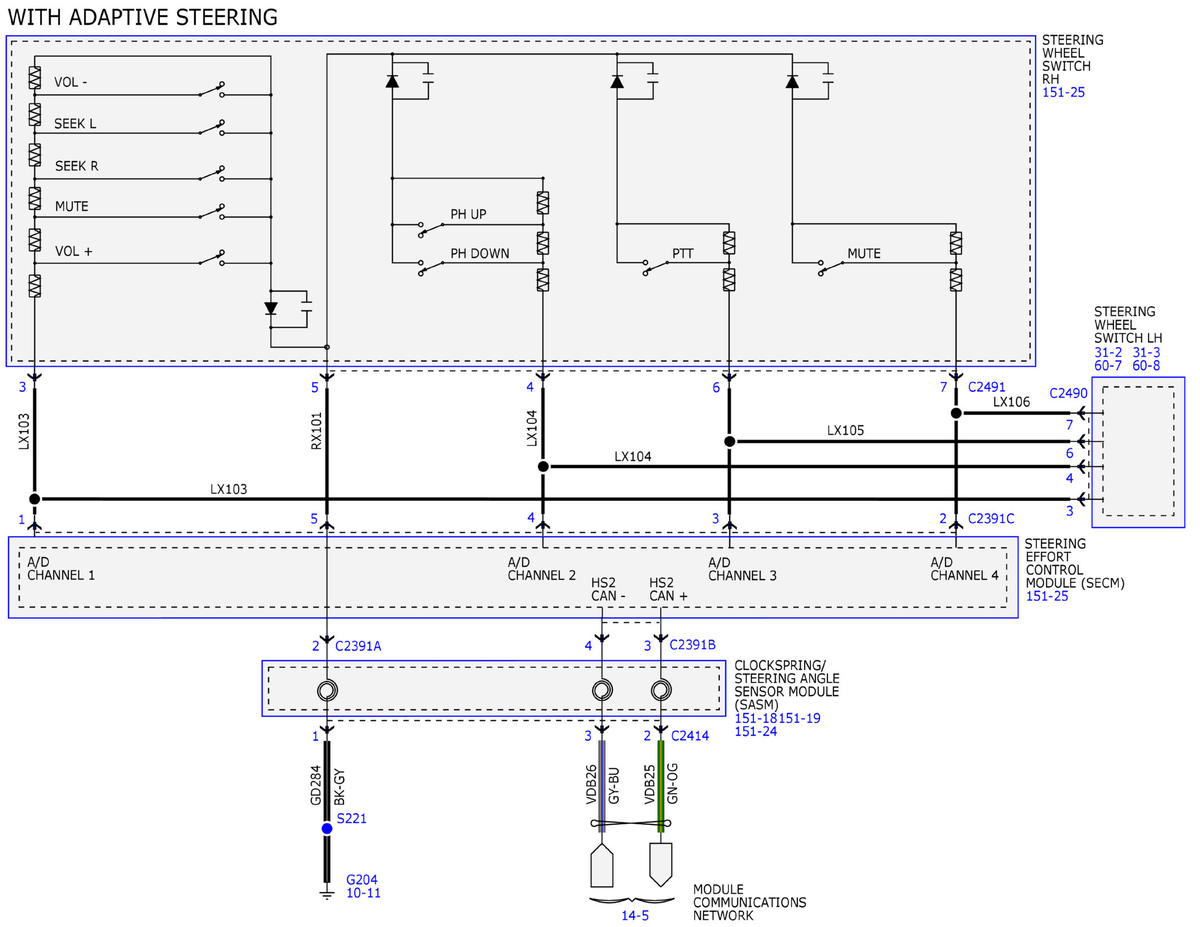

Fig 2: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (2 Of 10)

Courtesy of FORD MOTOR COMPANY

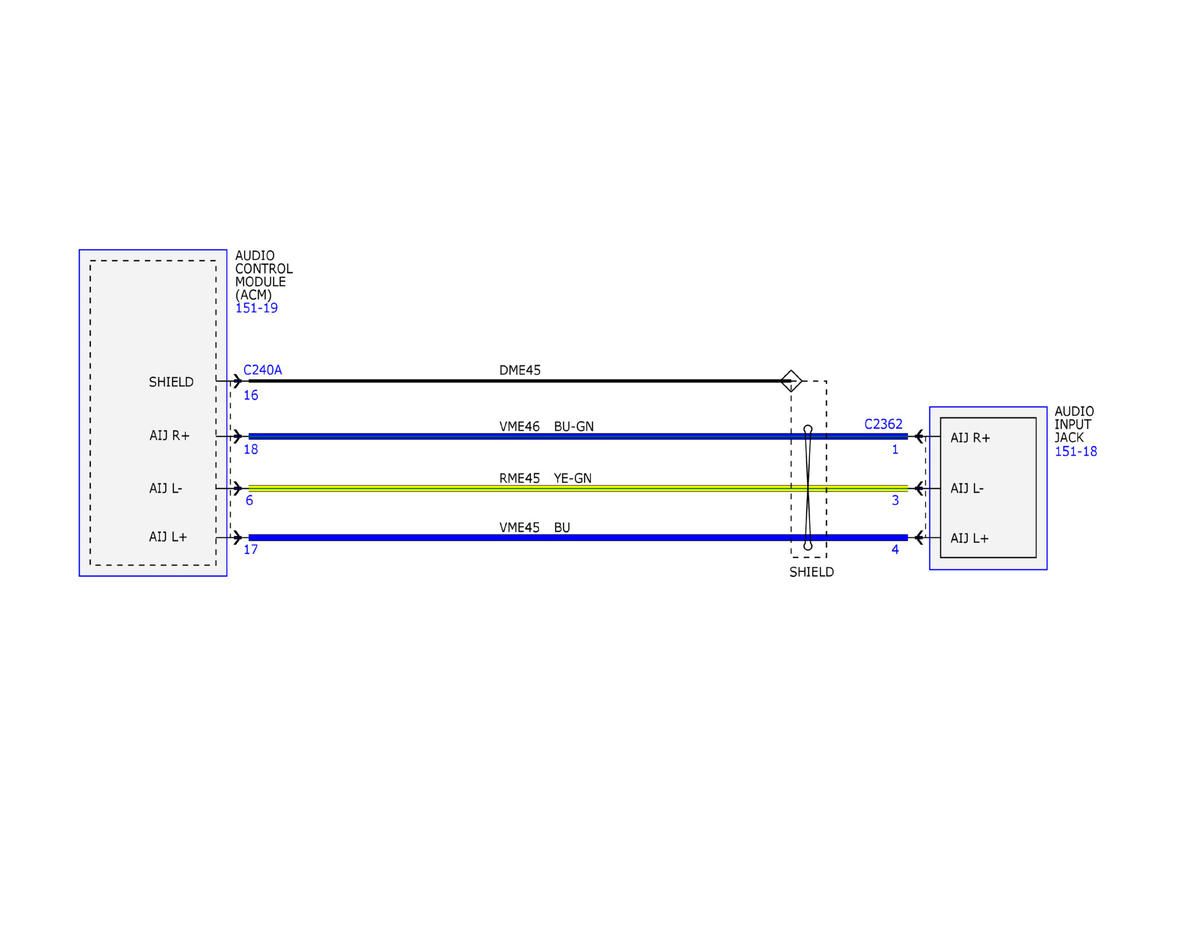

Fig 3: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (3 Of 10)

Courtesy of FORD MOTOR COMPANY

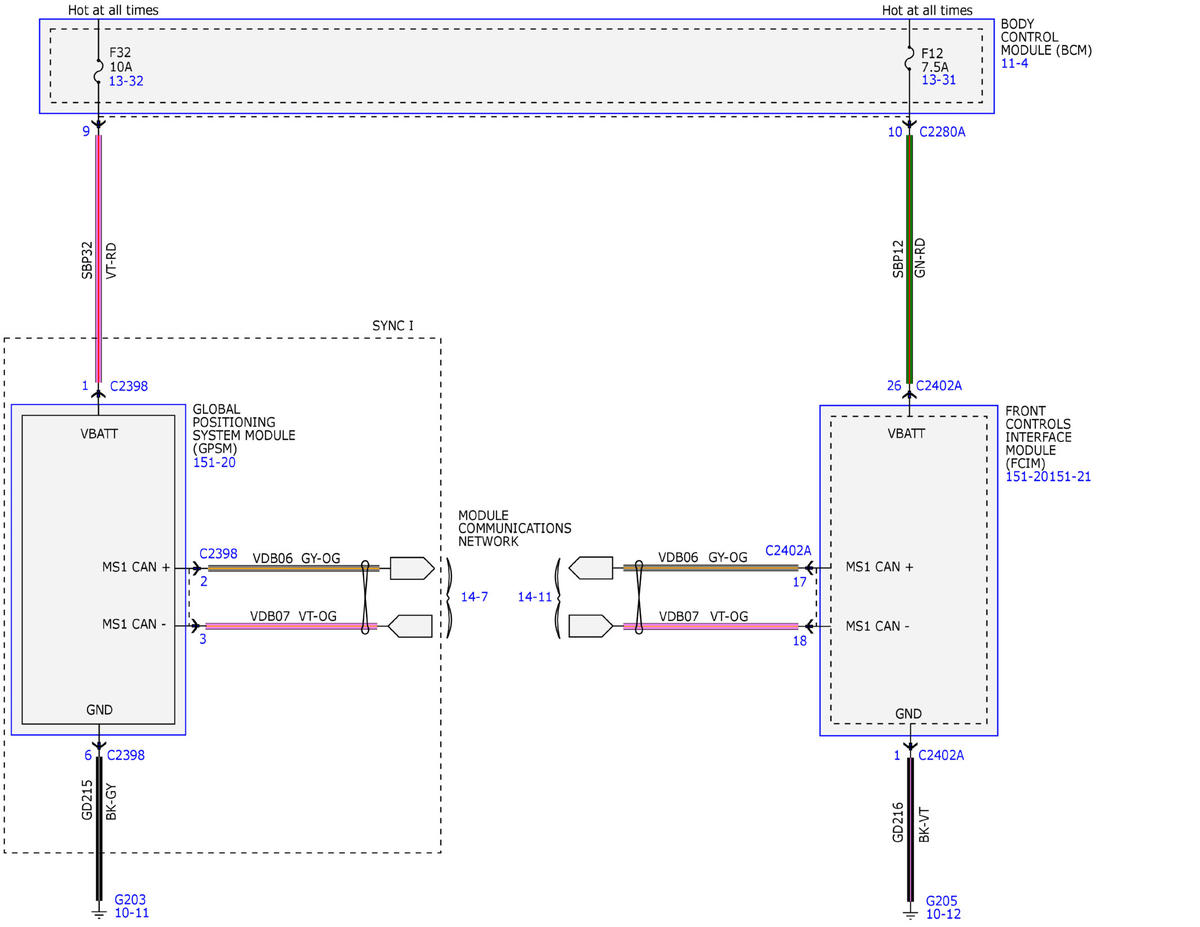

Fig 4: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (4 Of 10)

Courtesy of FORD MOTOR COMPANY

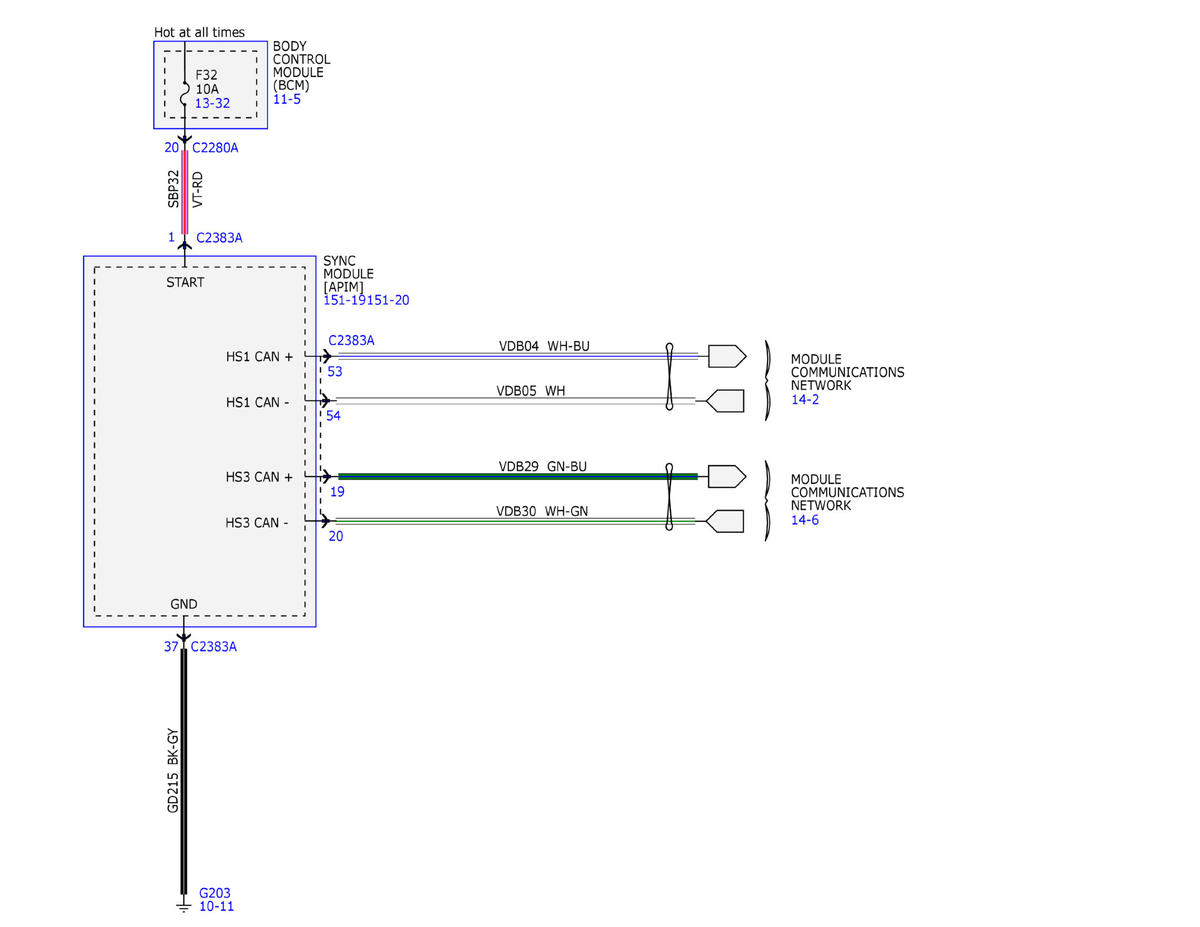

Fig 5: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (5 Of 10)

Courtesy of FORD MOTOR COMPANY

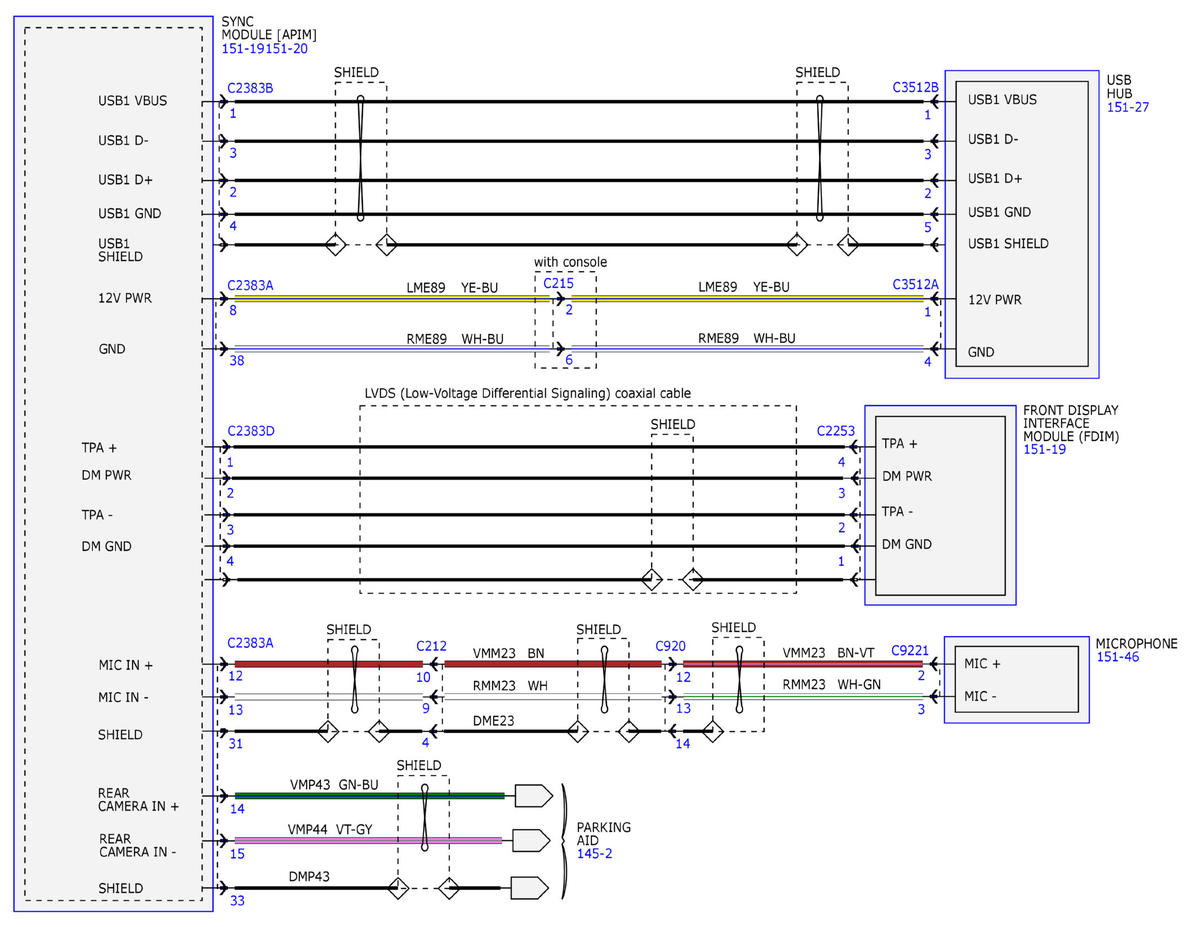

Fig 6: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (6 Of 10)

Courtesy of FORD MOTOR COMPANY

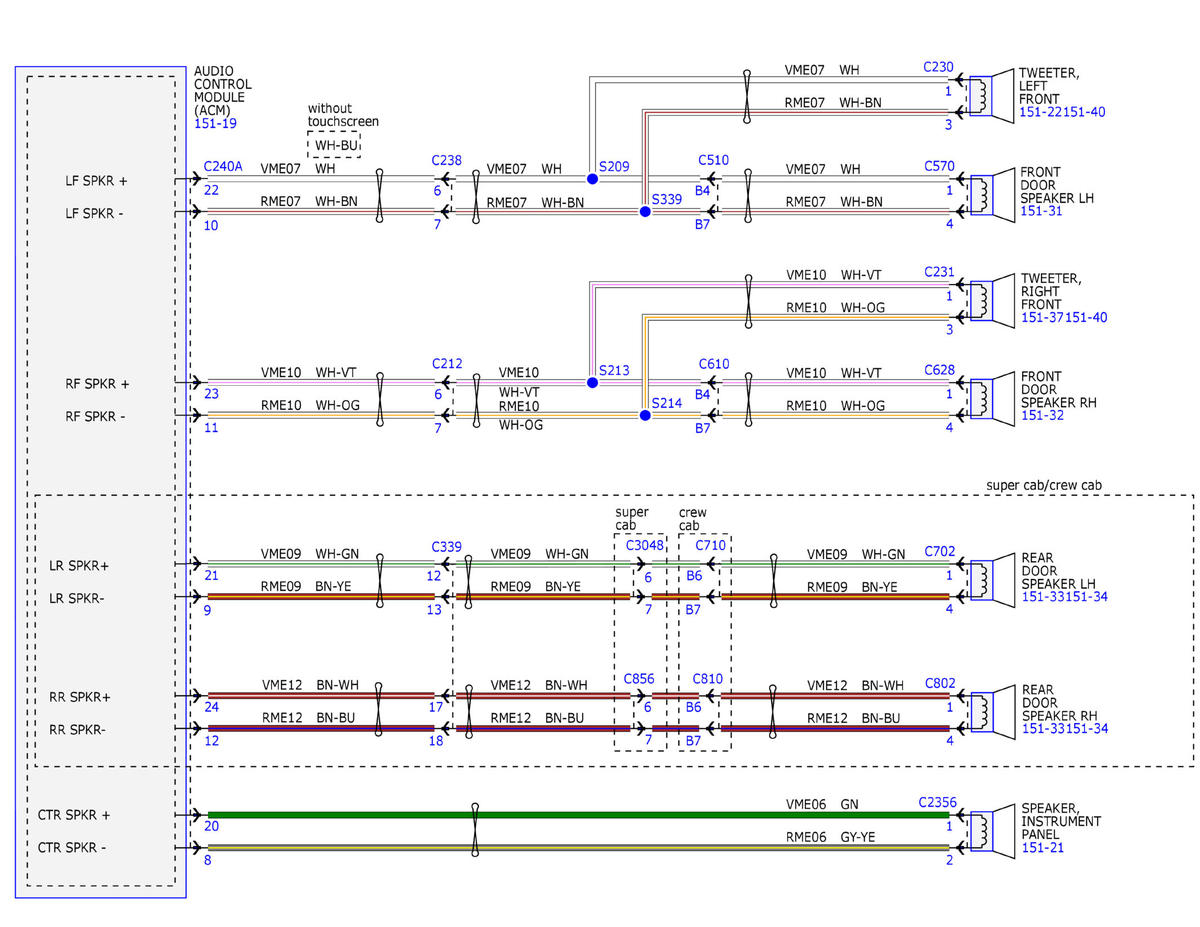

Fig 7: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (7 Of 10)

Courtesy of FORD MOTOR COMPANY

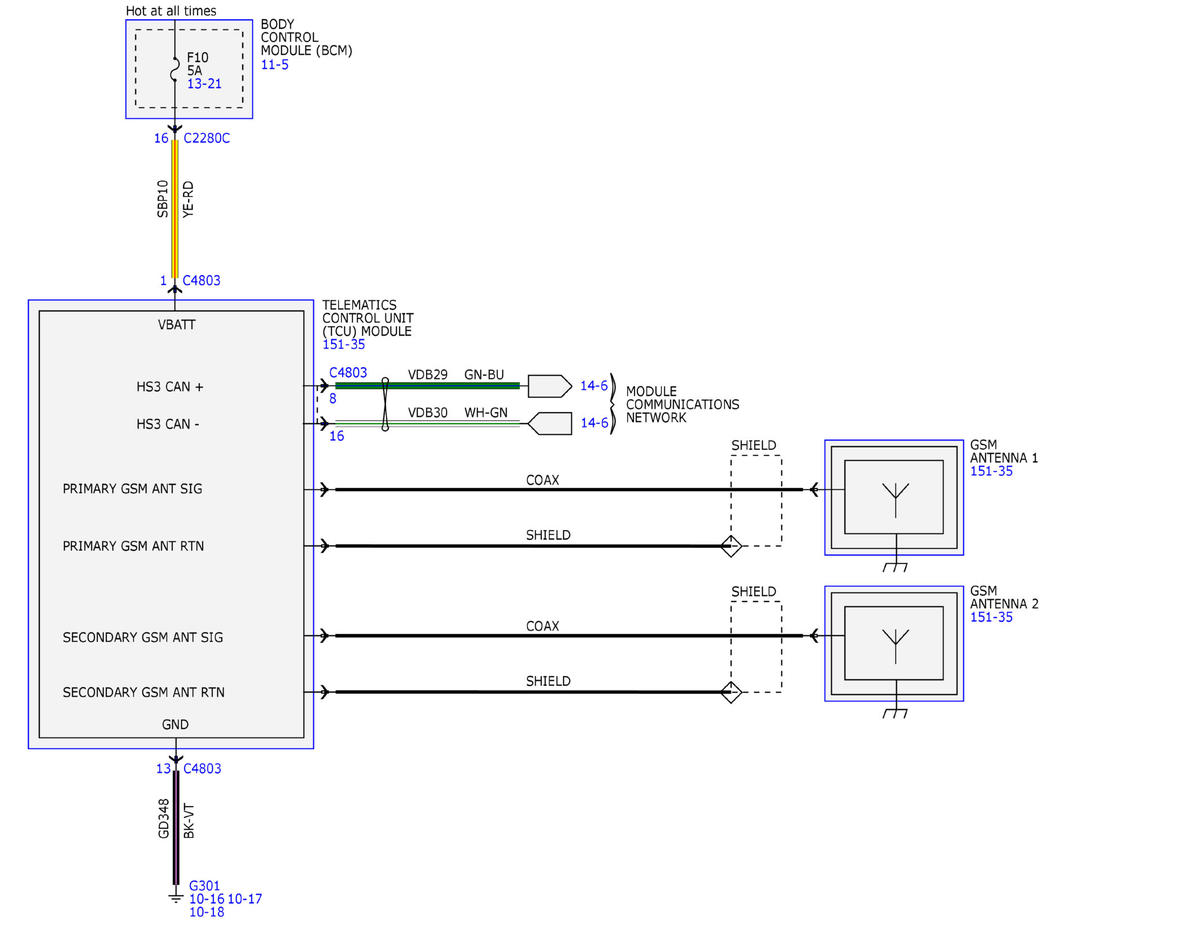

Fig 8: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (8 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (9 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (10 Of 10)

Courtesy of FORD MOTOR COMPANY
