Audio System/Navigation - Am/Fm/Cd/Sync

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

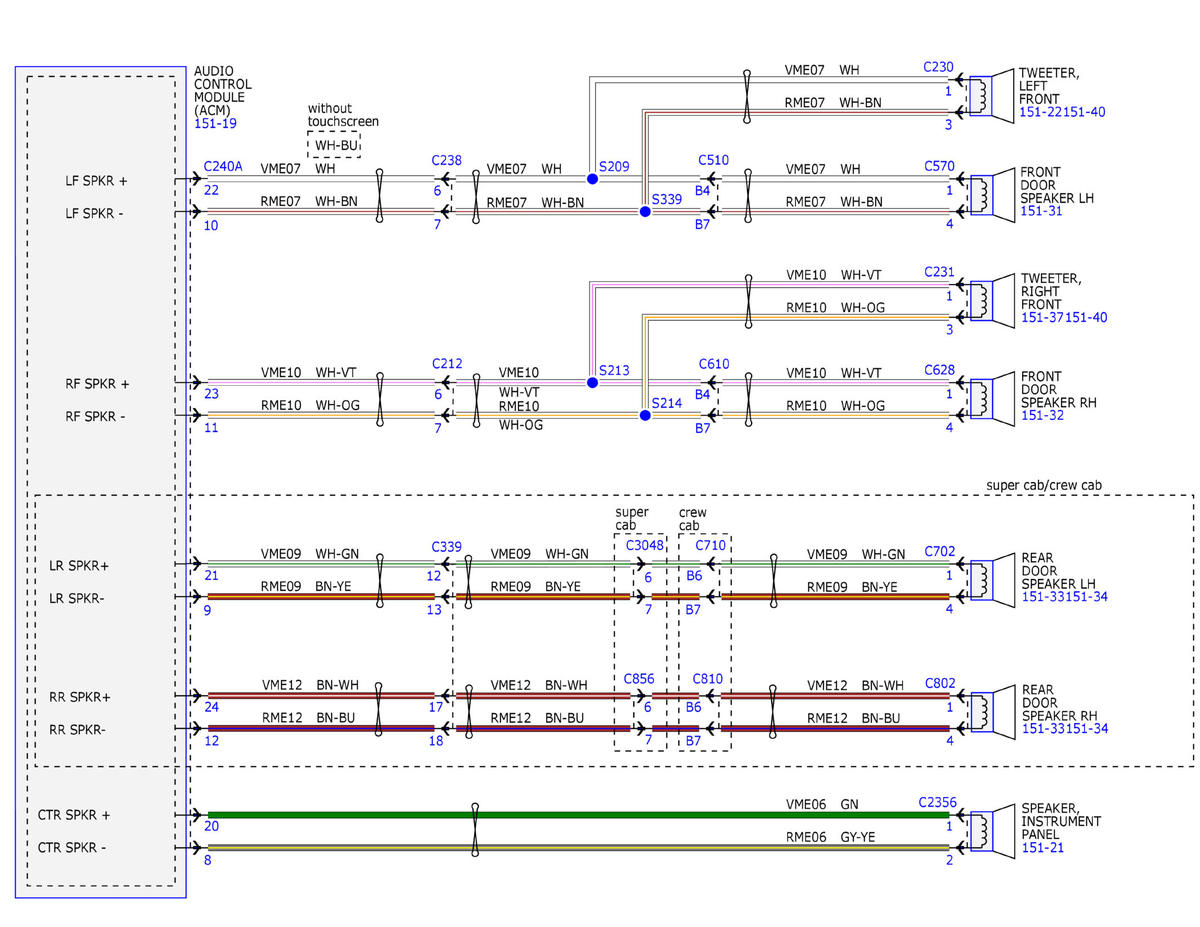

Fig 1: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (1 Of 11)

GFDWR56944

Courtesy of FORD MOTOR COMPANY

Fig 2: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (2 Of 11)

GFDWR56945

Courtesy of FORD MOTOR COMPANY

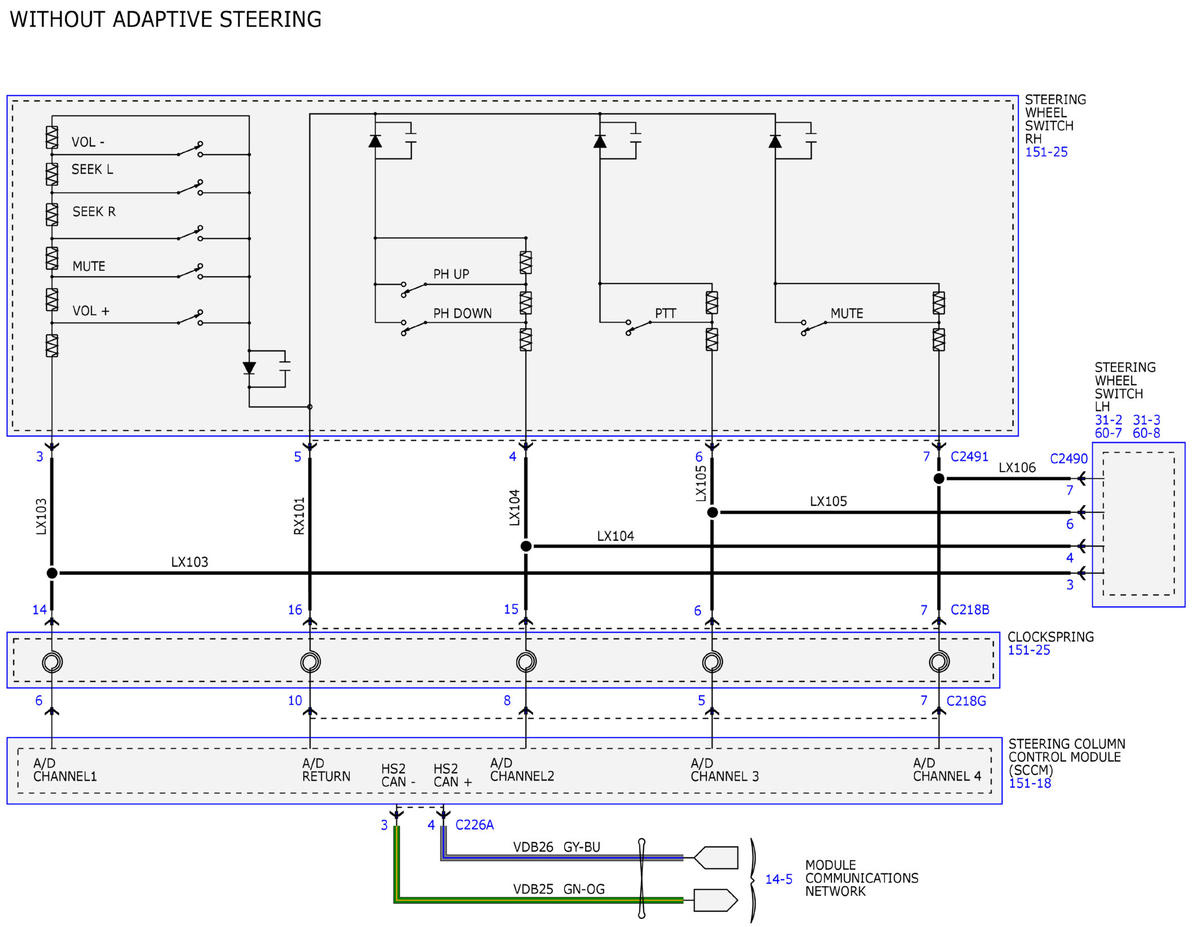

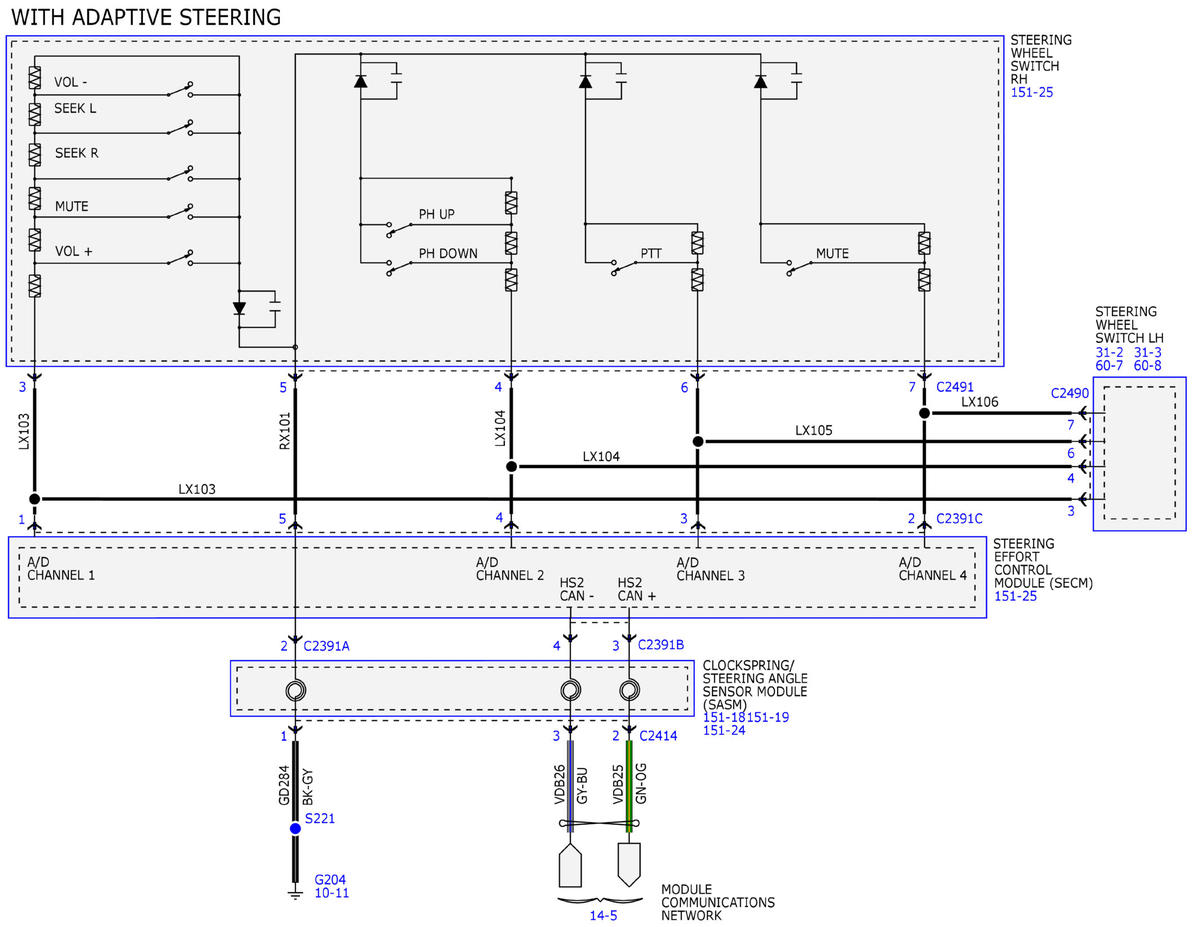

Fig 3: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (3 Of 11)

GFDWR56946

Courtesy of FORD MOTOR COMPANY

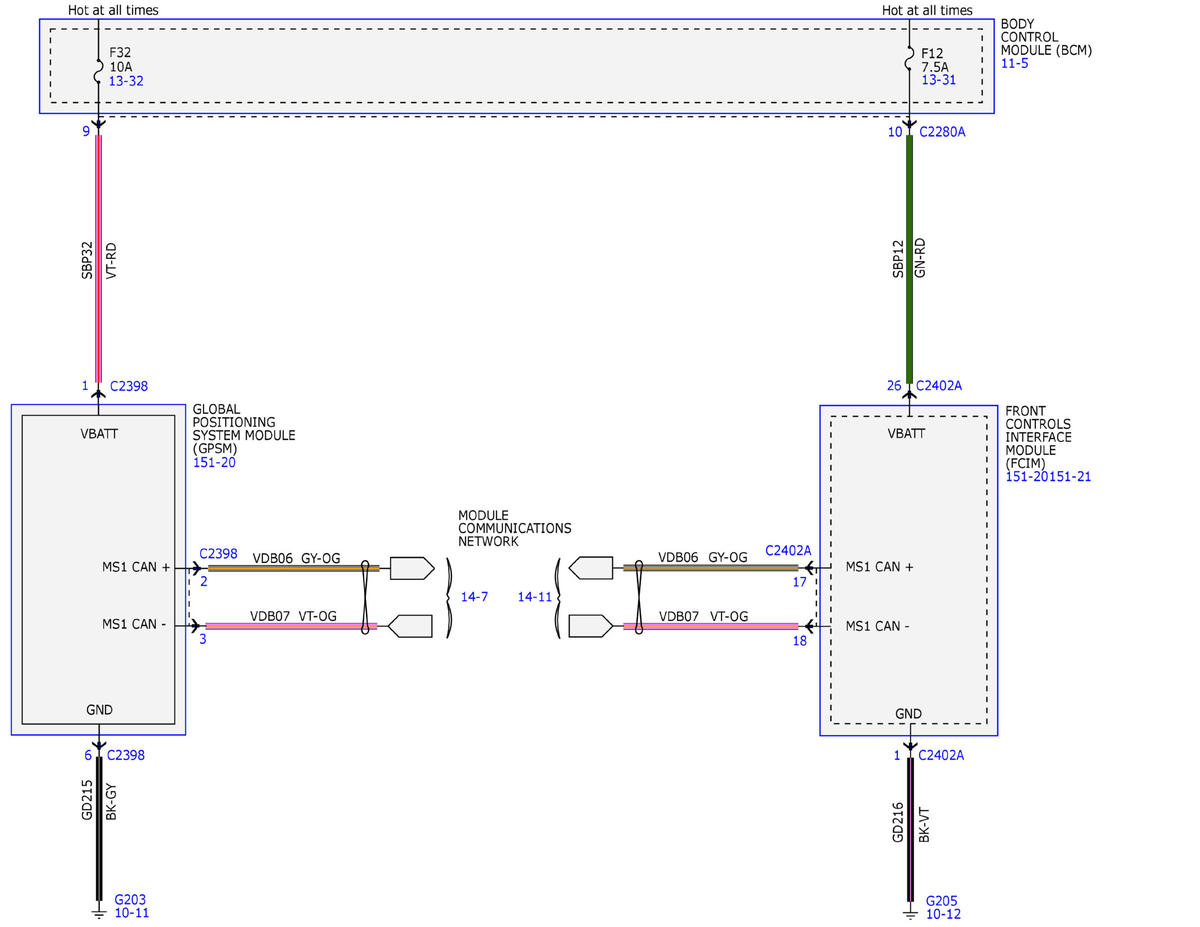

Fig 4: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (4 Of 11)

GFDWR56947

Courtesy of FORD MOTOR COMPANY

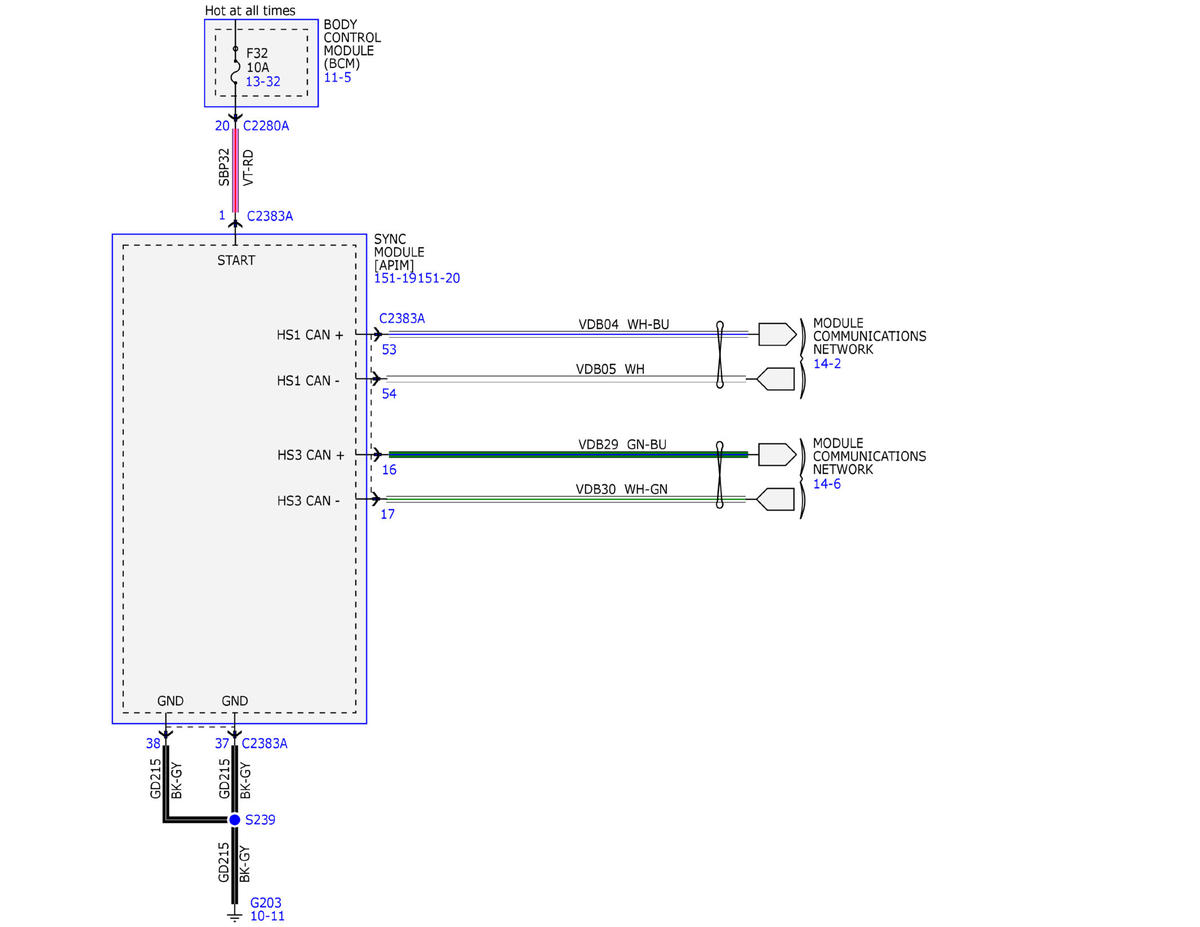

Fig 5: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (5 Of 11)

GFDWR56948

Courtesy of FORD MOTOR COMPANY

Fig 6: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (6 Of 11)

GFDWR56949

Courtesy of FORD MOTOR COMPANY

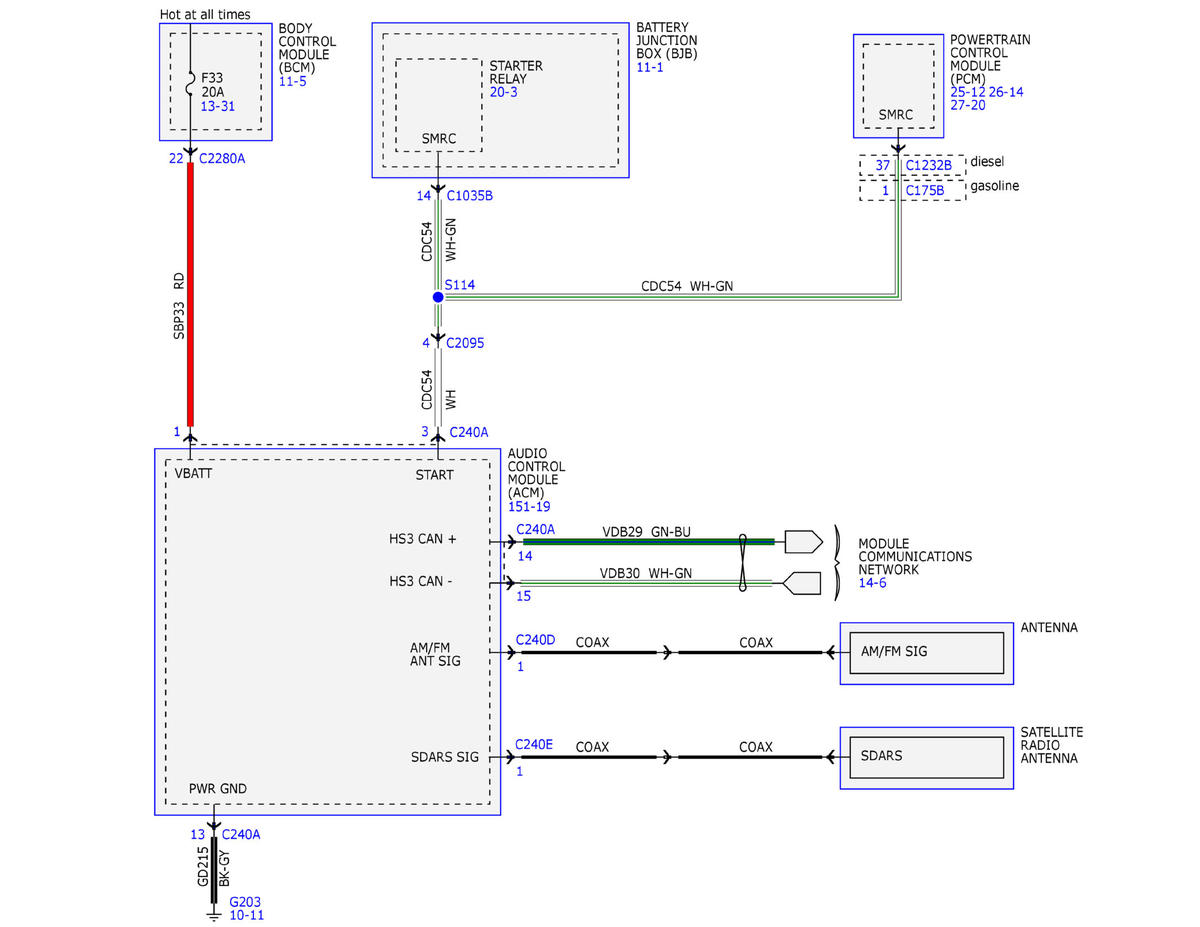

Fig 7: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (7 Of 11)

GFDWR56950

Courtesy of FORD MOTOR COMPANY

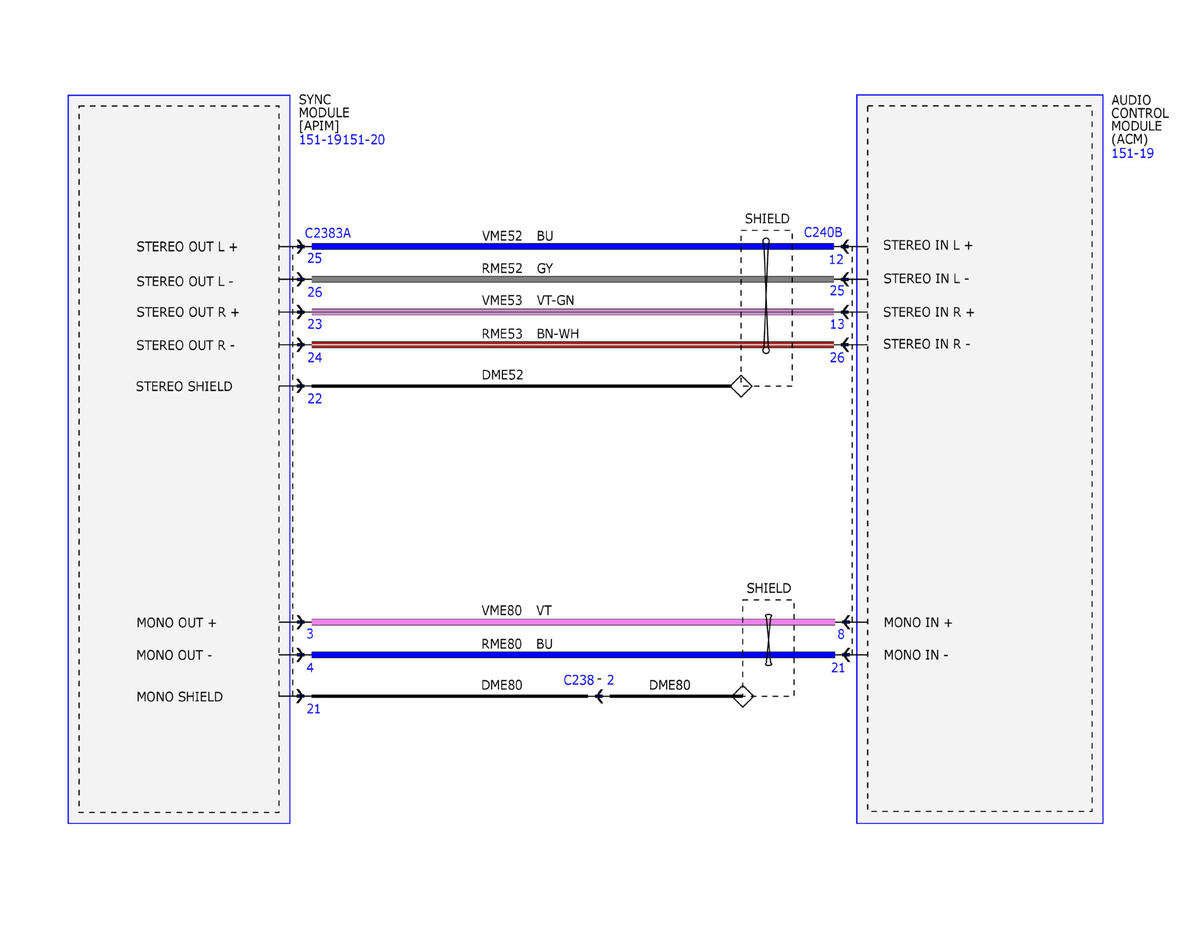

Fig 8: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (8 Of 11)

GFDWR56951

Courtesy of FORD MOTOR COMPANY

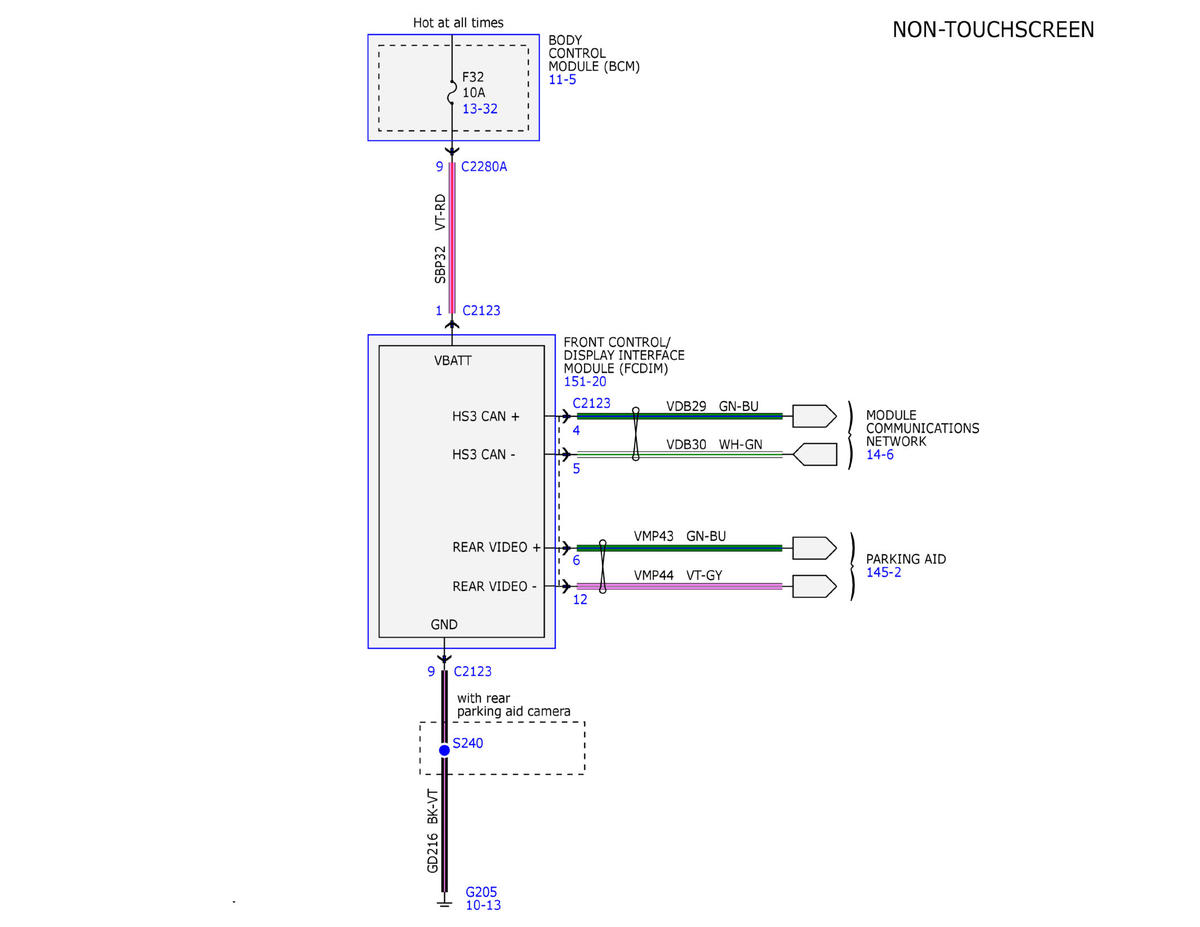

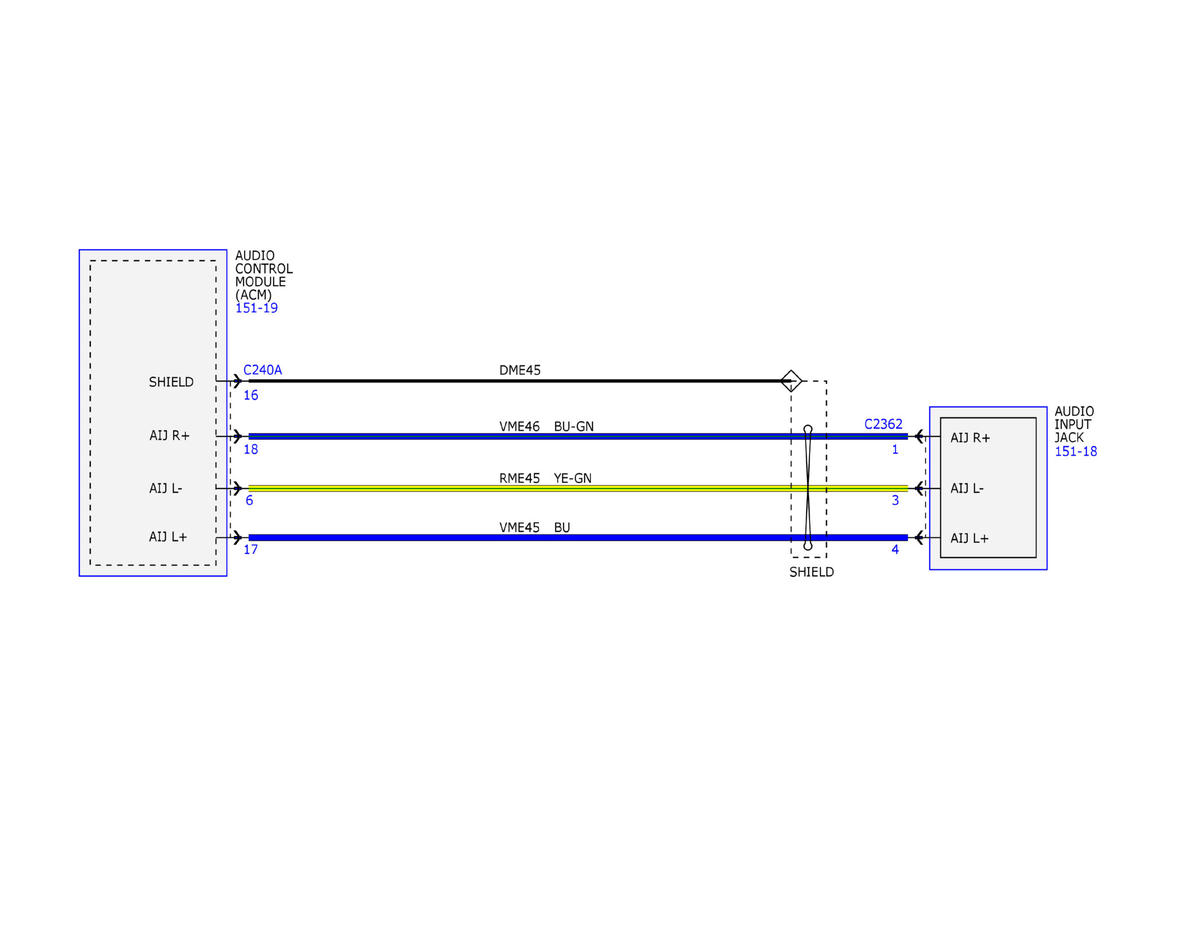

Fig 9: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (9 Of 11)

GFDWR56952

Courtesy of FORD MOTOR COMPANY

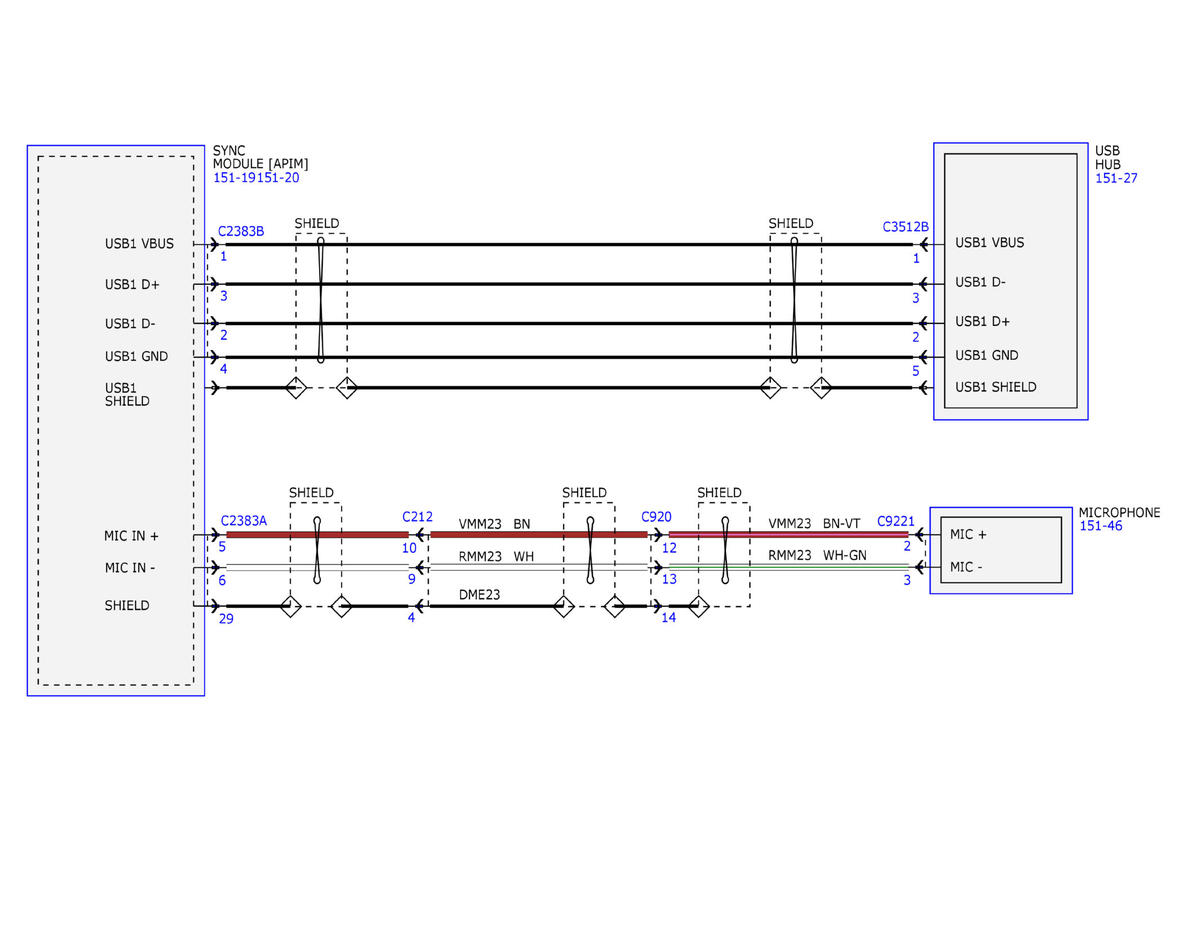

Fig 10: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (10 Of 11)

GFDWR56953

Courtesy of FORD MOTOR COMPANY

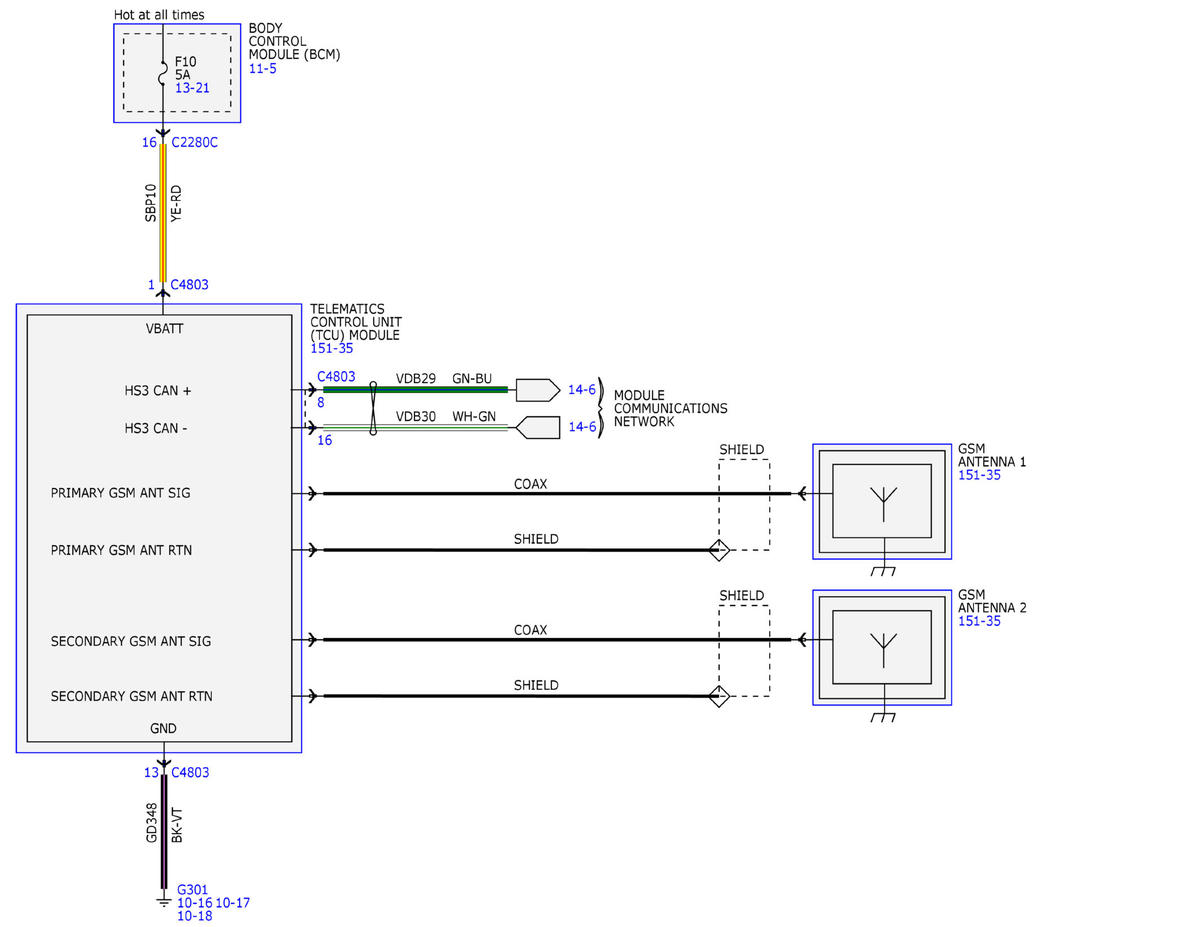

Fig 11: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (11 Of 11)

GFDWR56954

Courtesy of FORD MOTOR COMPANY
