Fuse And Relay Information

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

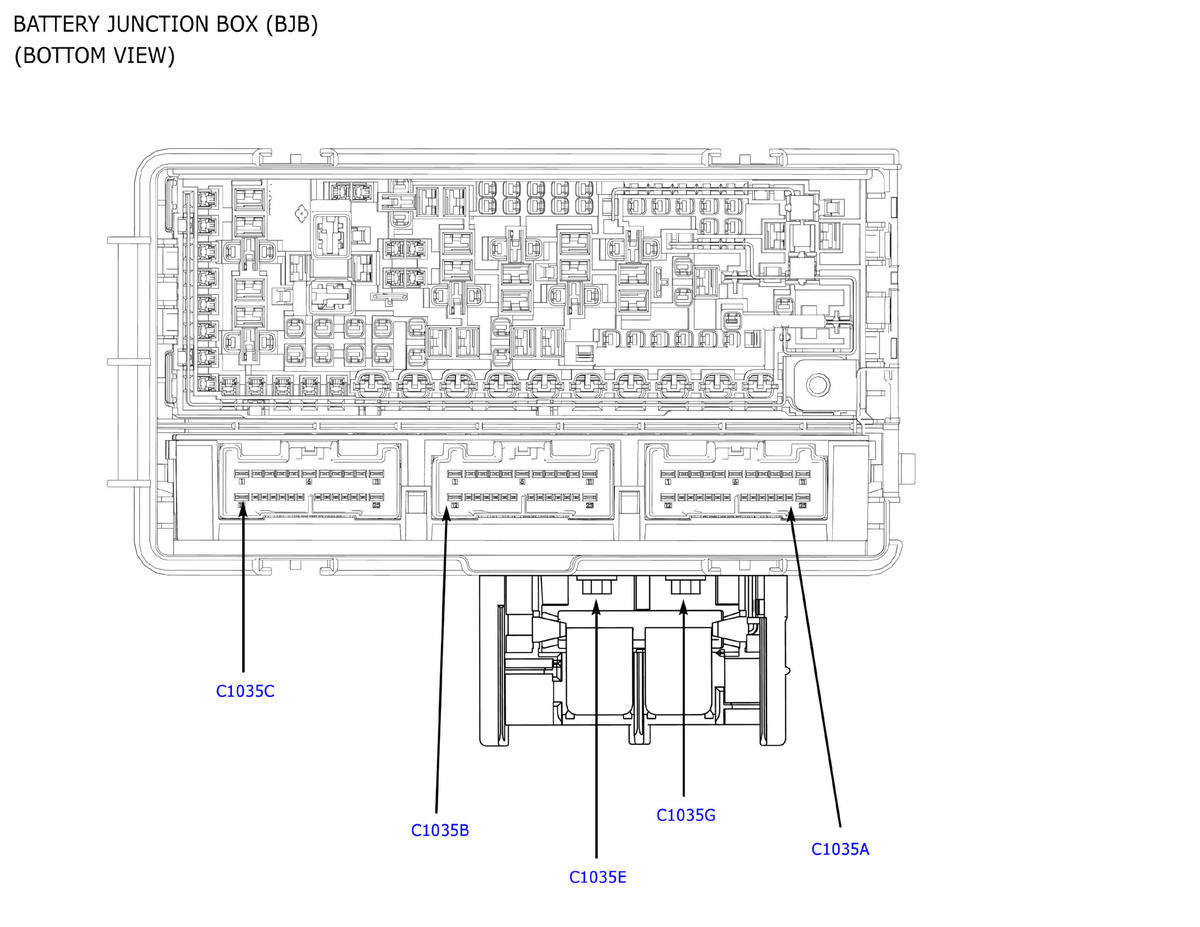

Fig 1: Battery Junction Box Component Location (1 Of 2)

GFDWR56897

Courtesy of FORD MOTOR COMPANY

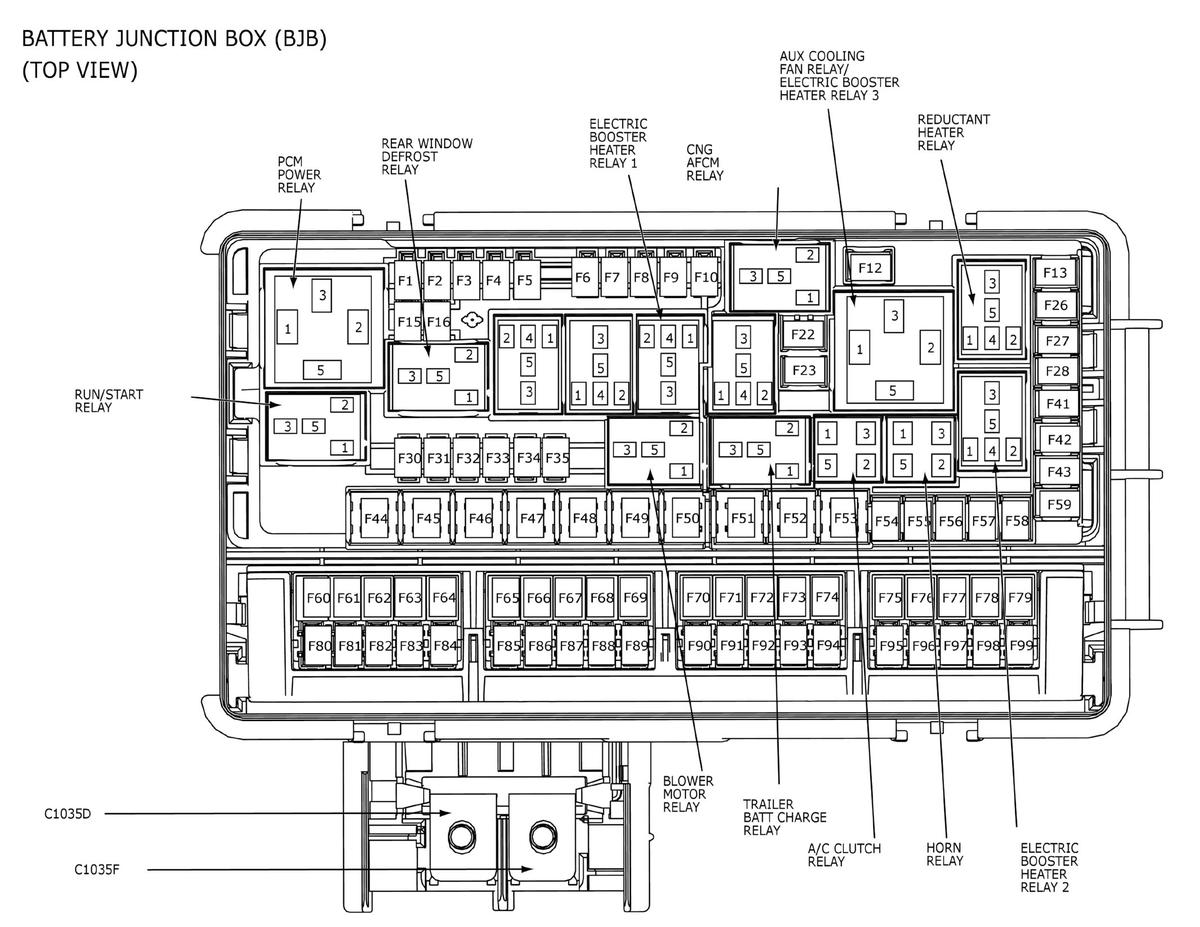

Fig 2: Battery Junction Box Component Location (2 Of 2)

GFDWR56902

Courtesy of FORD MOTOR COMPANY

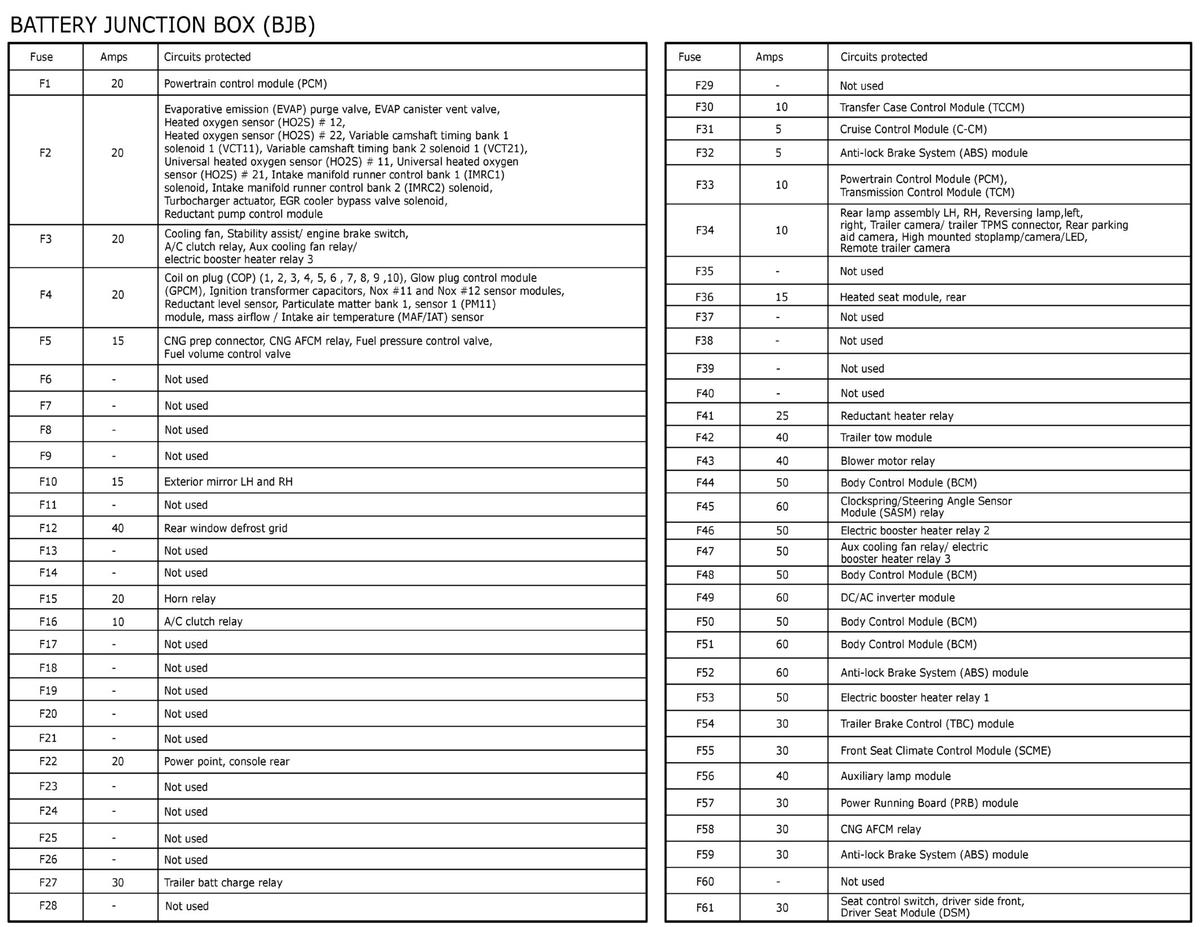

Fig 3: Battery Junction Box Component Location Legend (1 Of 2)

GFDWR56900

Courtesy of FORD MOTOR COMPANY

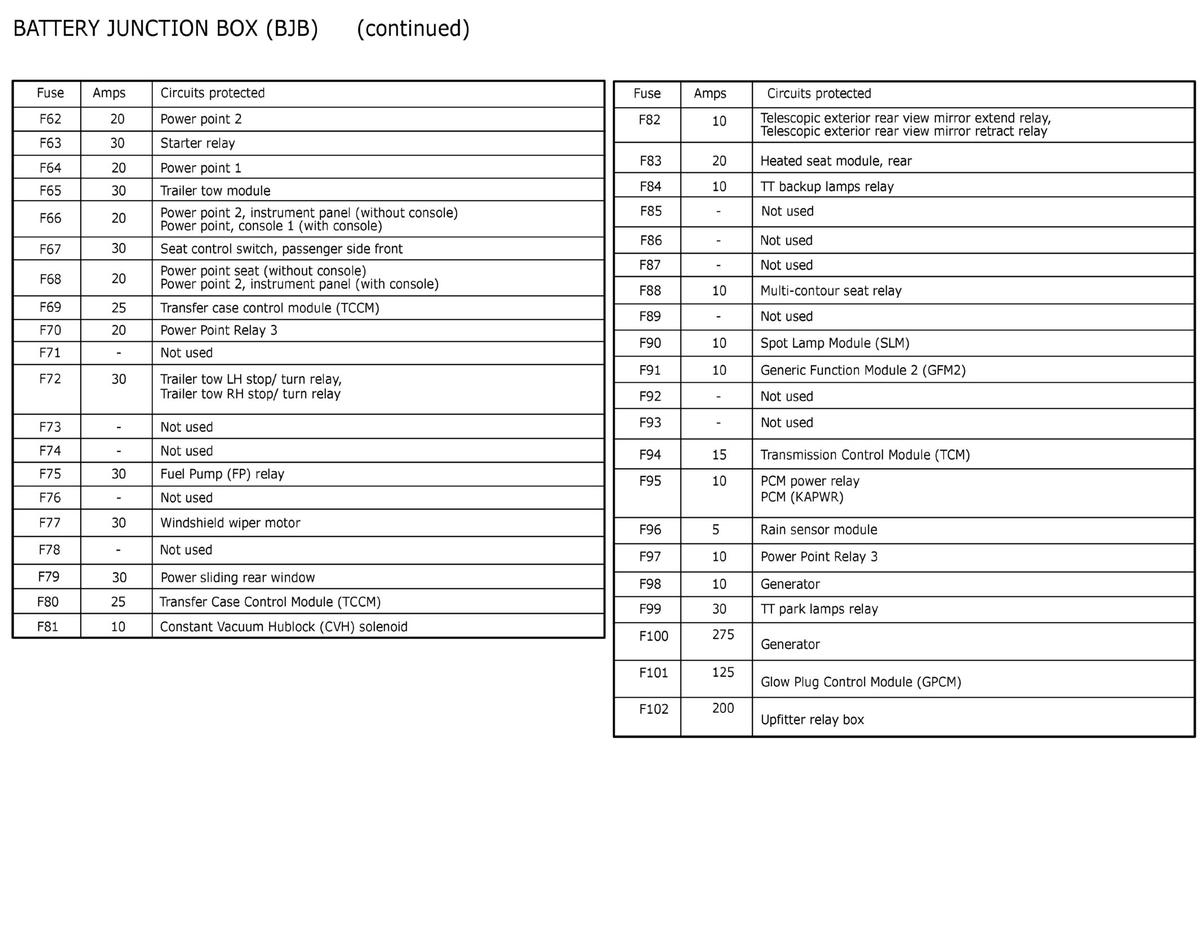

Fig 4: Battery Junction Box Component Location Legend (2 Of 2)

GFDWR56903

Courtesy of FORD MOTOR COMPANY

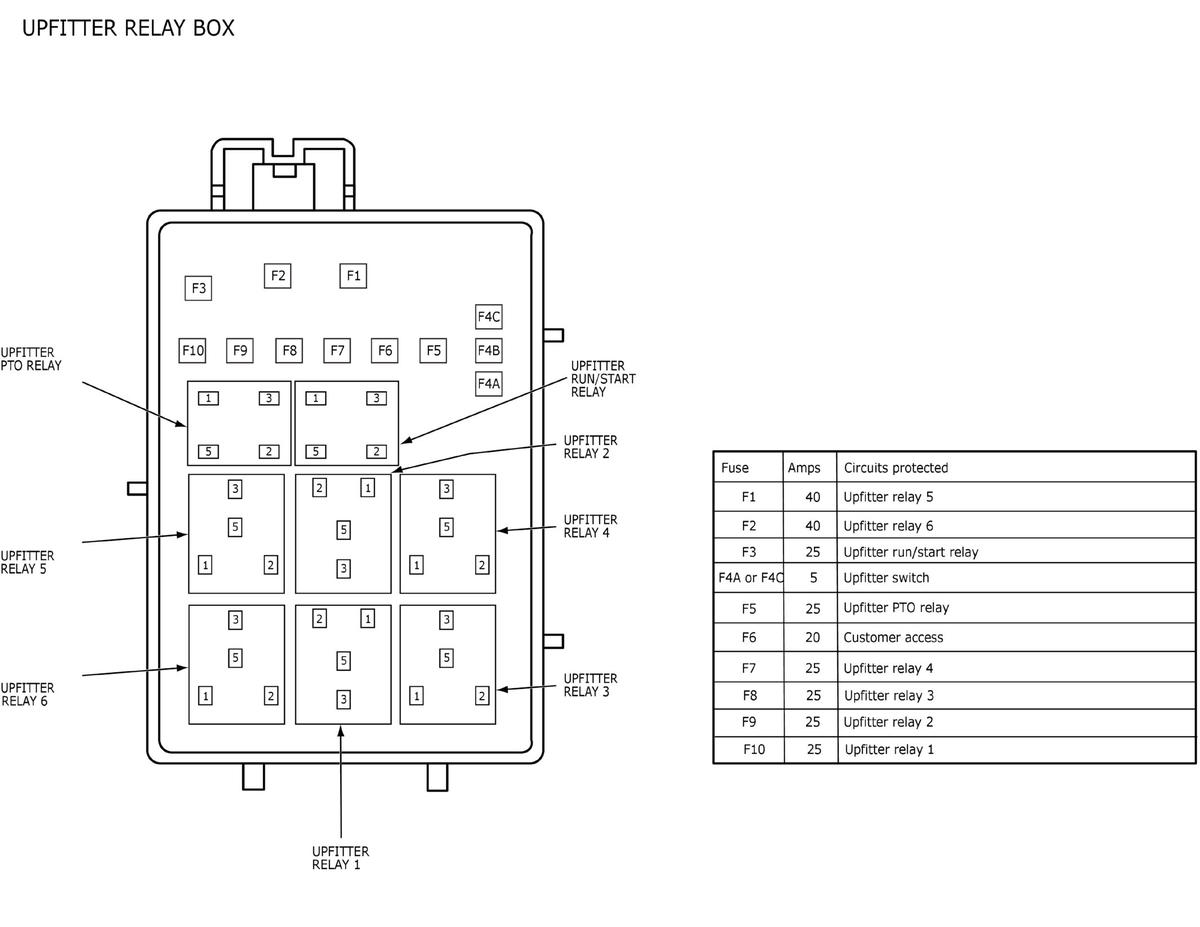

Fig 5: Upfitter Relay Box Component Location

GFDWR56898

Courtesy of FORD MOTOR COMPANY

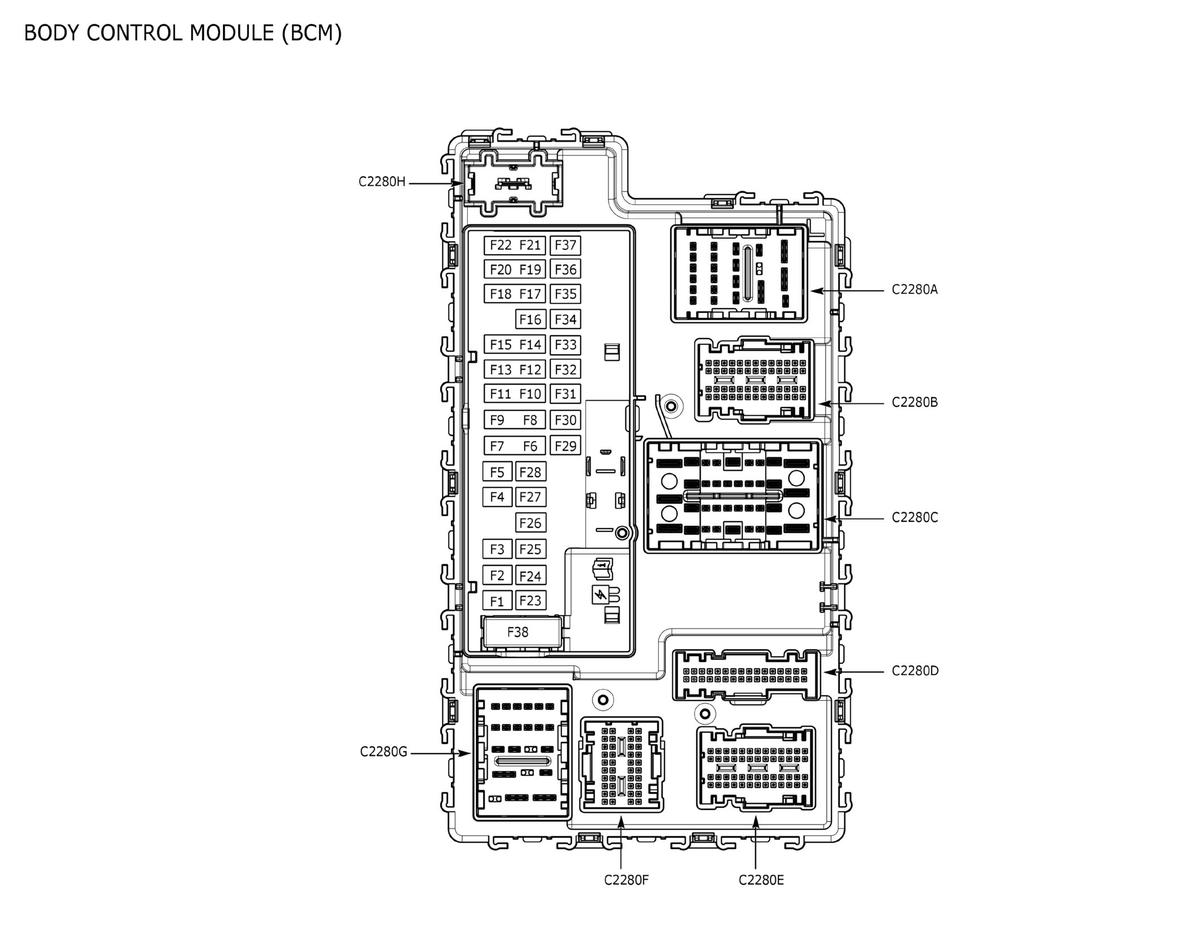

Fig 6: Body Control Module Component Location

GFDWR56904

Courtesy of FORD MOTOR COMPANY

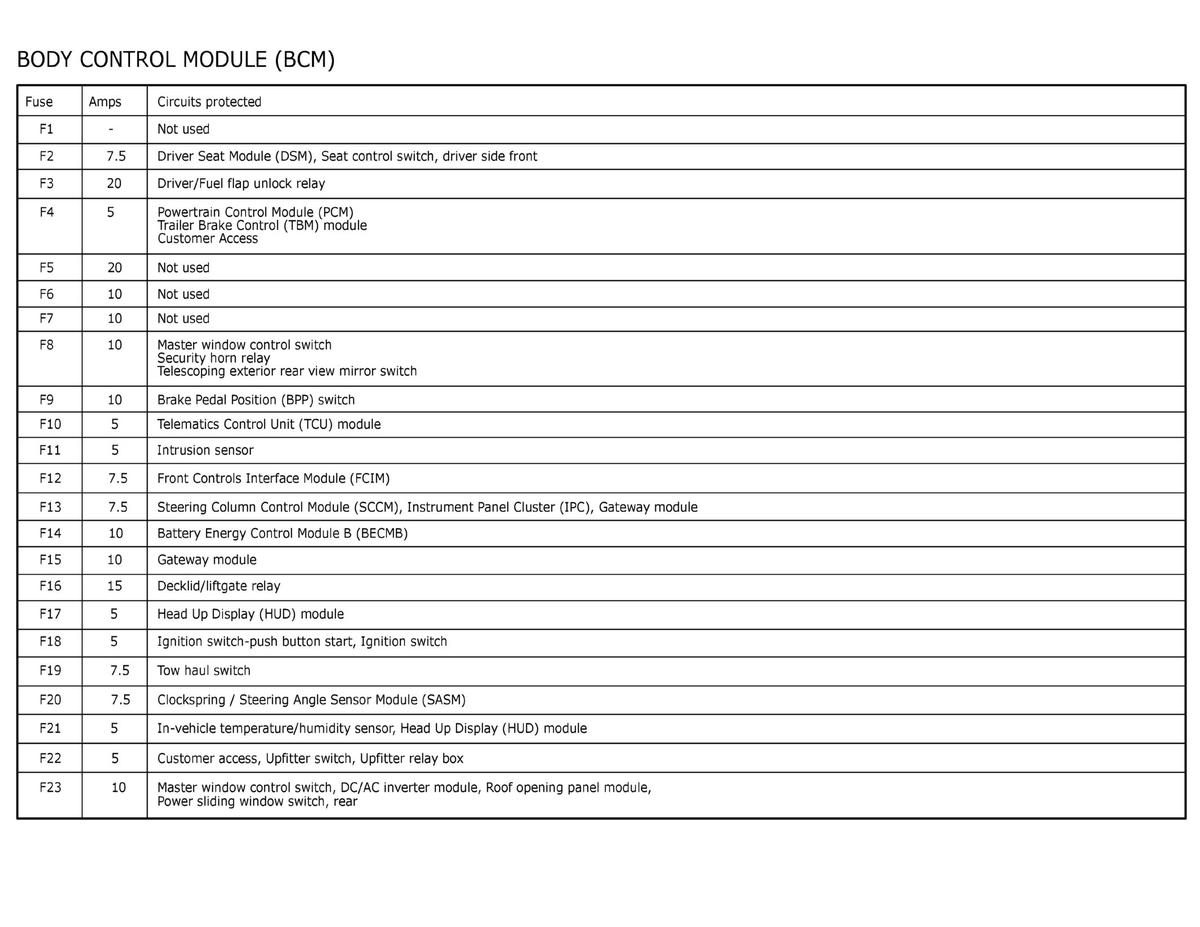

Fig 7: Body Control Module Component Location Legend (1 Of 2)

GFDWR56901

Courtesy of FORD MOTOR COMPANY

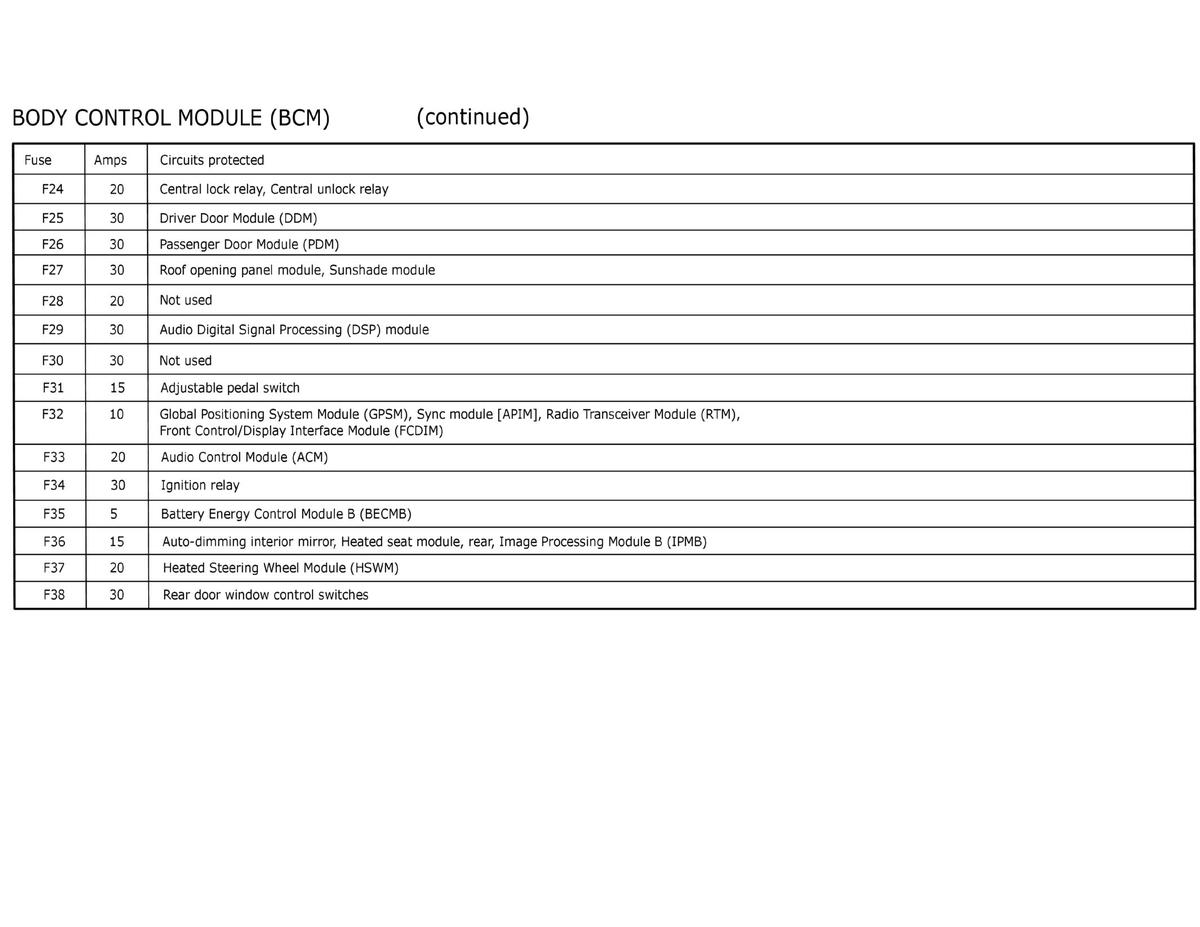

Fig 8: Body Control Module Component Location Legend (2 Of 2)

GFDWR56899

Courtesy of FORD MOTOR COMPANY
