Connector End View (C9805) - INLINE

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C9805	INLINE	14A00515A404			See Below

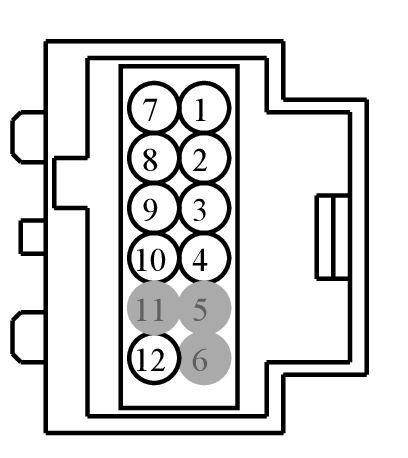

MALE

Harness

14A005

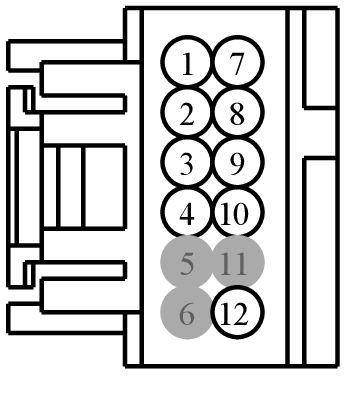

FEMALE

Harness

15A404

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14421-CB	EU2Z-14421-AA	0.64
DU5T-14421-DB	EU2Z-14421-AA	0.64
3F2T-14474-RA	DU2Z-14474-BA	0.64
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBP22 (GN-OG)	18	DU5T-14421-DB
2	CAC14 (YE-OG)	22	DU5T-14421-CB
3	CAC13 (BU-OG)	22	DU5T-14421-CB
4	CAC05 (YE)	22	DU5T-14421-CB
5	*	*	N/A
6	*	*	N/A
7	CAC08 (BN)	22	DU5T-14421-CB
8	SB104 (GN-RD)	18	DU5T-14421-DB
9	CAC06 (GN-BN)	22	DU5T-14421-CB
10	CAC07 (VT-GN)	22	DU5T-14421-CB
11	*	*	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBP22 (GN-OG)	18	3F2T-14474-RA
2	CAC14 (YE-OG)	22	3F2T-14474-SA
3	CAC13 (BU-OG)	22	3F2T-14474-SA
4	CAC05 (YE)	22	3F2T-14474-SA
5	*	*	N/A
6	*	*	N/A
7	CAC08 (BN)	22	3F2T-14474-SA
8	SB104 (GN-RD)	18	3F2T-14474-RA
9	CAC06 (GN-BN)	22	3F2T-14474-SA
10	CAC07 (VT-GN)	22	3F2T-14474-SA
11	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1185

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AJA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Camera - Reverse Park Aid
Switch - Gear Shift Select/Neutral Safety

Pigtail Kit Part Number WPT-949

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BMAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Control - Navigation Display
Module - Driver Door
Module - Front Interface
Monitor - Video/DVD
Switch - Gear Shift Select/Neutral Safety
