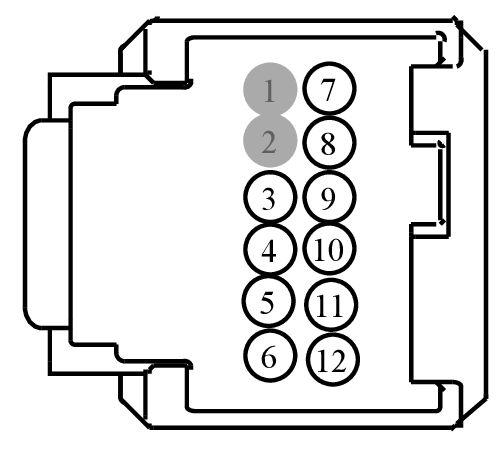

Connector End View (C9120) - UPFITTER SWITCH
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C9120 | UPFITTER SWITCH | 15A404 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-DB | DU2Z-14474-AA | 0.64 |
| 9U5T-14474-EB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | GD233 (BK) | 18 | GROUND - COWL SIDE/PILLAR A LEFT | 9U5T-14474-DB | ||||
| 4 | CAC05 (YE) | 22 | RELAY - UPFITTER #1 | 9U5T-14474-DB | ||||
| 5 | SB104 (GN-RD) | 18 | FUSE - 4 OR CIRCUIT BREAKER | 9U5T-14474-DB | ||||
| 6 | CAC06 (GN-BN) | 22 | RELAY - UPFITTER #2 | 9U5T-14474-DB | ||||
| 7 | CAC14 (YE-OG) | 22 | RELAY - UPFITTER #6 | 9U5T-14474-DB | ||||
| 8 | CAC13 (BU-OG) | 22 | RELAY - UPFITTER #5 | 9U5T-14474-DB | ||||
| 9 | CAC08 (BN) | 22 | RELAY - UPFITTER #4 | 9U5T-14474-DB | ||||
| 10 | CAC07 (VT-GN) | 22 | RELAY - UPFITTER #3 | 9U5T-14474-DB | ||||
| 11 | CBP22 (GN-OG) | 18 | FUSE - 22 OR CIRCUIT BREAKER | 9U5T-14474-DB | ||||
| 12 | VLN04 (VT-GY) | 20 | CTRL MOD. - IP/SWITCH ILLUMINATION | 9U5T-14474-EB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1401
Service Part Number:
EU2Z-14S411-SA
Gauge:
20
Pin material:
Tin
Cavities:
12
Vehicle Uses:
- Module - Climate Control Seat
- Module - Heated Seat (Rear)
- Module - Image Processing
- Module - Media Gateway
- Module - Power Steering
- Monitor - Video/DVD
