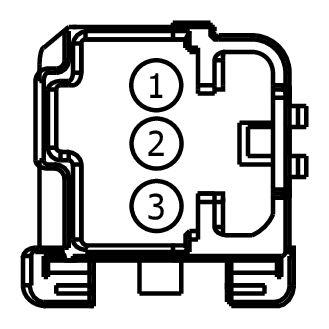

Connector End View (C9030) - HIGH MOUNTED STOPLAMP/LED
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C9030 |
HIGH MOUNTED STOPLAMP/LED |
14A411 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| DU5T-14421-CB |
EU2Z-14421-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD347 (BK-VT) |
22 |
GROUND - PILLAR C OR QUARTER PANEL LEFT |
DU5T-14421-CB |
| 2 |
CLN06 (WH) |
22 |
CTRL MOD. - TRUNK/CARGO LAMP |
DU5T-14421-CB |
| 3 |
CLS52 (BN) |
22 |
CTRL MOD. - STOP/TURN RIGHT MIDDLE |
DU5T-14421-CB |
