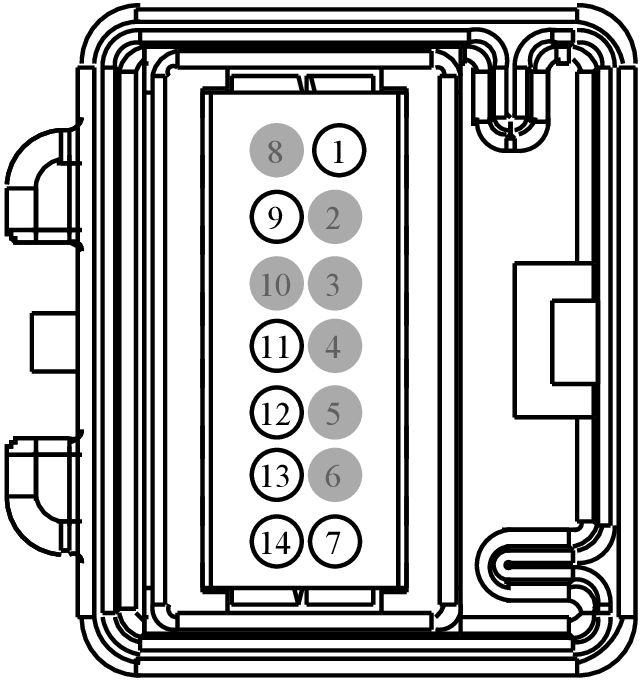

Connector End View (C9012) - AUTO-DIMMING INTERIOR MIRROR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C9012 |
AUTO-DIMMING INTERIOR MIRROR |
14334 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14421-CA |
EU2Z-14421-BA |
0.64 |
| 9U5T-14421-BA |
EU2Z-14421-BA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBP36 (BU-BN) |
20 |
FUSE - 36 OR CIRCUIT BREAKER |
9U5T-14421-CA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
GD348 (BK-YE) |
20 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
9U5T-14421-CA |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
CRB05 (GN-OG) |
22 |
SWITCH - LANE DEPARTURE WARNING (LDW) |
9U5T-14421-BA |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
CRB08 (BU-GY) |
18 |
CTRL MOD. - LANE DEPARTURE WARNING # HEATER FRONT WINDOW + |
9U5T-14421-BA |
| 12 |
VDB25 (GN-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
9U5T-14421-BA |
| 13 |
VDB26 (GY-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
9U5T-14421-BA |
| 14 |
RRB08 (BN-VT) |
18 |
CTRL MOD. - LANE DEPARTURE WARNING # HEATER FRONT WINDOW - |
9U5T-14421-BA |
