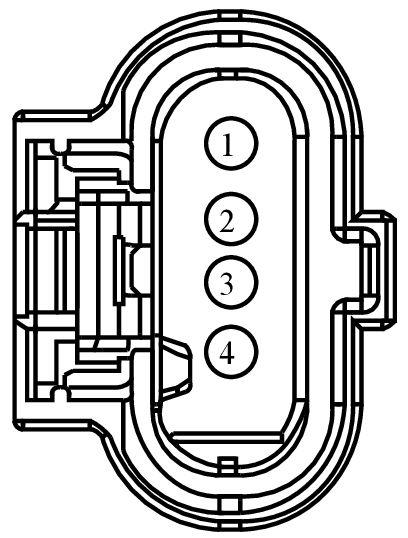

Connector End View (C4851) - REDUCTANT QUALITY MODULE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4851 | REDUCTANT QUALITY MODULE | 14D378 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | 106 (BK) | 20 | GND | N/A | ||||
| 2 | 121 (BN) | 20 | CAN2 + | N/A | ||||
| 3 | 120 (BK) | 20 | CAN2 - | N/A | ||||
| 4 | 119 (BU) | 20 | VPWR | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1537
Service Part Number:
JU2Z-14S411-ACA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Module - Differential Oil Temperature
- Module - Particulate Matter Bank Sensor
- Module - Reductant Quality
- Noise Generator
- Sensor - Fuel Rail Pressure and Temperature
- Sensor - Manifold Pressure/Intake Temperature
- Sensor - Turbo Intake Pressure/Temperature
- Valve - Active Exhaust Solenoid
