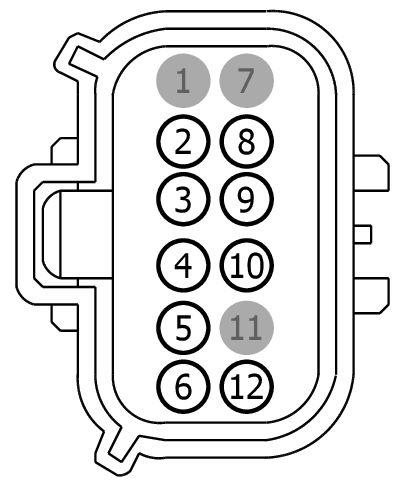

Connector End View (C4483) - REAR LAMP ASSEMBLY LH
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4483 |
REAR LAMP ASSEMBLY LH |
13A409 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| BU5T-14474-UA |
DU2Z-14474-DA |
1.5 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
CLS18 (GY-BN) |
18 |
CTRL MOD. - STOP/TURN LEFT (INBOARD) |
BU5T-14474-UA |
| 3 |
CLS05 (BU-GY) |
18 |
CTRL MOD. - PARK LAMPS 1 |
BU5T-14474-UA |
| 4 |
CLS10 (GN-BN) |
18 |
CTRL MOD. - REVERSE LEFT OR COMMON |
BU5T-14474-UA |
| 5 |
CBB34 (VT-BN) |
18 |
FUSE - 34 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 6 |
VDB06 (GY-OG) |
18 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
BU5T-14474-UA |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
GD477 (BU-GN) |
18 |
GROUND - FRAME REAR LEFT #2 |
BU5T-14474-UA |
| 9 |
GD477 (BU) |
18 |
GROUND - FRAME REAR LEFT #2 |
BU5T-14474-UA |
| 10 |
CLS55 (GN-BU) |
18 |
LAMP - TURN REAR LEFT # SIGNAL OUT |
BU5T-14474-UA |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
VDB07 (VT-OG) |
18 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
BU5T-14474-UA |
