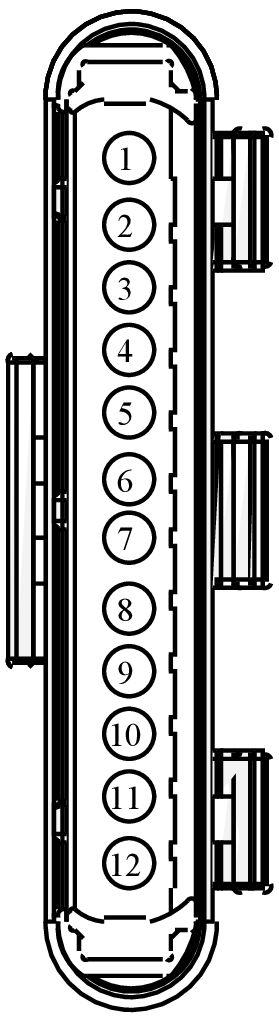

Connector End View (C4437) - SPLICE BLOCK 7
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4437 |
SPLICE BLOCK 7 |
13A409 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| FU5T-14474-ABA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
FU5T-14474-ABA |
| 2 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
FU5T-14474-ABA |
| 3 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
FU5T-14474-ABA |
| 4 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
FU5T-14474-ABA |
| 5 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
FU5T-14474-ABA |
| 6 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
FU5T-14474-ABA |
| 7 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
FU5T-14474-ABA |
| 8 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
FU5T-14474-ABA |
| 9 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
FU5T-14474-ABA |
| 10 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
FU5T-14474-ABA |
| 11 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
FU5T-14474-ABA |
| 12 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
FU5T-14474-ABA |
