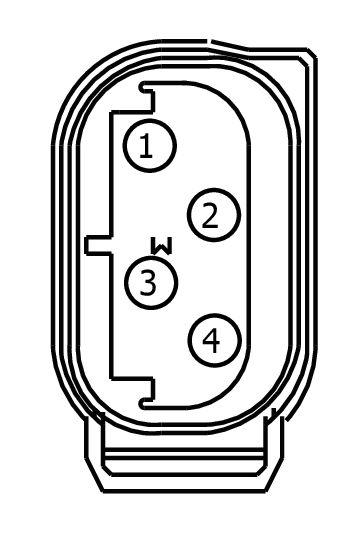

Connector End View (C4321) - TRAILER TIRE PRESSURE MONITOR SYSTEM (TPMS) MODULE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4321 |
TRAILER TIRE PRESSURE MONITOR SYSTEM (TPMS) MODULE |
14B242 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 98AG-14474-RFA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBB34 (VT-BN) |
20 |
FUSE - 34 OR CIRCUIT BREAKER |
98AG-14474-RFA |
| 2 |
RAT08 (WH) |
20 |
CTRL MOD. - TRAILER TOW # RETURN |
98AG-14474-RFA |
| 3 |
VDB27 (VT-GN) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 HIGH |
98AG-14474-RFA |
| 4 |
VDB28 (GY-VT) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 LOW |
98AG-14474-RFA |
