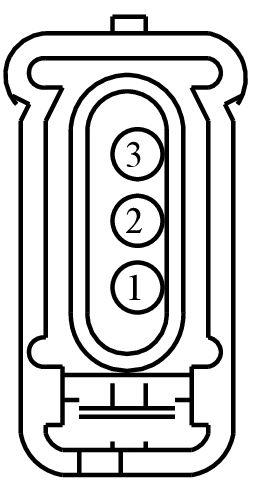

Connector End View (C4112) - PARK/STOP/TURN LAMP, LEFT REAR UPPER
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4112 | PARK/STOP/TURN LAMP, LEFT REAR UPPER | 13A409 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AEA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD477 (BU-BN) | 20 | GROUND - FRAME REAR LEFT #2 | 97BG-14474-AEA | ||||
| 2 | CLS05 (BU-GY) | 20 | CTRL MOD. - PARK LAMPS 1 | 97BG-14474-AEA | ||||
| 3 | CLS23 (GY-OG) | 20 | CTRL MOD. - TURN LAMP LEFT REAR | 97BG-14474-AEA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1025
Service Part Number:
6U2Z-14S411-AB
Gauge:
14
Pin material:
Tin
Cavities:
3
Vehicle Uses:
- Lamp - Front Park
- Lamp - Front Turn
- Lamp - Park/Turn
- Lamp - Park/Turn/Stop
- Lamp - Rear Park
- Lamp - Reverse
- Lamp - Stop
- Lamp - Stop/Park
- Switch - Park Brake
