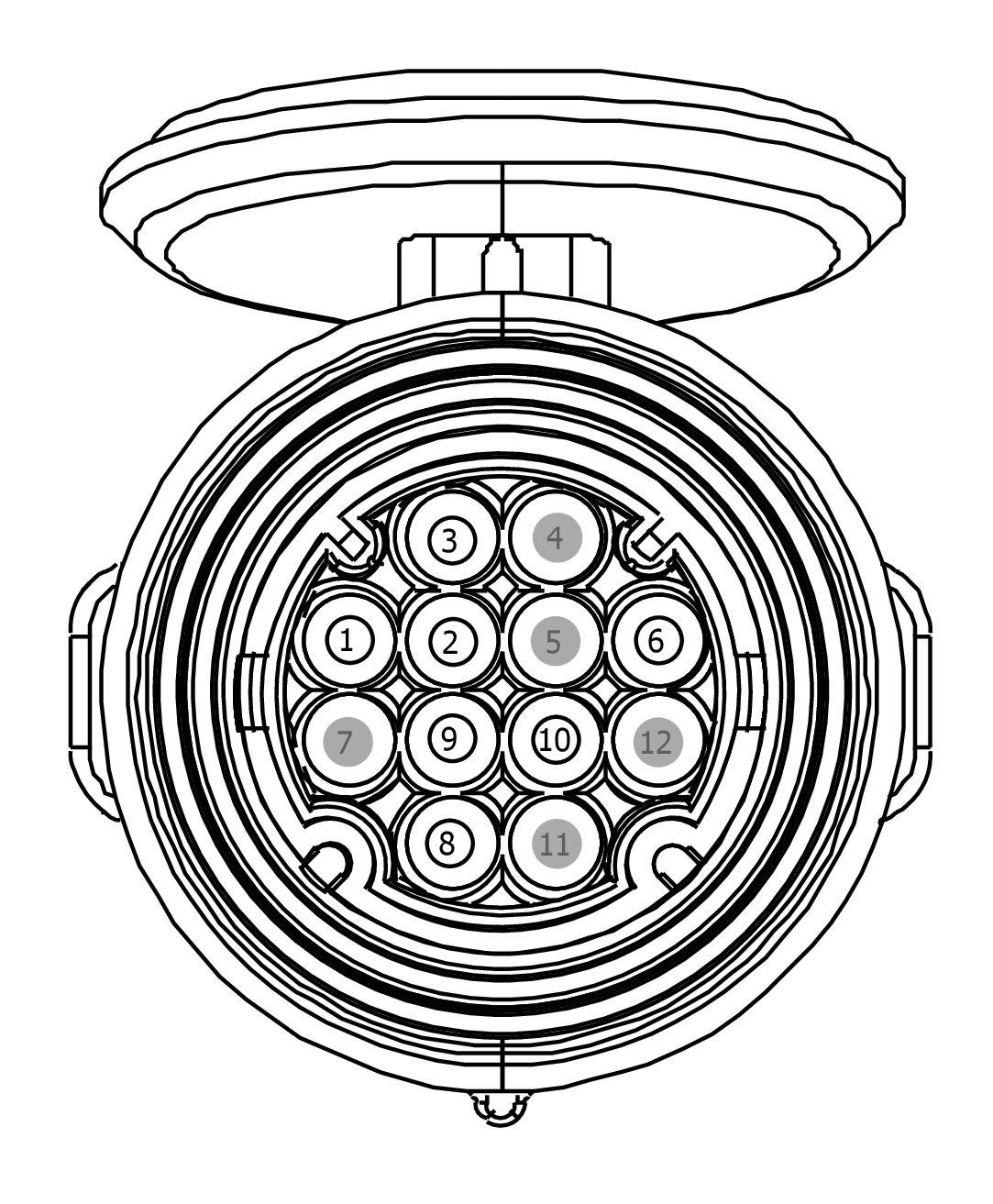

Connector End View (C4098B) - TRAILER CAMERA/TRAILER TPMS CONNECTOR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4098B |
TRAILER CAMERA/TRAILER TPMS CONNECTOR |
14B242 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBB34 (VT-BN) |
20 |
FUSE - 34 OR CIRCUIT BREAKER |
HU5T-14461-AB |
| 2 |
VDB27 (VT-GN) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 HIGH |
HU5T-14461-AB |
| 3 |
VDB28 (GY-VT) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 LOW |
HU5T-14461-AB |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
RAT08 (WH) |
20 |
CTRL MOD. - TRAILER TOW # RETURN |
HU5T-14461-AB |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
DMP43 (BK) |
20 |
SHIELD |
HU5T-14461-AB |
| 9 |
VMP43 (GN-BU) |
20 |
CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT + |
HU5T-14461-AB |
| 10 |
VMP44 (VT-GY) |
20 |
CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT - |
HU5T-14461-AB |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
