Connector End View (C4004) - INLINE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C4004 | INLINE | BK | 14B56214B562 | See Below | ||||

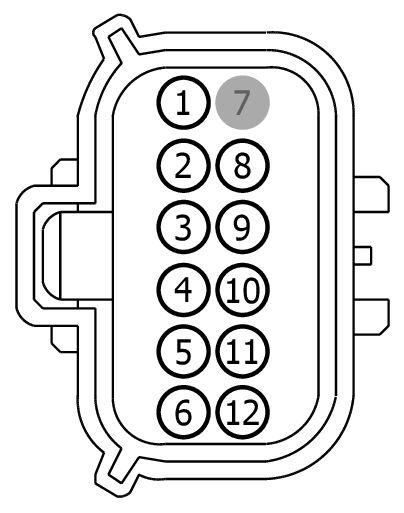

MALE
Harness
14B562

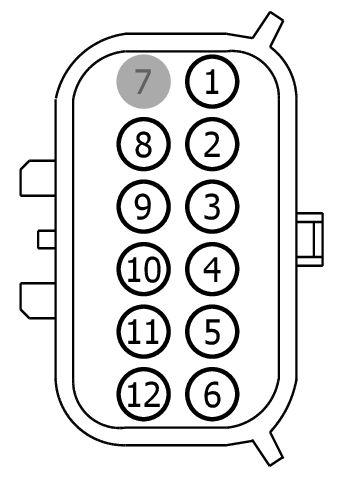

FEMALE
Harness
14B562
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| 2L1T-14421-CA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CPL60 (BN-YE) | 18 | BU5T-14421-HA | |||
| 2 | RPK08 (BN-VT) | 20 | 2L1T-14421-CA | |||
| 3 | VPK06 (GY-VT) | 20 | 2L1T-14421-CA | |||
| 4 | DMP43 (BK) | 18 | BU5T-14421-HA | |||
| 5 | VMP44 (VT-GY) | 18 | BU5T-14421-HA | |||
| 6 | VMP43 (GN-BU) | 18 | BU5T-14421-HA | |||
| 7 | * | * | N/A | |||
| 8 | GD477 (BU) | 18 | BU5T-14421-HA | |||
| 9 | GD477 (BU-GY) | 18 | BU5T-14421-HA | |||
| 10 | CLN06 (WH) | 18 | BU5T-14421-HA | |||
| 11 | VMP24 (WH) | 18 | BU5T-14421-HA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CPL60 (VT) | 20 | N/A | |||
| 2 | RPK08 (BN-VT) | 18 | N/A | |||
| 3 | VPK06 (RD) | 18 | N/A | |||
| 4 | DMP43 (BK) | 20 | N/A | |||
| 5 | VMP44 (VT-GY) | 20 | N/A | |||
| 6 | VMP43 (GN-BU) | 20 | N/A | |||
| 7 | * | * | N/A | |||
| 8 | GD477 (GN) | 20 | N/A | |||
| 9 | GD477 (BU-GY) | 20 | N/A | |||
| 10 | CLN06 (WH) | 20 | N/A | |||
| 11 | VMP24 (WH) | 20 | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1485
Service Part Number:
HU2Z-14S411-CA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1601
Service Part Number:
HU2Z-14S411-CB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Module - Anti-Lock Brake System
- Module - Wigwag Lamps
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
