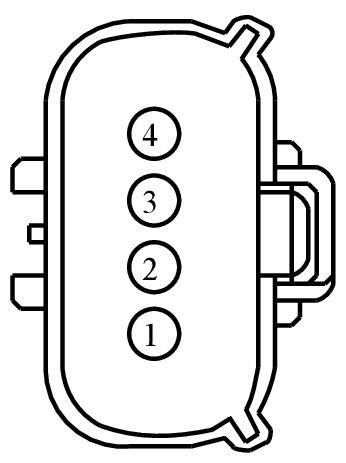

Connector End View (C3647) - SAFETY BELT BUCKLE AND INFLATOR, RIGHT REAR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3647 | SAFETY BELT BUCKLE AND INFLATOR, RIGHT REAR | 14A005 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7C3T-14474-GA | DU2Z-14474-DA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR181 (WH) | 20 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD + | 7C3T-14474-GA | ||||
| 2 | RR181 (BU-OG) | 20 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD - | 7C3T-14474-GA | ||||
| 3 | CR206 (BN) | 20 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD | 7C3T-14474-GA | ||||
| 4 | RR137 (BU-GY) | 20 | CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER - | 7C3T-14474-GA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1427
Service Part Number:
9U2Z-14S411-MB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
- Switch - Seatbelt
Pigtail Kit Part Number WPT-940
Service Part Number:
9U2Z-14S411-MA
Gauge:
14
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Pretensioner - Seat Belt (Passenger)
