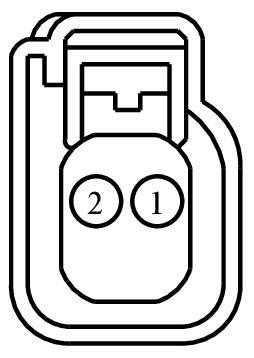

Connector End View (C3612) - REDUCTANT PRESSURE LINE HEATER ASSEMBLY
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3612 | REDUCTANT PRESSURE LINE HEATER ASSEMBLY | BK | 14D378 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | 118 (WH) | 16 | REDUCTANT HEATER CONTROL 2 (RDHTRC2) | N/A | ||||
| 2 | 117 (BK) | 16 | GROUND - FRAME REAR LEFT | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1052
Service Part Number:
3U2Z-14S411-JLB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
2
