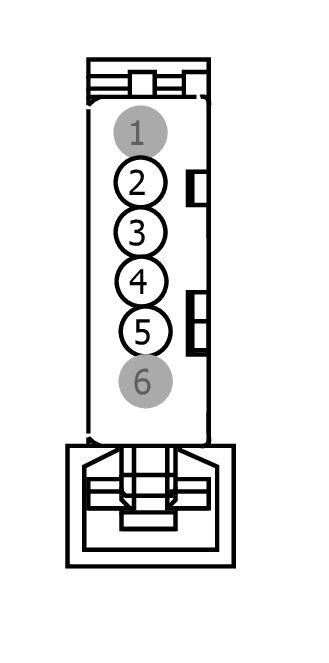

Connector End View (C3513) - LANE DEPARTURE SWITCH
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3513 | LANE DEPARTURE SWITCH | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | CMP40 (VT) | 22 | #N/A | 3F2T-14474-SA | ||||
| 3 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | 3F2T-14474-SA | ||||
| 4 | CRB05 (GN-OG) | 22 | SWITCH - LANE DEPARTURE WARNING (LDW) | 3F2T-14474-SA | ||||
| 5 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 3F2T-14474-SA | ||||
| 6 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1553
Service Part Number:
JU2Z-14S411-ZA
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Front
- Switch - Hazard Warning
- Switch - Lane Keeping System
- Switch - Start/Stop
