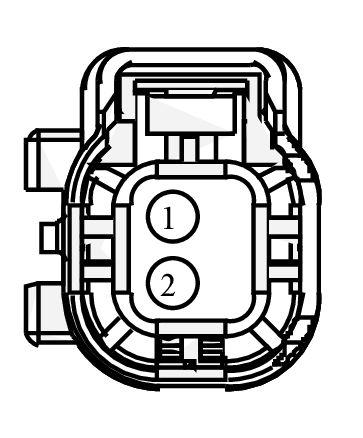

Connector End View (C3455) - REDUCTANT INJECTOR
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3455 |
REDUCTANT INJECTOR |
14406 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 7U5T-14474-XA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VE350 (GY) |
18 |
CTRL MOD. - POWERTRAIN # REDUCTANT INJECTOR METERING VALVE MINUS (RDMV-) |
7U5T-14474-XA |
| 2 |
VE351 (VT-OG) |
18 |
CTRL MOD. - POWERTRAIN # REDUCTANT INJECTOR METERING VALVE PLUS (RDMV+) |
7U5T-14474-XA |
