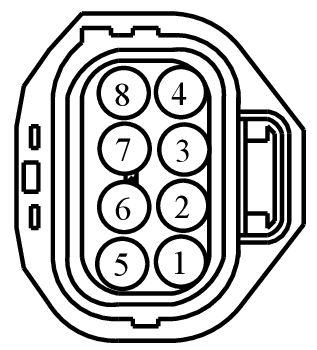

Connector End View (C3450) - REDUCTANT PUMP CONTROL MODULE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3450 | REDUCTANT PUMP CONTROL MODULE | DK GY | 14D378 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | 113 (BK) | 16 | GND | N/A | ||||
| 2 | 108 (YE) | 16 | Reductant Pump Phase B (RDPBP) | N/A | ||||
| 3 | 116 (BN) | 20 | RDPM | N/A | ||||
| 4 | 112 (BU) | 20 | RDPC | N/A | ||||
| 5 | 115 (WH) | 16 | VPWR | N/A | ||||
| 6 | 107 (WH) | 16 | Reductant Pump Phase A (RDPAP) | N/A | ||||
| 7 | 114 (BU) | 16 | Reductant Pump Phase C (RDPCP) | N/A | ||||
| 8 | 111 (BK) | 16 | SHIELD | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-521
Service Part Number:
3U2Z-14S411-TZA
Gauge:
12
Pin material:
Tin
Cavities:
8
Vehicle Uses:
- Fuel Pump/Sending Unit
- Motor - Power Window - LH - Front
- Motor - Power Window - LH - Rear
- Motor - Power Window - RH - Front
- Motor - Power Window - RH - Rear
- Relay - Fuel Pump
