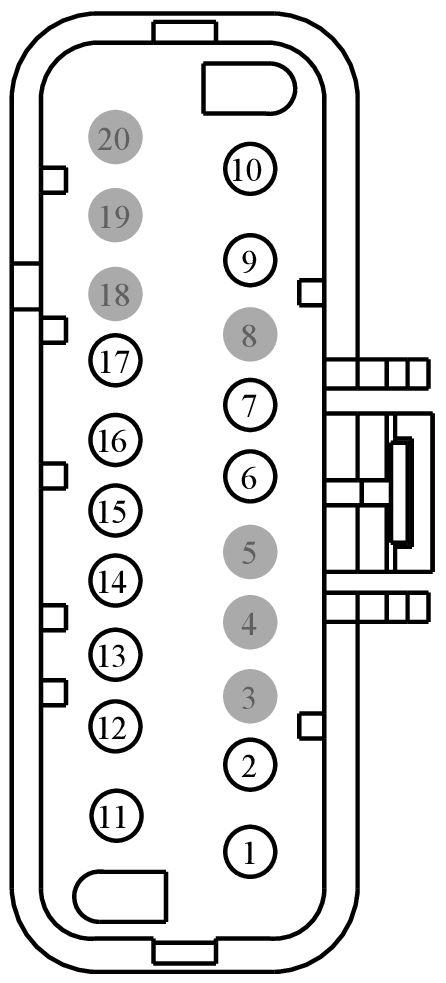

Connector End View (C3387) - SEAT CONTROL SWITCH, DRIVER SIDE
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3387 |
SEAT CONTROL SWITCH, DRIVER SIDE |
14D231 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CPS96 (WH-OG) |
18 |
SWITCH - SEAT MULTICONTOUR # LESS (LLS) |
N/A |
| 2 |
CPS18 (BN-GN) |
20 |
SWITCH - DRIVER LUMBAR PUMP |
N/A |
| 2 |
CPS95 (GN-VT) |
18 |
SWITCH - SEAT MULTICONTOUR # MORE (LMR) |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
CPS19 (GY-VT) |
20 |
SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE |
N/A |
| 7 |
CPS30 (VT-BN) |
16 |
SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD |
N/A |
| 7 |
CPS30 (VT-BN) |
18 |
SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
CPS29 (WH-BN) |
16 |
SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD |
N/A |
| 9 |
CPS29 (WH-BN) |
18 |
SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD |
N/A |
| 10 |
CBX05 (VT-RD) |
16 |
POWER - SEAT # POWER SEAT SWITCH |
N/A |
| 10 |
CBX04 (WH-RD) |
18 |
POWER - SEAT # MEMORY MODULE HIGH CURRENT |
N/A |
| 11 |
GD904 (BK-BU) |
16 |
GROUND - DRIVER SEAT # SEAT SWITCH |
N/A |
| 12 |
CPS27 (BU-BN) |
16 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP |
N/A |
| 12 |
CPS27 (BU-BN) |
18 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP |
N/A |
| 13 |
CPS26 (YE-BU) |
16 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN |
N/A |
| 13 |
CPS26 (YE-BU) |
18 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN |
N/A |
| 14 |
CPS28 (GN) |
16 |
SWITCH - SEAT ADJUST. DRIVER REARWARD |
N/A |
| 14 |
CPS28 (GN) |
18 |
SWITCH - SEAT ADJUST. DRIVER REARWARD |
N/A |
| 15 |
CPS23 (GN-VT) |
16 |
SWITCH - SEAT ADJUST. DRIVER FORWARD |
N/A |
| 15 |
CPS23 (GN-VT) |
18 |
SWITCH - SEAT ADJUST. DRIVER FORWARD |
N/A |
| 16 |
CPS25 (WH-VT) |
16 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP |
N/A |
| 16 |
CPS25 (WH-VT) |
18 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) UP |
N/A |
| 17 |
CPS24 (GY) |
16 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN |
N/A |
| 17 |
CPS24 (GY) |
18 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT (TILT) DOWN |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
* |
* |
Not Used |
N/A |
