Connector End View (C3265C) - FRONT SEAT CLIMATE CONTROL MODULE (SCME)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3265C	FRONT SEAT CLIMATE CONTROL MODULE (SCME)	BK	14D230	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14E047-UA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	NA
2	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	BU5T-14E047-UA
3	VHS23 (BN-BU)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL	BU5T-14E047-UA
4	VHS21 (BU-WH)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL	BU5T-14E047-UA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	RHS08 (VT-WH)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN -	BU5T-14E047-UA
8	CHS08 (BN-YE)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN +	BU5T-14E047-UA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VHS18 (BN-GN)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL	BU5T-14E047-UA
12	CHS09 (GY)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR LOW	NA
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	RHS03 (GY-OG)	18	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN -	NA
16	CHS03 (GN-BN)	18	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN +	BU5T-14E047-UA

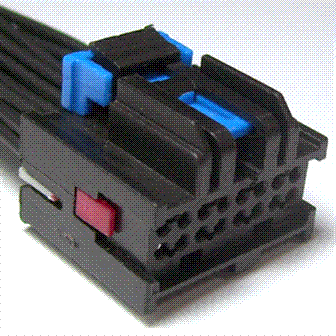

Available Pigtail Kits

Pigtail Kit Part Number WPT-1165

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BGA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Climate Control Seat
