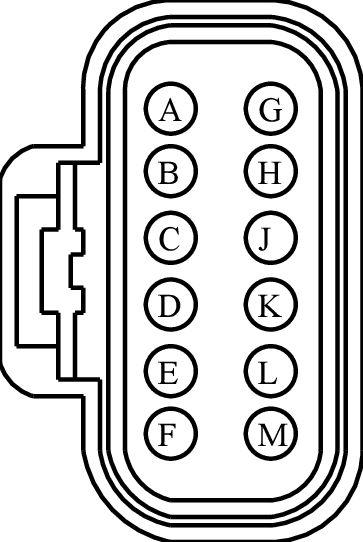

Connector End View (C3265A) - DUAL CLIMATE CONTROLLED SEAT MODULE (DCSM)

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3265A	DUAL CLIMATE CONTROLLED SEAT MODULE (DCSM)	BK	14D230	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
A	CHS07 (GY-BU)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +	N/A
B	RHS07 (BU)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER -	N/A
C	CHS06 (BU-BN)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER +	N/A
D	RHS06 (WH)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER -	N/A
E	CBX01 (GN-RD)	14	POWER - SEAT # RUN/START	N/A
F	CBX01 (GN-RD)	14	POWER - SEAT # RUN/START	N/A
G	CHS02 (YE-BU)	14	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +	N/A
H	RHS02 (BU-OG)	14	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER -	N/A
J	CHS01 (GY-VT)	14	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER +	N/A
K	RHS01 (WH-VT)	14	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER -	N/A
L	GD904 (BK-BU)	14	GROUND - PASSENGER SEAT # SEAT SWITCH	N/A
M	GD904 (BK-BU)	14	GROUND - PASSENGER SEAT # SEAT SWITCH	N/A

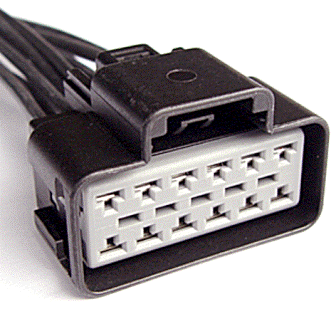

Available Pigtail Kits

Pigtail Kit Part Number WPT-928

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-ZMB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Climate Control Seat
Switch - Seat (driver)
Switch - Seat (passenger)
