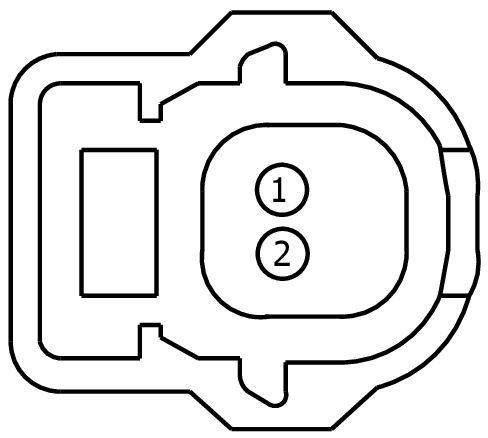

Connector End View (C3248) - IMPACT SENSOR, DRIVER SECOND ROW

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3248	IMPACT SENSOR, DRIVER SECOND ROW	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-CA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VR217 (GY-YE)	18	SENSOR - SIDE IMPACT FRONT DRIVER SIDE	EU5T-14474-CA
2	RR131 (VT-GY)	18	CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE -	EU5T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Sensor - Crash (Engine Compartment)
Sensor - Seat Track Position
Sensor - Side Impact
Solenoid - Down Shift
Solenoid - Torque Control Coupling
Valve - Heated PCV
Valve - Heater Core Shut Off
Valve - Transmission Fluid Warmer
