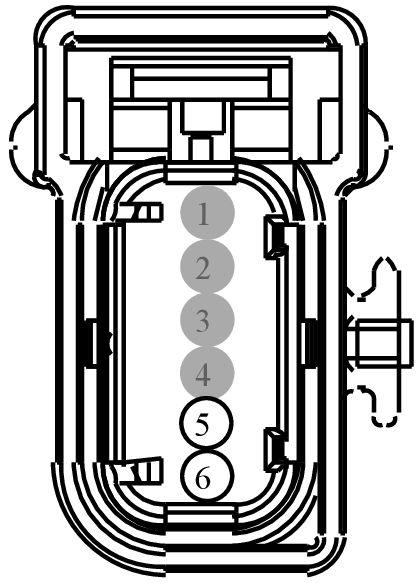

Connector End View (C3201) - SAFETY BELT BUCKLE, DRIVER
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3201 | SAFETY BELT BUCKLE, DRIVER | 14D231 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| S-GD901 | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | CR201 (GN-BU) | 18 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE | S-GD901 | ||||
| 6 | GD901 (BK) | 18 | GROUND - PASSENGER SEAT # RESTRAINTS CLEAN | S-GD901 | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1329
Service Part Number:
DU2Z-14S411-EA
Gauge:
20
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Antenna - Keyless Entry
- Handle - Decklid
- Switch - Keyless Entry
- Switch - Seatbelt
