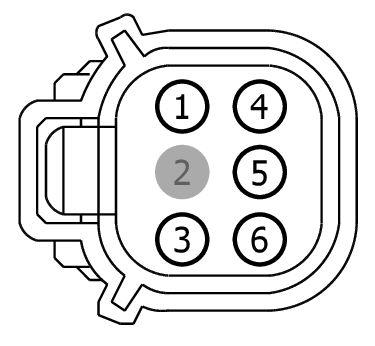

Connector End View (C3185) - RUNNING BOARD MOTOR, LEFT

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3185	RUNNING BOARD MOTOR, LEFT	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-EA	DU2Z-14474-DA	1.5
BU5T-14474-UA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPR42 (WH)	18	CTRL MOD. - POWER RUNNING BOARDS # DRIVER STOW	7C3T-14474-EA
2	*	*	Not Used	N/A
3	CPR41 (BU-WH)	18	CTRL MOD. - POWER RUNNING BOARDS # DRIVER DEPLOY	7C3T-14474-EA
4	CPR47 (GY-BN)	22	CTRL MOD. - POWER RUNNING BOARDS # SENSOR +	BU5T-14474-UA
5	VPR43 (GY-BU)	22	SENSOR - POWER RUNNING BOARDS # DRIVER POSITION	BU5T-14474-UA
6	RPR47 (BU-GN)	22	CTRL MOD. - POWER RUNNING BOARDS # SENSOR -	BU5T-14474-UA

Available Pigtail Kits

Pigtail Kit Part Number WPT-971

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FEAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Lamp - Headlamp - High/Low Beam
Lamp - Park/Turn/Stop
Motor - Engine Cooling Fan
Motor - Running Board
